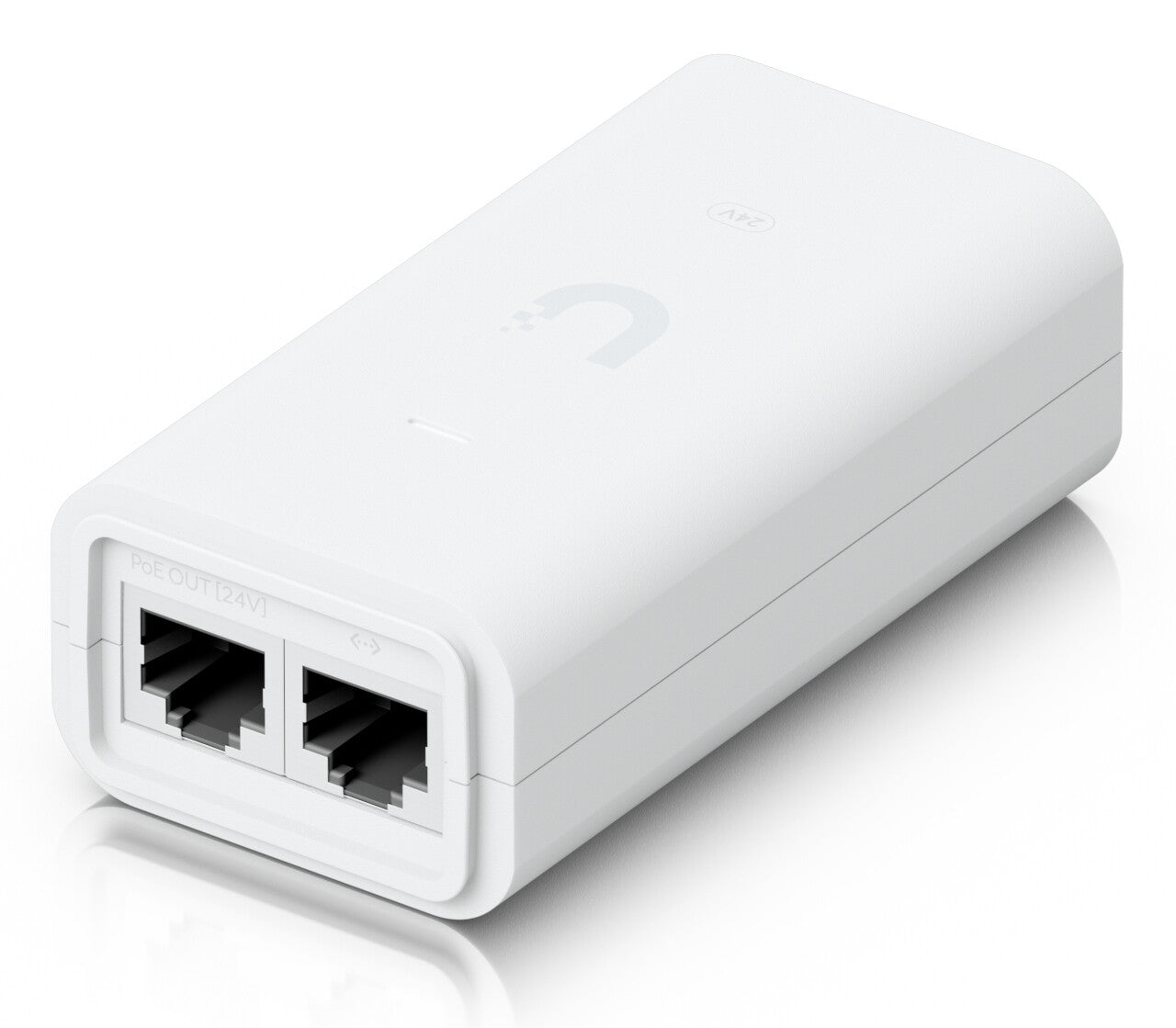

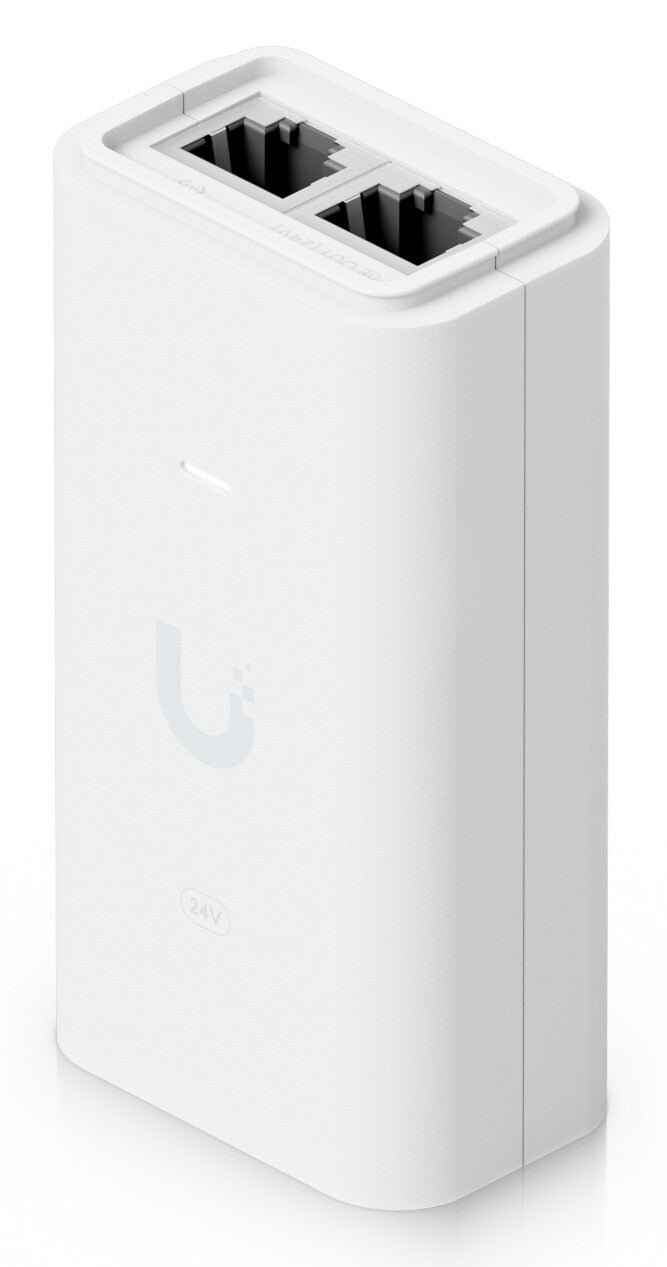

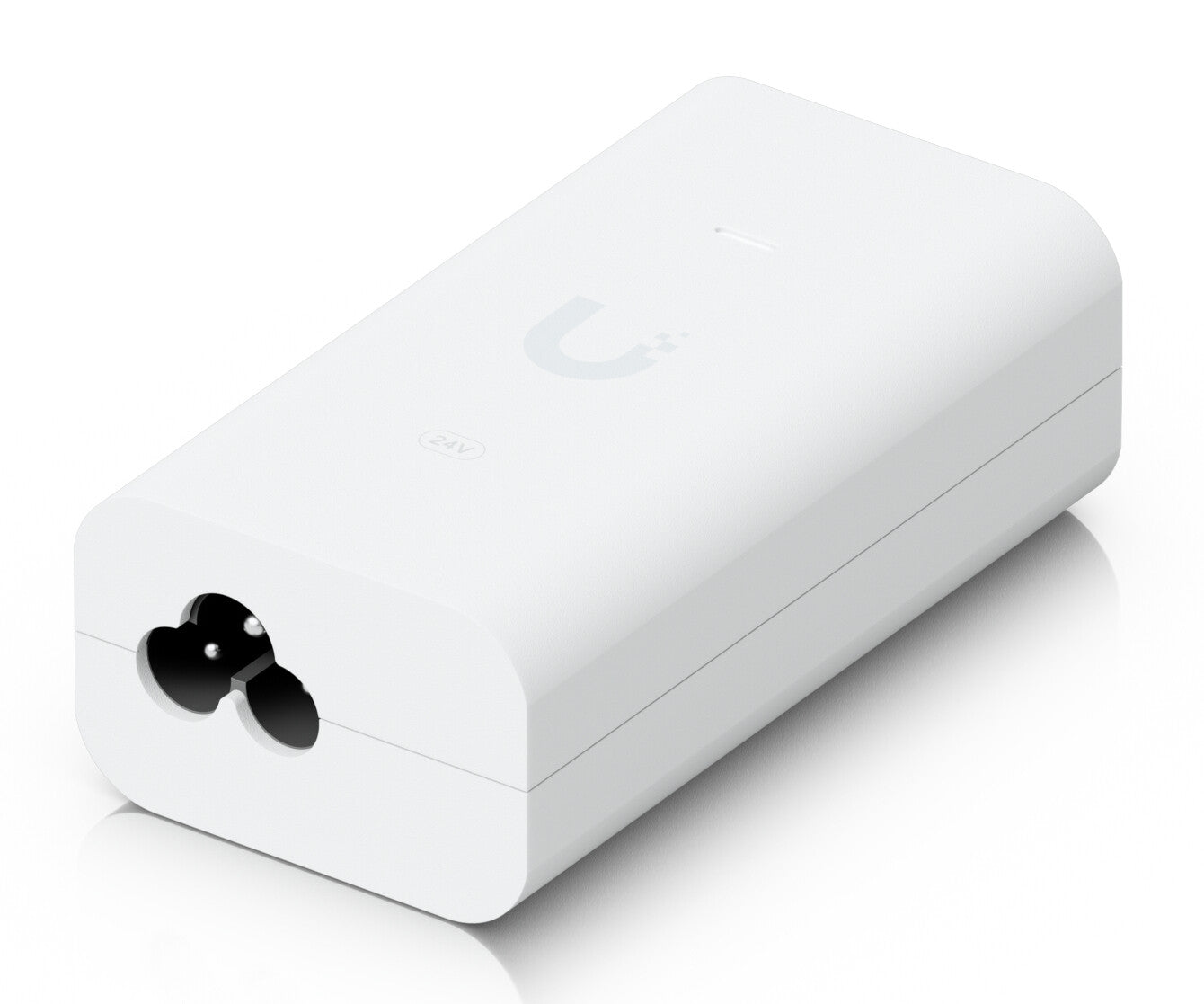

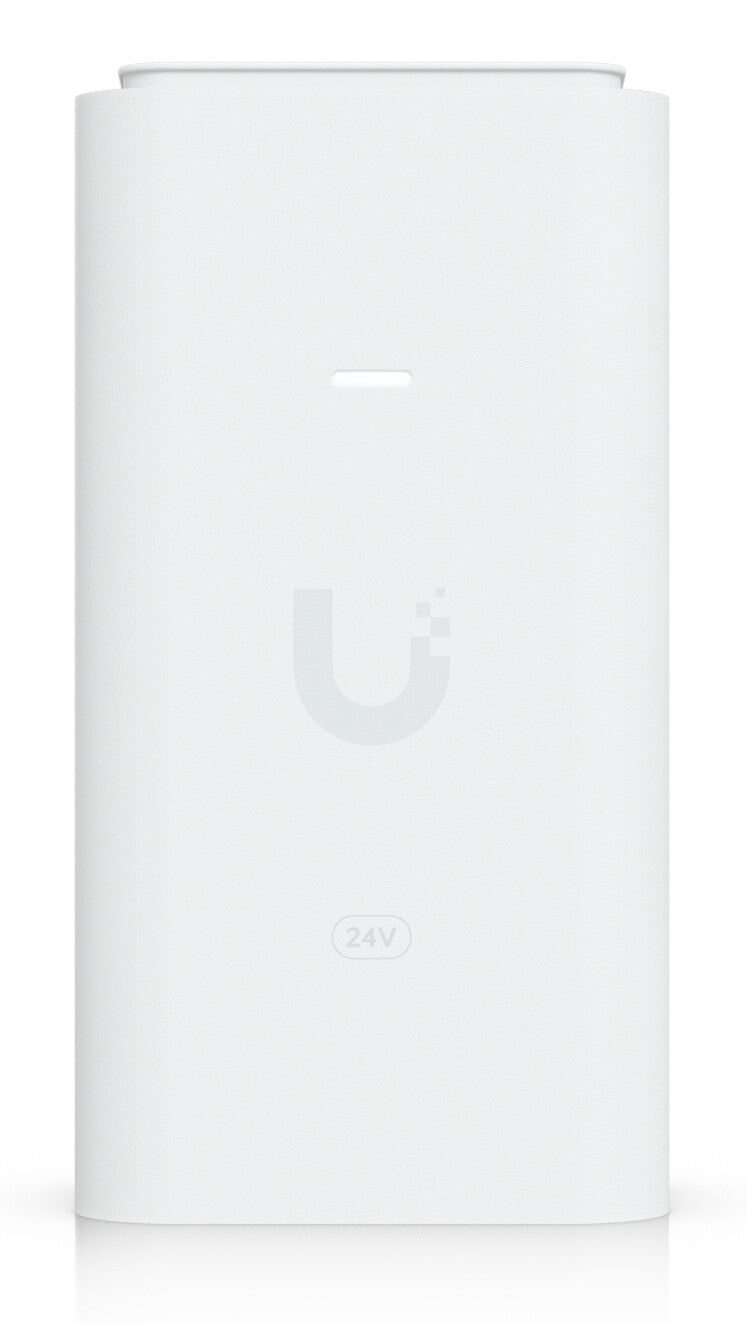

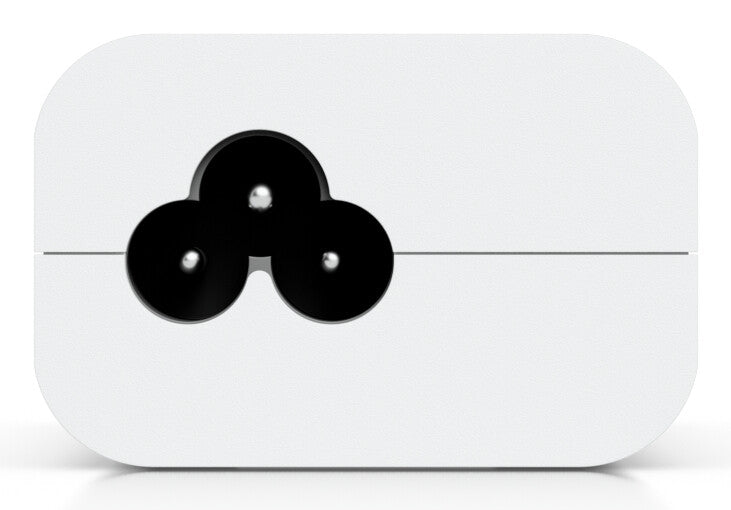

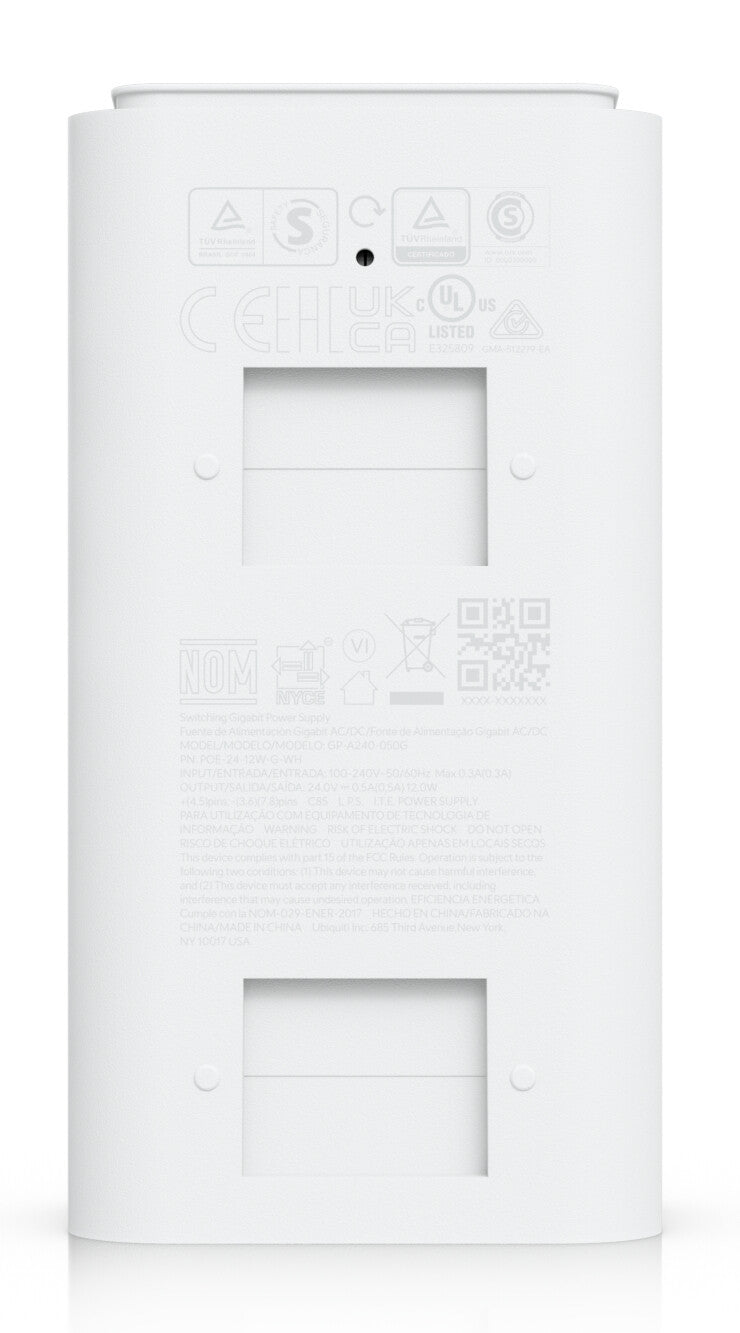

Ubiquiti UACC-Adapter-PoE-24-12W 2.5 Gigabit Ethernet 24 V
iFrame
£15.99
Couldn't load pickup availability
- 10,100,1000,2500 Mbit/s
- Power over Ethernet (PoE)
- White
A 12W PoE adapter with 2.5 GbE connectivity
| Network | |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Features | |
|---|---|
| Product colour | White |
| Surge protection | Yes |
| LED indicators | Yes |
| Power protection features | Over current, Peak pulse, Surge protection |
| Ports & interfaces | |
|---|---|

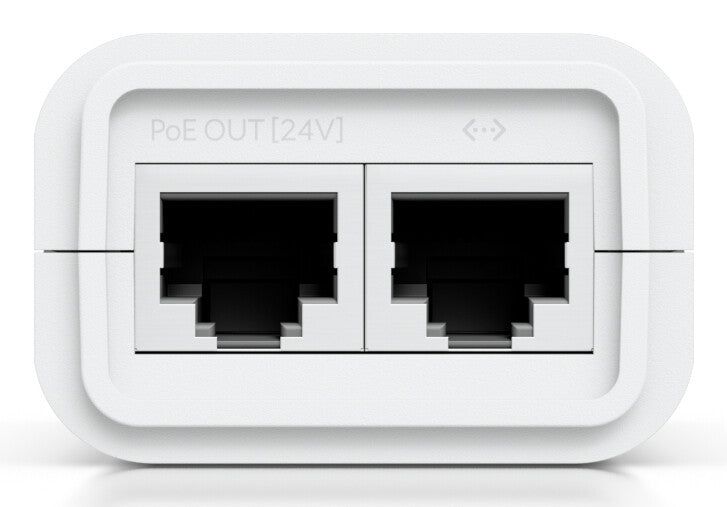

| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power over Ethernet (PoE) voltage | 24 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 0.2 A |
| Output current | 0.5 A |
| Inrush current | 60 A |
| Power consumption (max) | 0.1 W |
| Efficiency | 82.96% |
| Switching frequency | 50 kHz |
| Total Power over Ethernet (PoE) budget | 12 W |
| Line regulation | 3% |
| Load regulation | 5% |
| Response time | 1 ns |
| Certificates | |
|---|---|
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA), PSE, UL |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -30 - 70 °C |
| Weight & dimensions | |
|---|---|
| Width | 46 mm |
| Depth | 33 mm |
| Height | 89 mm |
| Weight | 100 g |
| Packaging content | |
|---|---|
| Number of products included | 1 pc(s) |
