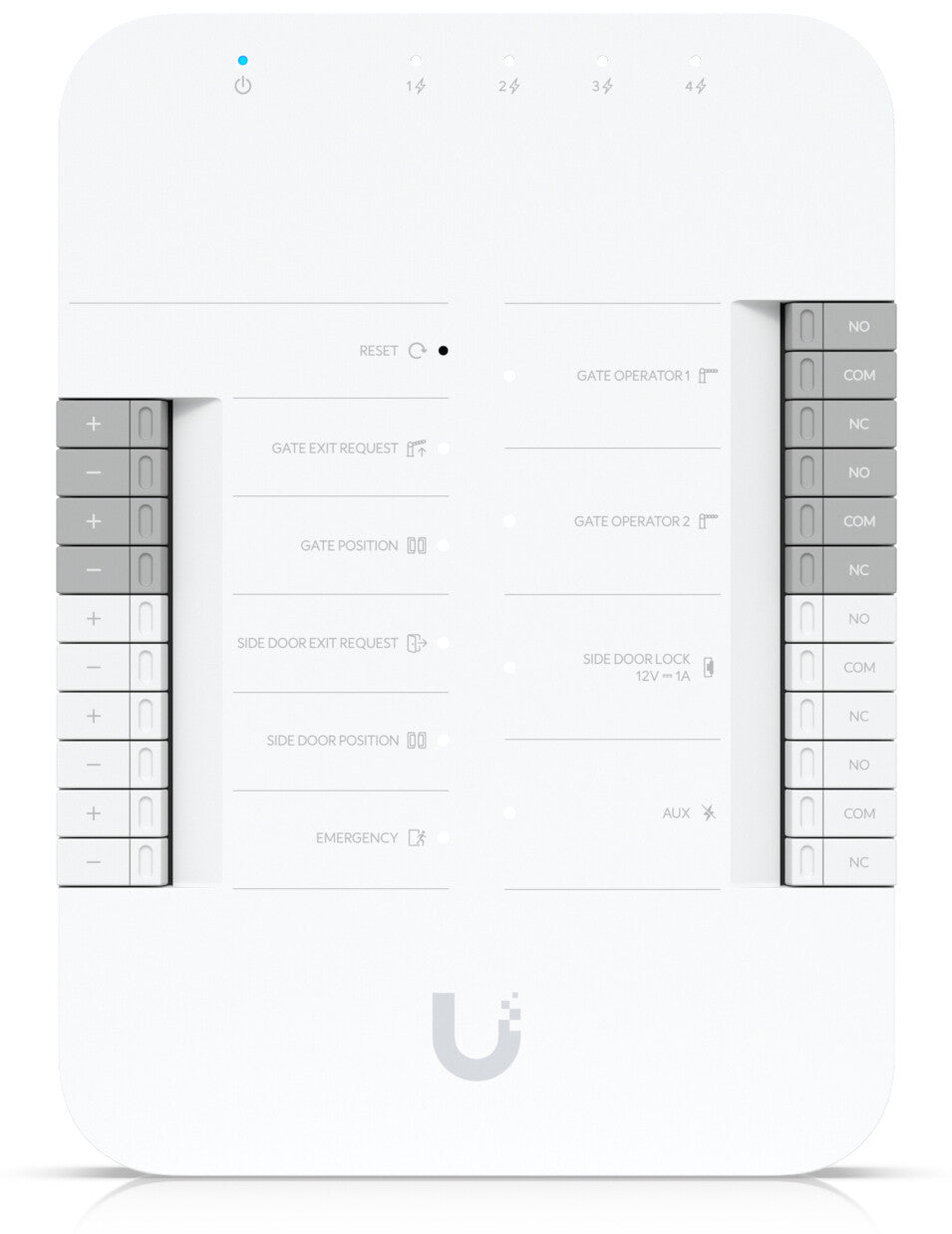

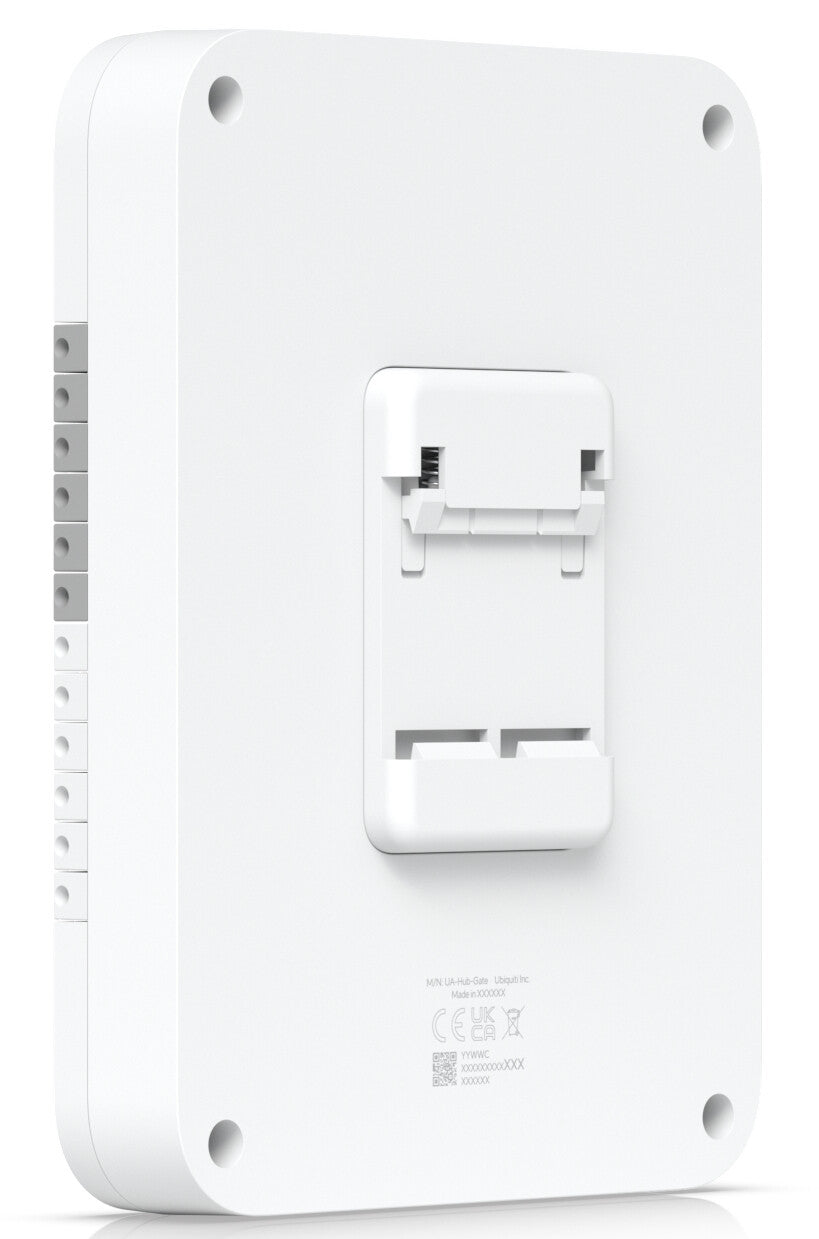

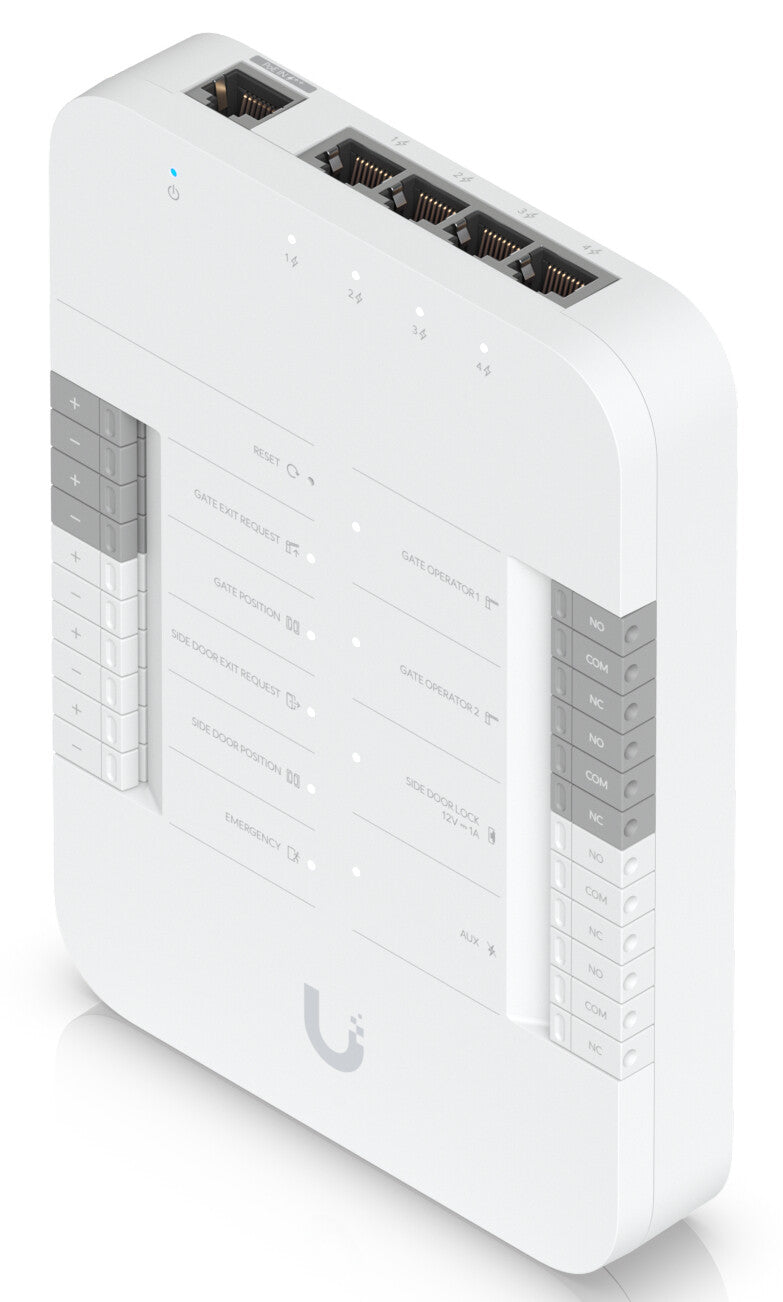

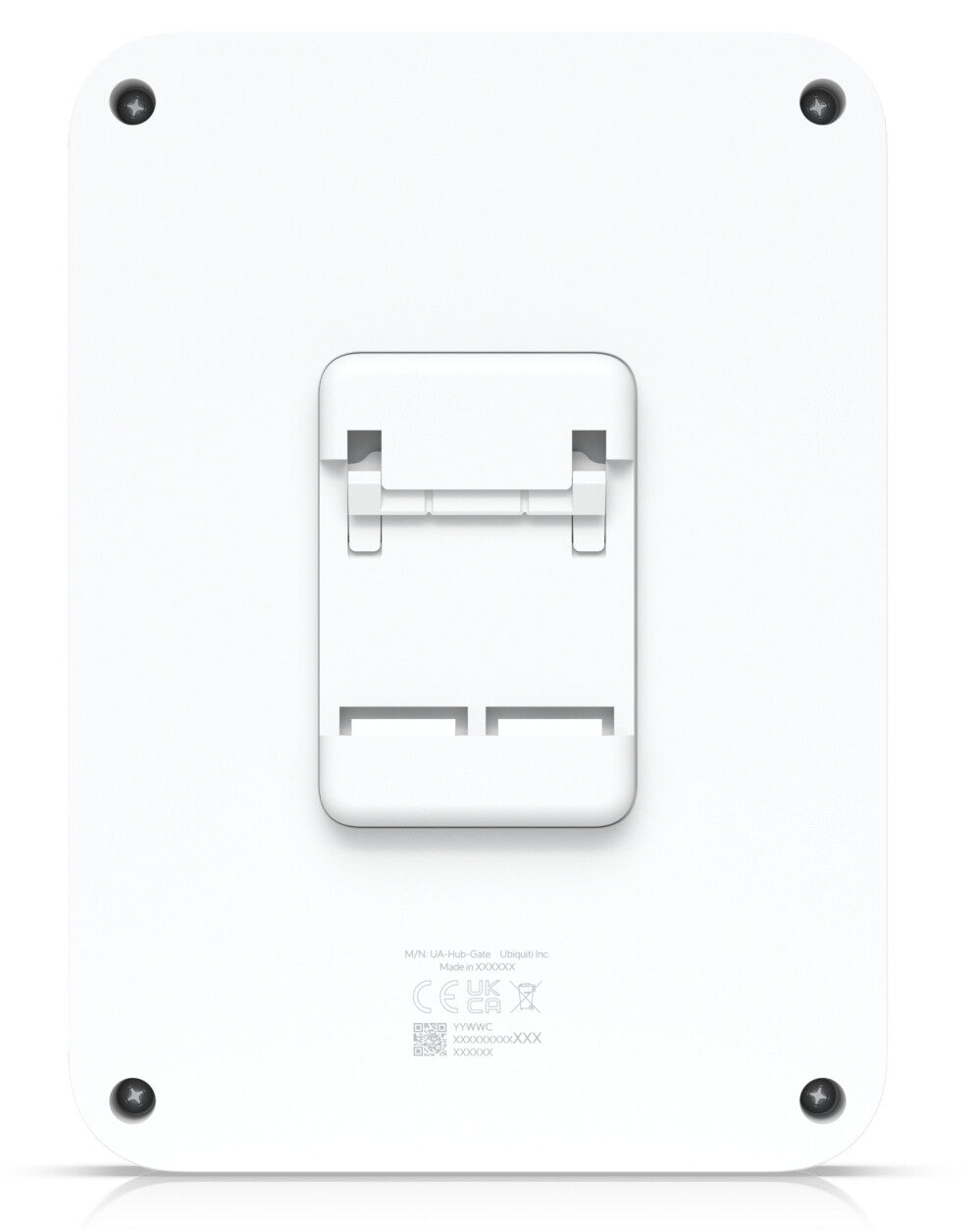

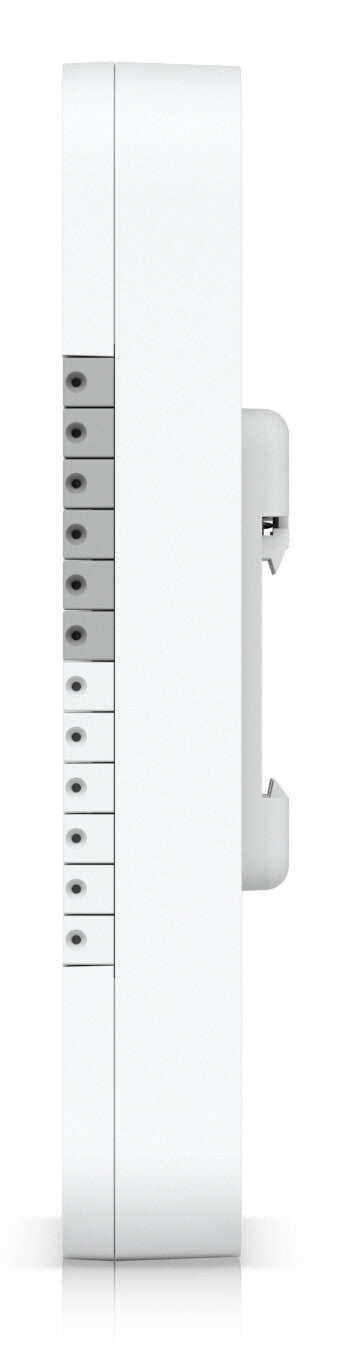

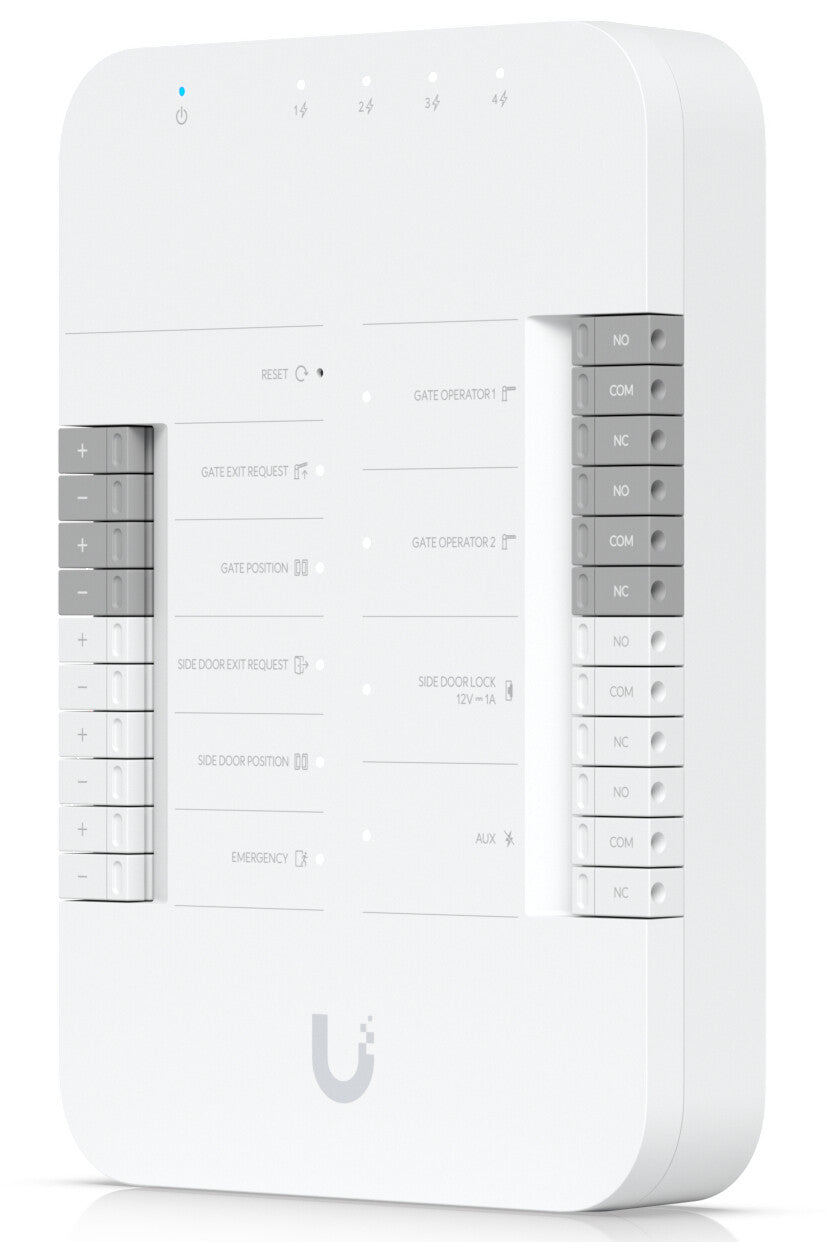

Ubiquiti Gate Hub security door controller Housing Ethernet
iFrame
£249.99
Couldn't load pickup availability
- (2) Gate operator terminals (dry)
- (1) Lock terminal (12V) for side door
- (1) AUX terminal for an external siren
- (5) Additional inputs (sensors and emergency)
- License plate unlock (when paired with AI Camera)

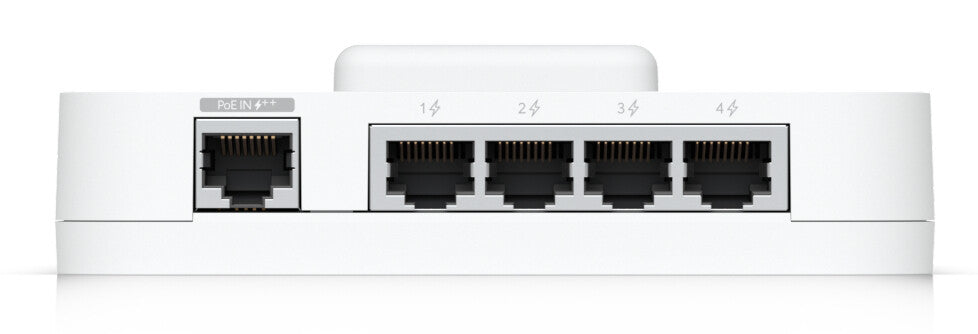

- Connect and power using PoE++
- Connect up to four UniFi Access readers or UniFi Protect cameras
An advanced Gate Hub enabling seamless gate access control via connected Access readers or Intercom.
| Technical details | |
|---|---|
| Case design | Housing |
| Built-in UPS | No |
| Interface | Ethernet |
| LED indicators | Yes |
| Exit request | Yes |
| Performance | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Number of built-in relays | 3 |
| Certification | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Power | |
|---|---|
| Operating voltage | 50 V |
| Operating current | 1 A |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 460 g |
| Height | 175 mm |
| Depth | 26 mm |
| Width | 126 mm |
