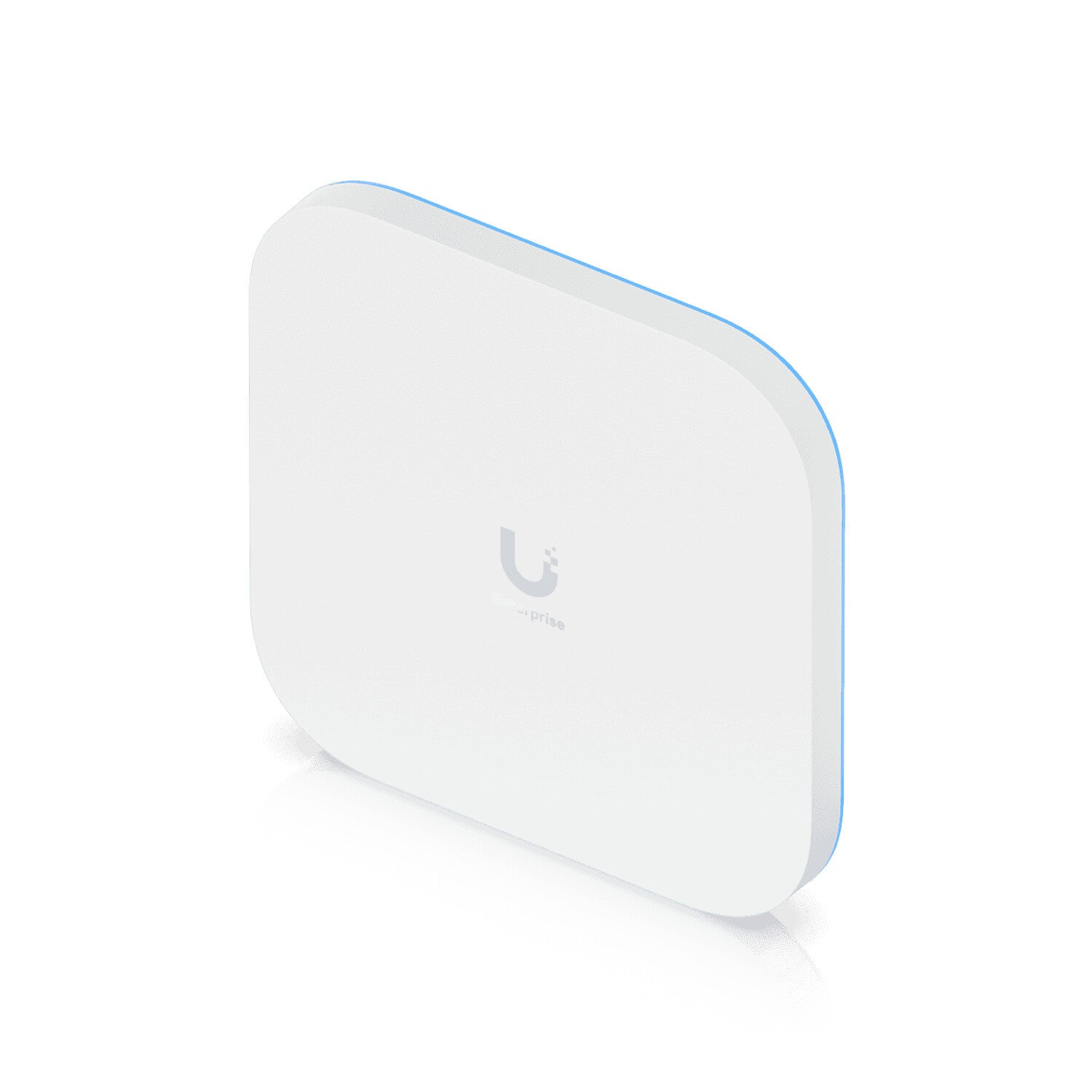

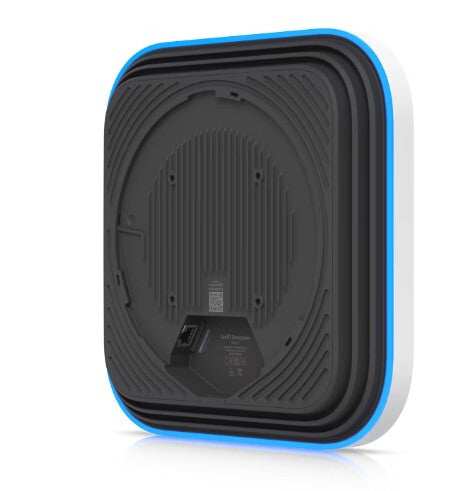

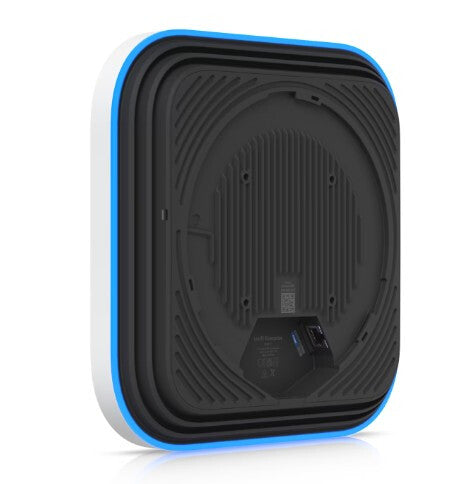

Ubiquiti E7 wireless access point 11500 Mbit/s White Power over Ethernet (PoE)
iFrame
£544.99
Couldn't load pickup availability
- 2.4 GHz 688 Mbit/s
- 5 GHz 8600 Mbit/s
- 6 GHz 11500 Mbit/s
- Maximum data transfer rate: 11500 Mbit/s
- IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11n
- PPSK
- Power over Ethernet (PoE)
- Internal
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 6 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 11500 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (6 GHz) | 11500 Mbit/s |
| Maximum data transfer rate (5 GHz) | 8600 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11n |
| Coverage area | 185 m² |
| MIMO | Yes |
| Spatial streams | 10 |
| MIMO type | Multi User MIMO |
| Fit AP mode features | Hotspot 2.0 |
| Fast roaming | Yes |
| Wireless meshing | Yes |
| Band steering | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 30 dBmW |
| Maximum Tx power (6 GHz) | 30 dBmW |
| Security | |
|---|---|
| Security algorithms | PPSK |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 42.5 - 57 V |
| Power consumption (typical) | 43 W |
| Design | |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Housing material | Aluminium, Polycarbonate (PC) |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Weight & dimensions | |
|---|---|
| Width | 250 mm |
| Depth | 250 mm |
| Height | 43.5 mm |
| Weight | 1.8 kg |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 50 °C |
