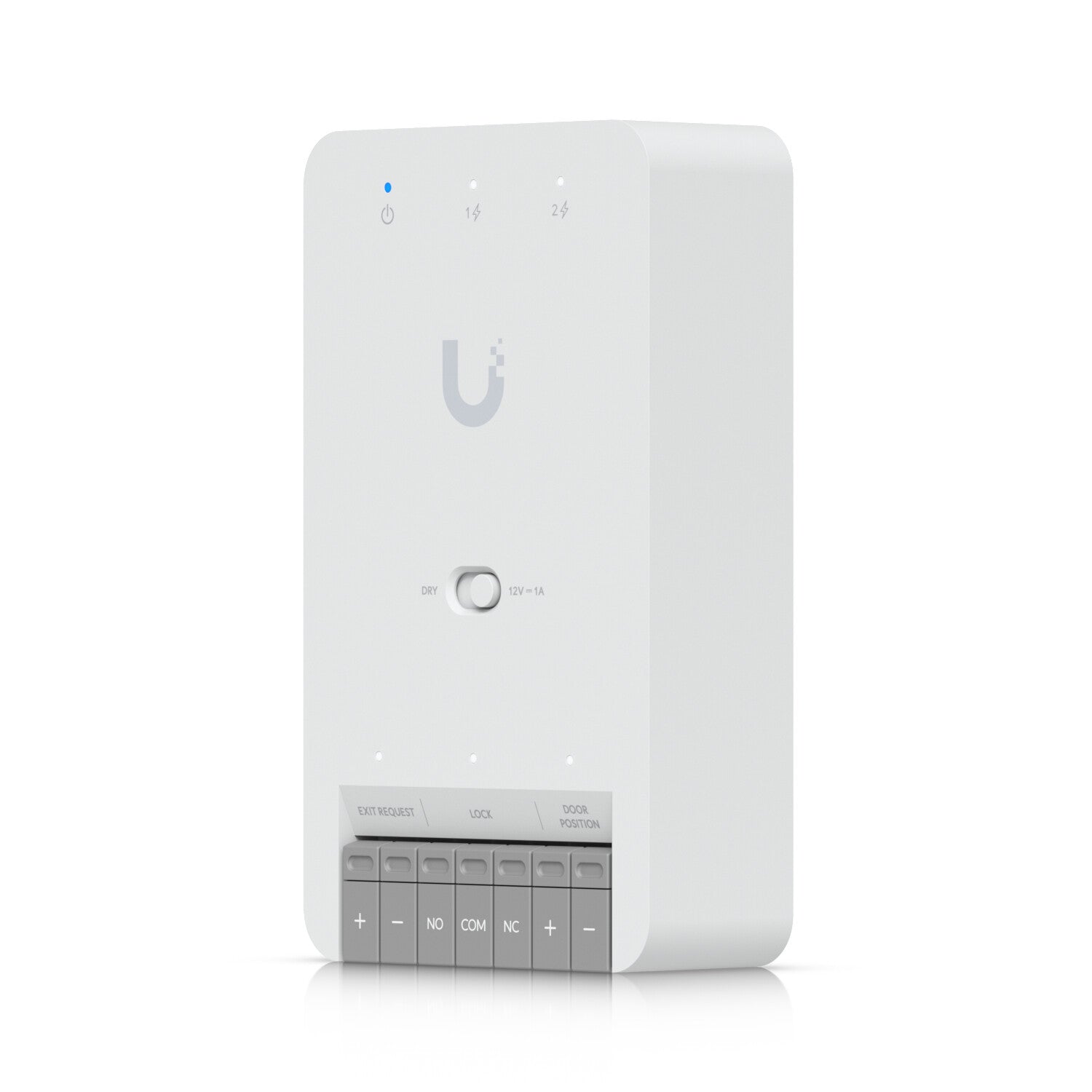

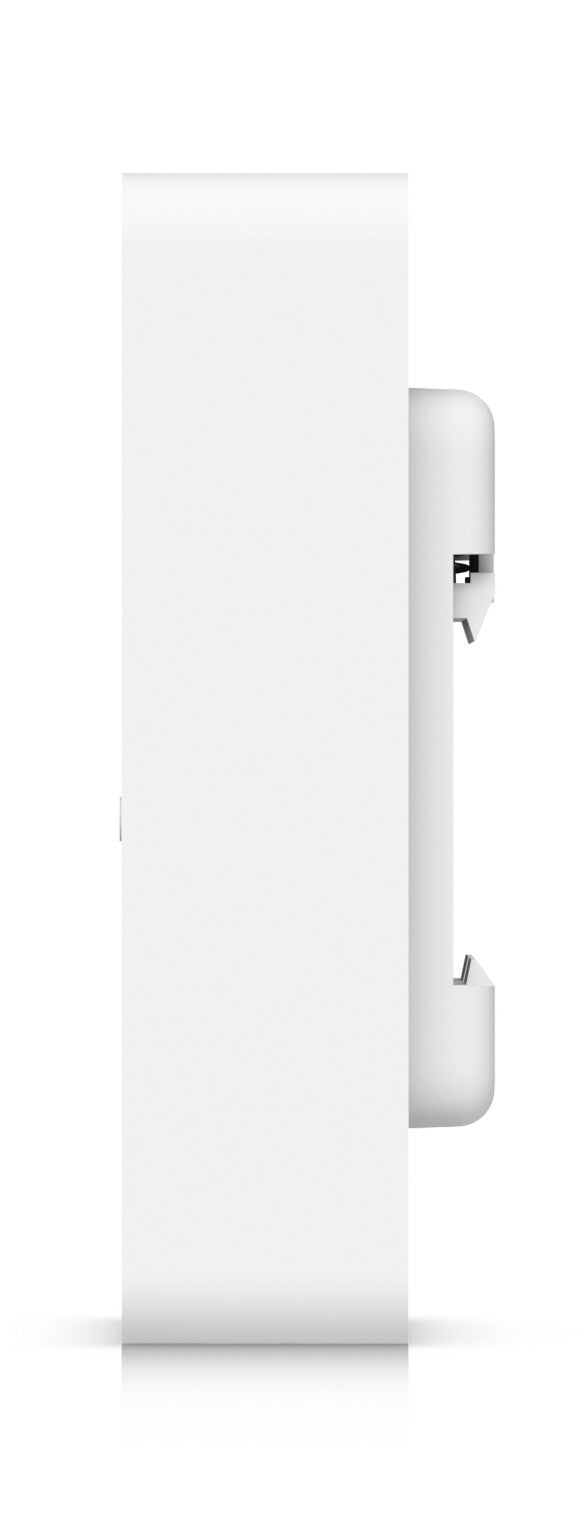

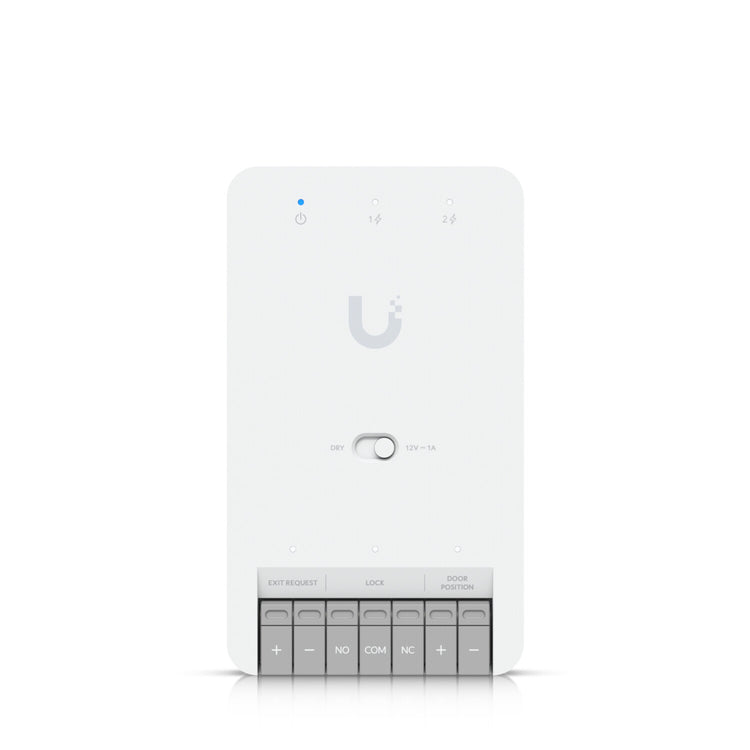

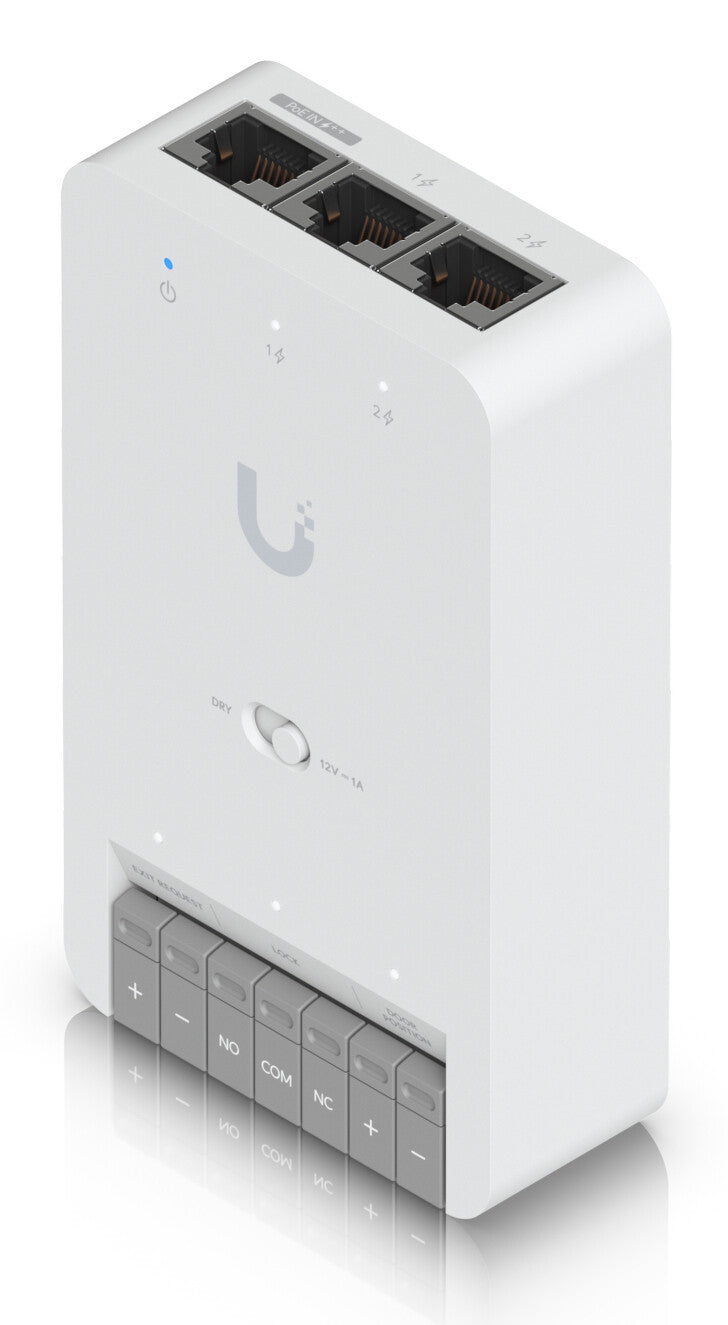

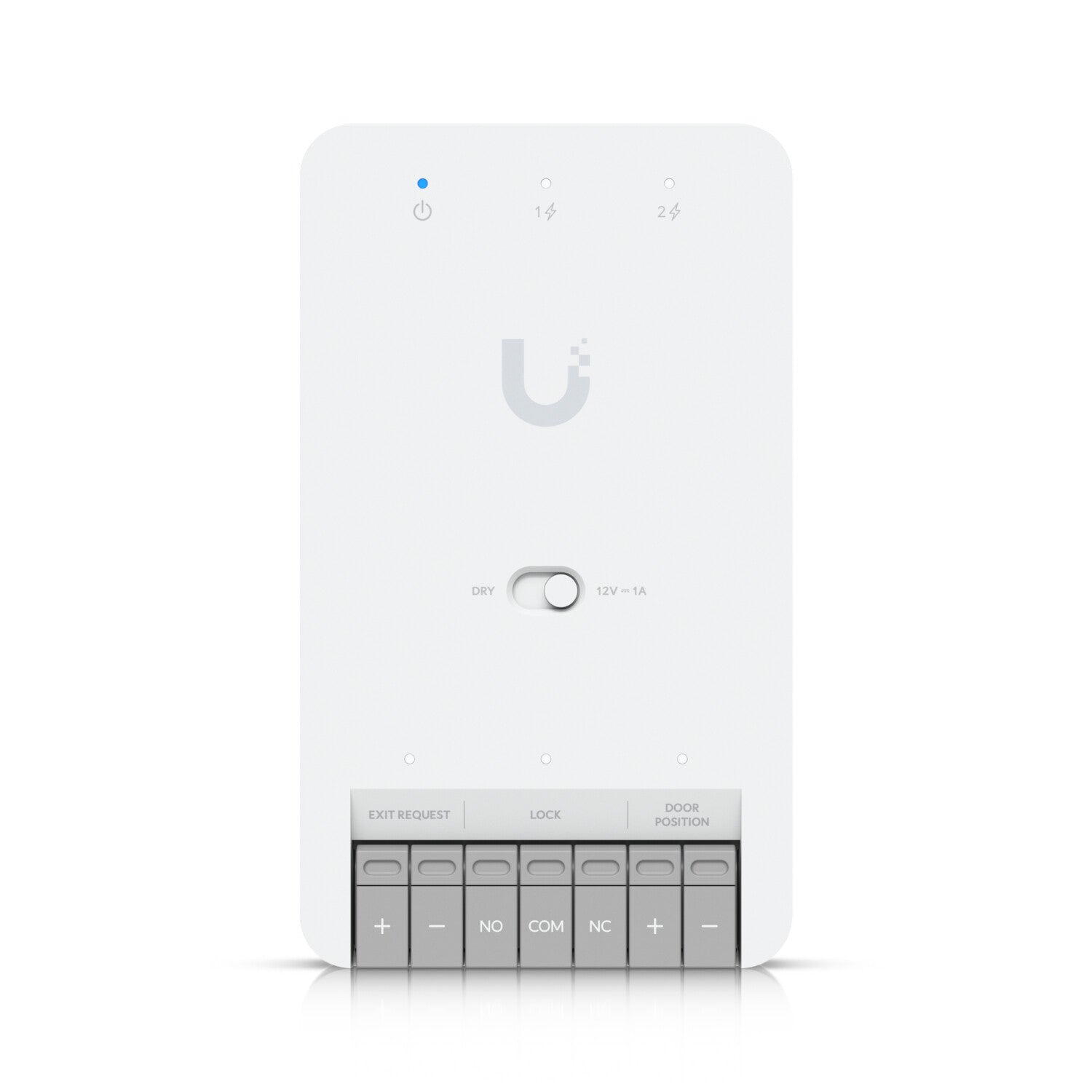

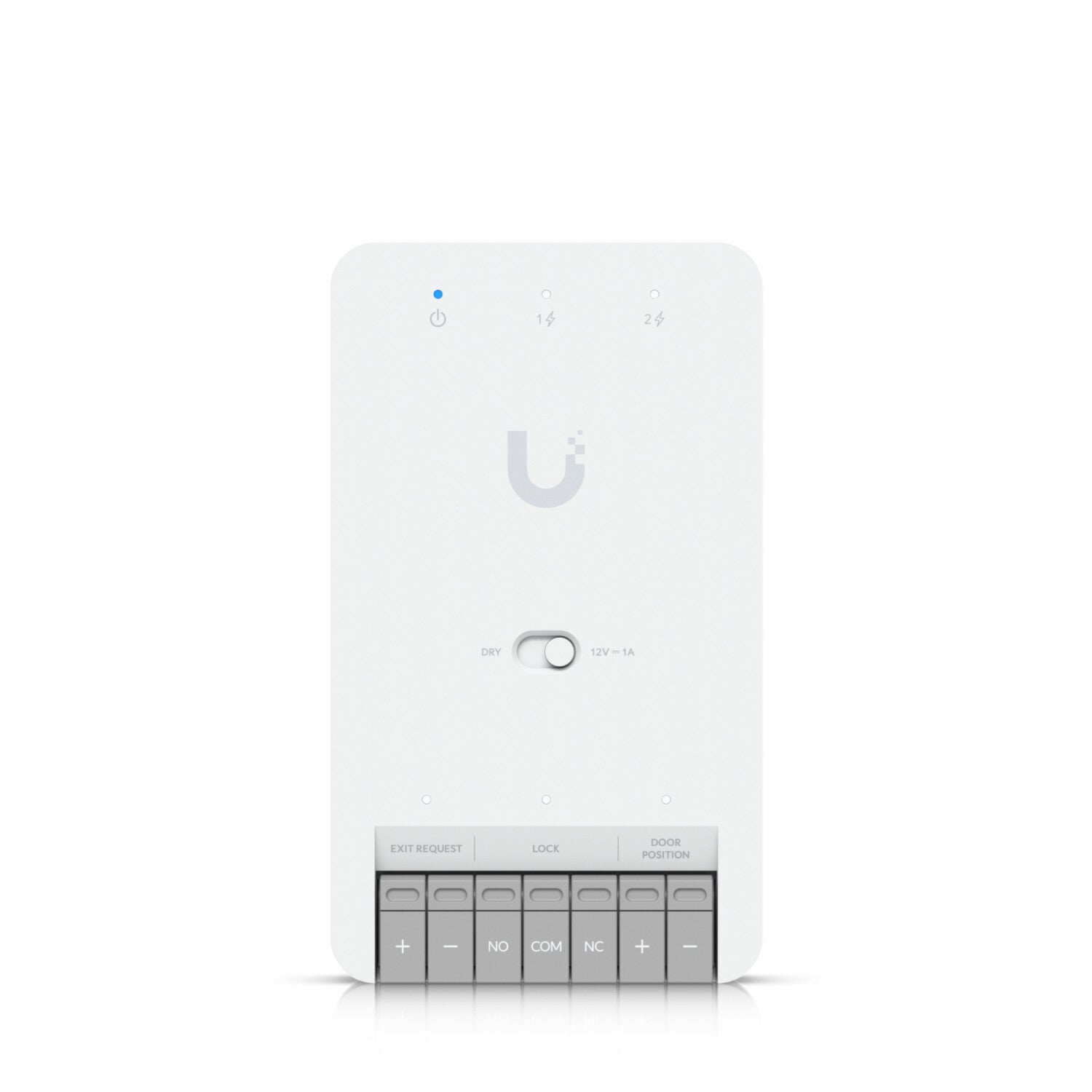

Ubiquiti Door Hub Mini security door controller 1 door(s) Ethernet
iFrame
£103.99
Couldn't load pickup availability
- (1) Lock terminal (12V and Dry switchable)
- (2) Additional inputs (sensor and button)
- Connect and power via PoE++
- Connect up to two UniFi Access Readers or Protect Cameras
Compact Access Control Hub for a single door.
| Technical details | |
|---|---|
| Maximum number of doors | 1 door(s) |
| Interface | Ethernet |
| LED indicators | Yes |
| Exit request | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Performance | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power | |
|---|---|
| DC voltage range | 50 V |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 190 g |
| Height | 113 mm |
| Depth | 27.6 mm |
| Width | 66 mm |
