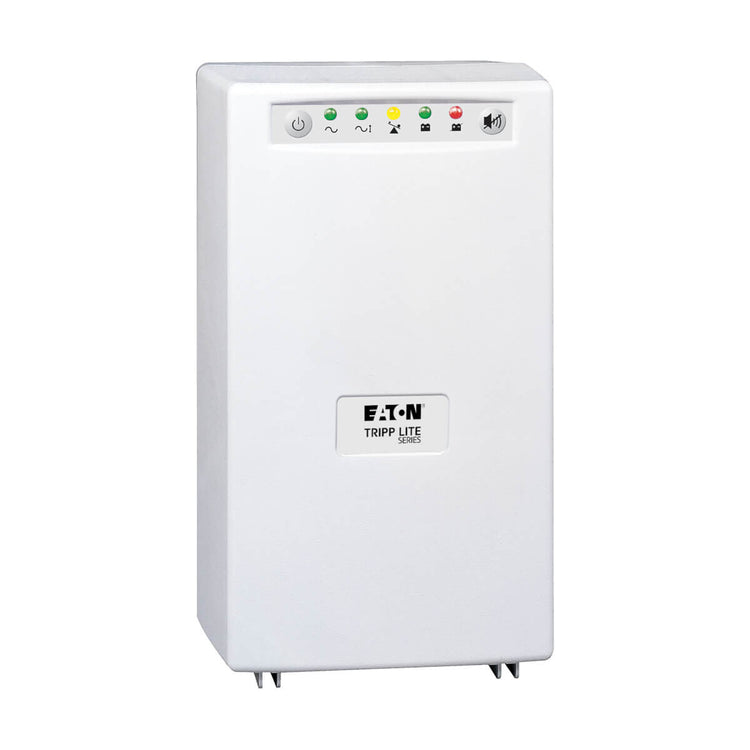

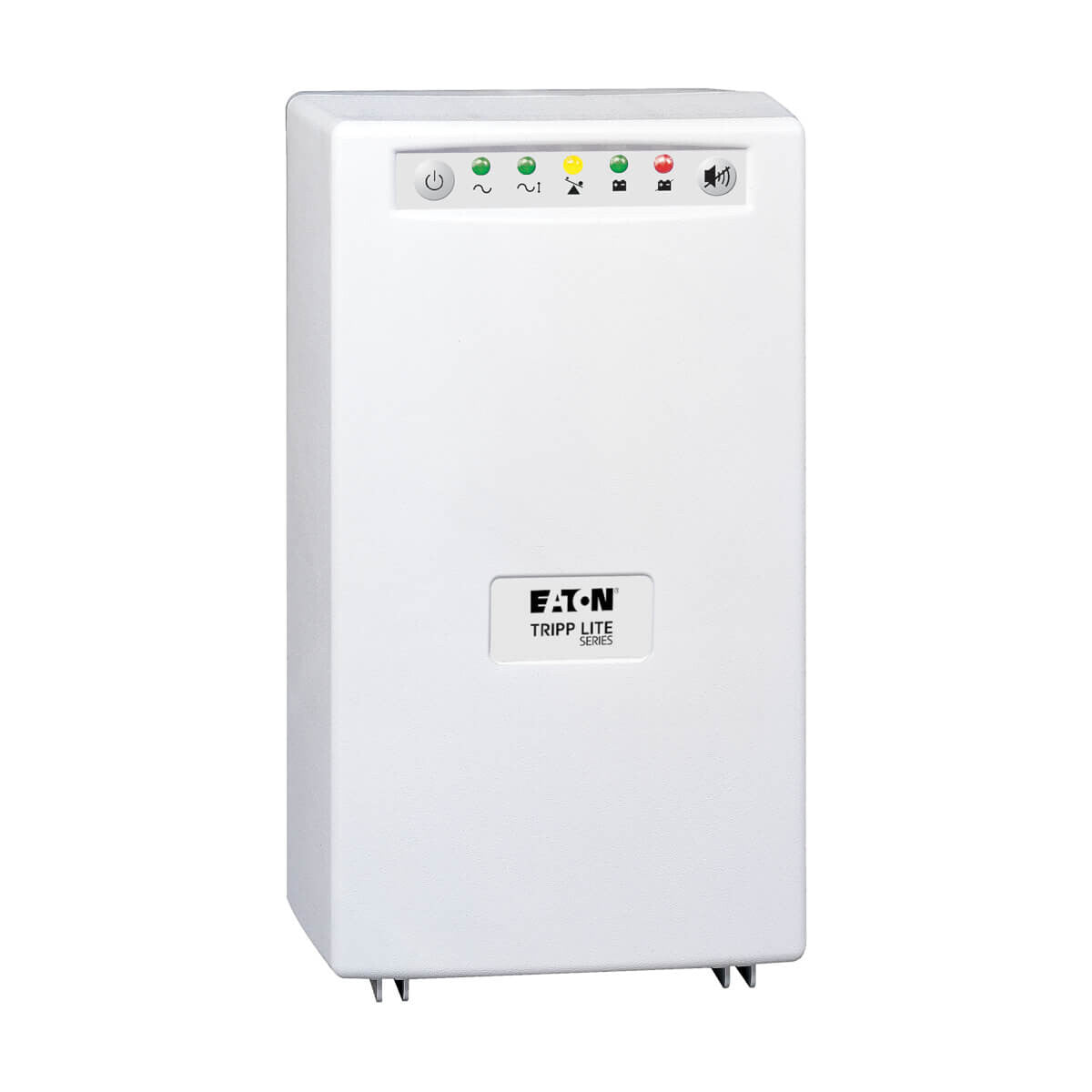

Tripp Lite SMX700HG SmartPro 230V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, USB, DB9
Tripp Lite SMX700HG SmartPro 230V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, USB, DB9
Tripp Lite SMX700HG SmartPro 230V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, USB, DB9
Tripp Lite SMX700HG SmartPro 230V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, USB, DB9

Tripp Lite SMX700HG SmartPro 230V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, USB, DB9

Tripp Lite
£745.99
Stock Available: 0
  • Supports a half load up to 36 minutes; full load up to 14.5 minutes
  • Six IEC320 C13 hospital-grade outlets and IEC320 C14 hospital-grade plug
  • Leakage current less than 100 microamps
  • Approved for use within the Patient Care Vicinity
  • Approved to EN60601-1-2:2015, 4th Edition
  • Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
  • 340 joule surge suppression rating protects connected equipment
  • Alarm mute/alarm quiet control is ideal for use around patients

The SMX700HG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient care vicinities. The 700VA/450W capacity provides up to 36 minutes of runtime for a half load or 14.5 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout.

Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX700HG’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps.

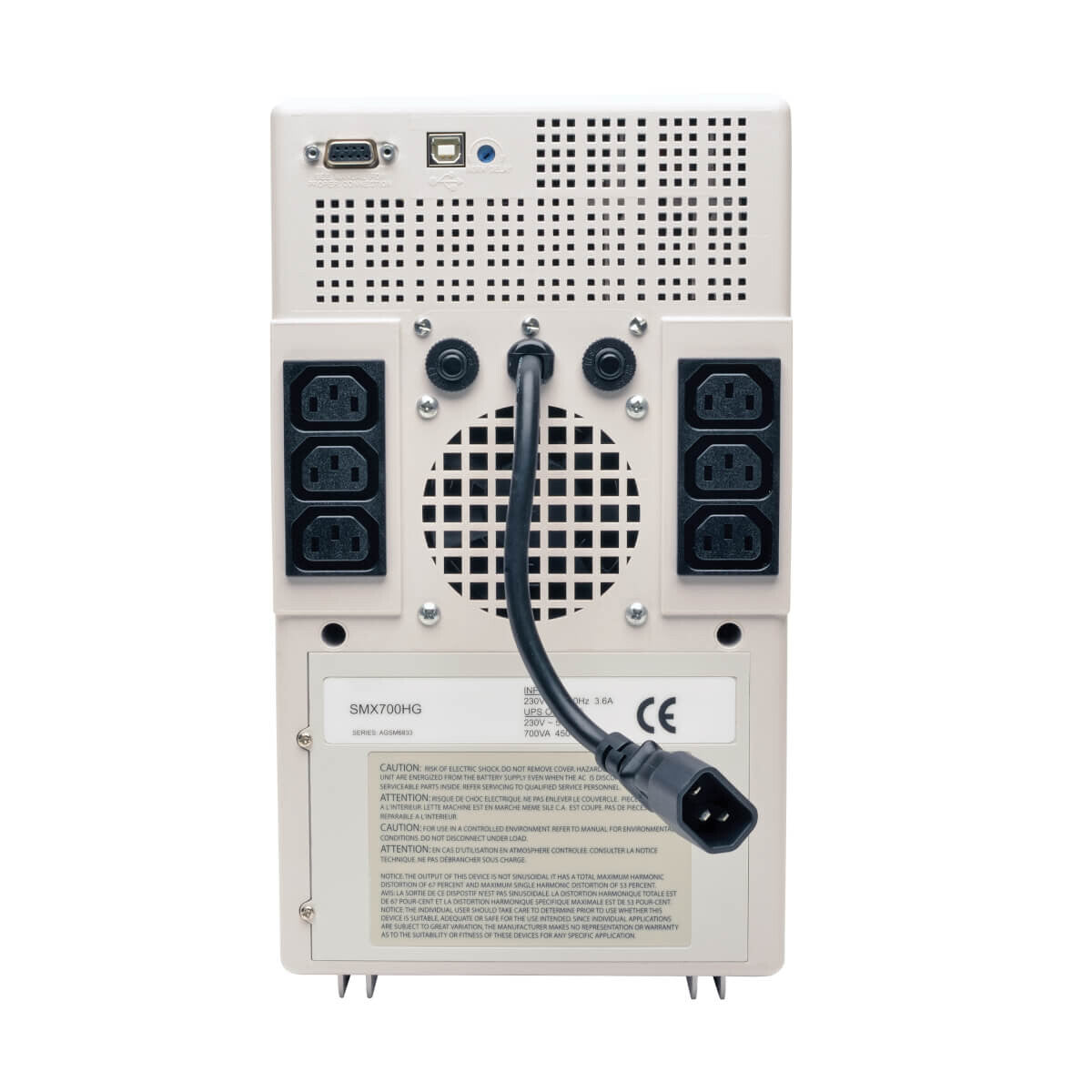

This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15-centimeter (six-inch) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules.

The SMX700HG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with free downloadable PowerAlert® software for safe, unattended system shutdown in the event of a prolonged power failure.

This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX700HG in this type of application will void the battery warranty.

Features
Output power capacity 0.7 kVA
Output power 450 W
Input operation voltage (min) 220 V
Input operation voltage (max) 240 V
Input frequency 50/60 Hz
Output operation voltage (min) 230 V
Output operation voltage (max) 230 V
Maximum current 3.6 A
Surge energy rating 340 J
Response time 5 ms
EMI/RFI noise filtering Yes
Audible alarm(s) Yes
Ports & interfaces
AC outlet types C13 coupler
Power plug C14 coupler
AC outlets quantity 6 AC outlet(s)
USB 2.0 ports quantity 1
RS-232 ports 1
Battery
Typical backup time at full load 14.5 min
Typical backup time at half load 36 min
Battery recharge time 3.6 h
Hot-swap battery Yes
Cold start Yes
Design
Form factor Tower
Product colour White
Housing material Polyvinyl chloride (PVC)
Cable length 1.83 m
Cooling type Active
LED indicators Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 50 °C
Operating relative humidity (H-H) 0 - 95%
Certificates
Compliance certificates RoHS
Certification CE/IEC 60601-1, FCC B
Weight & dimensions
Width 190.5 mm
Depth 229 mm
Height 325 mm
Weight 19.1 kg
Packaging data
Package width 309.9 mm
Package depth 339.9 mm
Package height 469.9 mm
Package weight 20.6 kg
Logistics data
Harmonized System (HS) code 85078000
Products per master (outer) case 1 pc(s)
Country of origin China
Other features
Nominal input voltage 230 V
Package dimensions (WxDxH) 310 x 340 x 470 mm
