Tripp Lite
£1,155.99
Stock Available: 0
  • Single-phase IEC309 200-240V 32A Blue (2P+E) input
  • 16 C13 and 2 C19 230V switched outlets in 2 breakered load banks
  • Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
  • Automatic transfer switching within 1–5 ms
  • Ethernet network interface for remote access

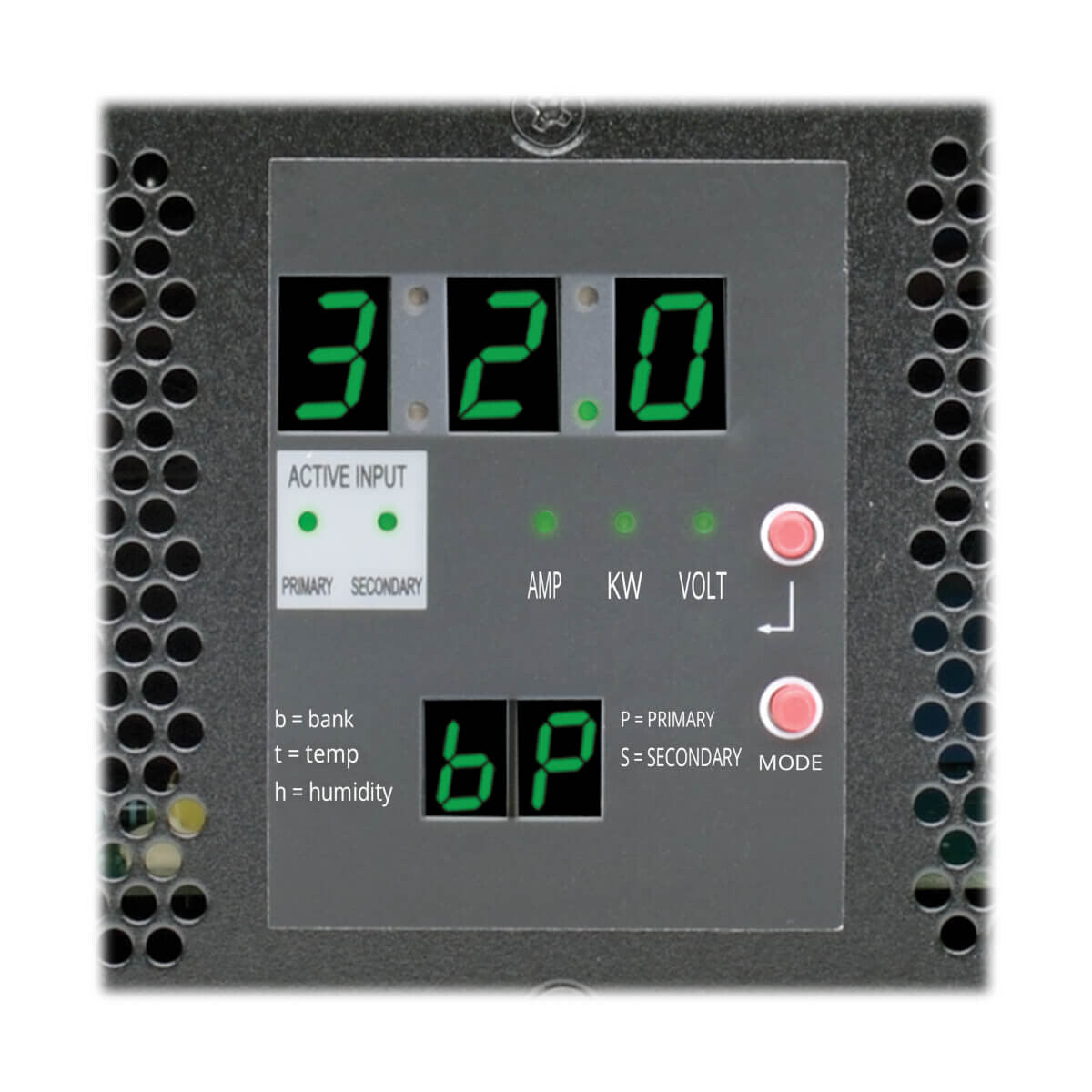

  • Digital LED display for real-time status and current monitoring

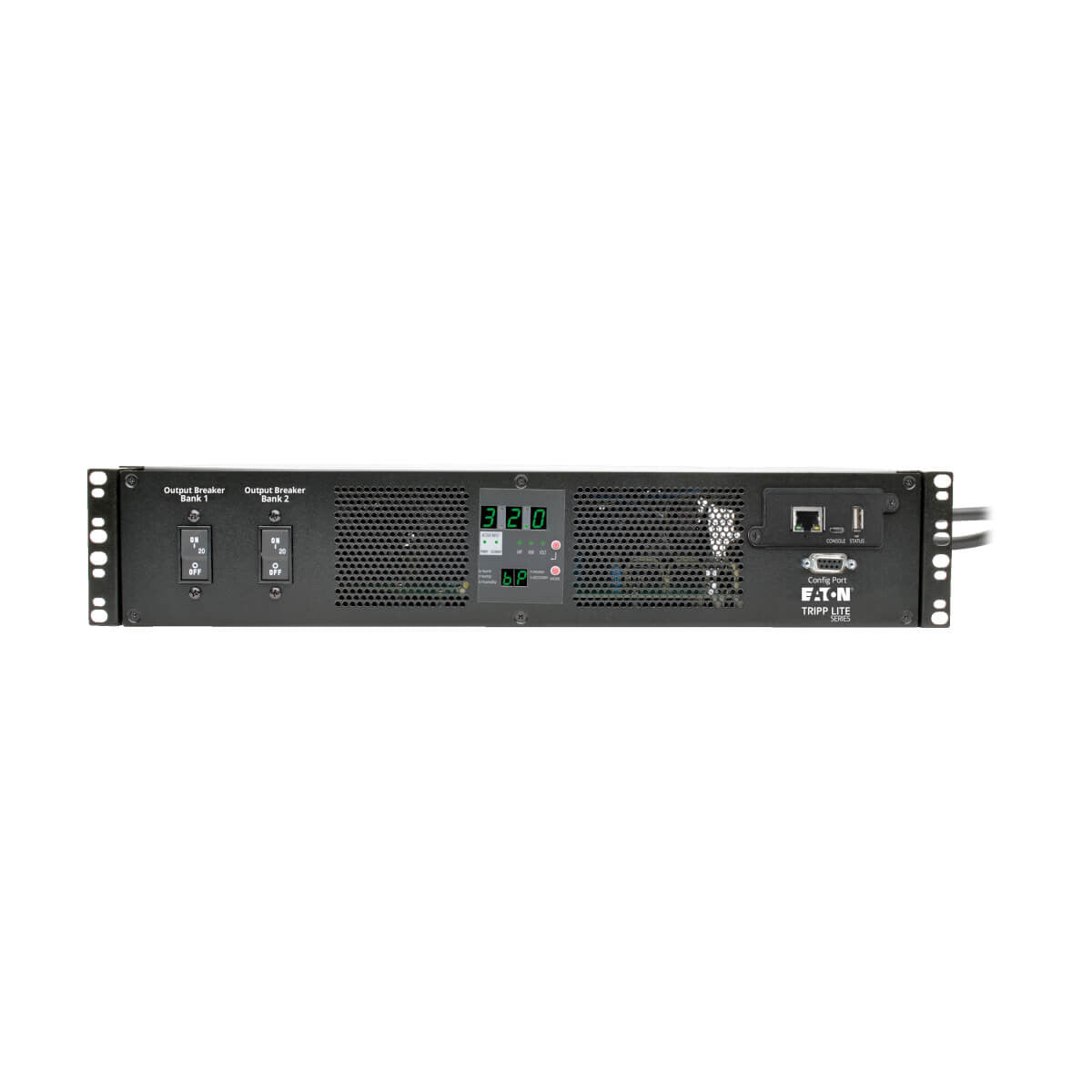

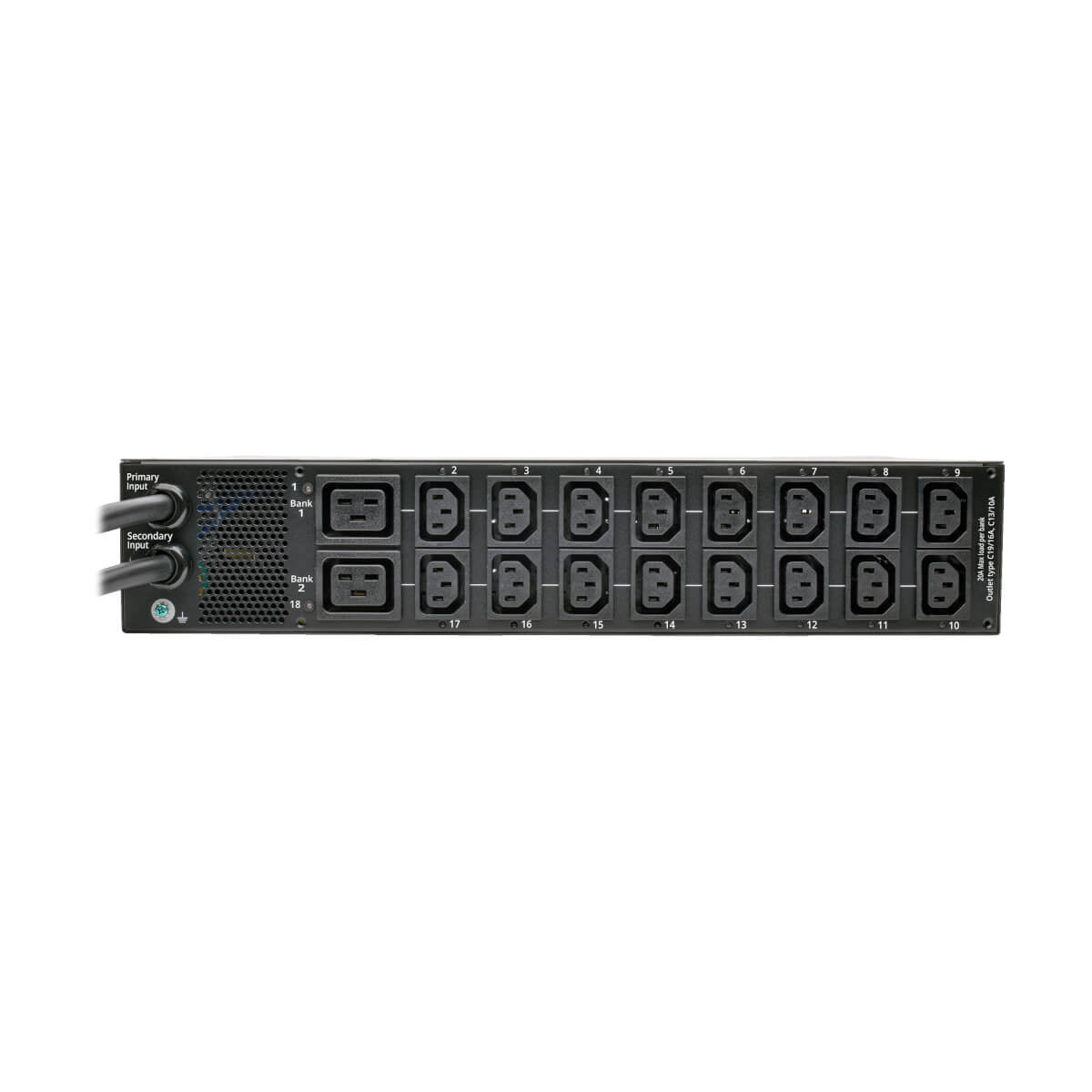

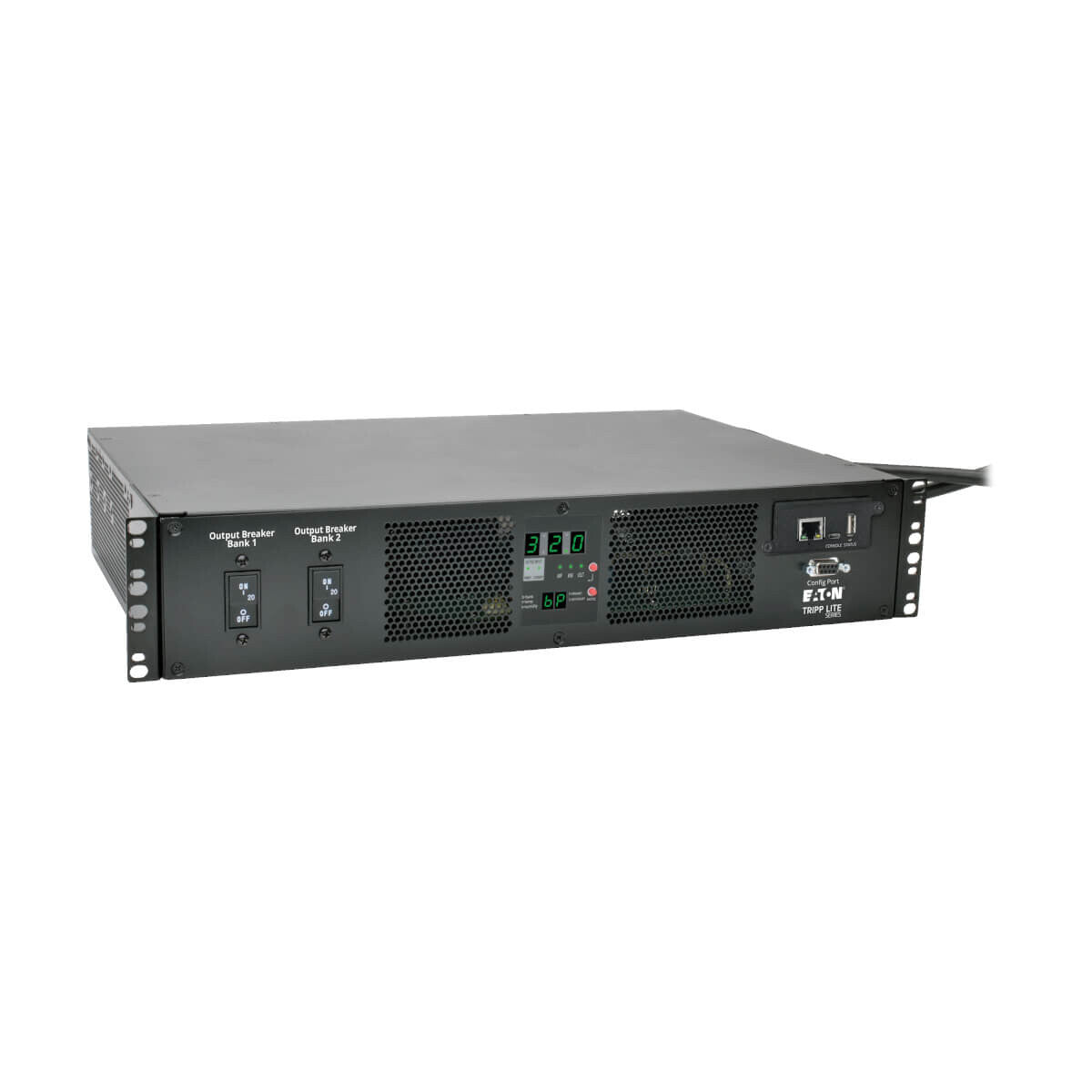

The PDUMH32HVATNET 7.7kW Single-Phase 200-240V Switched Automatic Transfer Switch / ATS PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard racks and features 18 switched outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.

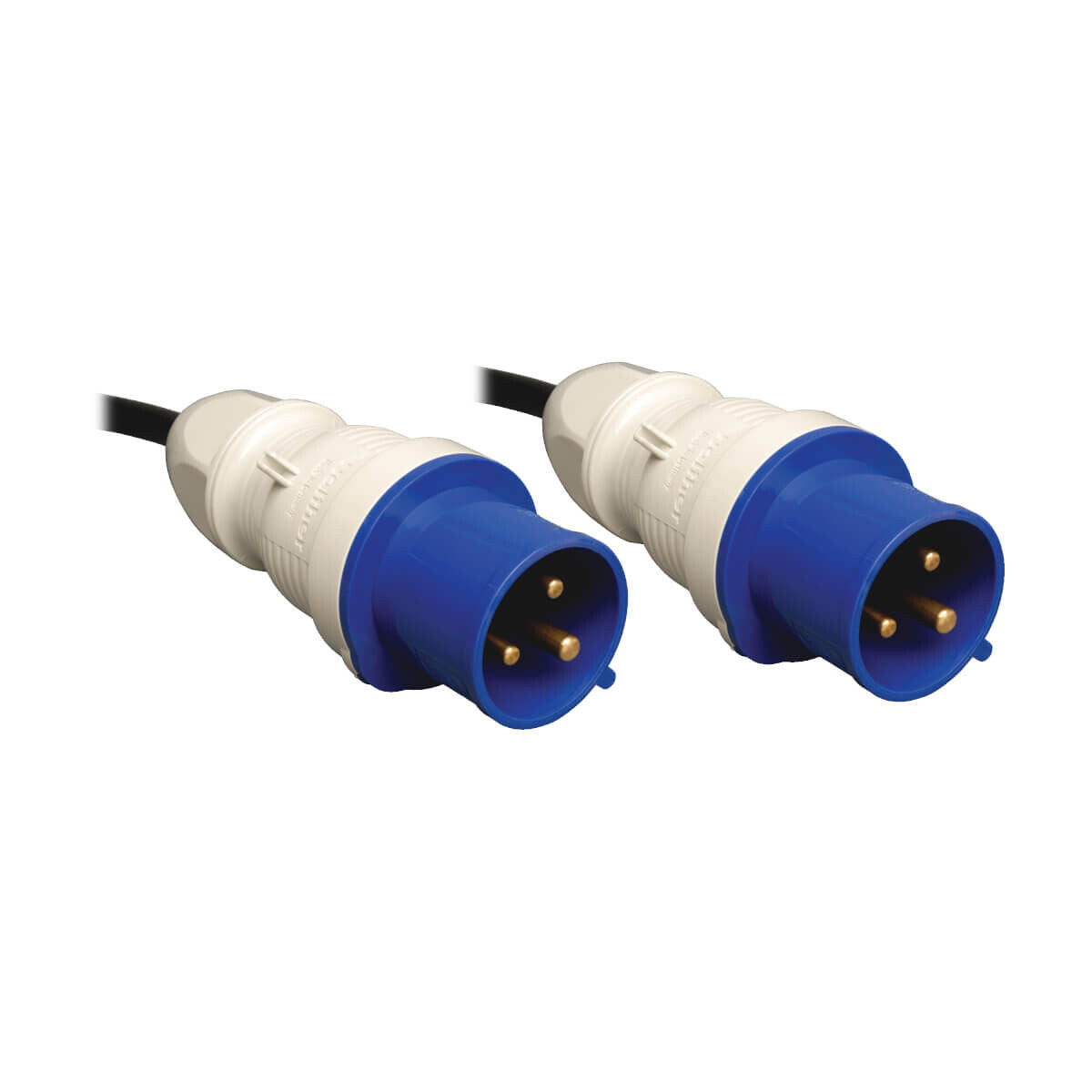

Dual 3-meter input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.

Built-in LX Platform network management interface. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separate) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

Design
Display LCD
Product colour Black
Housing material Metal
Mounting Horizontal
Rack capacity 2U
Type Single-phase
PDU types Switched
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
AC outlet types C13 coupler, C19 coupler
Power plug IEC309
AC outlets quantity 18 AC outlet(s)
Features
Cable length 3 m
LED indicators Yes
Management features
Supported network protocols HTTP, HTTPS, PowerAlert®, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP
Power
Maximum power 7700 W
Nominal output voltage 200-240 V
Maximum current 32 A
AC input frequency 50 - 60 Hz
Nominal input voltage 200-240 V
Certificates
Compliance certificates RoHS
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -15 - 50 °C
Weight & dimensions
Weight 6.21 kg
Height 88 mm
Depth 317 mm
Width 444 mm
Packaging content
Manual Yes
Packaging data
Package height 198 mm
Package depth 505 mm
Package width 424 mm
Package weight 9.12 kg
Logistics data
Products per master (outer) case 1 pc(s)
Country of origin Taiwan
