Tripp Lite PDUMH16HV 3.7kW Single-Phase Local Metered PDU, 208/230V Outlets (8 C13, 2 C19) IEC-309 16A Blue, 8 ft. (2.43 m) Cord, 1U Rack-Mount, TAA

Tripp Lite
£202.99
Stock Available: 0
  • Local metered single phase 16A 208/230V PDU
  • 1U horizontal rackmount; digital current meter
  • C20 input with IEC-309 Blue 16A input; 2.5m line cord
  • 10 total outlets (8 C13, 2 C19); 6.5 in. / 16.5 cm depth
  • TAA Compliant

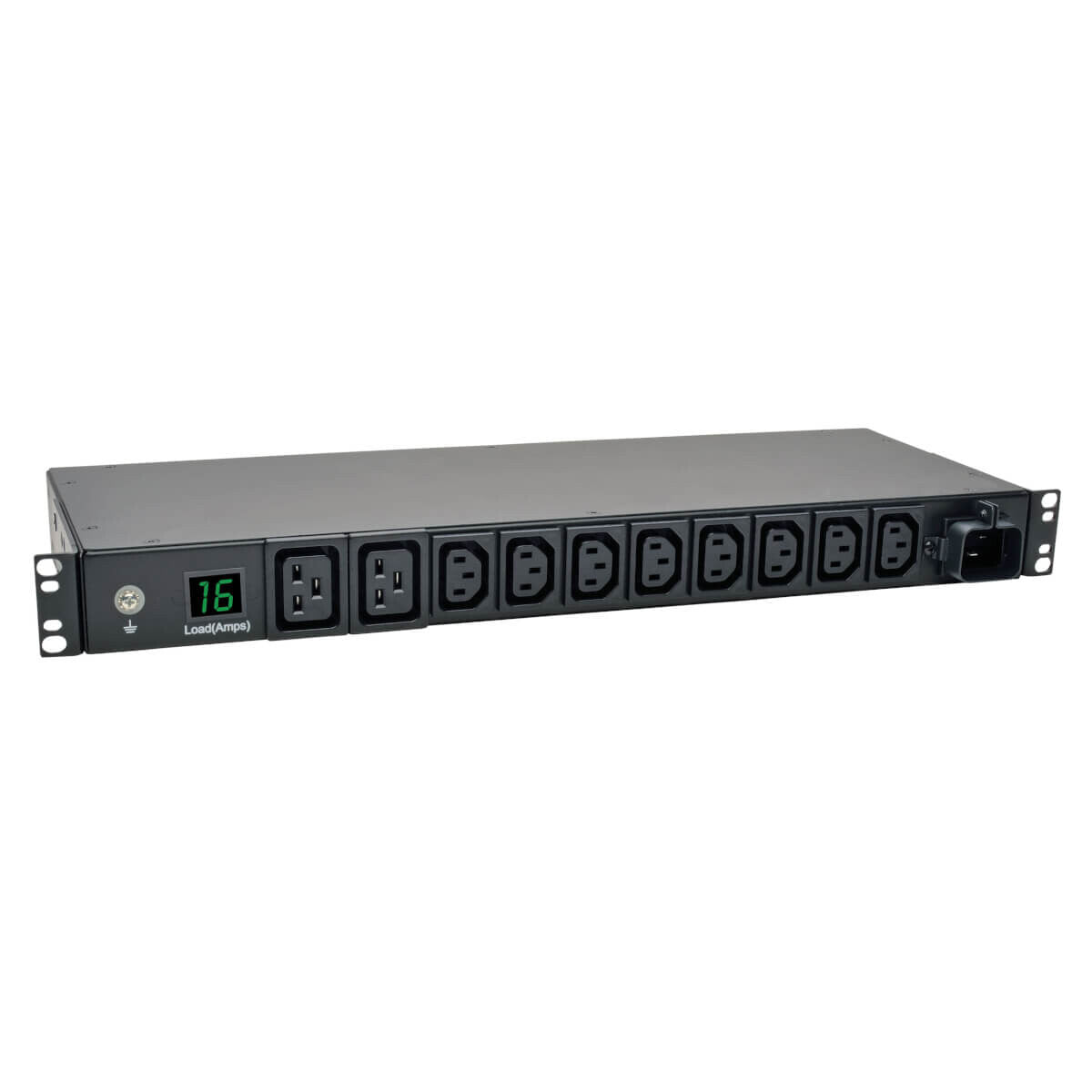

3.7kW 16A single phase 208/230V Local Metered Power Distribution Unit / rack PDU (rPDU)

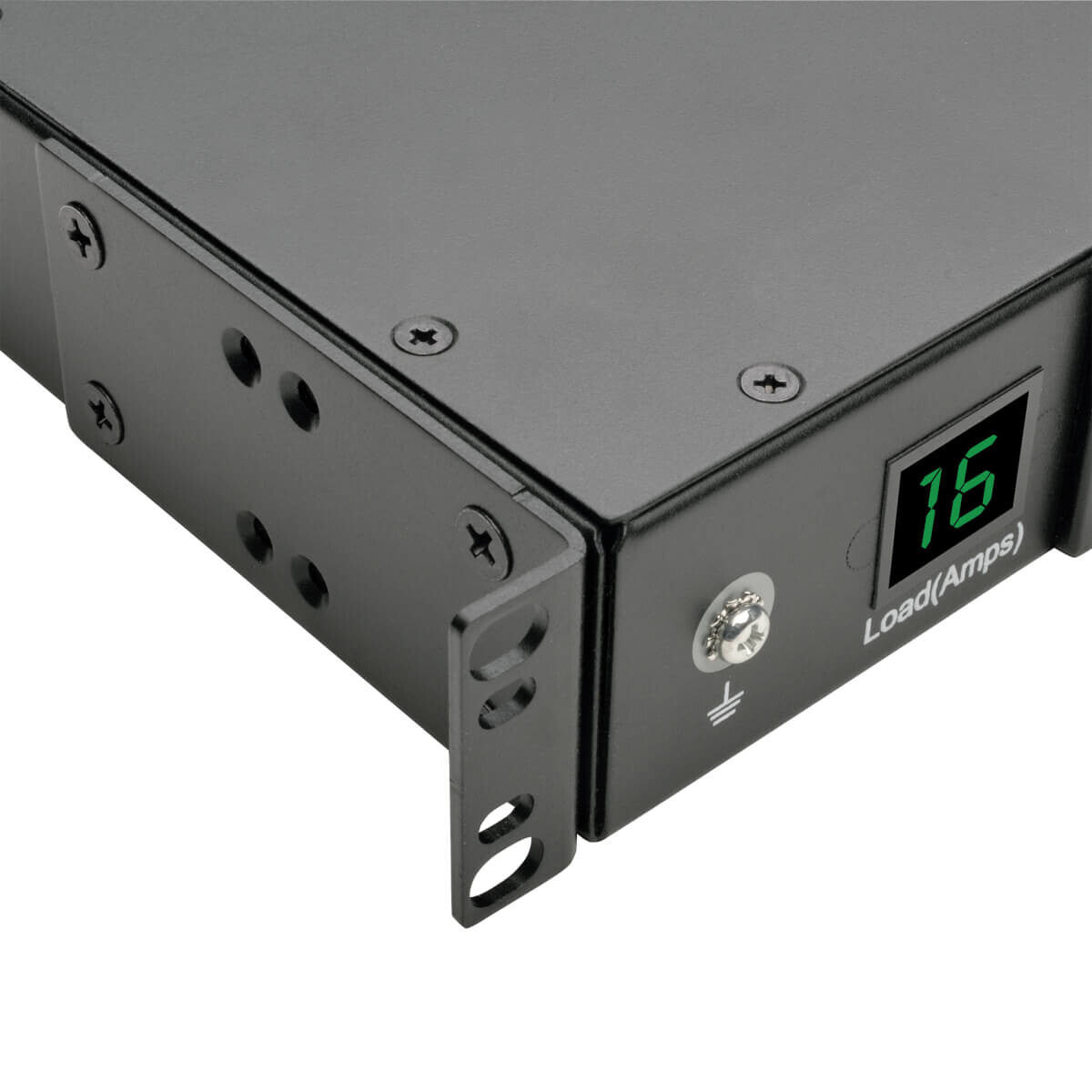

Built-in 2 digit visual meter continuously reports PDU load level in amps

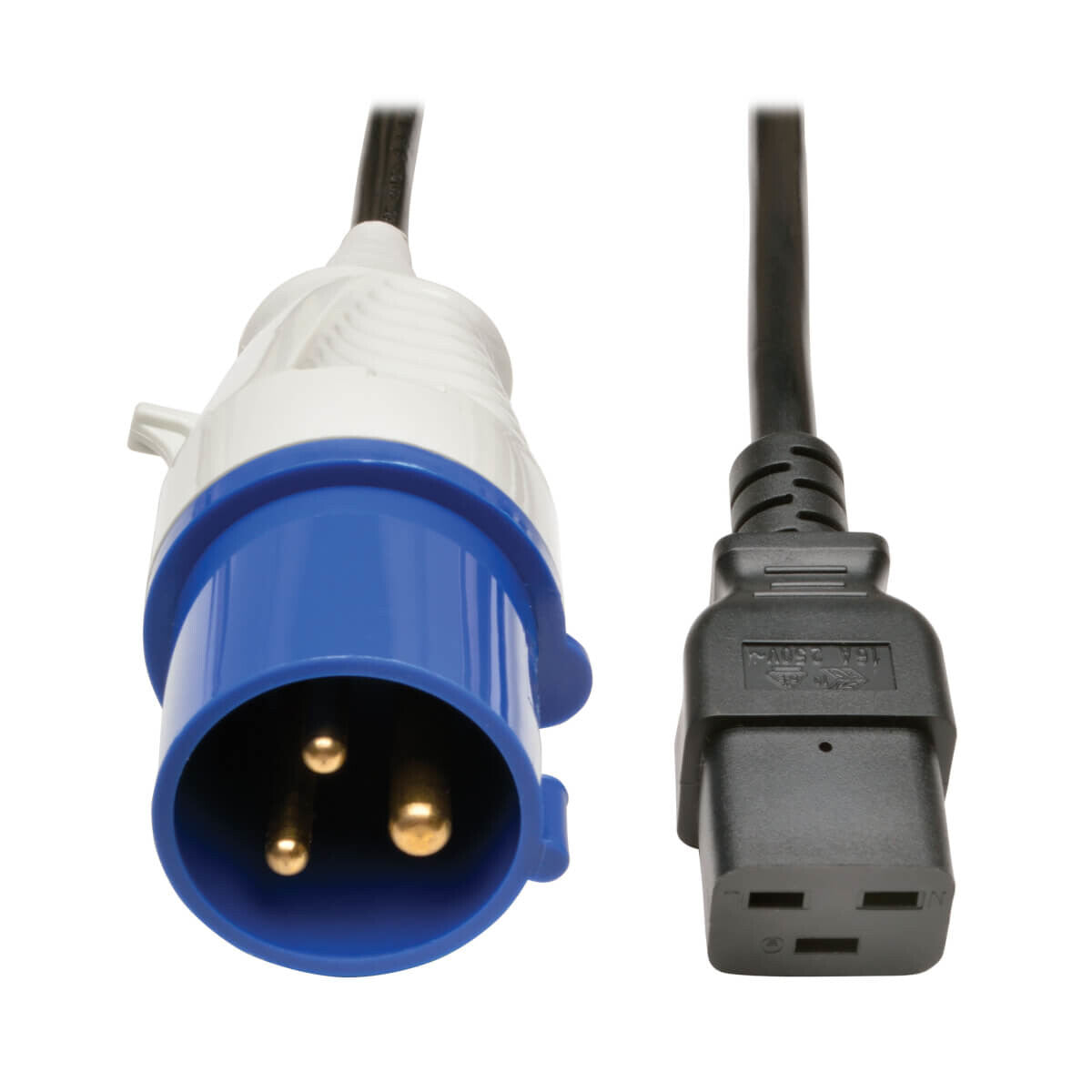

C20 inlet with IEC-309 Blue 16A input; 2.5m line cord
1U horizontal rackmount format installs in one rack space

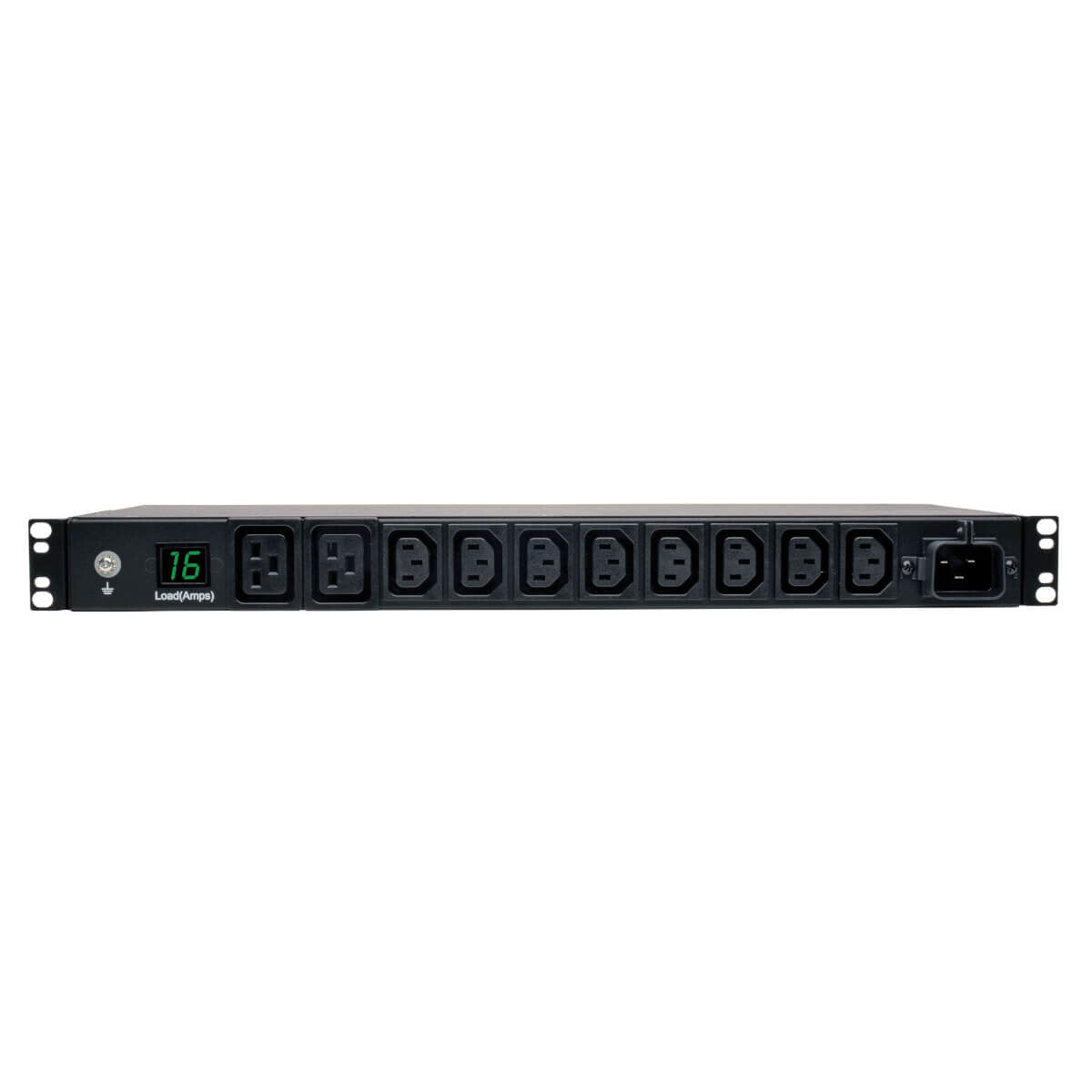

10 total outlets (8 C13 / 2 C19)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Front panel grounding lug
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Design
PDU types Metered
Rack capacity 1U
Mounting Horizontal
Housing material Metal
Product colour Black
Display LCD
Ports & interfaces
AC outlets quantity 10 AC outlet(s)
Power plug IEC309
AC outlet types C13 coupler, C19 coupler
Output connections 8 x C13 & 2 x C19
Features
LED indicators Yes
Cable length 2.5 m
Power
Nominal input voltage 200-240 V
Maximum current 16 A
Nominal output voltage 200-240 V
Certificates
Compliance certificates RoHS
Certification CE (IEC / EN60950-1), GOST
Operational conditions
Operating temperature (T-T) -15 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Operating altitude 0 - 3000 m
Weight & dimensions
Width 444 mm
Depth 165 mm
Height 28.7 mm
Weight 1.77 kg
Packaging data
Package weight 2.95 kg
Package width 521 mm
Package depth 279 mm
Package height 76 mm
Logistics data
Country of origin Taiwan
Master (outer) case width 519.9 mm
Master (outer) case length 277.9 mm
Master (outer) case height 77 mm
Master (outer) case gross weight 2.95 kg
Products per master (outer) case 1 pc(s)
