Tripp Lite PDU3XMV6G32 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA
Tripp Lite PDU3XMV6G32 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA
Tripp Lite PDU3XMV6G32 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA
Tripp Lite PDU3XMV6G32 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA
Tripp Lite PDU3XMV6G32 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA
Tripp Lite PDU3XMV6G32 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA
Tripp Lite PDU3XMV6G32 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA
Tripp Lite PDU3XMV6G32 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA
Tripp Lite PDU3XMV6G32 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA
Tripp Lite PDU3XMV6G32 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA

Tripp Lite PDU3XMV6G32 3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA

Eaton
£892.99
Stock Available: 0
  • Local metered 22.2kW 3 Phase 360-415V input 208-240V output PDU
  • Visual meter reports output amps per bank, total kW and input voltage
  • IEC309 32A Red (3P+N+E) 3 phase 360-415V input, 6 ft. (1.83 m) line cord
  • 42 208-240V outlets (36 C13, 6 C19) with included plug-lock cord retention sleeves; Compatible with Eaton Tripp Lite power cords
  • 0U Vertical Rackmount with Toolless button-mount installation
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

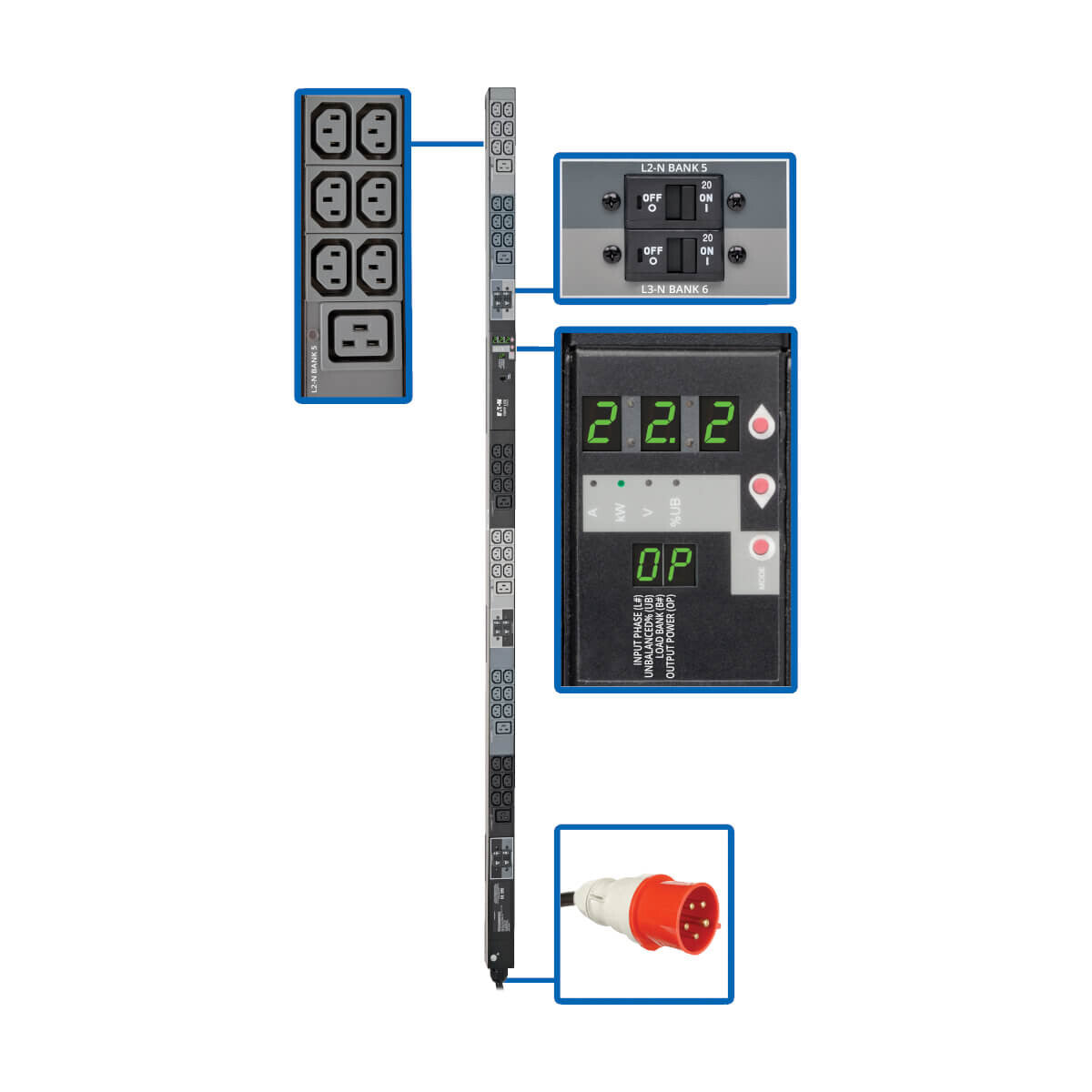

22.2kW 3 phase 360-415V input, 208-240V output Local Metered Power Distribution Unit / rack PDU (rPDU)

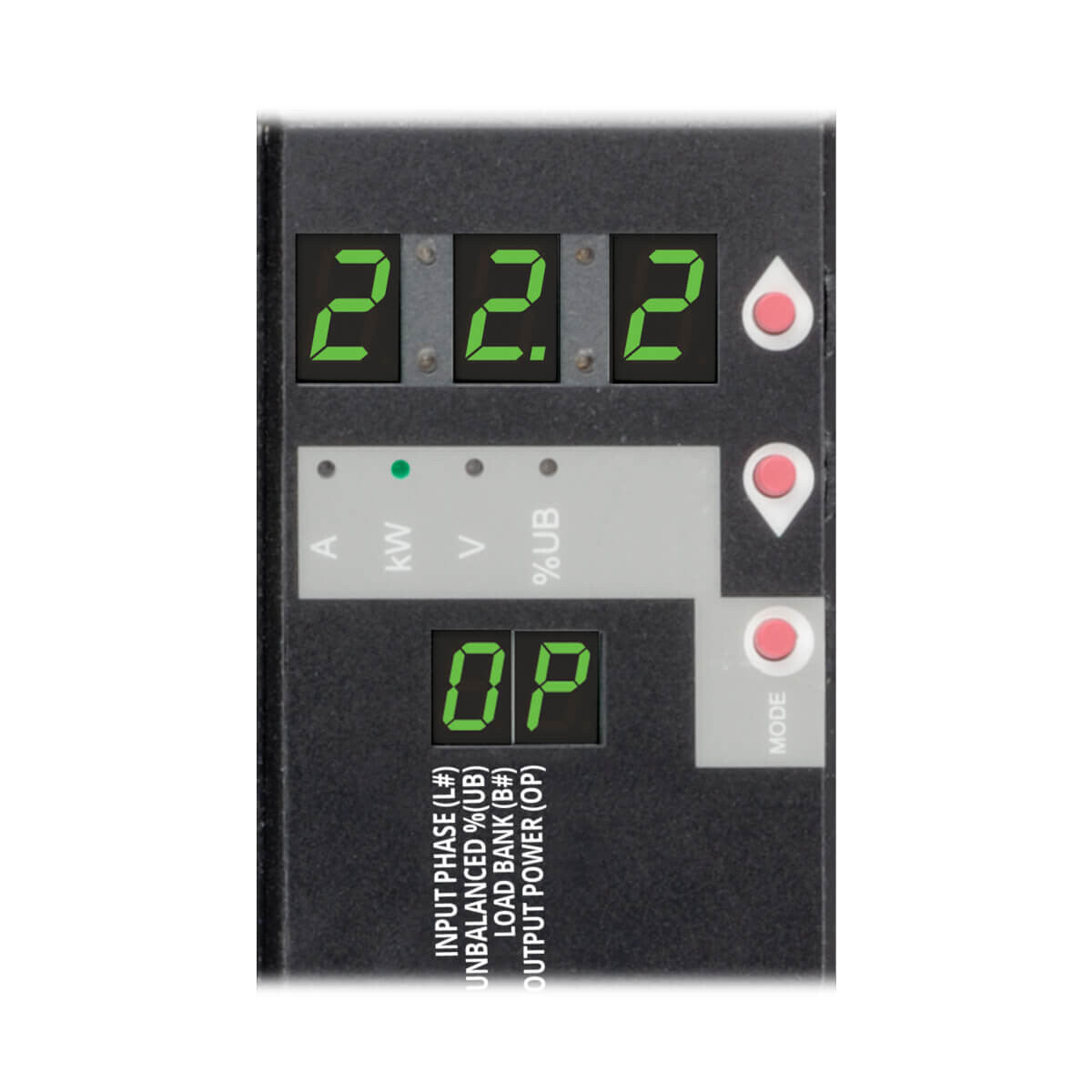

Visual display with scroll function enables selection of breakered load banks 1-6 for output current reporting in amps, total kW output and PDU input voltage
Attached IEC309 32A Red (3P+N+E) 3 phase 360-415V input, 6 ft. / 1.8m line cord

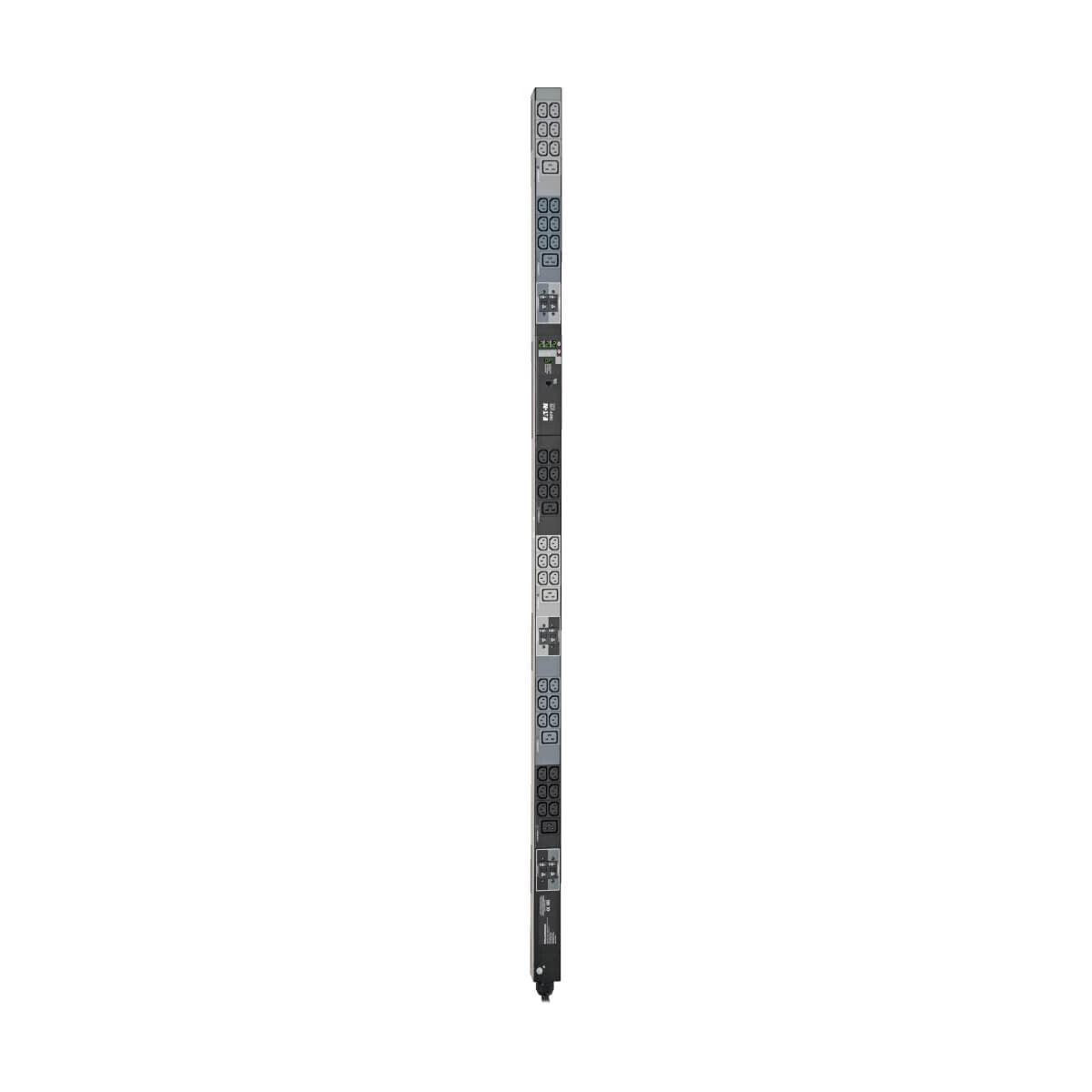

0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks

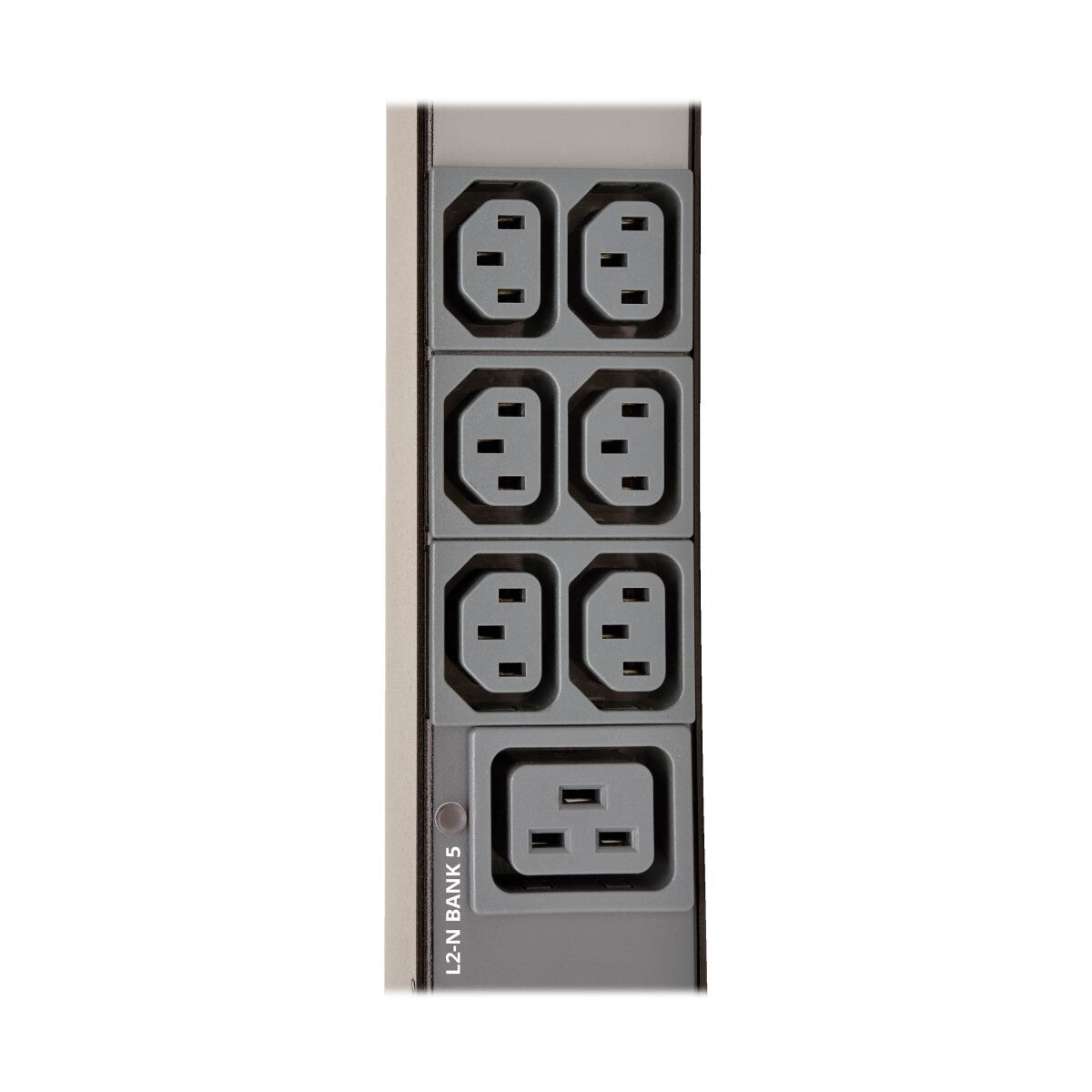

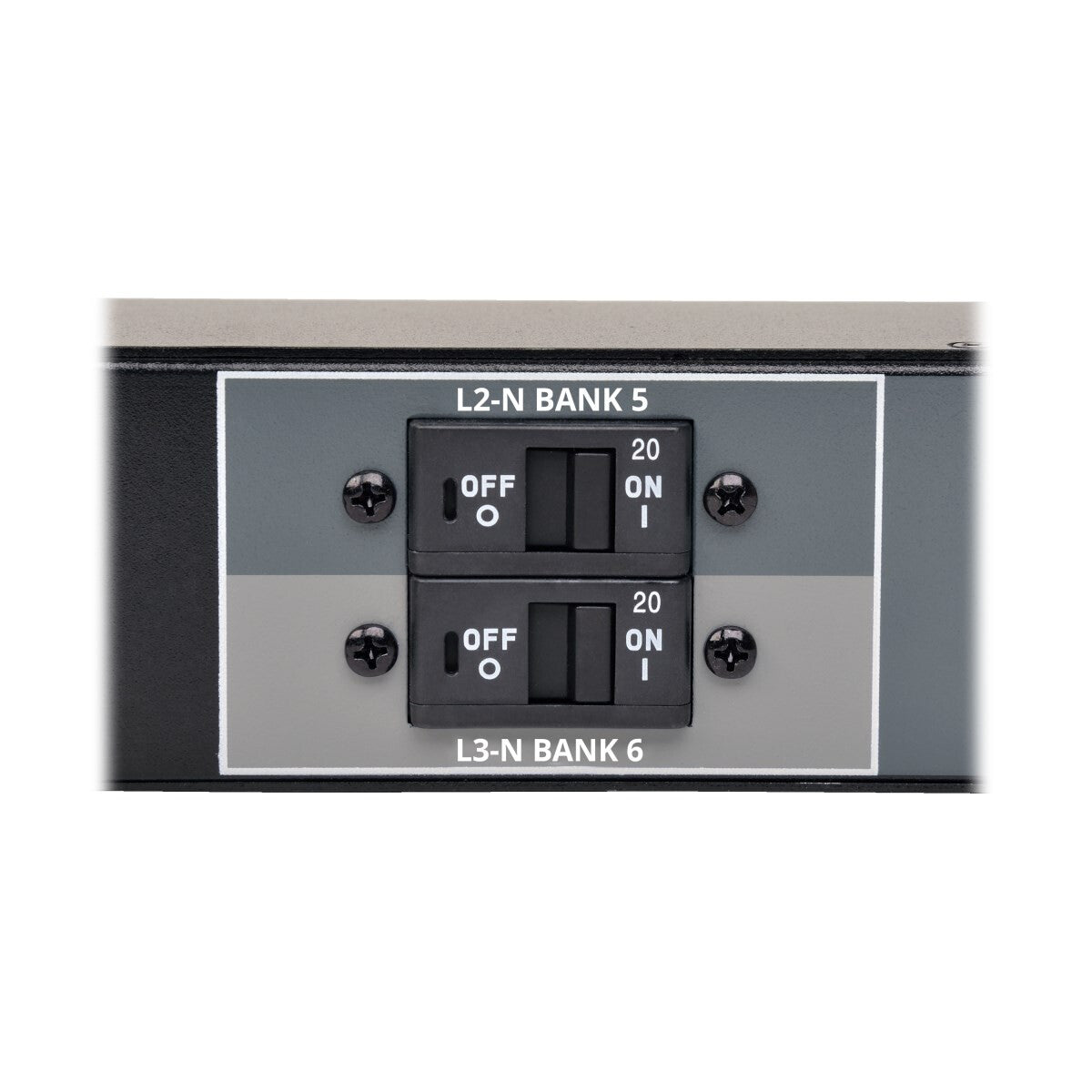

42 total 208-240V outlets (36 C13, 6 C19) arranged in 6 separately breakered single phase output load banks
Included cord retention sleeves keep vital network equipment plugged in and continuously powered
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

Design
PDU types Metered
Rack capacity 0U
Mounting Vertical
Housing material Metal
Product colour Black
On/off switch Yes
Ports & interfaces
AC outlets quantity 42 AC outlet(s)
Power plug IEC309
AC outlet types C13 coupler, C19 coupler
Master AC outlets quantity 36
Features
LED indicators Yes
Cable length 1.83 m
Power
Nominal input voltage 380-400 V
AC input frequency 50 - 60 Hz
Maximum current 32 A
Nominal output voltage 200-240 V
Maximum total current draw per phase 16 A
Power protection features Overload
Maximum power 23000 W
Certificates
Compliance certificates RoHS
Certification Tested to CE (IEC 60950-1, EN55022, EN55024), EN Class A (Emissions), TAA Compliant
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -15 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Operating altitude 0 - 3000 m
Weight & dimensions
Width 55.1 mm
Depth 63.2 mm
Height 1778 mm
Weight 6.48 kg
Packaging data
Package weight 9.3 kg
Package width 150 mm
Package depth 175 mm
Package height 1945 mm
Logistics data
Country of origin Taiwan
Products per master (outer) case 1 pc(s)
