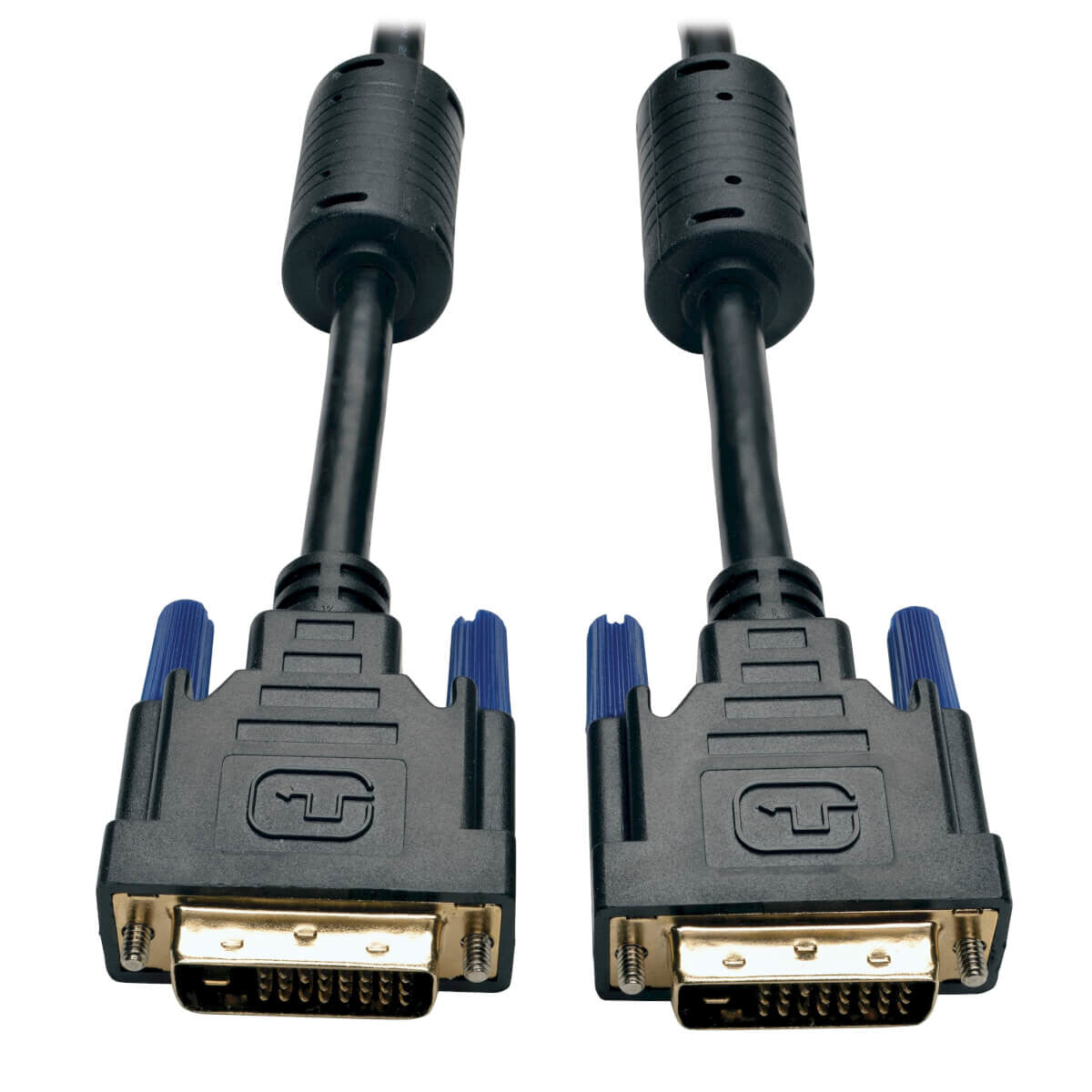

Tripp Lite P560-006 DVI Dual Link Cable, Digital TMDS Monitor Cable (DVI-D M/M), 6 ft. (1.83 m)
£12.99
Couldn't load pickup availability
- For use with Dual or Single TMDS Link specified equipment
- Compatible with Flat Panel Displays, Digital CRT Displays and Projectors
- Provides bandwidth for resolutions up to 2560 x 1600
- High Speed Digital Transmission to 9.9Gbps
- Superior molded cables with foil/braid shielding for maximum EMI/RFI protection
This DVI Dual Link TMDS cable delivers the high performance and high bandwidth needed for today's digital video displays. Gold-plated contacts ensure excellent conductivity, while double shielding (foil and braid) provides maximum EMI/RFI protection.
Use in conjunction with DVI video cards that are specified as Dual Link. Both DVI connectors are molded and have integral strain relief for long life reliability.
| Features | |
|---|---|
| Country of origin | China |
| Ferrite bead | Yes |
| Connector contacts plating | Gold |
| Maximum resolution | 2560 x 1600 pixels |
| Data transfer rate | 9.9 Gbit/s |
| Dual Link DVI | Yes |
| Supported graphics resolutions | 2560 x 1600 (WQXGA) |
| Product colour | Black |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DVI-D |
| Connector 1 | DVI-D |
| Cable length | 1.83 m |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 270 g |
| Packaging data | |
|---|---|
| Package weight | 270 g |
| Package height | 203.2 mm |
| Package depth | 12.7 mm |
| Package width | 254 mm |
| Other features | |
|---|---|
| Depth | 12.7 mm |
| Height | 203.2 mm |
| Width | 254 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case gross weight | 13.4 kg |
| Master (outer) case height | 312.4 mm |
| Master (outer) case length | 358.1 mm |
| Master (outer) case width | 353.1 mm |
| Master (outer) case GTIN (EAN/UPC) | 10037332120714 |
| Harmonized System (HS) code | 84733080 |
