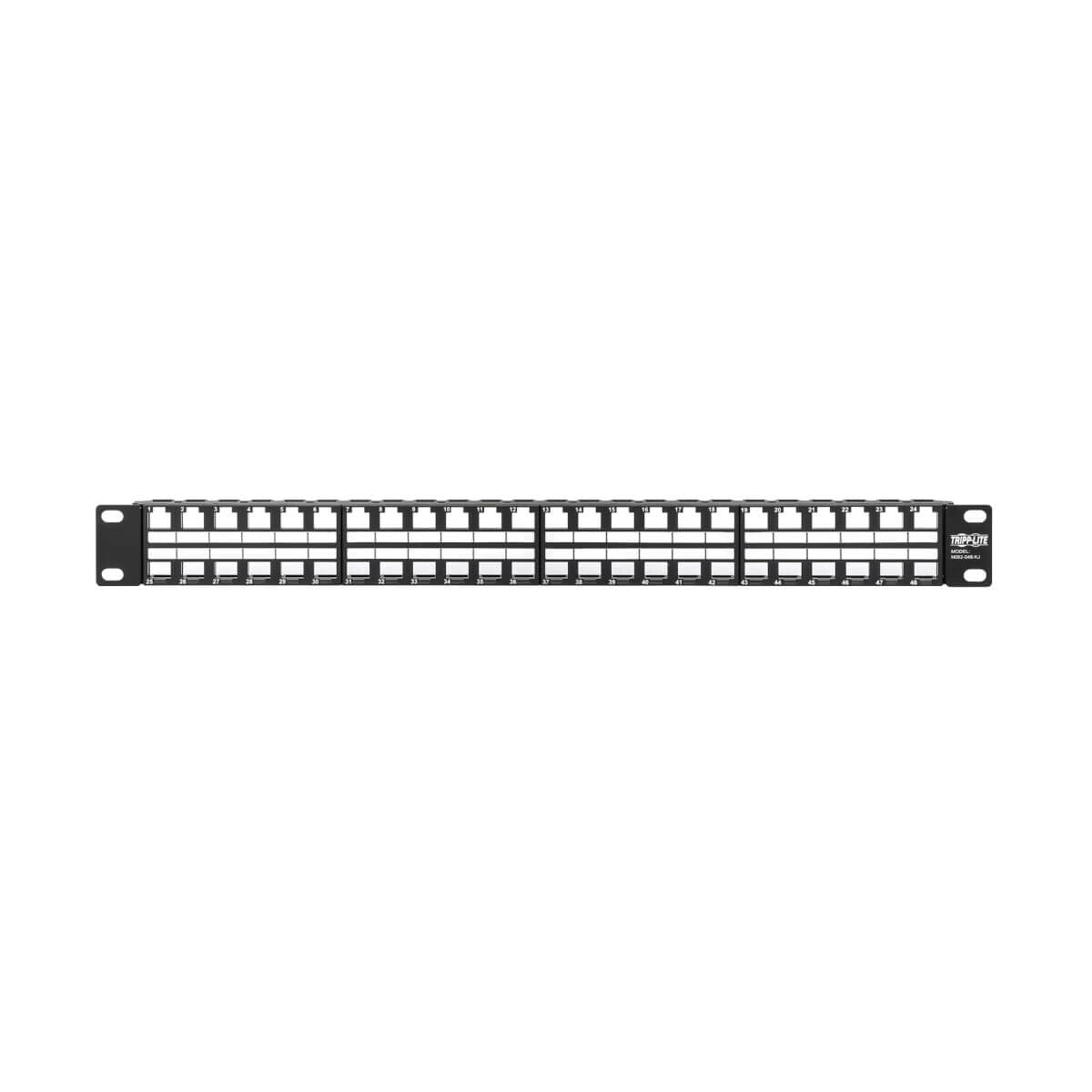

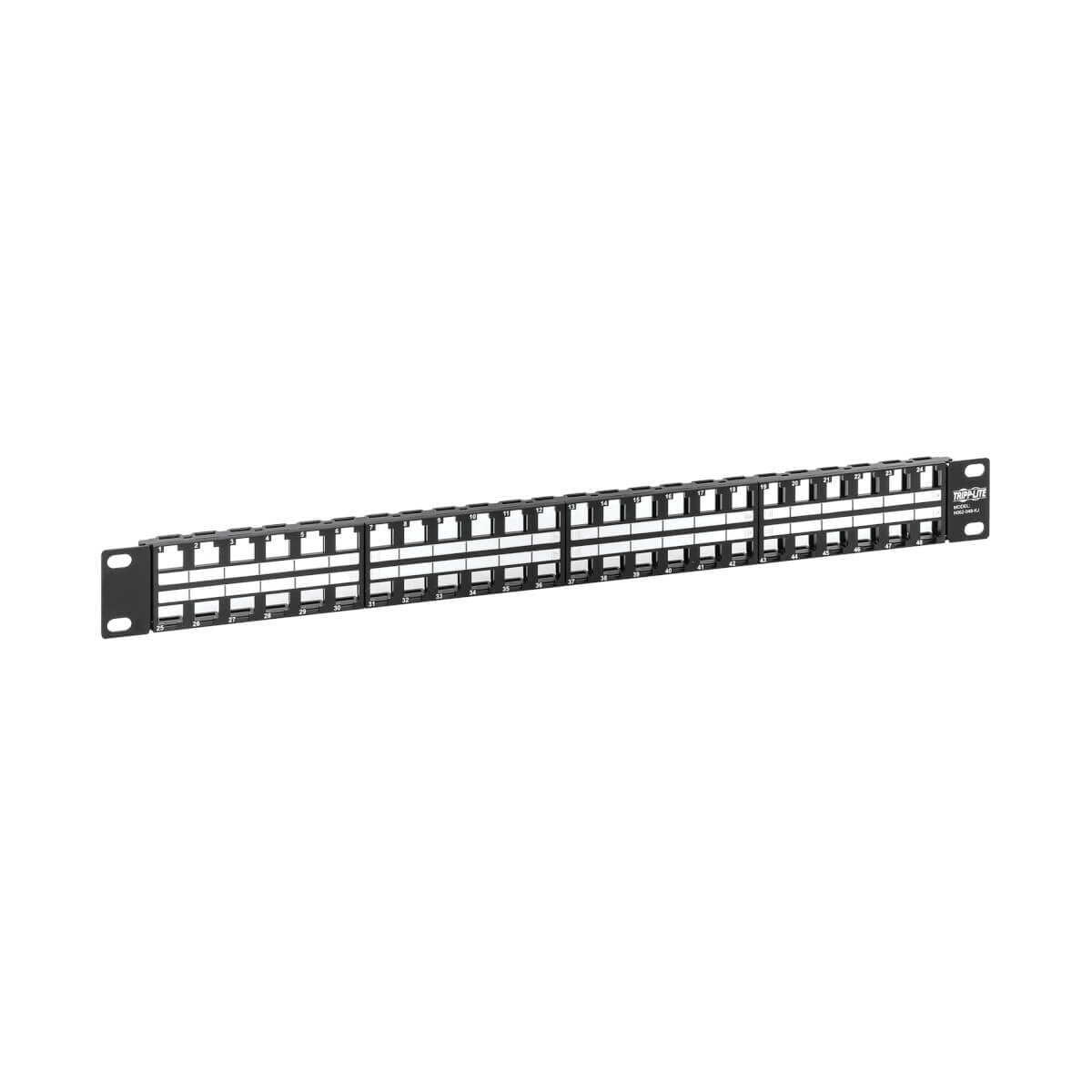

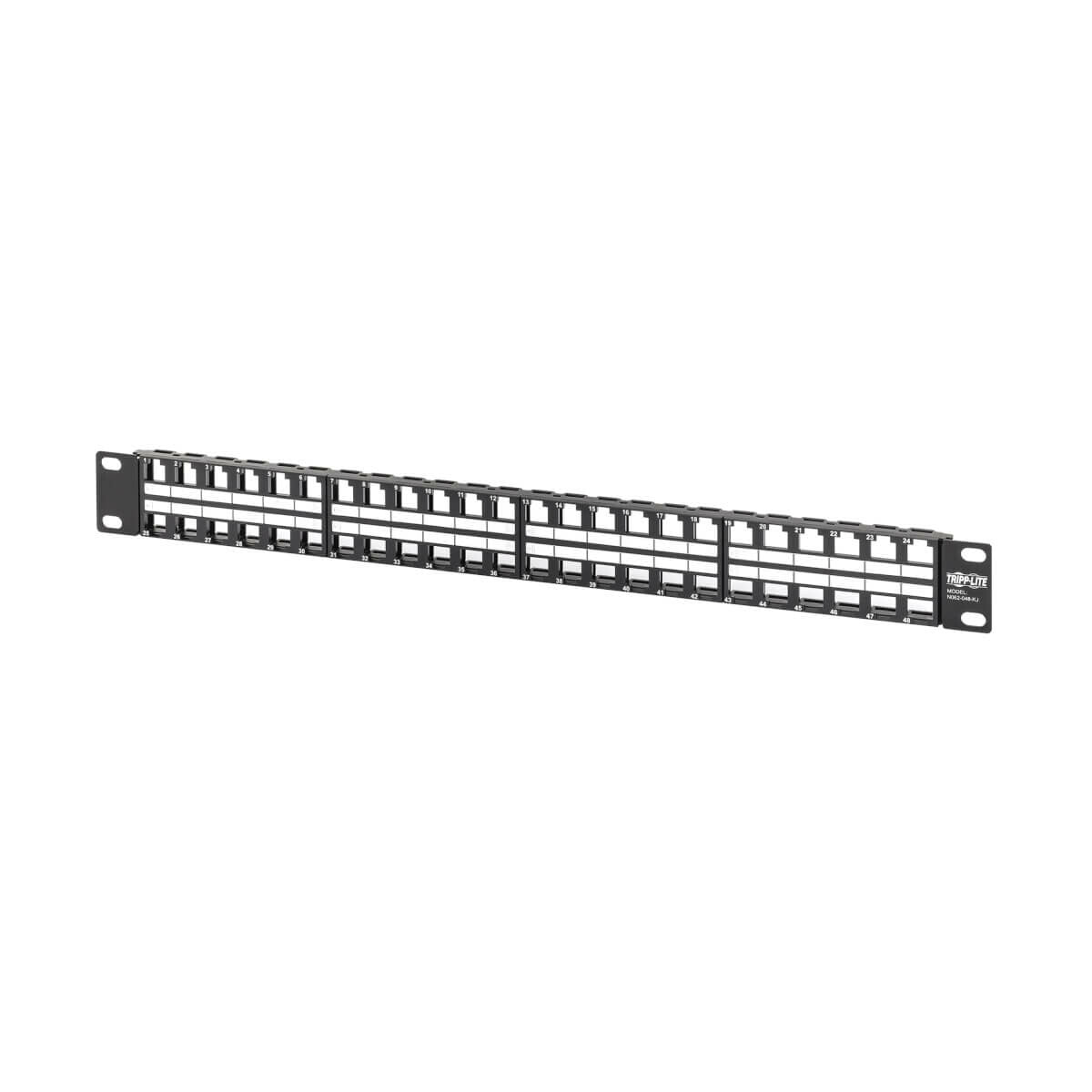

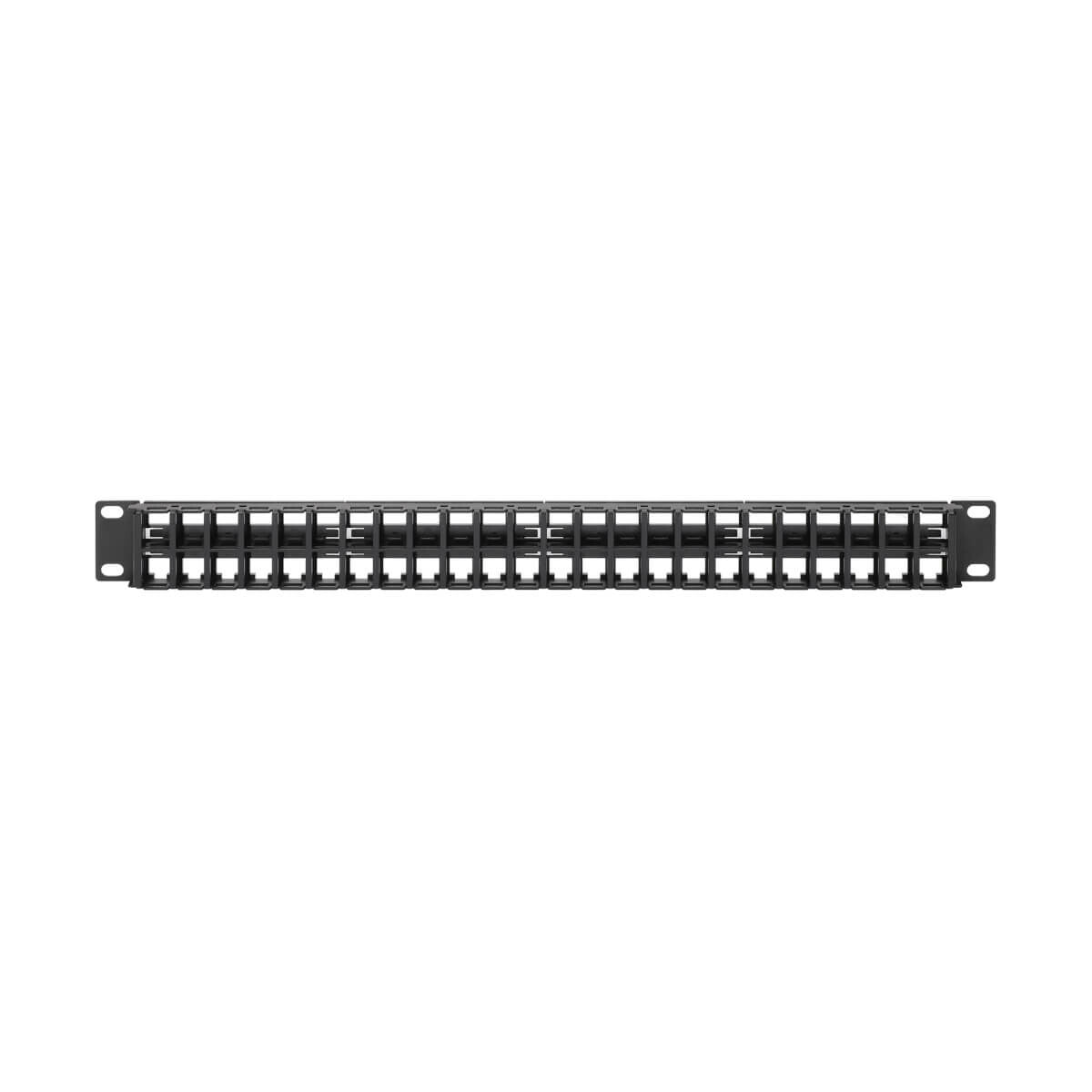

Tripp Lite N062-048-KJ 48-Port 1U Rack-Mount Unshielded Blank Keystone/Multimedia Patch Panel, RJ45 Ethernet, USB, HDMI, Cat5e/6
Couldn't load pickup availability
- 48 blank cutouts compatible with keystone jacks, including AV Connectors and N235 Series RJ45 jacks
- Ideal for Ethernet, voice, audio/video and USB applications for home or office
- Numbered ports allow easy identification of jacks and cabling
- Heavy-duty cold-rolled steel construction designed for long life
- Mounts easily into 1U of space in an EIA-standard 19 in. 2-post rack
Manages and Organizes up to 48 Network Connections
This 1U unshielded patch panel features 48 blank cutouts that accommodate any type of keystone jack, including RJ45 Ethernet, HDMI audio/video, voice and USB. Each port is clearly numbered to help you identify connections.
Quick and Easy to Install in Your Rack
Made from long-lasting cold-rolled steel, the N062-048-KJ patch panel mounts easily in 1U of an EIA-standard 19-inch 2-post rack.
| Network | |
|---|---|
| Ports quantity | 48 |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6a, HDMI |
| Design | |
|---|---|
| Product colour | Black |
| Material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), SPCC |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Cable connection | RJ45, USB, HDMI |
| Certificates | |
|---|---|
| Compliance certificates | CE, REACH, RoHS, UKCA |
| Certification | CE (Europe); REACH; RoHS; UKCA |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 482.6 mm |
| Height | 44.2 mm |
| Depth | 12.7 mm |
| Weight | 540 g |
| Packaging data | |
|---|---|
| Package width | 101.6 mm |
| Package depth | 561.3 mm |
| Package height | 71.1 mm |
| Package weight | 450 g |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Harmonized System (HS) code | 8302.50.0000 |
| Master (outer) case width | 533.4 mm |
| Master (outer) case length | 581.7 mm |
| Master (outer) case height | 254 mm |
| Master (outer) case gross weight | 6.94 kg |
| Products per master (outer) case | 15 pc(s) |
