• Short-depth console shares same rack space with connected KVM switch
• 18.5 in. color widescreen LCD supports HD resolutions up to 1920 x 1080 @ 60 Hz
• USB pass-through port allows connection of flash drive, card reader or other USB device
• Includes hardware for mounting in 1U of space in a standard 19 in. rack
• Compatible with Windows, macOS, Linux and Sun operating systems

Provides Easy All-in-One Control of a Computer, Server or KVM Switch

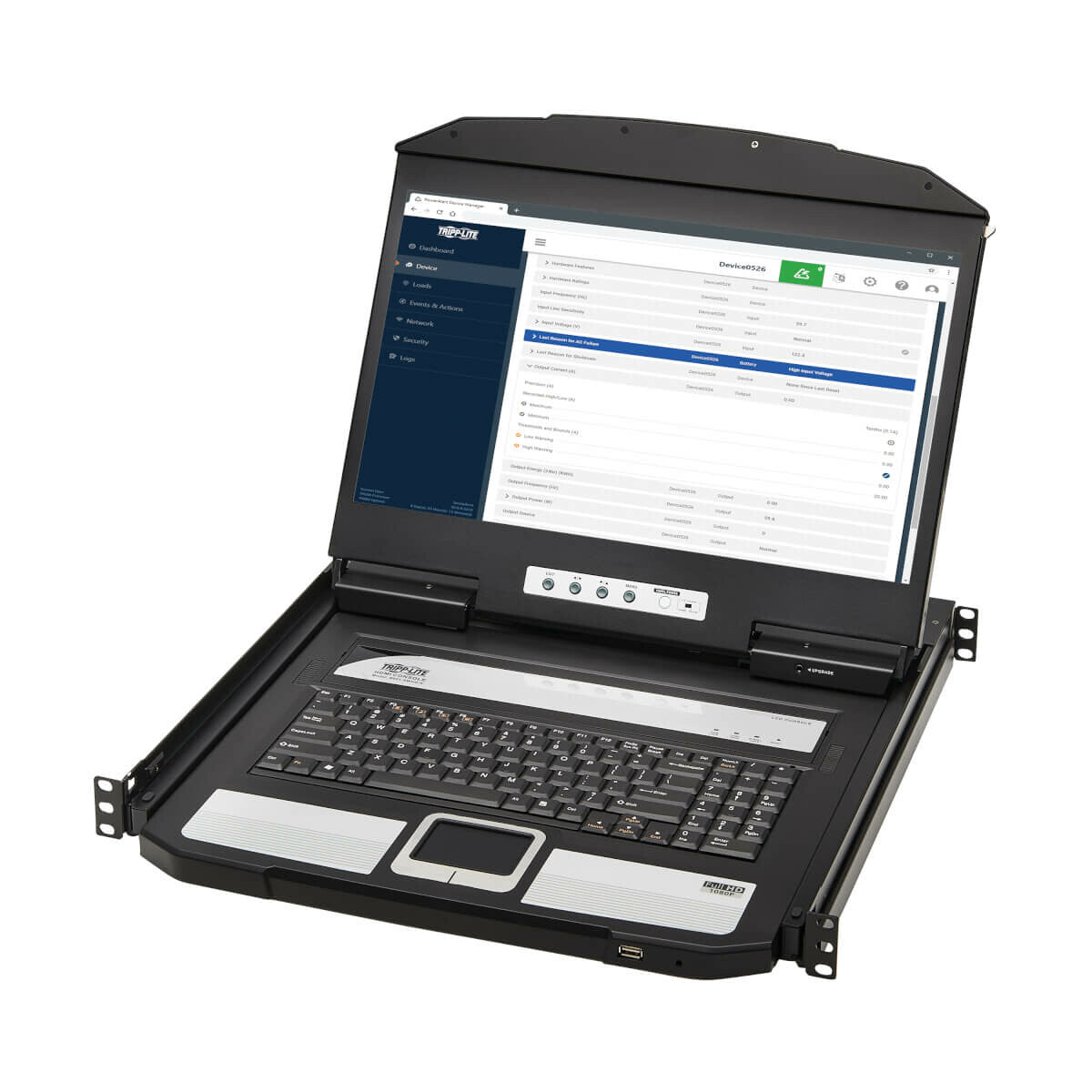

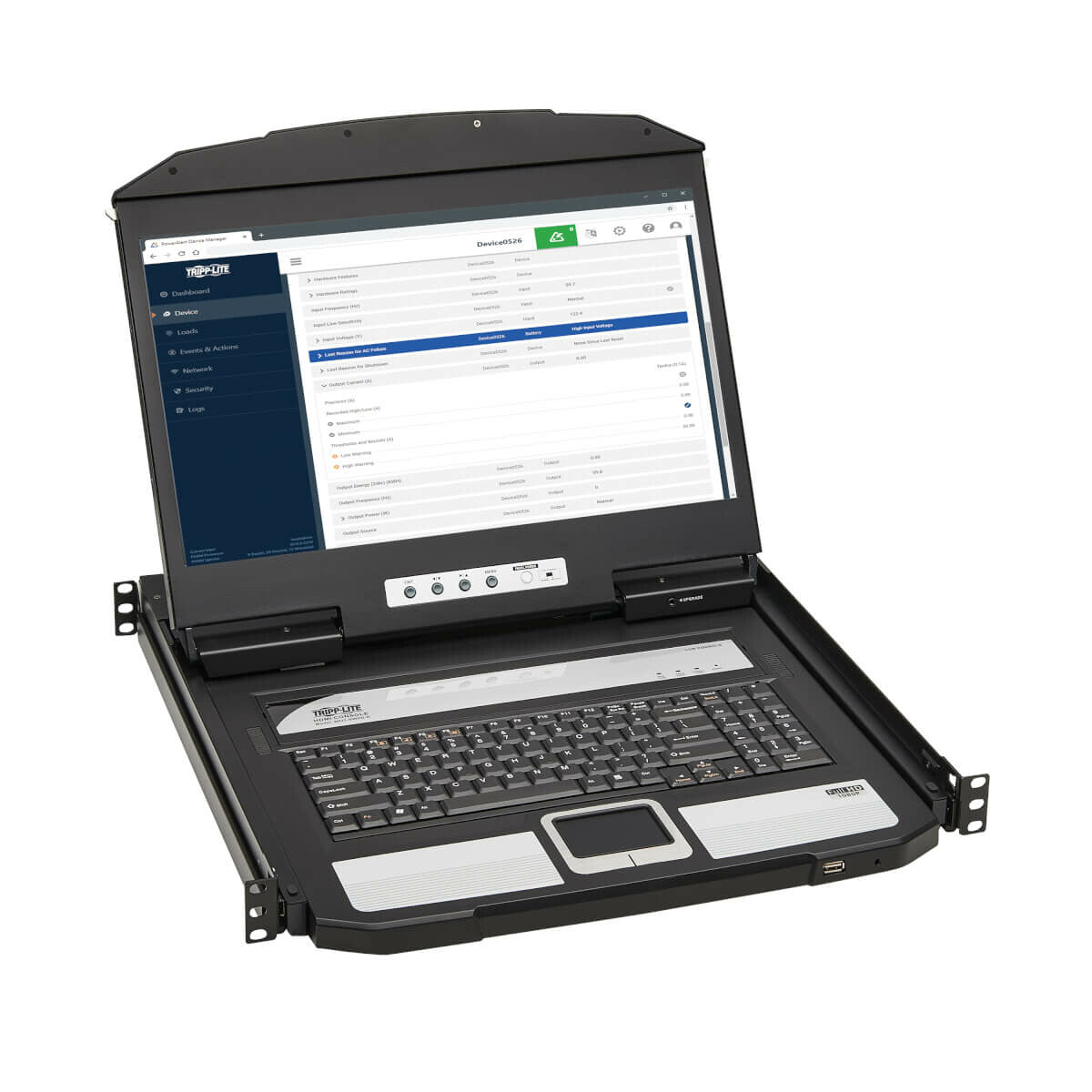

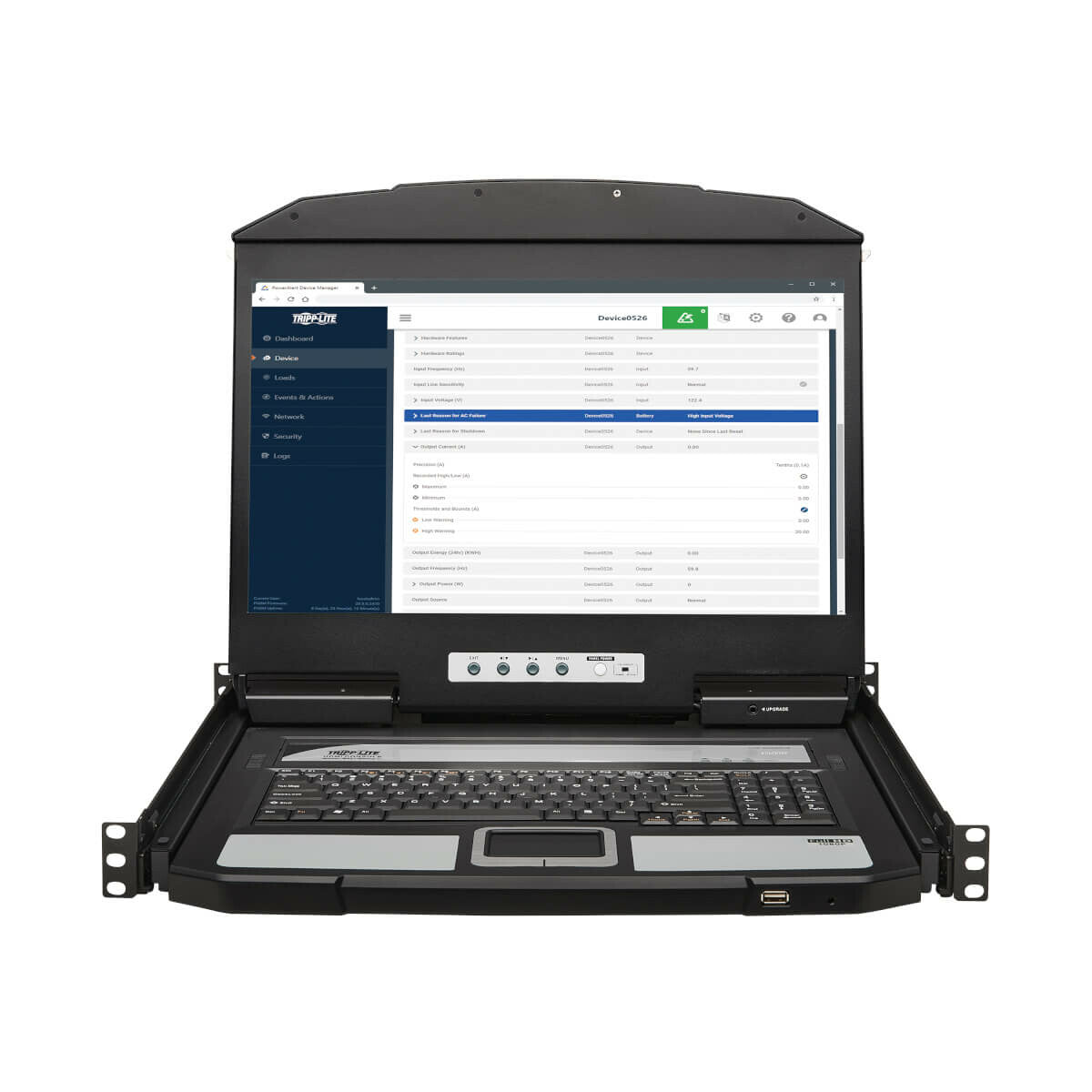

Simple to install and operate, this HDMI KVM console combines a 105-key PC-compatible keyboard, numeric keypad, touchpad and 18.5-inch color widescreen LCD with 1080p resolution. By connecting the B021-SWHD-K to a KVM switch, you can control multiple computers or servers from one central location. The console is designed for use with a server or KVM switch with USB console connectors.

Saves Space in Your Busy Rack

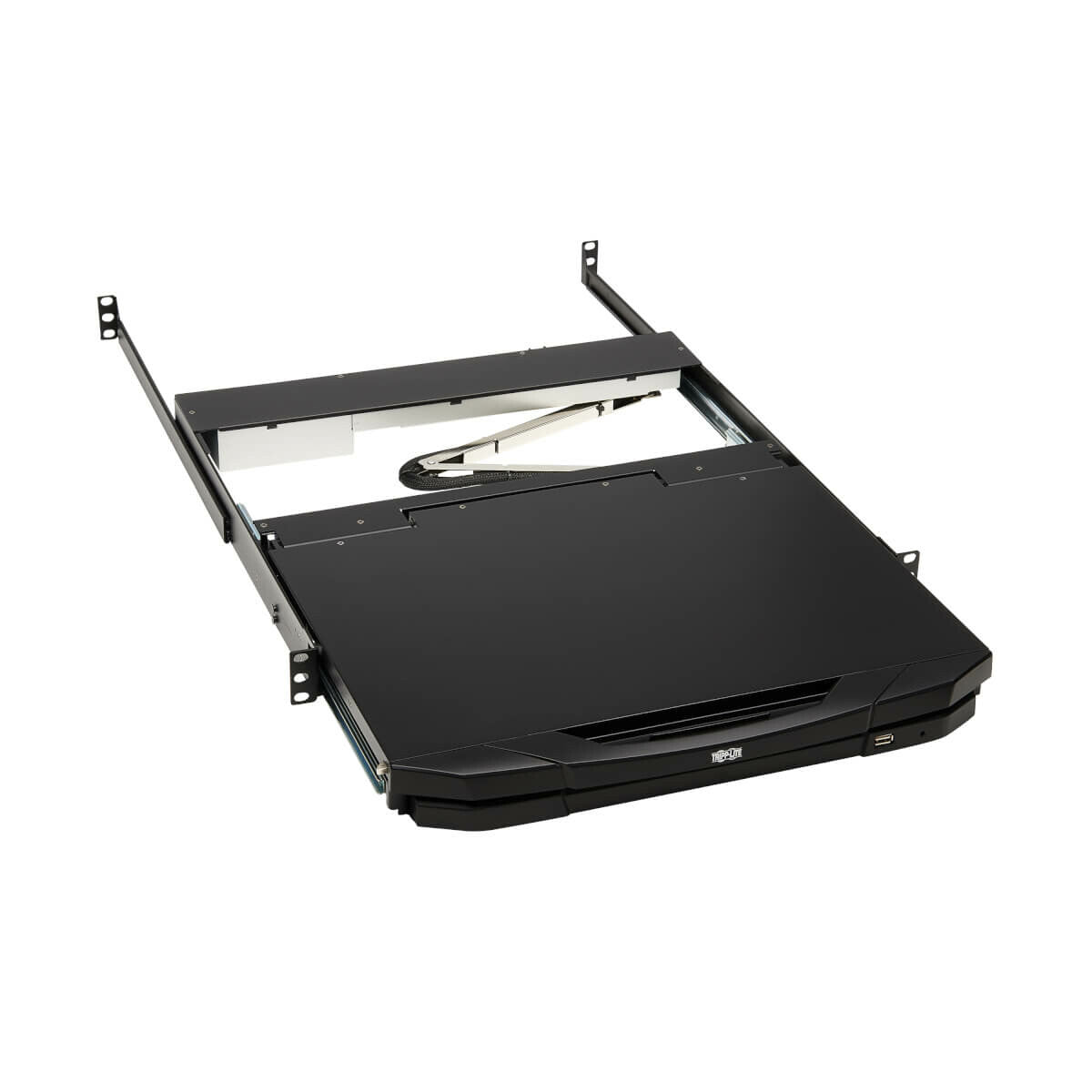

This 1U short-depth console ships with 2-in-1 mounting rails that allow it to be installed directly in front of an HDMI KVM switch to save rack space. Housed in an all-metal sliding drawer, the console mounts with included hardware into 1U of your EIA-standard 19-inch rack. Just pull out the drawer and flip up the 1080p color widescreen monitor when you need it. Slide it back into the rack when not in use. The B021-SWHD-K works with Windows, macOS, Linux and Sun.

Supports High-Definition Video and USB Pass-Through for Connecting Peripherals
The widescreen LCD supports HD video up to 1920 x 1080 (1080p) at 60 Hz. The connected computer’s video settings adjust automatically for optimal display on the LCD. A front USB port allows connection of a USB peripheral, such as a flash drive or CAC card reader.
