Tripp Lite · MPN: B005-DPUA2-K
£154.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £51.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) for crystal-clear video
  • Carries High Dynamic Range (HDR) signals for expanded color accuracy
  • Dual-mode DisplayPort (DP++) support allows connection of a local HDMI display
  • Dual USB 3.0 hub ports let you share USB peripherals among connected computers
  • Push buttons, hotkeys and included IR remote allow easy toggling between computers

Connects 2 DisplayPort-Enabled Devices to a Single Monitor, Keyboard and Mouse
This KVM switch lets you access, control, boot and reboot two computers with DisplayPort connectors and switch between them. In addition to desktop and notebook computers, the switch also connects up to two media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other DisplayPort-enabled devices. Both computers share one monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

Supports DisplayPort++ for Connecting an HDMI or DisplayPort Monitor
The B005-DPUA2-K supports DP++, allowing incoming DisplayPort signals to be converted to HDMI. It features one DisplayPort output and one HDMI output, though only one monitor may be used at a time.

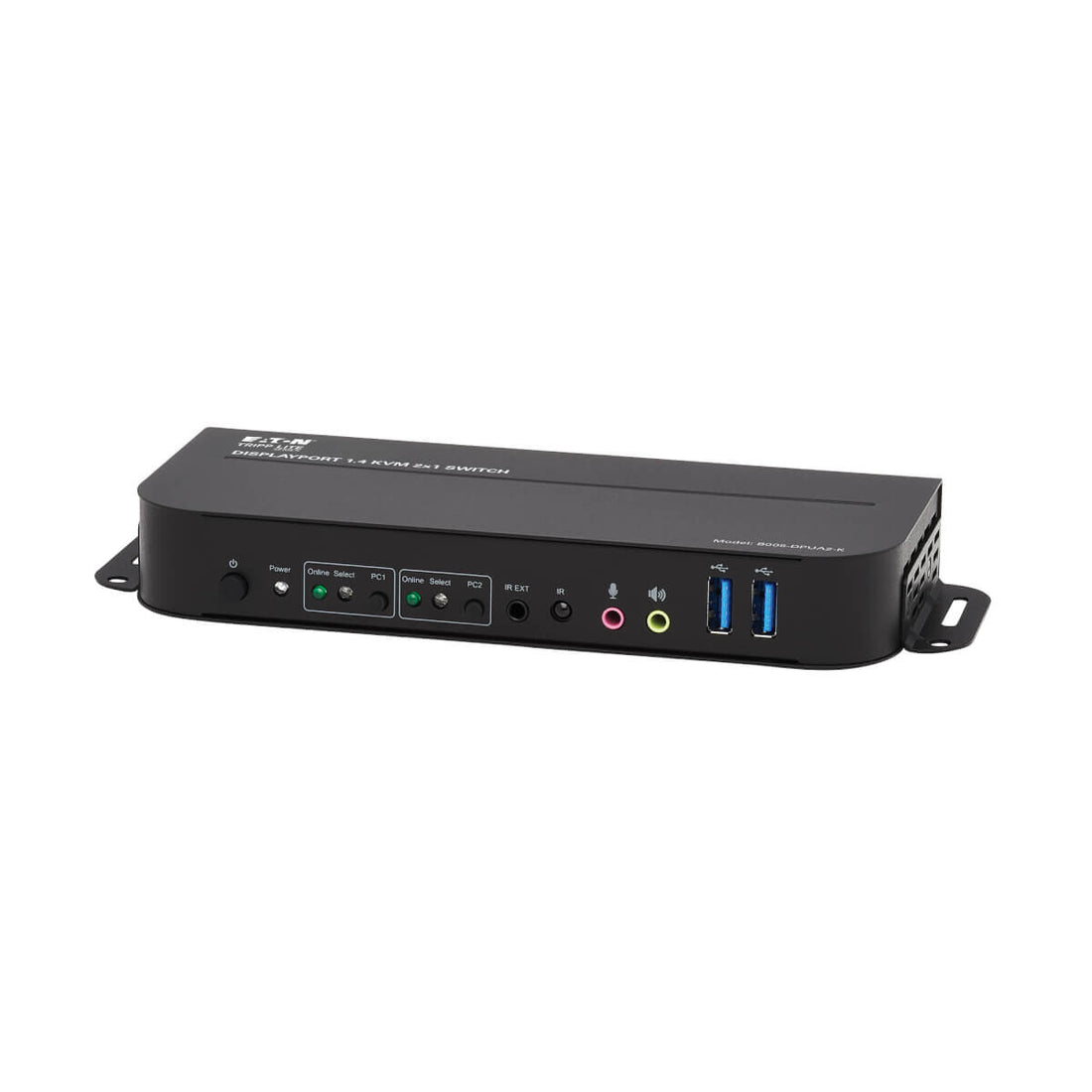

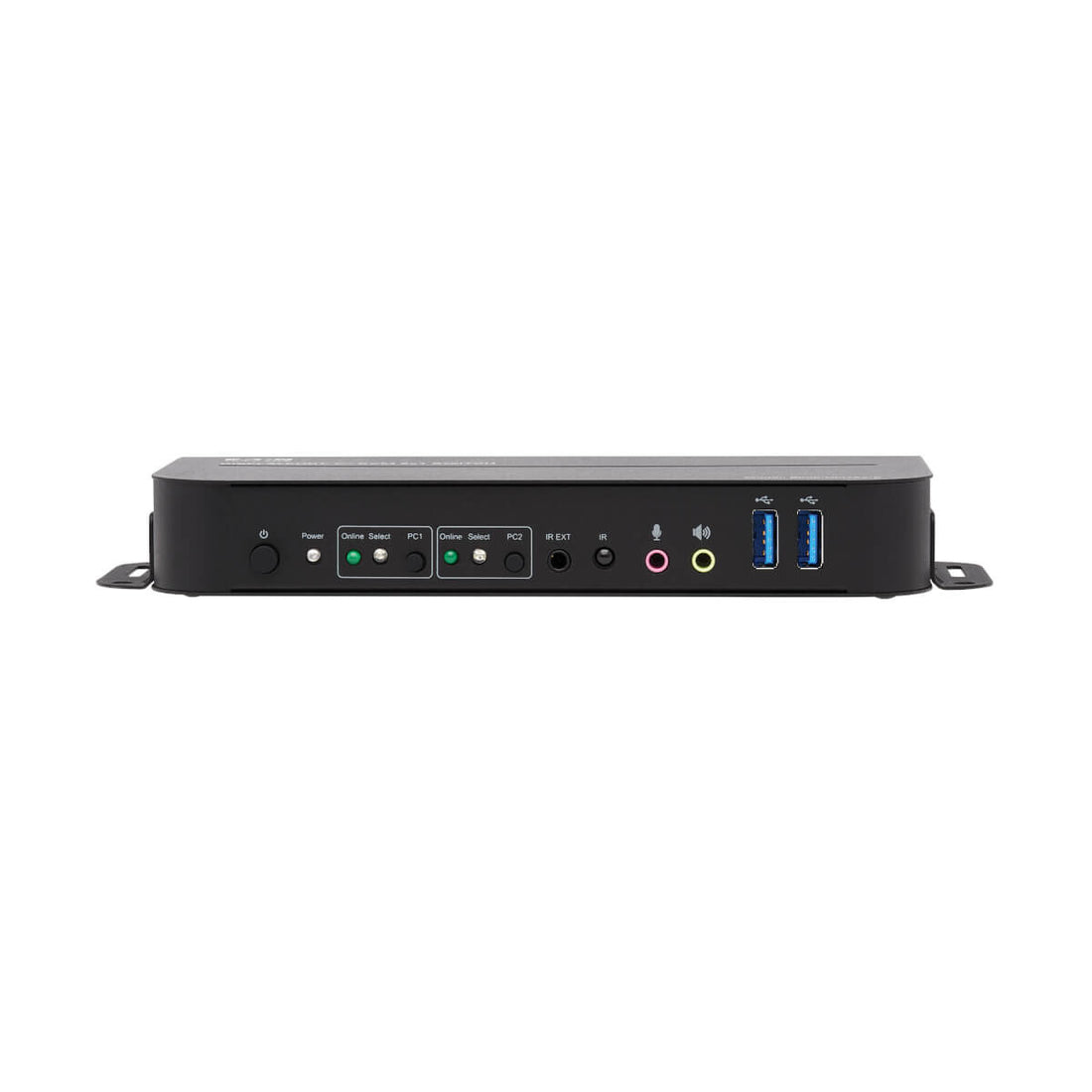

Switching Between Computers Is Fast and Easy
Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. Please note: Mouse Traversal is a permanent feature and cannot be disabled.

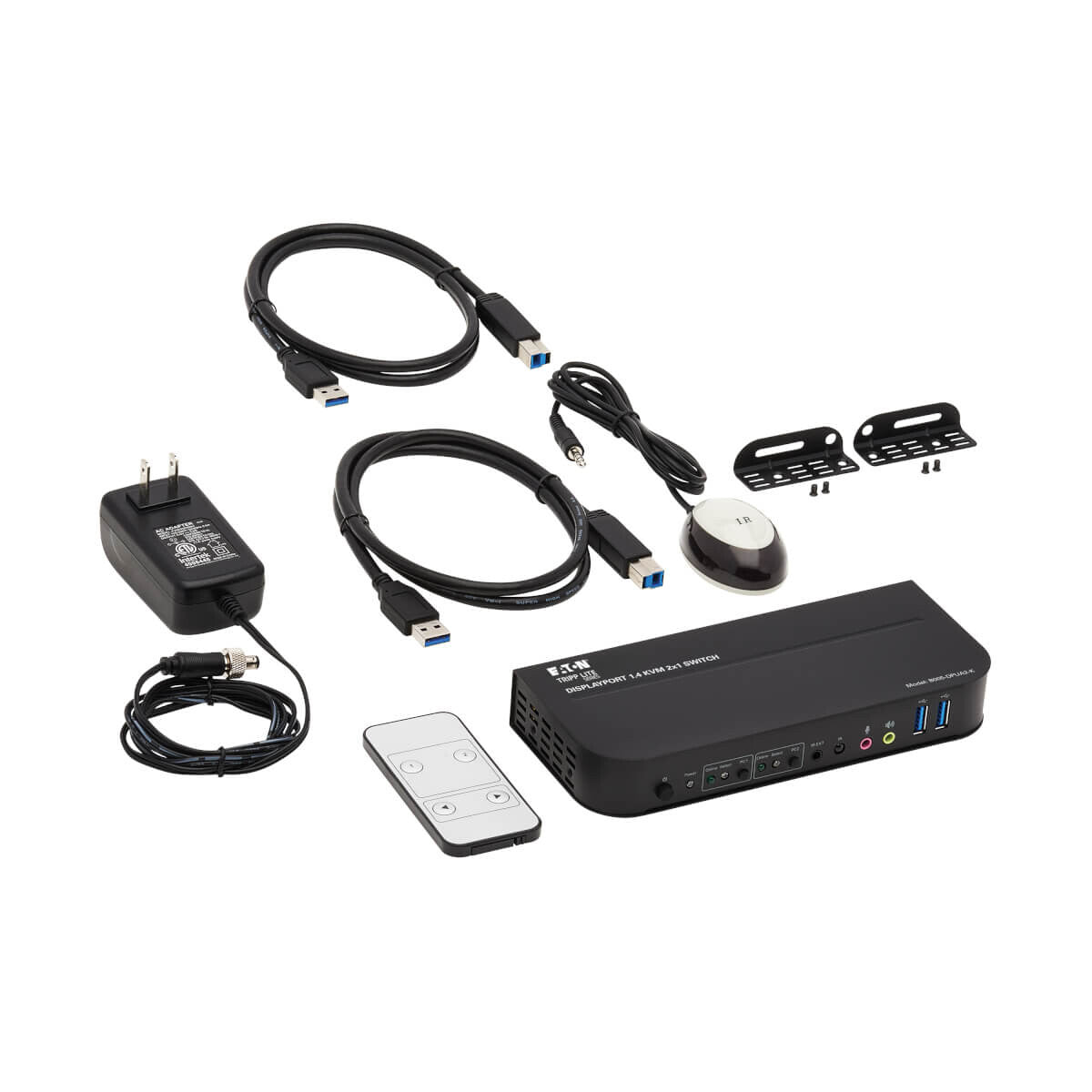

USB Cables Are Included to Facilitate a Simple Setup
Use the included USB 3.0 cables to connect your computers to the KVM switch. The plug-and-play B005-DPUA2-K requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, macOS and Linux.

USB Hub Lets You Share Peripherals between Computers
Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between both connected computers. The ports support USB 3.0 data transfer speeds up to 5 Gbps and are backward compatible with earlier USB generations.

Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color
The B005-DPUA2-K supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

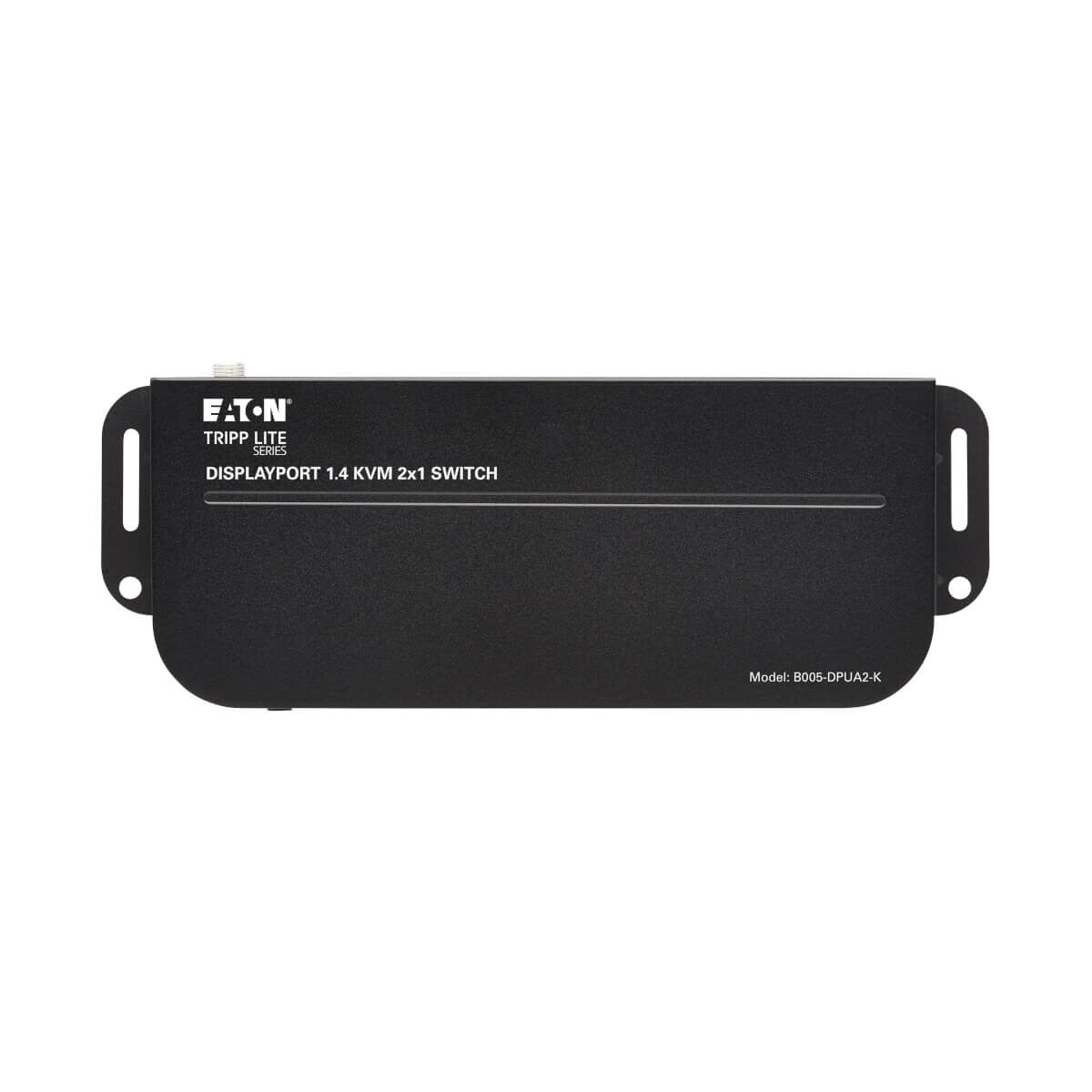

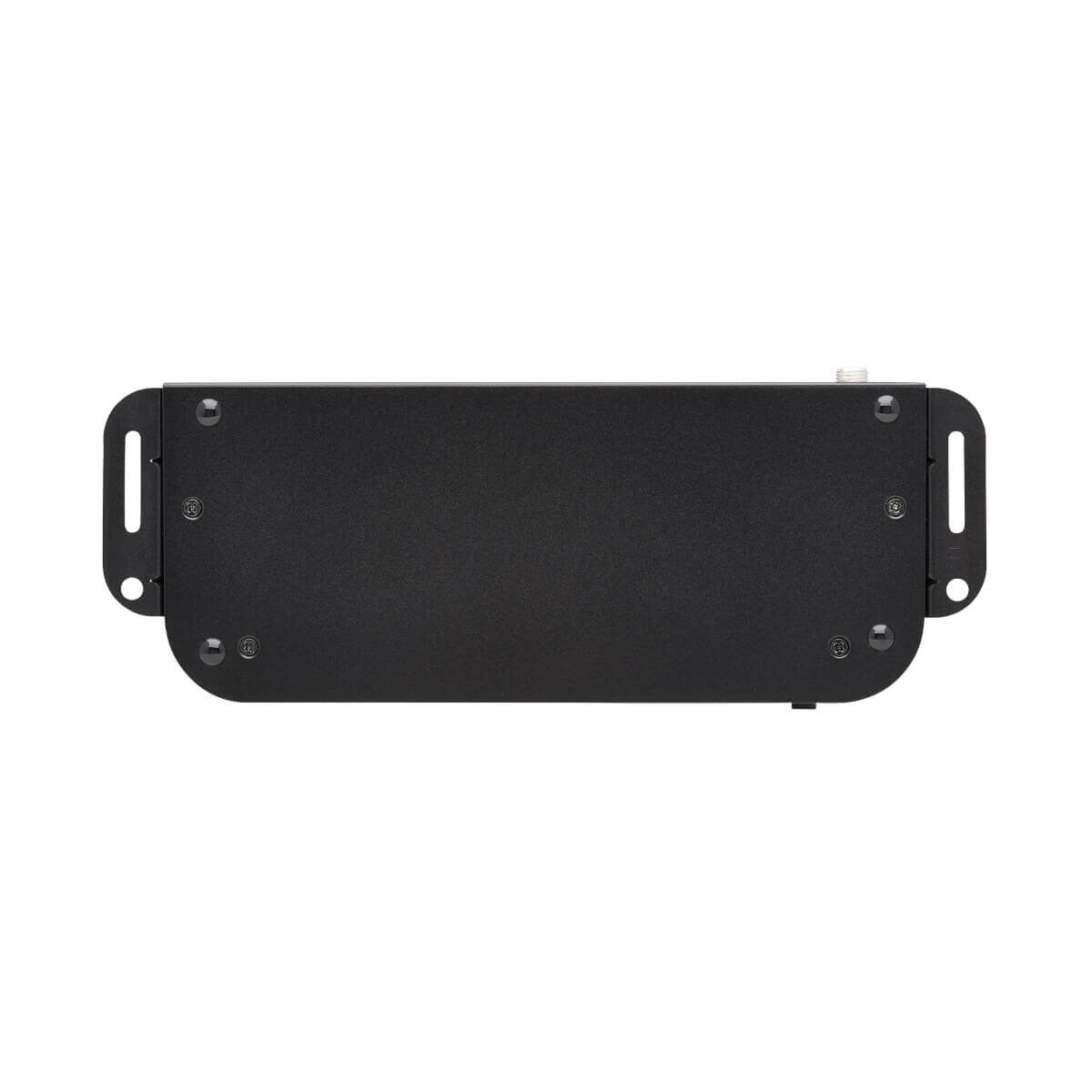

Designed for Convenient Mounting with Included Brackets
The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source.

Specifications

Ports & interfaces

Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI/DisplayPort
HDMI version2.0
HDMI ports quantity1
DisplayPorts quantity3
DisplayPort version1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity2
Console USB ports quantity2

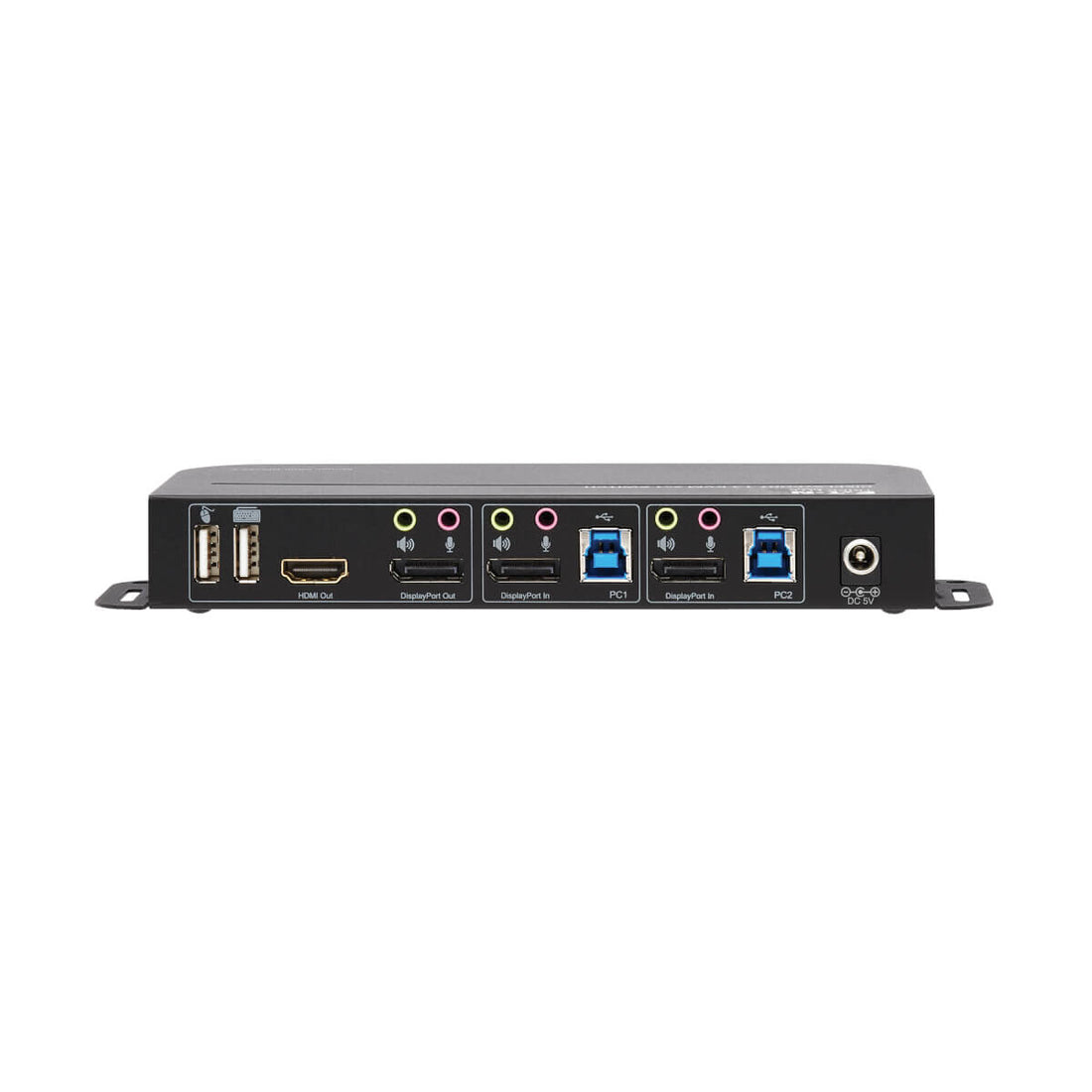

Console ports3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
Audio connectionsYes
Headphone outputs4
Number of microphone inputs4
DC-in jackYes

Performance

HD type4K Ultra HD
Maximum resolution4096 x 2160 pixels
Video bandwidth60 Hz
Data transfer rate (max)5 Gbit/s
Auto scan delay (min)5 s
Auto scan delay (max)999 s
HDCPYes
Plug and PlayYes
Number of users1 user(s)
Number of displays supported2
Audio channels7.1
Show all 57 specificationsShow fewer specifications

Design

Rack mountingNo
Product colourBlack
Housing materialMetal
Cable length1.2 m
LED indicatorsYes
Hot keysYes
CertificationCE, FCC, REACH

Display

Built-in displayNo

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current0.6 A
Output voltage5 V
Output current3 A
Compatible power plug typesAU, EU, UK, US
External power adapterYes
Power consumption (typical)12 W

Sustainability

Compliance certificatesRoHS

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-10 - 80 °C
Operating relative humidity (H-H)10 - 85%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width178.1 mm
Depth74.9 mm
Height25.9 mm
Weight370 g

Packaging content

Cables includedUSB Type-A to USB Type-B
AC adapter includedYes
ManualYes
