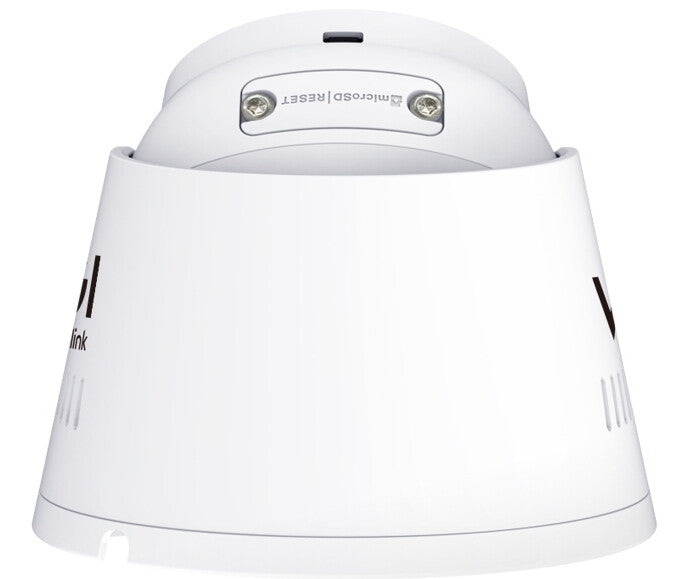

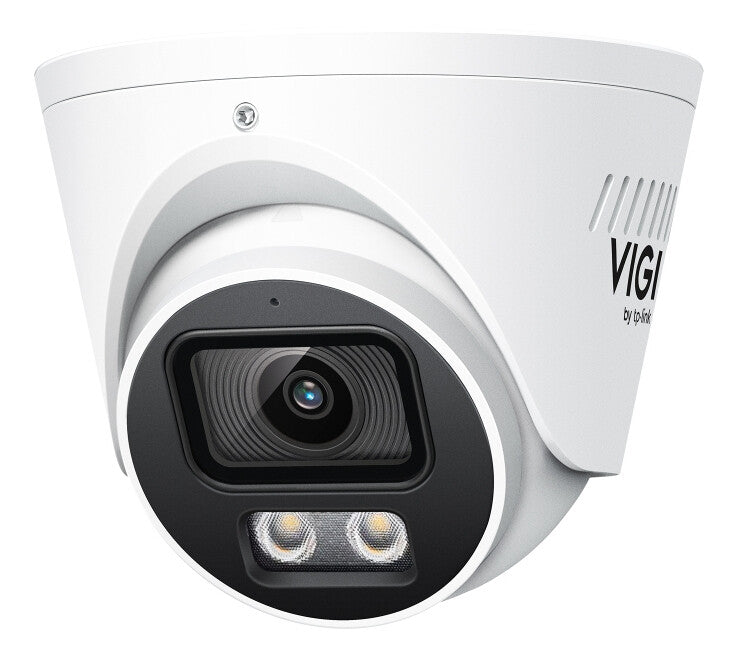

TP-Link VIGI InSight S445S(2.8mm) Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/wall
Couldn't load pickup availability
- Ultra Low-Light lmaging
- AI-ISP Powered
- Intelligent IR-White Lights
- High Definition
- Alarm IN/OUT Devices Integration
- People & Vehicle Attributes Analysis
- Human & Vehicle Classification
- Two-Way Audio
See True Colors and Details in the Dark
Unveiling every detail in the dark, experiencing clarity and color as vivid as daylight — no extra fill lights needed.
Worry-Free Night Surveillance: Beyond IR & Full-Color
Eliminates general night vision issues like dark corners, glare, and color loss — enjoy worry-free nighttime monitoring.
See Vividly — Even No Extra Fill Lights Needed
Enables full-color imaging in low-light conditions without fill-in lighting, reducing both energy consumption and insect-triggered false alarms for a more eco-friendly solution.
People or Vehicle Triggered Intelligent IR-White Lights Reveal More in Total Darkness
In complete darkness with zero illumination, VIGI’s intelligent infrared-white lights will automatically activate white lights upon detecting people or vehicles, delivering vivid color imaging while deterring intruders.
Accurate Detection with Clear and Extended Vision
Ideal for Low-Light Conditions Where Colors and Details Matter
VIGI AI Detection Technology
People & Vehicle Attributes Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, topwear color, vehicle type, making post-event search faster and easier
Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Auto pan mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Dynamic range | 120 dB |
| Certification | CE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, ONVIF |
| Design | |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Weatherproof | Yes |
| Camera | |
|---|---|
| Minimum illumination | 0.0005 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 112.5° |
| Lens viewing angle, vertical | 61.4° |
| Lens viewing angle, diagonal | 137° |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 360° |
| White balance | Area white balance |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
| Panoramic camera | |
|---|---|
| Sensor type (panoramic camera) | CMOS |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 52 dB |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 79 mm (1 / 79") |
| Progressive scan | Yes |
| Lens system | |
|---|---|
| Number of lenses | 1 |
| Detect distance | 59 m |
| Observe distance | 25 m |
| Recognize distance | 12 m |
| Fixed focus | Yes |
| Identify distance | 6 m |
| Maximum aperture number | 1 |
| Fixed focal length | 2.8 mm |
| Night vision | |
|---|---|
| Night vision | Yes |
| Infra-red wavelength | 850 nm |
| Video | |
|---|---|
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 848 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520 |
| Video recording | Yes |
| Frame rate | 30 fps |
| Thermal frame rate (PAL) | 60 Hz |
| Thermal frame rate (NTSC) | 50 Hz |
| Video streaming | Yes |
| Noise reduction | Yes |
| Smart IR | Yes |
| Region of Interest (ROI) encoding | Yes |
| Highlight Compensation (HLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 64 Kbit/s |
| Image quality adjustment | Brightness, Contrast, DNR, Saturation, Sharpness |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio input channels | 2.0 channels |
| Audio output channels | 2.0 channels |
| Number of microphones | 1 |
| Built-in microphone | Yes |
| Bit rate range | 256 - 6000 Kbit/s |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
| Number of simultaneous live view channels | 3 channels |
| Live view | Yes |
| Storage | |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Security | |
|---|---|
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Password protection | Yes |
| Password protection type | User |
| Human and vehicle targets classification | Yes |
| Alert notification type | E-mail, Push notification |
| Digest authentication | Yes |
| Mirror | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Abnormal sound detection, Intrusion, Line crossing detection, People counting, Region entrance detection, Region exiting detection, Scene change, Vehicle detection |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Active tampering alarm | Yes |
| Motion sensor | Yes |
| Video motion detection | Yes |
| Management features | |
|---|---|
| Web-based management | Yes |
| Web browser | Yes |
| Cloud-managed | Yes |
| Cloud services supported | FTP |
| Behavior analysis | Audio exception detection, Object removal detection |
| Reset button | Yes |
| Power | |
|---|---|
| Power source type | DC, PoE |
| AC input voltage | 12 V |
| Power consumption (typical) | 15.6 W |
| Power consumption (max) | 17.9 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| General | |
|---|---|
| Product family | VIGI |
| Weight & dimensions | |
|---|---|
| Width | 111 mm |
| Depth | 111 mm |
| Height | 81.4 mm |
| Weight | 550 g |
| Sustainability | |
|---|---|
| Compliance certificates | CE |
| Packaging data | |
|---|---|
| Package type | Box |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Mounting kit | Yes |
