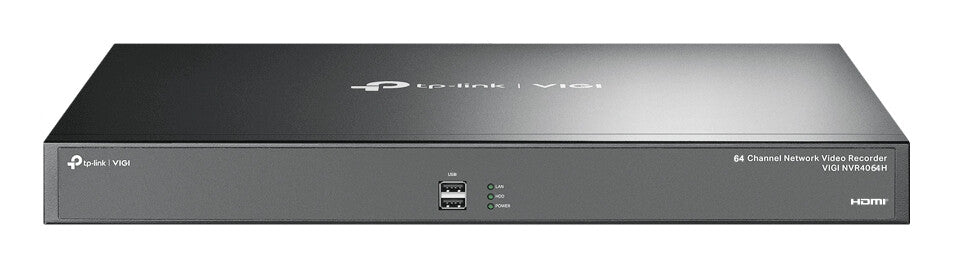

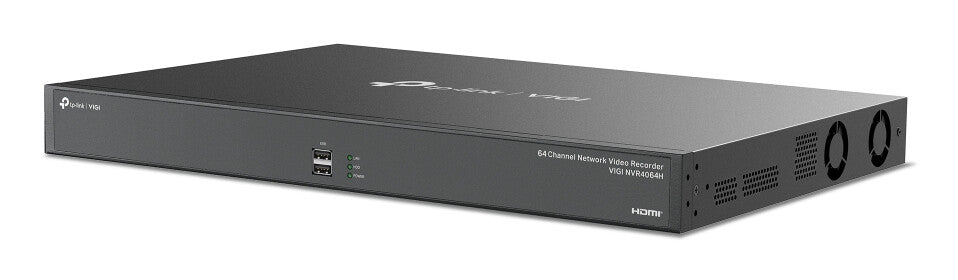

TP-Link VIGI 64 Channel Network Video Recorder
£1,287.99
inc. VATSpread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £429.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 64-Channel Live View and 4K HDMI Video Output
- Up to 16-ch @ 2MP (25fps) / 8-ch @ 4MP (30fps) Decoding Capability
- 16-Channel Synchronous Playback
- 320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
- 4× SATA Interfaces and 1 Up to 16 TB
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
Security Never Shuts Down
64 Channel Network Video
Feature-Packed Ports for SMB Surveillance
Dual Ethernet Ports Design
Multi-Address Mode
Allows for the implementation of two different gateways
Network Fault-Tolerance
Creates a safeguard or redundancy for your data
Port Aggregation
Realizes bandwidth stack and mutual backup
One-Click System Initialize
VIGI NVRs enable quick camera additions, HDD initialization, and storage scheduling with a single click, reducing setup expenses.
Specifications
Performance
| Video input channels | 64 channels |
|---|---|
| Alarm input channels | 16 |
| Alarm output channels | 4 |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p, 1080p |
| Supported resolutions | 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Video motion detection | Yes |
| Video loss detection | Yes |
| Audio formats supported | G.711 A-law, G.711 μ-law, G.726 |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Playback modes | Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Backup function | Yes |
| Output bandwidth | 320 Mbit/s |
| Input bandwidth | 320 Mbit/s |
| Recording modes | Manual, Schedule |
| Audio system | 2-way |
Hard drive
| HDD capacity | 0 GB |
|---|---|
| Number of HDDs supported | 4 |
| Maximum storage capacity | 64 TB |
| HDD interface | SATA |
Show all 58 specificationsShow fewer specifications

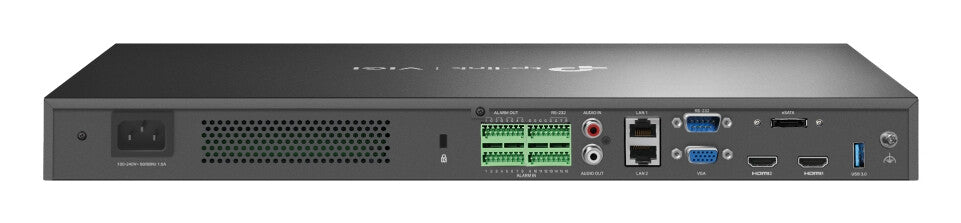

Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| HDMI ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| eSATA ports quantity | 1 |
| eSATA | Yes |
| RS-232 ports | 1 |
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
Features
| Rack mounting | Yes |
|---|---|
| Reset button | Yes |
| Buzzer off | Yes |
| Product colour | Black |
Power
| Power consumption (max) | 48.38 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output current | 1.5 A |
System requirements
| Mobile operating systems supported | Android, iOS |
|---|---|
| Browser supported | Chrome (57+), Firefox (52+), Edge (91+) |
Operational conditions
| Operating temperature (T-T) | -10 - 55 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
General
| Product family | VIGI |
|---|
Technical details
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), KC, UKCA, VCCI |
|---|
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 4 kg |
| Package width | 440 mm |
| Package depth | 528 mm |
| Package height | 100 mm |
| Package weight | 5 kg |
Packaging content
| Packaging content | - Mouse - Installation Guide - Power Cord - HDD Power Cables - HDD Data Cables - Terminal Blocks - Mounting Brackets - Screws - Rubber Feet |
|---|
