TP-Link TL-SG1008P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Hazelnut
Couldn't load pickup availability
- 8 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Requires no configuration and installation
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- PoE power up to 15.4W for each PoE port
- PoE power up to 55W for all PoE outputs
What This Product Does
8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
How This Product Works

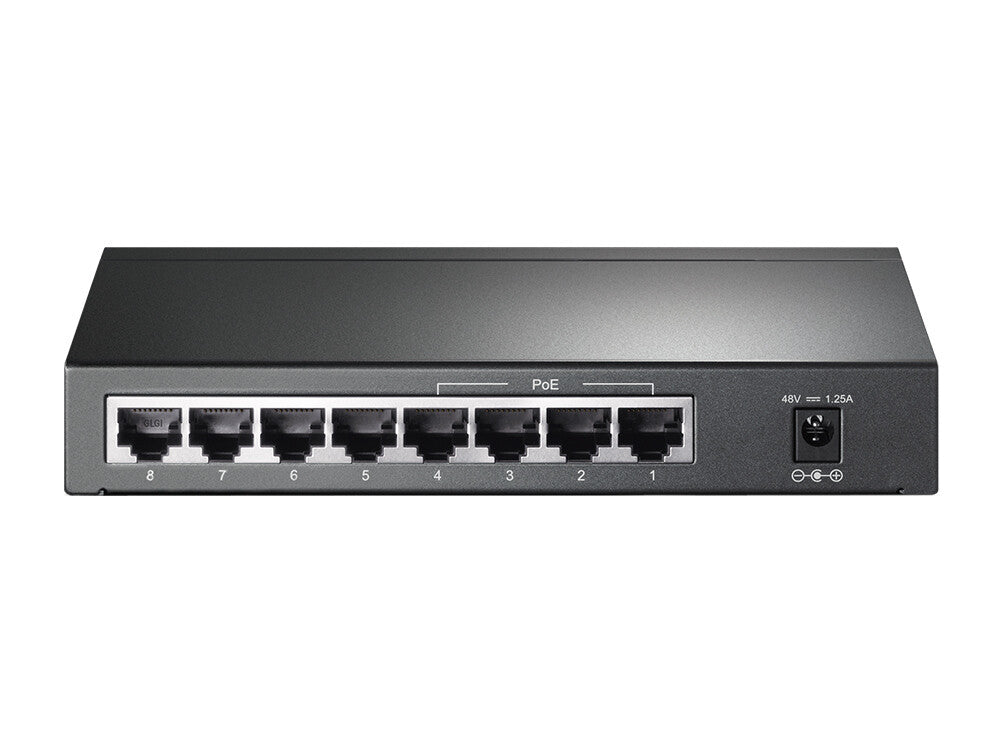

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Overload Arrangement
TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4.
Easy To Use
TL-SG1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Compatible memory cards | MMC Mobile |
| Fiber optic connector | LuxCis |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| VLAN mapping type | 2:2 VLAN Mapping |
| Virtual LAN features | IP subnet–based VLAN |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Full duplex | Yes |
| Cable types supported | Cat6a |
| Copper ethernet cabling technology | 100BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.11j |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 40GBASE-LR4 |
| Data transmission | |
|---|---|
| Store-and-forward | Yes |
| Switching capacity | 16 Gbit/s |
| MAC address table | 4800 entries |
| Security | |
|---|---|
| Security algorithms | HTTPS |
| Authentication | Auto VLAN |
| Authentication type | HWTACACS |
| Queue scheduling algorithms | SP |
| MAC address entries | Blackhole MAC address entries |
| DHCP features | DHCPv6 client |
| Protocols | |
|---|---|
| IPv4 & IPv6 features | IPv6 Telnet |
| Routing protocols | IP |
| Design | |
|---|---|
| Airflow direction | Back-to-front airflow |
| LED indicators | Error |
| Housing material | Polymer |
| Product colour | Hazelnut |
| Rack mounting | No |
| Power | |
|---|---|
| Power consumption (typical) | 53 W |
| Input current | 1.25 A |
| DC input voltage | 48 V |
| Number of power supply units | 1 |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 27 mm |
| Depth | 98 mm |
| Width | 171 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Cables included | AC |
| Packaging data | |
|---|---|
| Package type | Box |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
