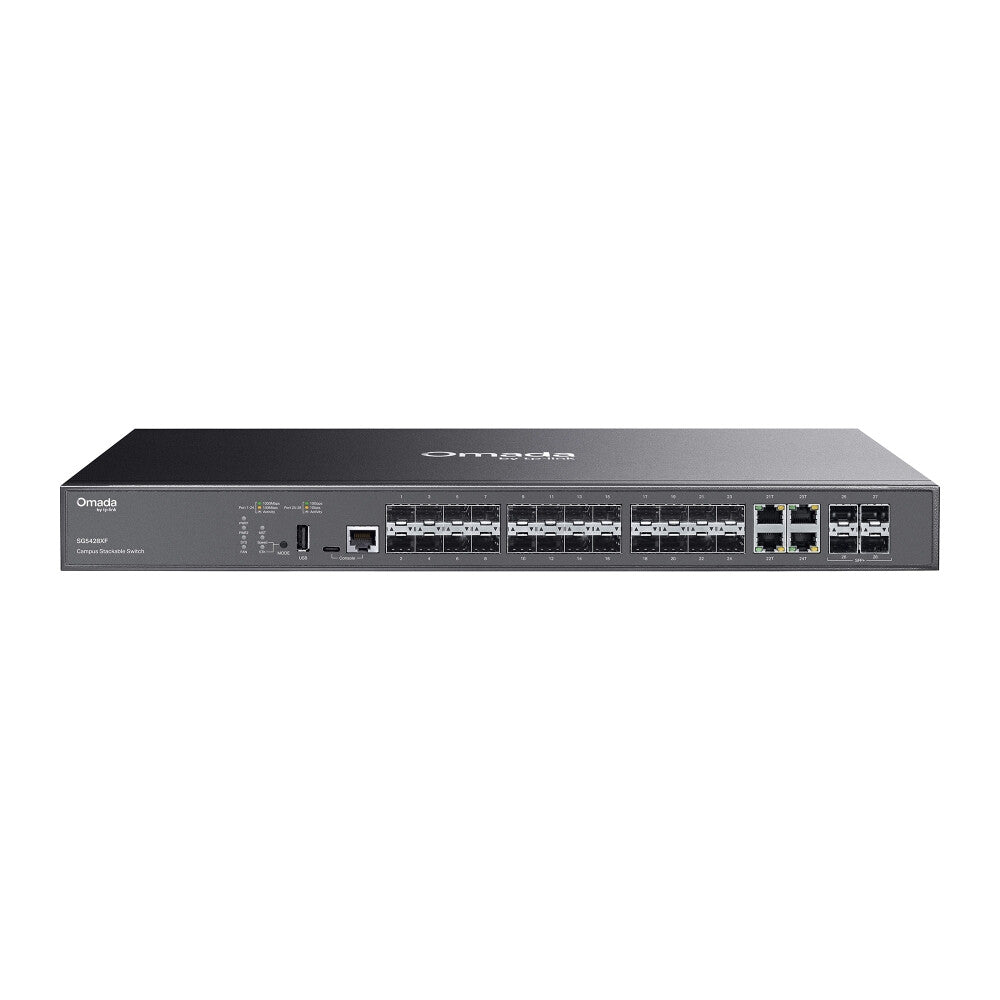

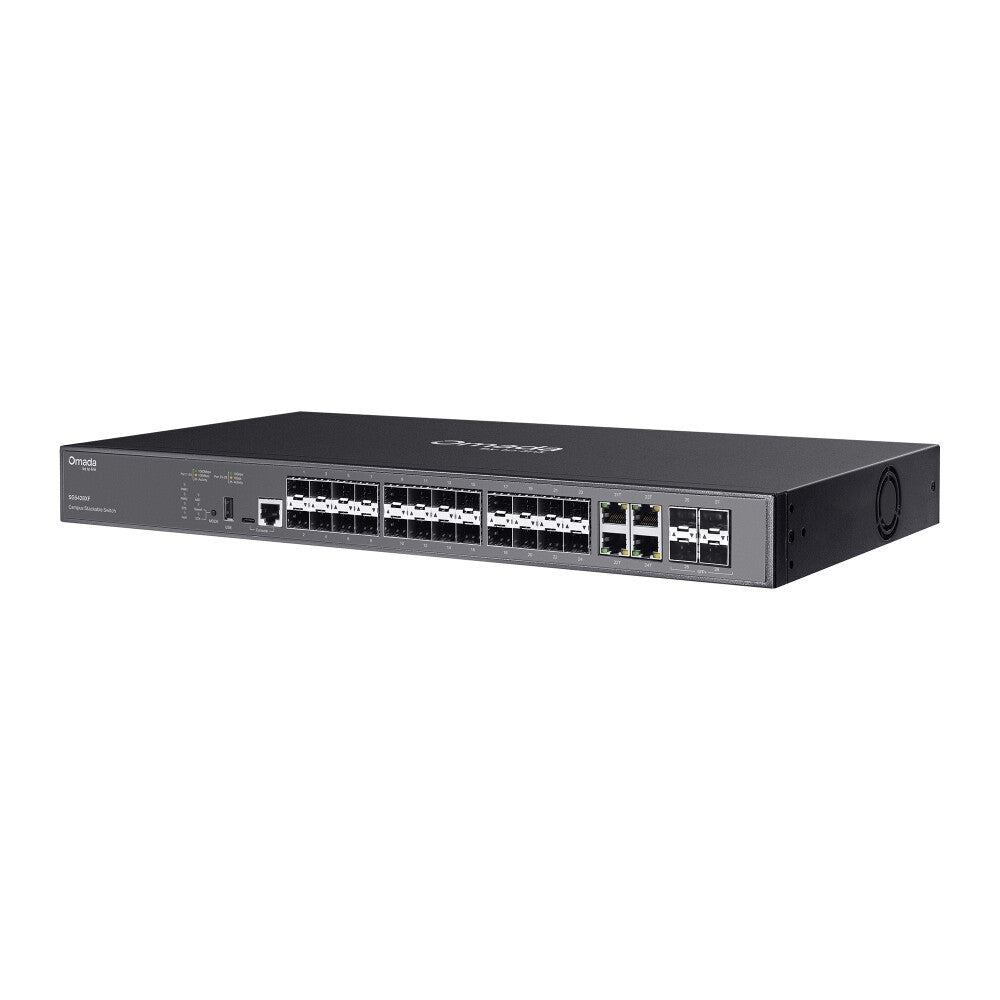

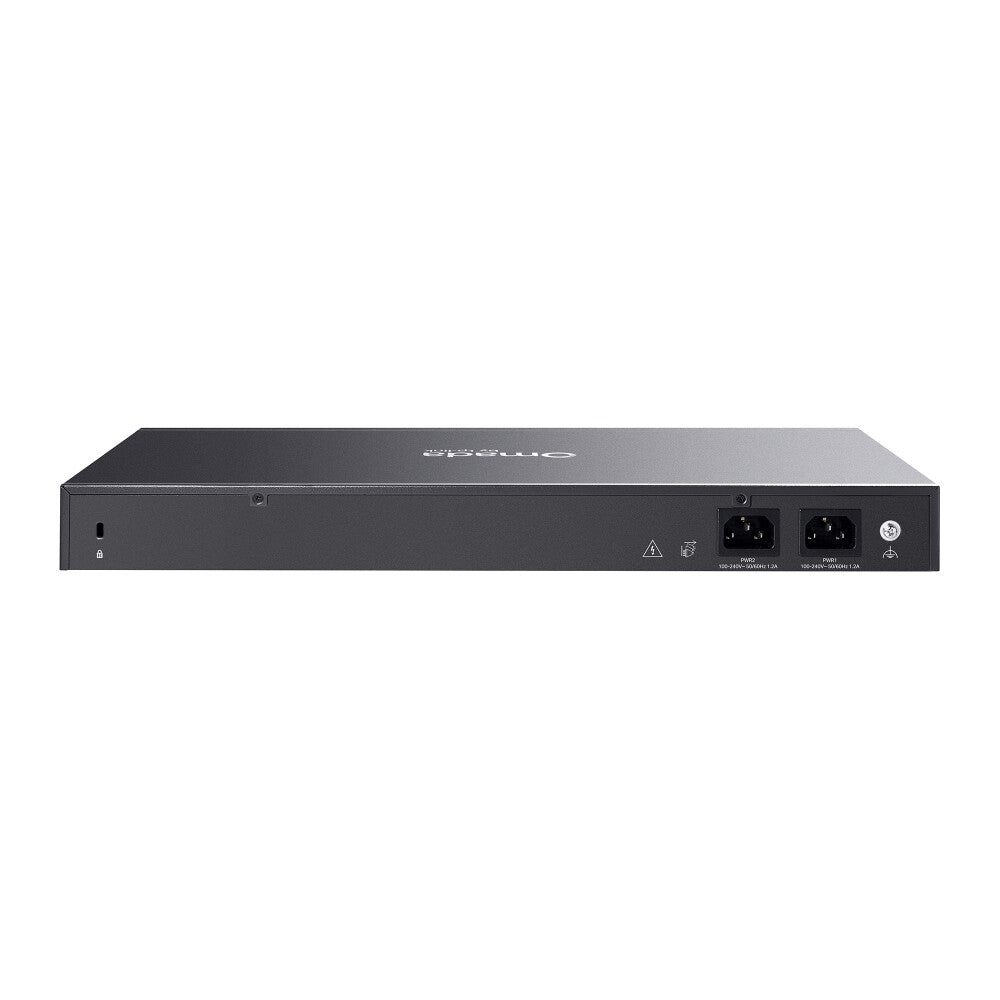

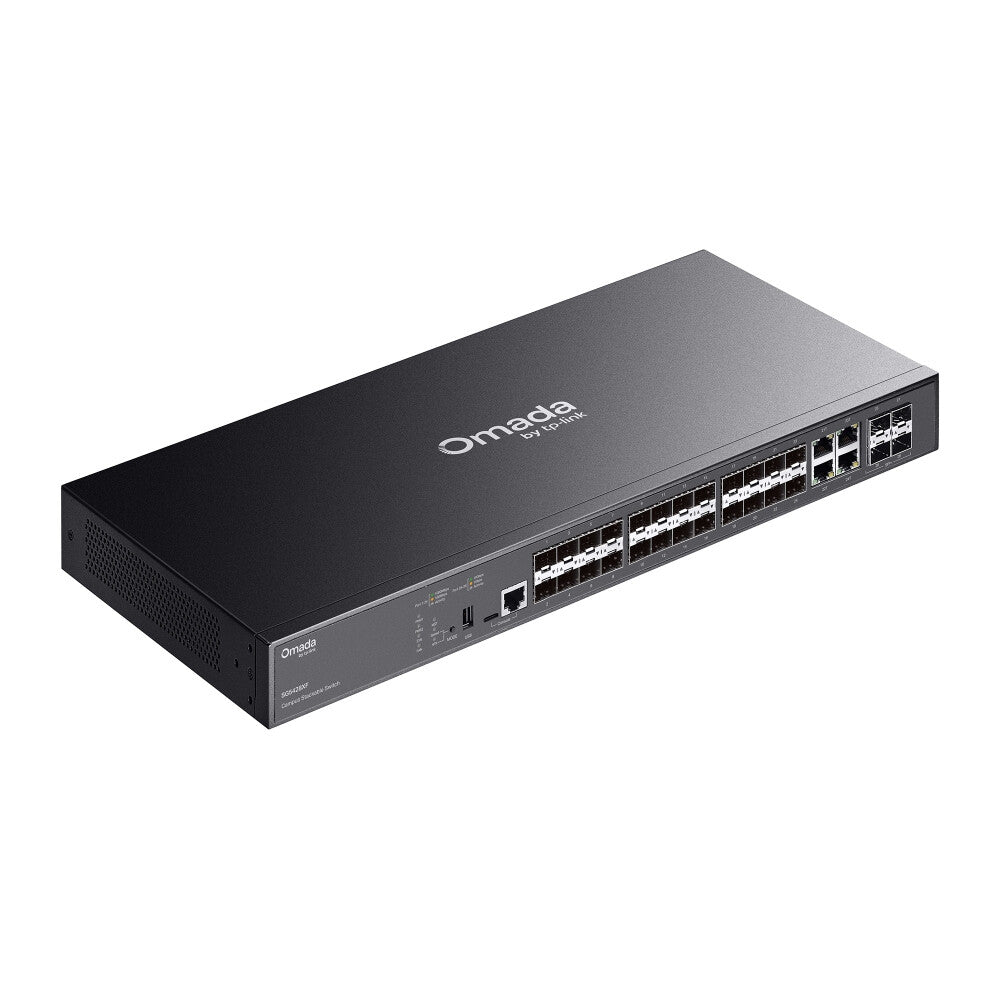

TP-Link SG5428XF network switch Managed L3 Black
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £231.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Console port: RJ-45/USB Type-C
- MAC address table: 16000 entries Switching capacity: 128 Gbit/s
- Rack mounting Stackable
- AC
What This Product Does
Omada SG5428XF is a dependable entry-level L3 switch tailored for the aggregation layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428XF offers a reliable networking solution for SMEs and ISPs.
High-speed Connectivity and Powerful Stacking
20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium-sized business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface. Apart from the ability to be centrally managed via the web or the Omada app, SG5428XF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Combo SFP ports quantity | 4 |
|---|---|
| SFP module slots quantity | 20 |
| SFP+ module slots quantity | 4 |
| USB Type-A ports quantity | 1 |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP |
| Console port | RJ-45/USB Type-C |
Show all 56 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x |
|---|---|
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Management VLAN, Multicast VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
Data transmission
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 128 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
Security
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping |
|---|---|
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| Authentication type | AAA, TACACS+ |
| Authentication | Guest VLAN |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
Multicast features
| Multicast Listener Discovery (MLD) snooping | Yes |
|---|
Protocols
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|---|
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP |
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| Number of fans | 1 fan(s) |
Power
| Power source | AC |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 28.3 W |
| Power consumption (max) | 28.98 W |
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 98.822 BTU/h |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
Packaging content
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
