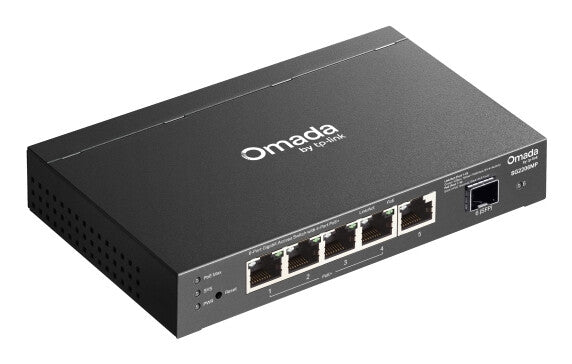

TP-Link SG2206MP network switch L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
£79.99
Couldn't load pickup availability

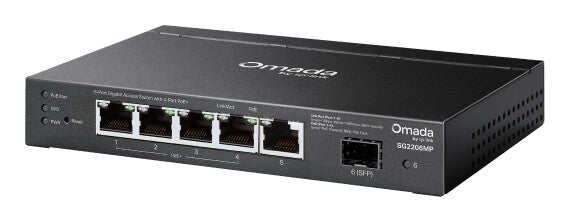

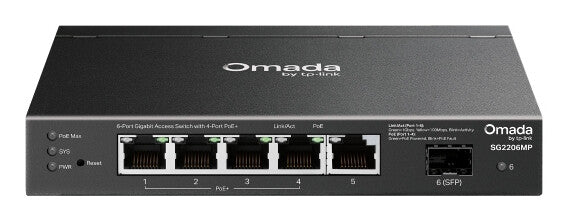

- 5× Gigabit RJ45 ports (4× PoE+) and 1× Gigabit SFP slot
- 63W total PoE budget with up to 30W for each PoE+ port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping

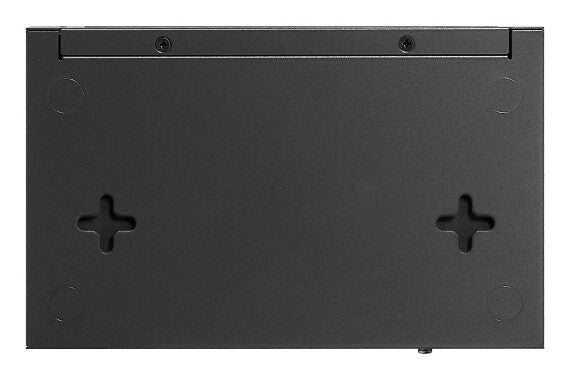

- Durable metal casing and desktop/wall mounting design
Multiple Application Scenarios
Wi-Fi Coverage
Works with Access Points
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
| Management features | |
|---|---|
| Switch layer | L2 |
| Ports & interfaces | |
|---|---|
| Installed SFP modules quantity | 1 |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Active link detection | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 230 |
| Port mirroring | Yes |
| Data transmission | |
|---|---|
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 9 |
| Jumbo frames support | Yes |
| Switching capacity | 12 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP relay, DHCP server |
| Design | |
|---|---|
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
|---|---|
| Power consumption (max) | 73.7 W |
| Input current | 1.31 A |
| DC input voltage | 53.5 V |
| Number of power supply units | 1 |
| Power supply included | Yes |
| Power source | DC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 63 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
|---|---|
| Height | 25.4 mm |
| Depth | 100.7 mm |
| Width | 158 mm |
