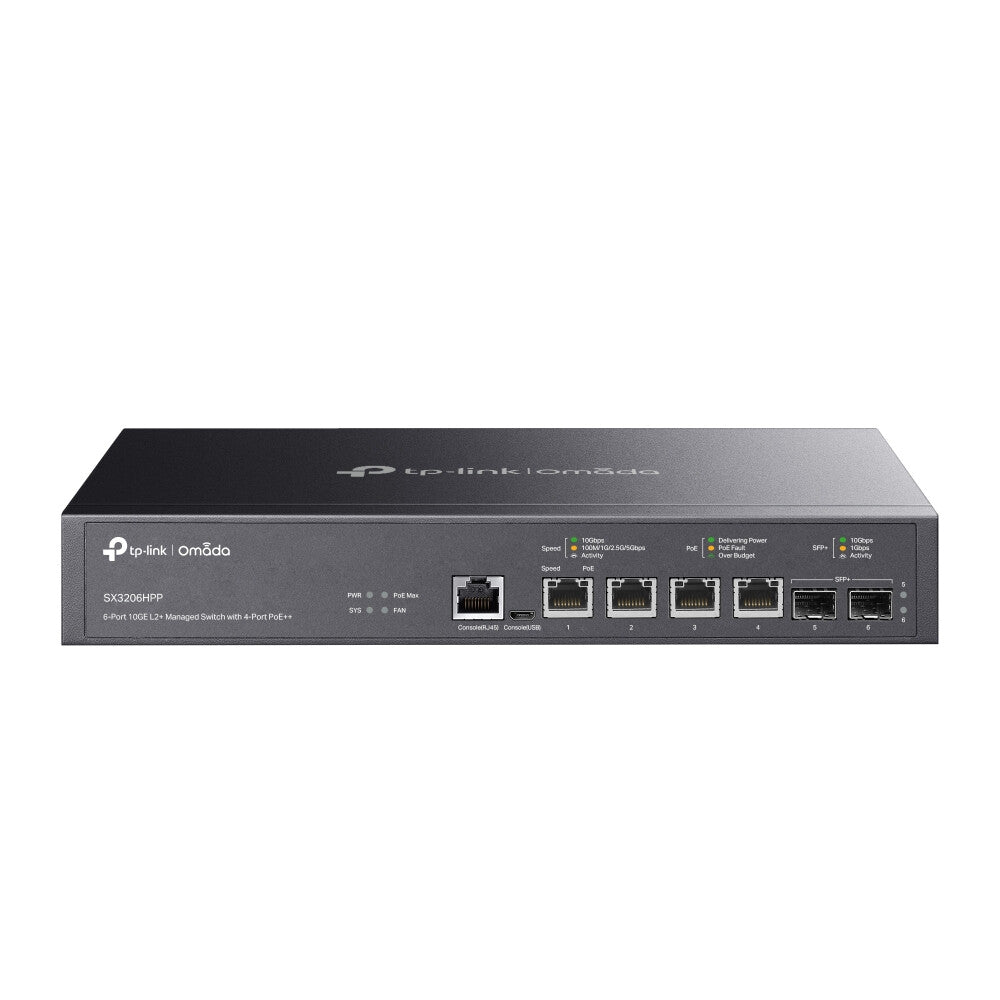

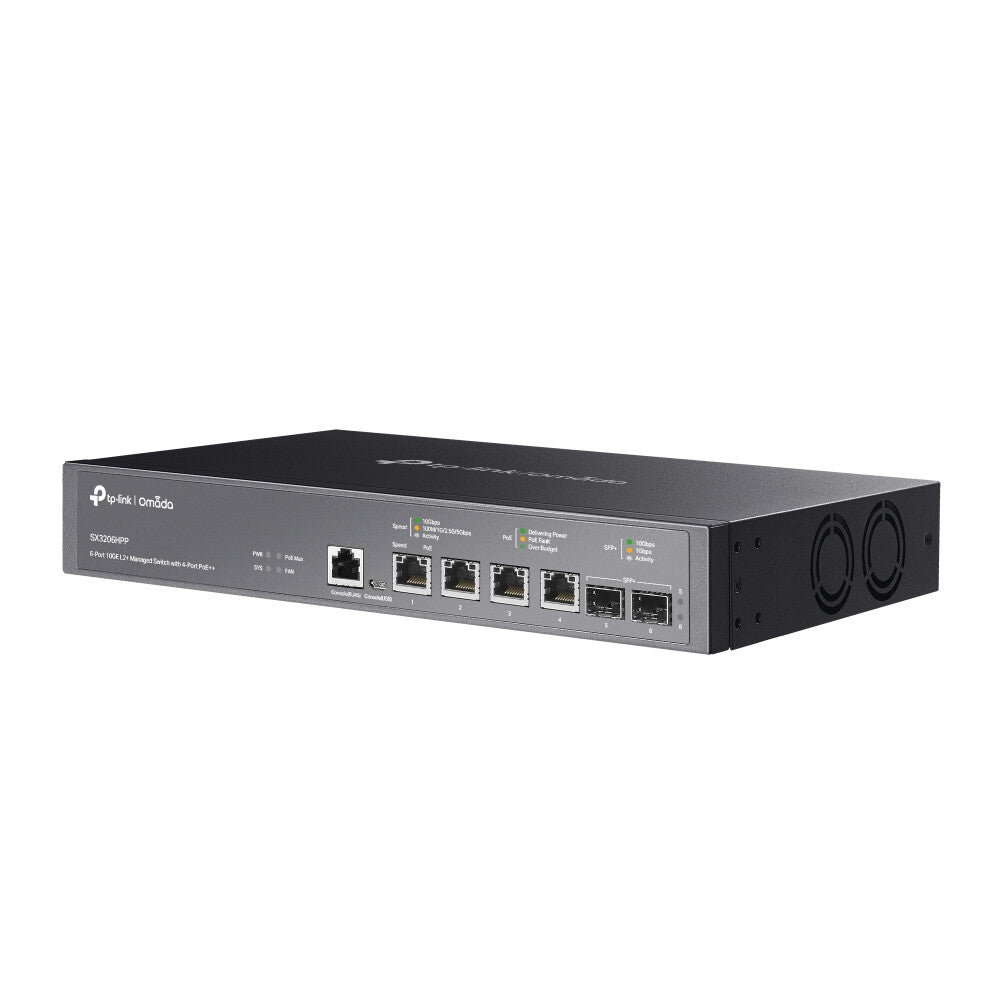

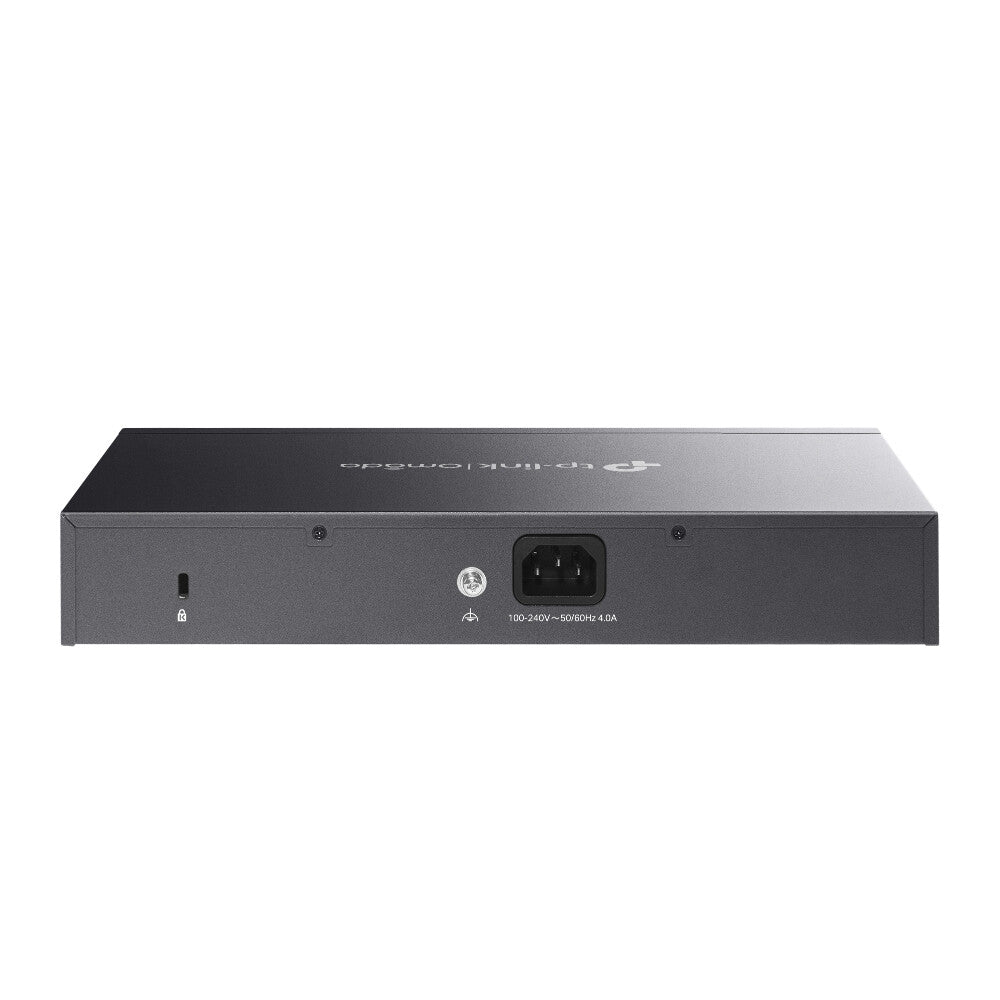

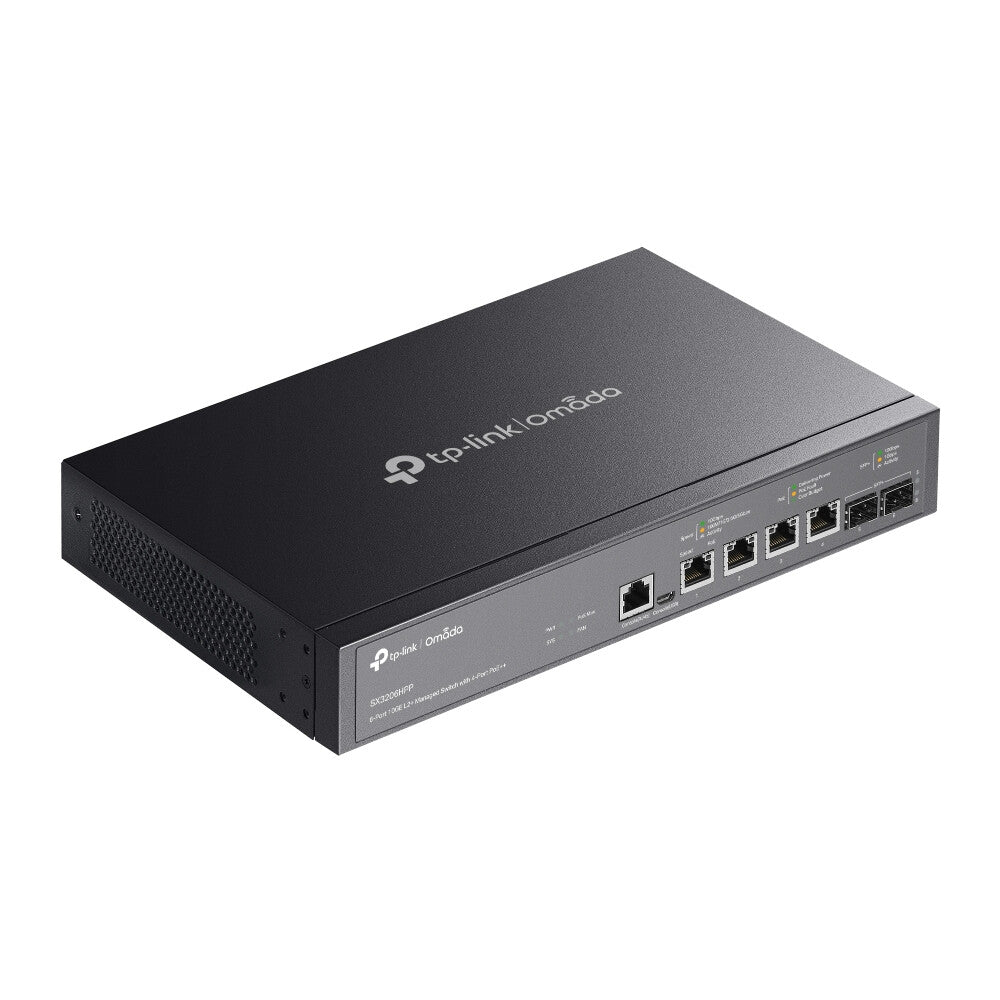

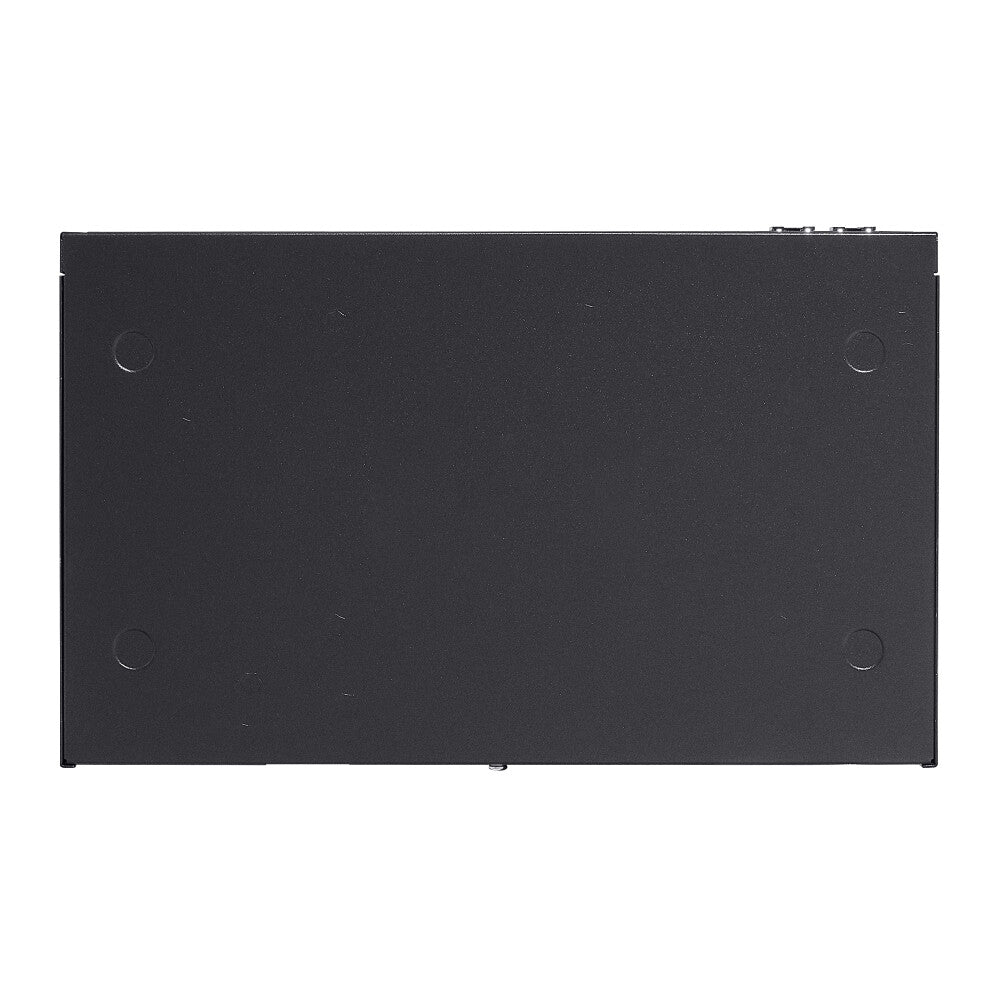

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
Couldn't load pickup availability
- 4× 10G PoE++ ports with up to 60 W PoE output per port**
- 2× 10G SFP+ slots
- 200 W total PoE budget*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Desktop / Rack Mounting
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| Management features | |
|---|---|
| MIB support | Yes |
| System event log | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | AC-in jack |
| Console port | RJ-45/Micro-USB |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Network | |
|---|---|
| Number of VLANs | 4000 |
| Virtual LAN features | Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Routing entries | 512 |
| IP routing | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Data transmission | |
|---|---|
| Packet buffer memory | 16 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of static routes | 48 |
| Static route | Yes |
| Forwarding rate | 89.28 Mpps |
| Switching capacity | 120 Gbit/s |
| MAC address table | 32000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Security algorithms | HTTPS, SSL/TLS |
| Authentication | Guest VLAN |
| Authentication type | AAA, RADIUS, TACACS+ |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client |
| Multicast features | |
|---|---|
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP v1/v2c/v3 |
| Design | |
|---|---|
| Number of fans | 2 fan(s) |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Minimum system requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux. |
| Power | |
|---|---|
| Power consumption (max) | 244.9 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 200 W |
| Power over Ethernet (PoE) power per port | 60 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 835.67 BTU/h |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Height | 44 mm |
| Depth | 180 mm |
| Width | 294 mm |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| General | |
|---|---|
| Product family | Omada |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
