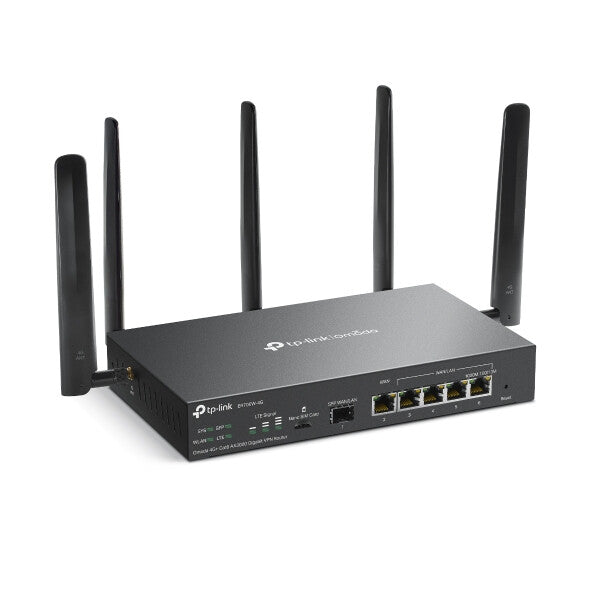

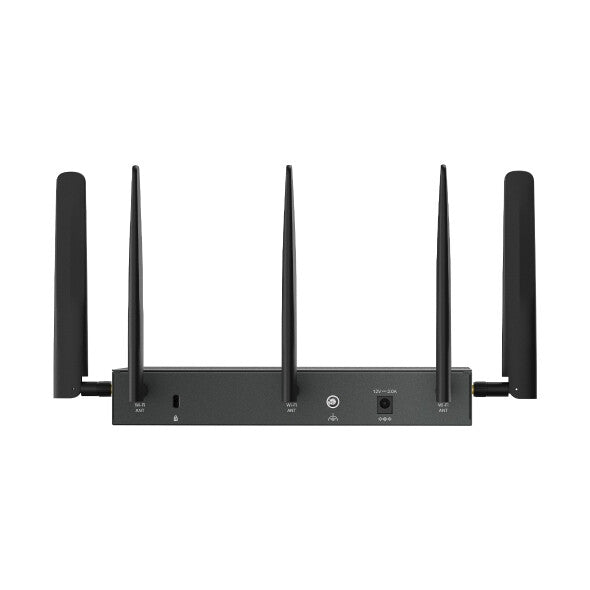

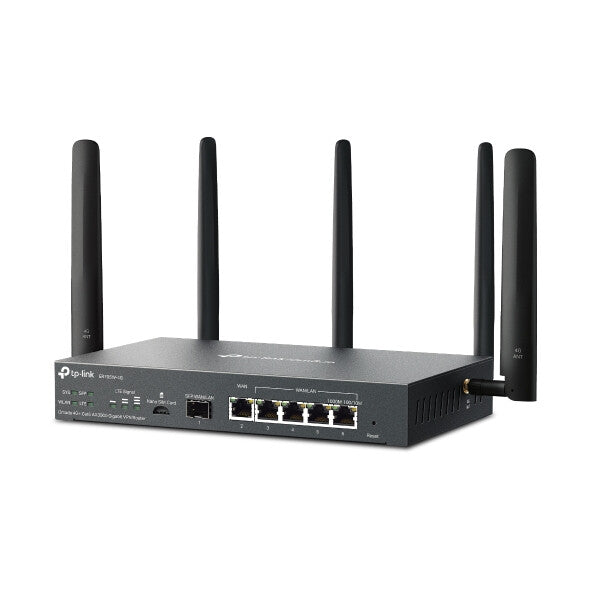

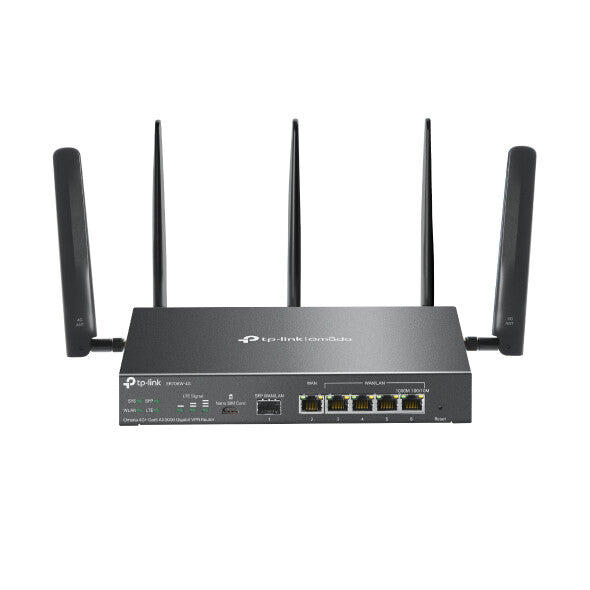

TP-Link Omada 4G+ Cat6 AX3000 Gigabit VPN Router
iFrame
£227.99
Couldn't load pickup availability
- Support 4G+ Cat6: Insert a Nano SIM card to enjoy up to 300 Mbps
- AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- 6 Gigabit Ethernet Ports: Provide high-speed wired connectivity
- 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals
- Centralized Management: Cloud access and the Omada app for easy management
- Omada Mesh: Seamlessly connects to EAPs that support mesh technology
- High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN
Access 4G+ Speed
Anywhere, Anytime
Omada 4G+ Cat6 AX3000 Gigabit VPN Router
- 4G+ Cat6 up to 300 Mbps
- 2402 Mbps + 574 Mbps*
- 6× Gigabit Ethernet Ports
- 1× Nano SIM Card Slot
- IPSec/SSL/ WireGuard /OpenVPN/L2TP VPN
- Centralized Management
- Load Balancing
- Omada App
Always-Online with AX3000 WiFi 6
- Dual Band
- HE160
- OFDMA
- 1024 QAM
| WAN connection | |
|---|---|
| 3G/4G USB modem compatibility | No |
| SIM card slot | Yes |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Network | |
|---|---|
| VPN Passthrough | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Mobile network | |
|---|---|
| 4G bands supported | 800,850,900,1800,2100,2300,2500,2600 MHz |
| SIM card type | NanoSIM |
| 4G standard | LTE-TDD & LTE-FDD |
| 3G standards | HSDPA, HSUPA, WCDMA |
| Mobile network generation | 4G |
| Ports & interfaces | |
|---|---|
| USB port | No |
| Ethernet LAN (RJ-45) ports | 5 |
| Management features | |
|---|---|
| MIMO | Yes |
| MU-MIMO technology | Yes |
| Reset button | Yes |
| Bandwidth control | Yes |
| Security | |
|---|---|
| NAT functionality | • One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering†• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP |
| Network address translation (NAT) | Yes |
| URL filtering | Yes |
| Access Control List (ACL) | Yes |
| Protocols | |
|---|---|
| DHCP server | Yes |
| General | |
|---|---|
| Product family | Omada |
| Design | |
|---|---|
| LED indicators | LAN, LTE, Status, System, WAN |
| Product colour | Black |
| Product type | Desktop/pole router |
| Antenna | |
|---|---|
| Antennas quantity | 5 |
| Antenna design | External |
| Features | |
|---|---|
| Flash memory | 128 MB |
| Internal memory type | DDR4 |
| Internal memory | 512 MB |
| Power | |
|---|---|
| Power source type | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 226 mm |
| Depth | 131 mm |
| Height | 35 mm |
