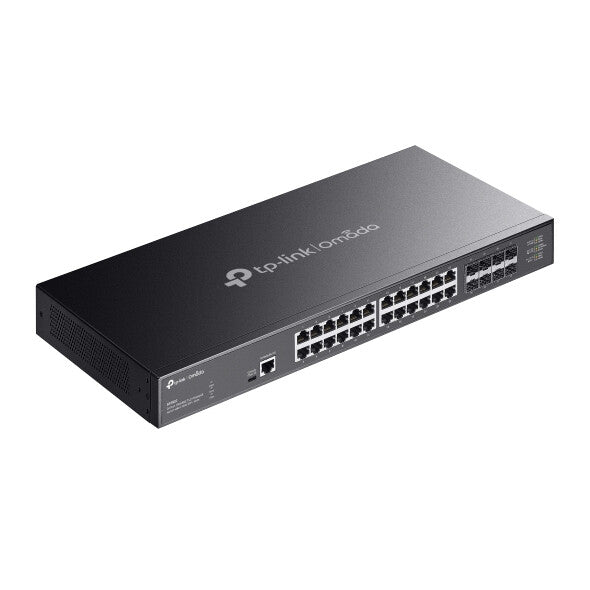

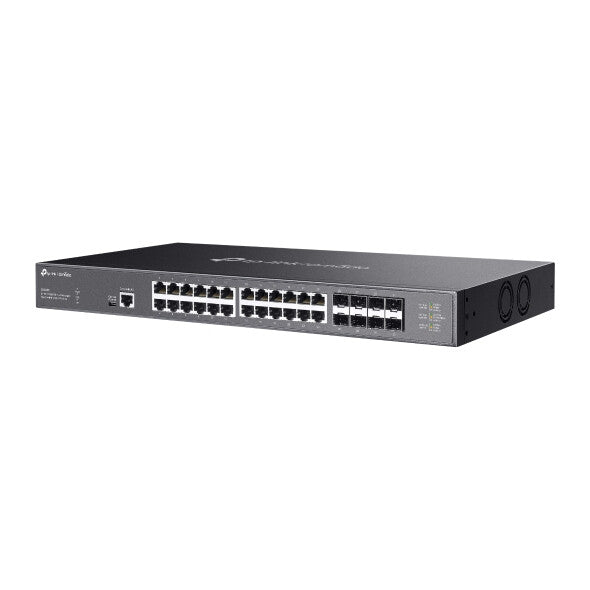

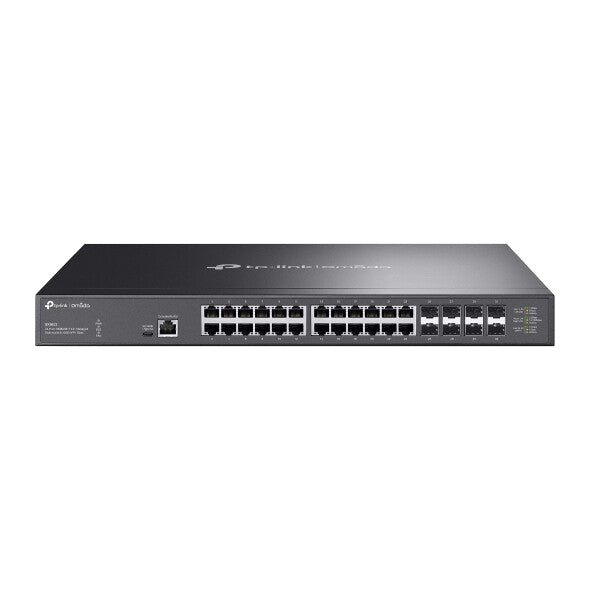

TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots
£1,246.99
inc. VATSpread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £415.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 24× 1/2.5/5/10 Gbps RJ45 ports
- 8× 1/10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Omada 24-Port 10GBASE-T
L2+ Managed Switch with 8
10GE SFP+ Slots
- 24× 1/2.5/5/10 Gbps RJ45 Ports
- 8× 10 Gbps SFP+ Slots
- Centralized Management
- Omada App
- Zero-Touch Provisioning
- Ethernet Ring Protection Switching
- Static Routing
- Traffic Separation
Specifications
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| System event log | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 8 |
| USB Type-C ports quantity | 1 |
| Console port | RJ-45/USB Type-C |
Show all 63 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.3az |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN |
Data transmission
| MAC address table | 32000 entries |
|---|---|
| Switching capacity | 640 Gbit/s |
| Forwarding rate | 240 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 24 MB |
Security
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication type | AAA, RADIUS, TACACS+ |
| Authentication | Auto VLAN, MAC-based authentication, Port-based authentication |
| SSH/SSL support | Yes |
| Loop protection | Yes |
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
Power
| Power source | AC |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 106.5 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 363.23 BTU/h |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
Packaging content
| Cables included | AC, LAN (RJ-45) |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
General
| Product family | Omada |
|---|
