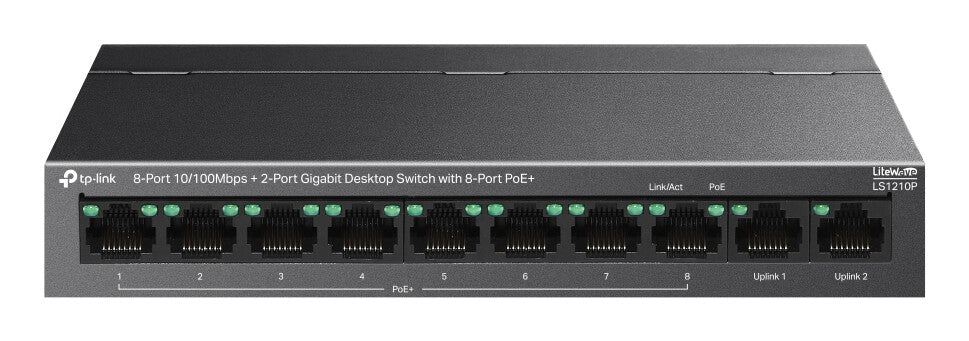

TP-Link LS1210P network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Black
Couldn't load pickup availability
- 8× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*
- 2x Gigabit non-PoE Ports
- 96 W total PoE budget*
- Up to 250 m (820ft) data and power transmitting range under Extend Mode**
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Simply plug and play for instant connectivity with no configuration required
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
- Desktop / Wall-mounting
The LS1210P is an 8-Port 10/100Mbps + 2-Port Gigabit Desktop Switch with 8 ports supporting the PoE+ standard. It offers a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. It provides a total power budget of 96 W*, with up to 30 W per port. It supports up to 250 m (820ft) data and power transmitting range under Extend Mode**, and featured with Isolation Mode & PoE Auto Recovery, LS1210P is ideal for surveillance scenario.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab |
| 10G support | No |
| Data transmission | |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 5.6 Gbit/s |
| Forwarding rate | 4.1664 Mpps |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
| Design | |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Form factor | Desktop |
| Product colour | Black |
| LED indicators | Link, PoE, Power |
| Power | |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 53.5 V |
| Input current | 1.92 A |
| Power consumption (max) | 99.52 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 96 W |
| Operational conditions | |
|---|---|
| Heat dissipation | 338.368 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 171 mm |
| Depth | 98 mm |
| Height | 27 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Certificates | |
|---|---|
| Certification | CE, RoHS |
