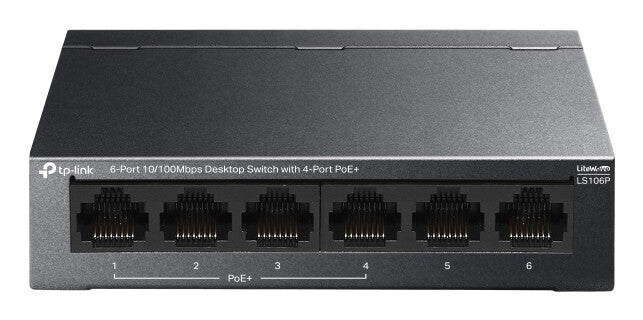

TP-Link LS106P network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Desktop Black
£31.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £10.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
£4.95 delivery
Express £9.99
Spend £18.01 more for free delivery
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*
- 2× 10/100 Mbps Non-PoE Ports
- 65 W total PoE budget*
- Up to 250 m (820ft) data and power transmitting range under Extend Mode**
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Simply plug and play for instant connectivity with no configuration required.
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Desktop / Wall-mounting
The LS106P is an 6-Port 10/100Mbps Desktop Switch with 4 ports supporting the PoE+ standard. It offers a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. It provides a total power budget of 65 W*, with up to 30 W per port. It supports up to 250 m (820ft) data and power transmitting range under Extend Mode**. Featured with Isolation Mode & PoE Auto Recovery, LS106P is ideal for surveillance scenario.
Specifications
Management features
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 6 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Show all 34 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
|---|---|
| 10G support | No |
Data transmission
| MAC address table | 2000 entries |
|---|---|
| Switching capacity | 1.2 Gbit/s |
| Forwarding rate | 0.893 Mpps |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.002048 MB |
Design
| Rack mounting | No |
|---|---|
| Stackable | No |
| Form factor | Desktop |
| Product colour | Black |
| LED indicators | Power, PoE, Link |
Power
| Power source | DC |
|---|---|
| Power supply included | Yes |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 66.53 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 65 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 226.19 BTU/h |
Weight & dimensions
| Width | 99.8 mm |
|---|---|
| Depth | 98 mm |
| Height | 25 mm |
Packaging content
| User guide | Yes |
|---|
Certificates
| Certification | CE, ROHS, KC, NTRA |
|---|
