TP-Link INSIGHT S345-4G Bullet IP security camera Outdoor 2688 x 1520 pixels Wall
Couldn't load pickup availability
- 4MP Super-High Definition and 24h Full-Color
- People & Vehicle Analytics§
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
4G and 3 LAN Ports, Hassle-free Deployment
4MP Outdoor Full-Color 4G Bullet Network Camera

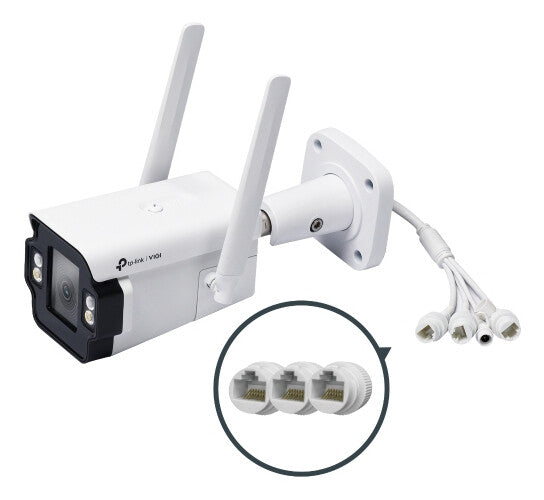

3 LAN Ports Meet Minimal Deployment Effort
InSight S345-4G offers industry-first three LAN ports, enabling simultaneous connectivity for up to three devices as you need. It is ideal for coupling with solar power systems to eliminate additional wiring deployments.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
LightPro Night Vision Technology
The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 80 m |
| Wide Dynamic Range (WDR) | Yes |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Remote viewing | Yes |
| Antennas quantity | 2 |
| Antenna type | External |
| Dynamic range | 120 dB |
| Design | |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Metal |
| Protection features | Waterproof |
| International Protection (IP) code | IP66 |
| Weatherproof | Yes |
| Camera | |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 80.4° |
| Lens viewing angle, vertical | 41.8° |
| Lens viewing angle, diagonal | 98.7° |
| Tilt angle range | 0 - 90° |
| Camera shutter speed | 1/3 to 1/10000 |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Lens system | |
|---|---|
| Detect distance | 80 m |
| Observe distance | 33 m |
| Recognize distance | 16 m |
| Fixed focus | Yes |
| Identify distance | 8 m |
| Maximum aperture number | 1.6 |
| Fixed focal length | 4 mm |
| Night vision | |
|---|---|
| Night vision | Yes |
| LED type | IR/White |
| Video | |
|---|---|
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520 |
| Video recording | Yes |
| Highlight Compensation (HLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Back Light Compensation (BLC) | Yes |
| Bit rate | Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711 A-law |
| Sample rate | 8 kHz |
| Number of microphones | 1 |
| Built-in microphone | Yes |
| Bit rate range | 0 - 64 Kbit/s |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |

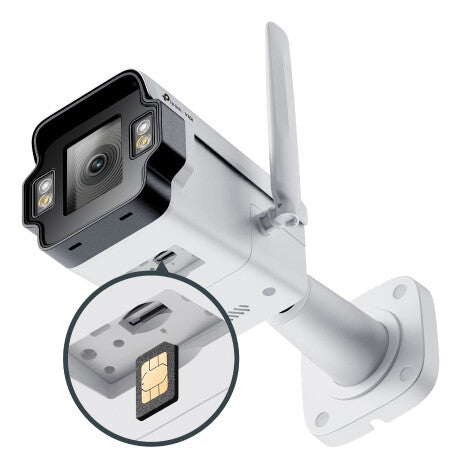

| SIM card type | NanoSIM |
| SIM card slot | Yes |
| Mobile network generation | 4G |
| 4G standard | LTE-TDD & LTE-FDD |
| Live view | Yes |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| DC-in jack | Yes |
| Security | |
|---|---|
| Built-in siren | Yes |
| Password protection | Yes |
| Detection distance | 120 m |
| Human and vehicle targets classification | Yes |
| Alert notification type | Push notification |
| Digest authentication | Yes |
| Mirror | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Motion sensor | Yes |
| Video motion detection | Yes |
| Management features | |
|---|---|
| Web-based management | Yes |
| Web browser | Yes |
| Cloud-managed | Yes |
| Reset button | Yes |
| Power | |
|---|---|
| Power source type | DC |
| Power consumption (max) | 9.7 W |
| Power consumption (Power over Ethernet (PoE)) | 10.7 W |
| DC output voltage | 12 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 122 mm |
| Height | 101 mm |
| Length | 256 mm |
| Weight | 1.09 kg |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Mounting kit | Yes |
| Screws included | Yes |
| Drilling template included | Yes |
| Manual | Yes |
