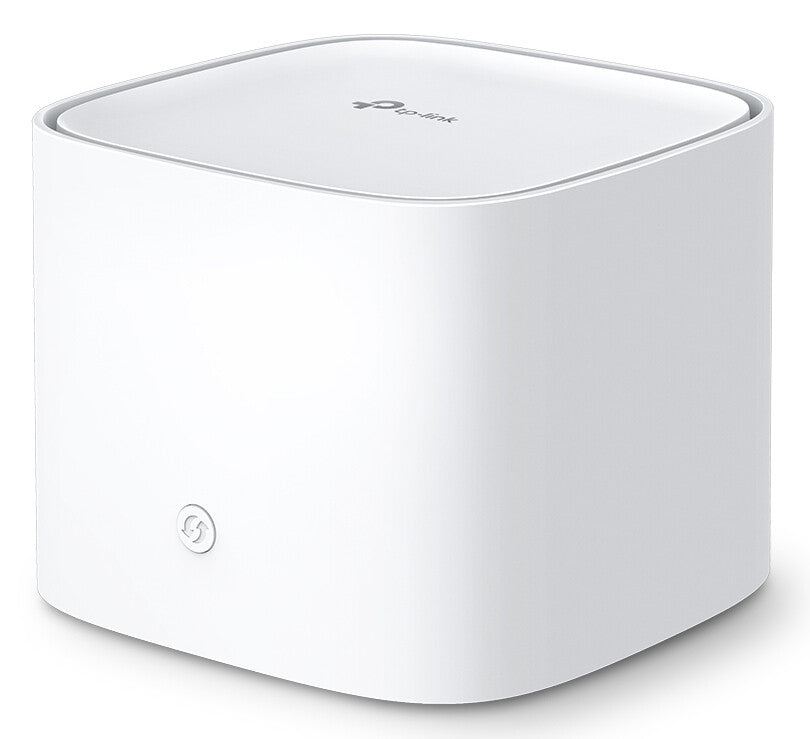

TP-Link HX520 Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax) White 3 Internal
Couldn't load pickup availability
- Dual Band WiFi 6: Speeds up to 3000 Mbps—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.*
- Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger WiFi signal
- One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.**
- Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide personalized and safer online experience.†
- EasyMesh Compatible: Create a unified smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.**
- Easy Setup and Use: Set up your mesh WiFi in minutes with the powerful Aginet app
- Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with TR-069, TR-098, TR-181, TR-111, and TR-143 protocols
Advanced Mesh Powered by WiFi 6
Armed with WiFi 6 technology, HX520 provides faster speeds up to 3.0 Gbps for buffer-free 8K/4K streaming and gaming even with all smart home, mobile, and other electronic devices connected.†
Extensive WiFi Coverage
Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.
Whole Home Coverage
Empowered by EasyMesh technology, HX520 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HX520 unit whenever you want.**
| Design | |
|---|---|
| Reset button | Yes |
| Antennas quantity | 4 |
| Antenna type | Internal |
| LED indicators | Yes |
| Product type | Mesh router |
| Product colour | White |
| Wireless LAN features | |
|---|---|
| Dynamic IP | Yes |
| Static IP | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Security algorithms | WPA-PSK, WPA2-PSK, WPA3-Personal |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (max) | 3000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Features | |
|---|---|
| Parental control | Yes |
| Firewall security | SPI Firewall |
| Port forwarding | Yes |
| Quality of Service (QoS) support | Yes |
| Processor cores | 2 |
| Processor frequency | 1.3 GHz |
| Built-in processor | Yes |

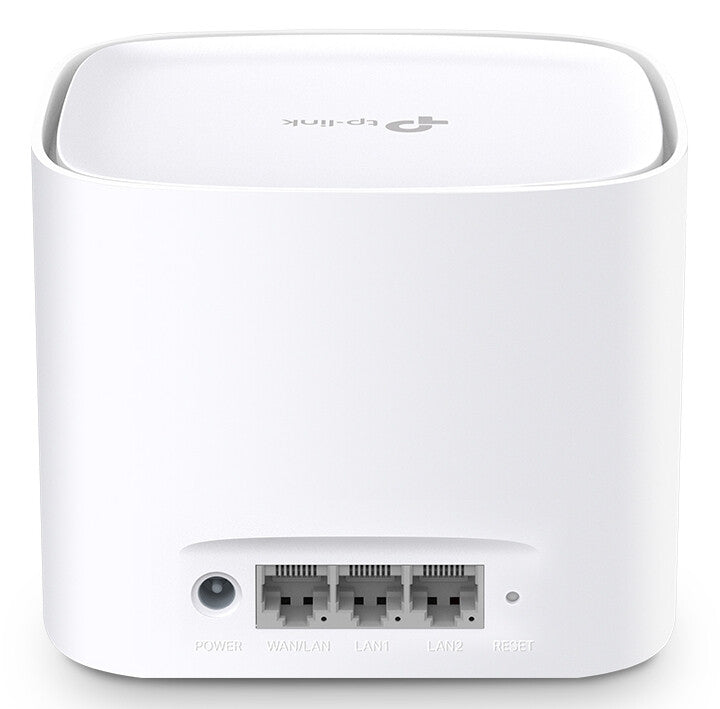

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet WAN | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Certificates | |
|---|---|
| Certification | CE, FCC, Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED EasyMesh |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 96.5 mm |
| Depth | 120 mm |
| Width | 120 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Ethernet cable | Yes |
| Number of units included | 1 pc(s) |
| AC adapter included | Yes |
| Number of products included | 1 pc(s) |
