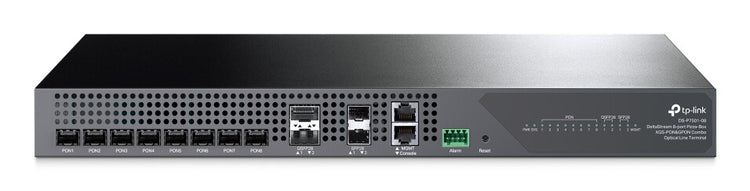

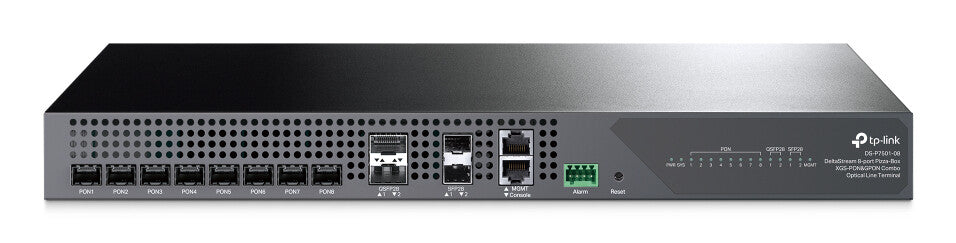

TP-Link DeltaStream DS-P7501-08 optical line terminal (OLT)
£3,716.99
Couldn't load pickup availability
- 8× PON Ports: 8× XGS-PON & GPON combo ports support both XGS-PON and GPON service delivery
- High Scalability: Supports a 1:128 splitting ratio for GPON services and 1:256 for XGS-PON
- High-Speed Uplink Ports: 2× 100G QSFP28 and 2× 25G SFP28 ports offer high-bandwidth uplink connectivity
- Dual Power Supplies: Carrier-class reliability with dual hot-swappable power supplies: AC, DC, or mixed-power supplies
- L2 & Advanced L3 Functions: Rich and robust functions satisfy flexible deployment and scalability needs
- Centralized Management: Supports the management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI
| Features | |
|---|---|
| Maximum operating distance (GPON) | 20000 m |
| GPON split ratio (max) | 1:128 |
| DHCP relay | Yes |
| DHCP server | Yes |
| Switching capacity | 100 Gbit/s |
| Ports & interfaces | |
|---|---|
| SFP/SFP+ slots quantity | 2 |
| GPON ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| Networking standards | IEEE 802.1x |
| Power | |
|---|---|
| Power consumption (max) | 109.2 W |
| DC voltage range | 72 V |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100/240 V |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Height | 44 mm |
| Depth | 330 mm |
| Width | 440 mm |
| General | |
|---|---|
| Product family | DeltaStream |
