TP-Link AV1000 2-Port Gigabit Passthrough Powerline Starter Kit
Couldn't load pickup availability
- HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
- 2 Gigabit Ports - provides secure wired networks for desktops, smart TVs or games consoles
- Plug and Play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired connections right away
- Extra Power Socket - ensures no power outlet goes to waste
- Patented Power-Saving Mode - automatically reduces power consumption by up to 85%
Extend a Gigabit Network via
Your Existing Electrical Wiring

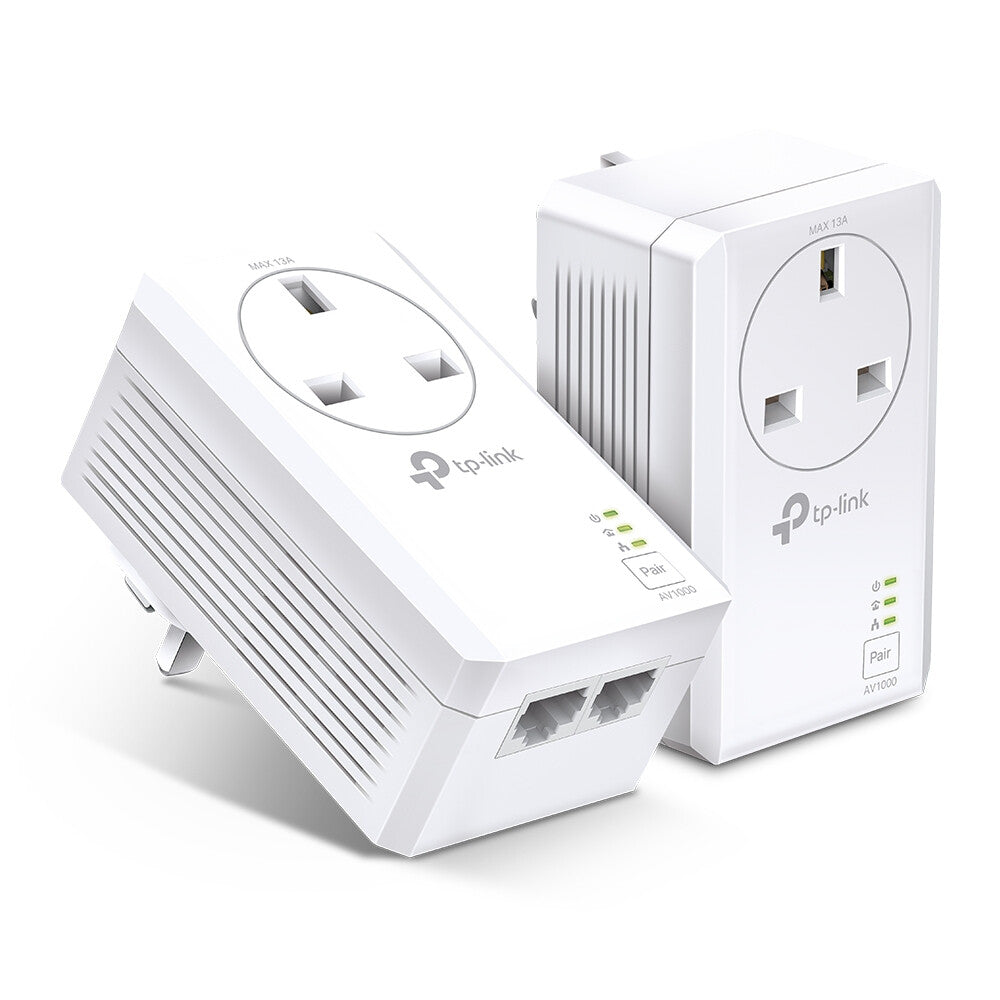

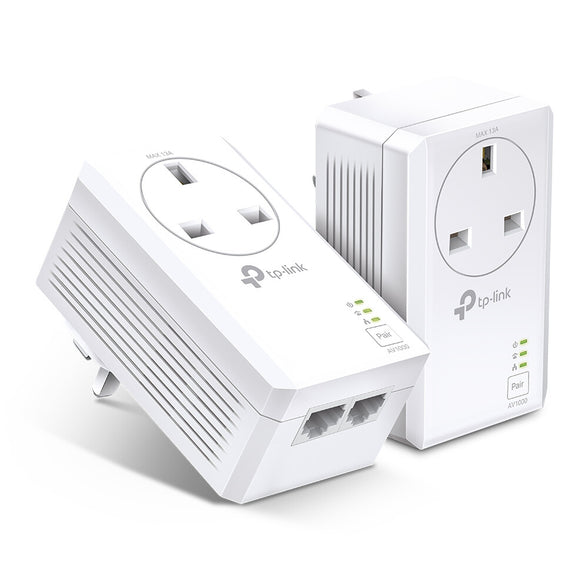

AV1000 2-Port Gigabit Passthrough Powerline Starter Kit
Extend an AV1000 Speed Network to Any Outlet
- No need for new wires or drilling
- Network passes through walls and floors
Integrating advanced HomePlug AV2 technology, this kit provides users with high-speed data transfer rates up to 1000 Mbps, which is ideal for bandwidth-intensive applications such as simultaneous HD/3D/4K video streaming, online gaming, and large file transfers. Just plug in and enjoy!

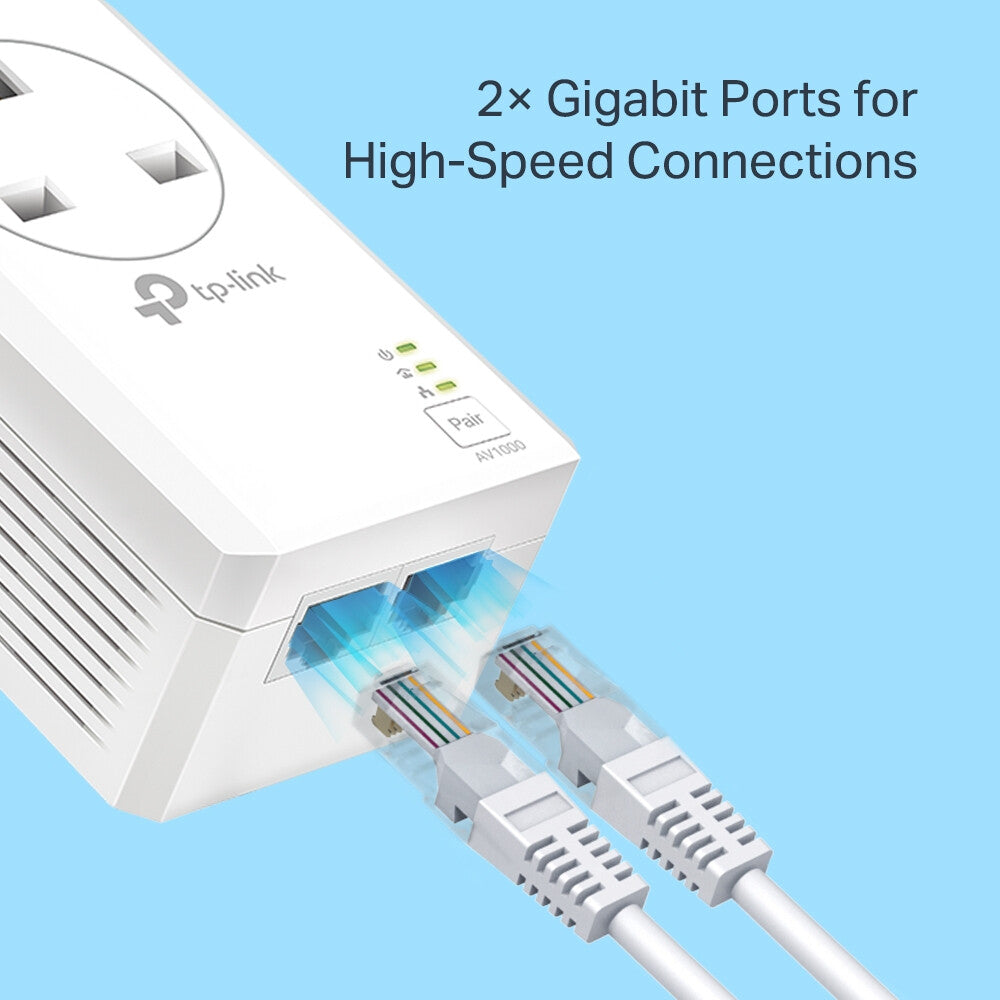

2× Gigabit Ports for High-Speed Connections
Provide reliable high-speed wired connections for game consoles, smart TVs, STBs, and more.
Plug and Play, No Configuration Required
1. Connect a powerline adapter to your router.
2. Plug another powerline adapter into a wall socket in another room.
3. Connect it to your internet-enabled device via Ethernet—and you’re done!
Don’t Worry about Occupying an Outlet
Simply plug into your TL-PA7027P KIT as though it were a normal wall socket. Feel free to plug in PCs, smart TVs, or other wired appliances without any performance differences.
Up to 85% Power Saved
The future’s looking green for powerline adapters. TL-PA7027P KIT’s practical design and sophisticated Power-Saving Mode, which automatically switches from its regular "Working" mode to "Power-Saving" mode, reduces its energy consumption by up to 85%.
Performance | |
---|---|
Plug and Play | Yes |
Encryption button | Yes |
Maximum operating distance | 300 m |
Security algorithms | 128-bit AES |
Modulation | COFDM |
PowerLine standard | HomePlug AV2 |
Built-in power socket | Yes |
Power plug | Type G |
Networking standards | IEEE 1901, IEEE 802.3, IEEE 802.3u |
Wi-Fi | No |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Maximum data transfer rate | 1000 Mbit/s |
Power | |
---|---|
Power consumption (standby) | 0.84 W |
Power consumption (typical) | 4 W |
Design | |
---|---|
Certification | CE, RoHS |
Product colour | White |
LED indicators | LAN, Power |
Antenna type | Internal |
System requirements | |
---|---|
Mac operating systems supported | Yes |
Linux operating systems supported | Yes |
Mac compatibility | Yes |
Windows operating systems supported | Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
Operational conditions | |
---|---|
Operating relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 0 - 40 °C |

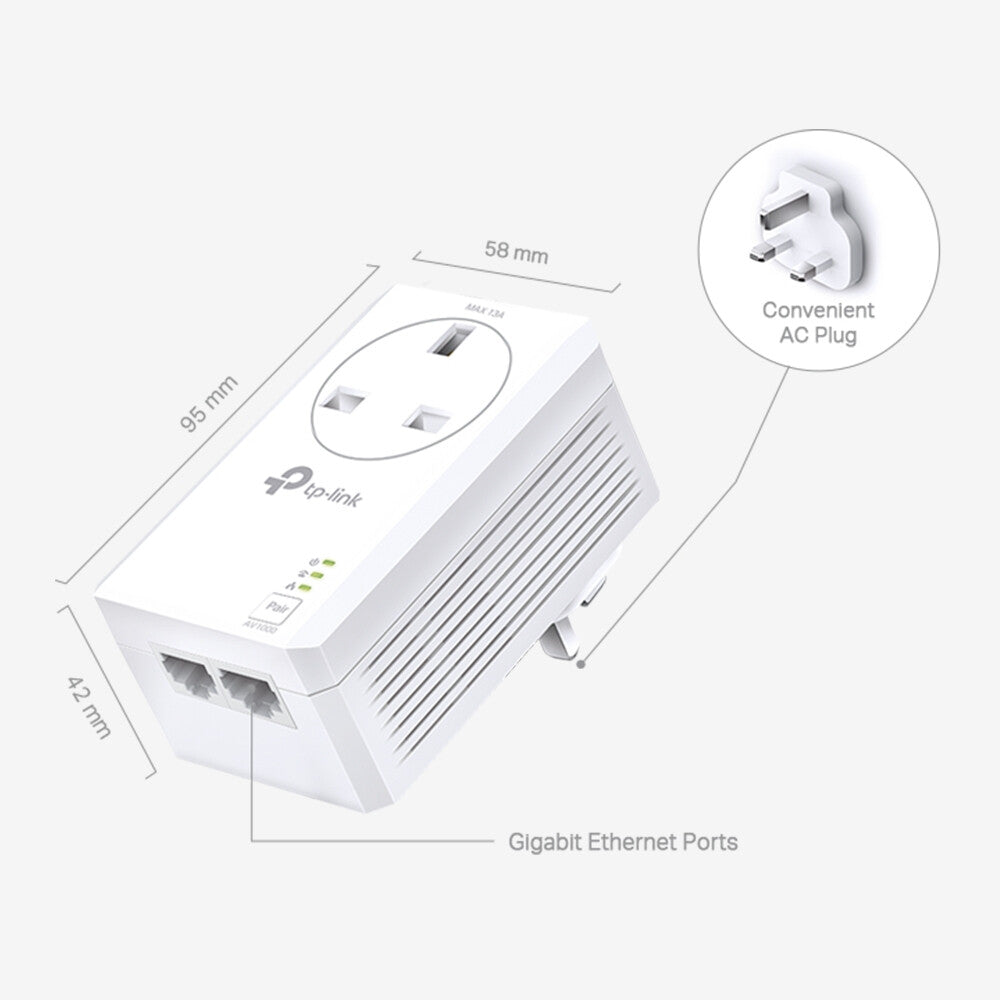

Weight & dimensions | |
---|---|
Height | 95 mm |
Depth | 42 mm |
Width | 58 mm |
Packaging data | |
---|---|
Package type | Box |
Certificates | |
---|---|
Compliance certificates | RoHS |
Packaging content | |
---|---|
Cables included | LAN (RJ-45) |
Manual | Yes |
Quick installation guide | Yes |
Quantity per pack | 2 pc(s) |
Logistics data | |
---|---|
Harmonized System (HS) code | 85171800 |
