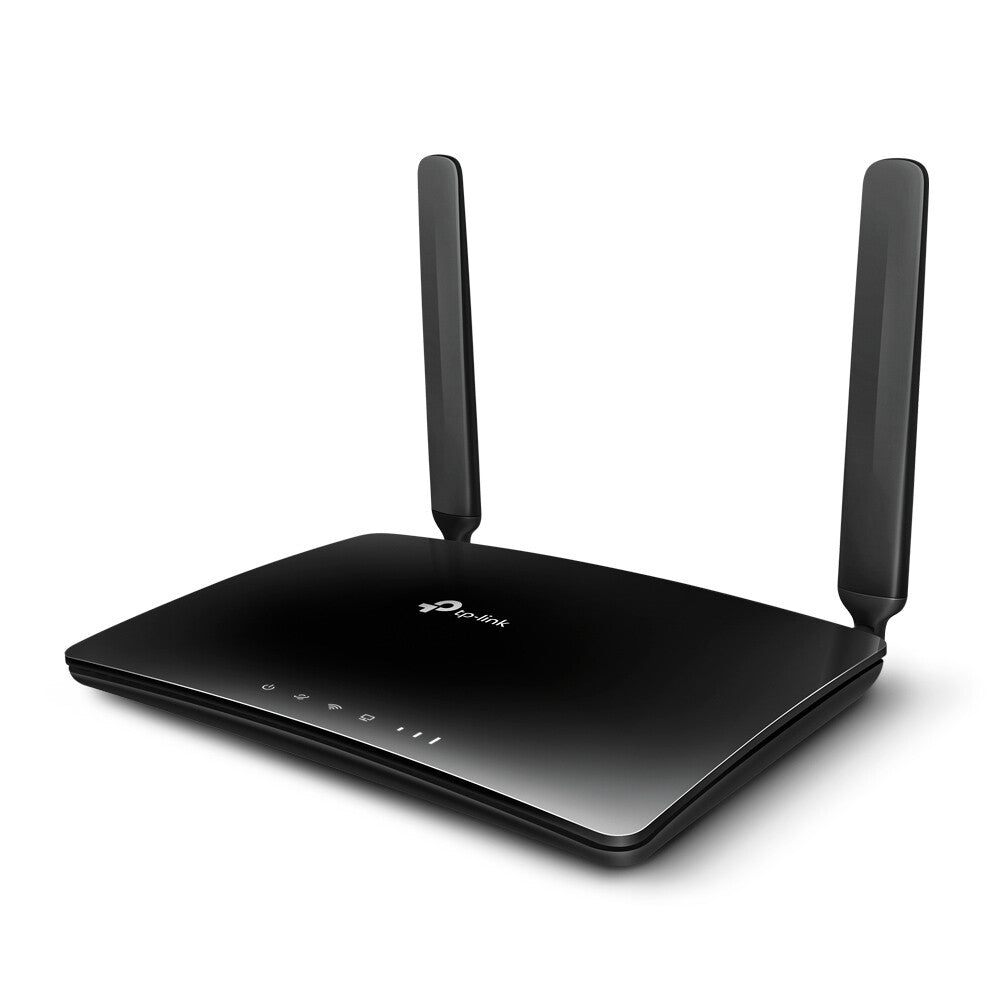

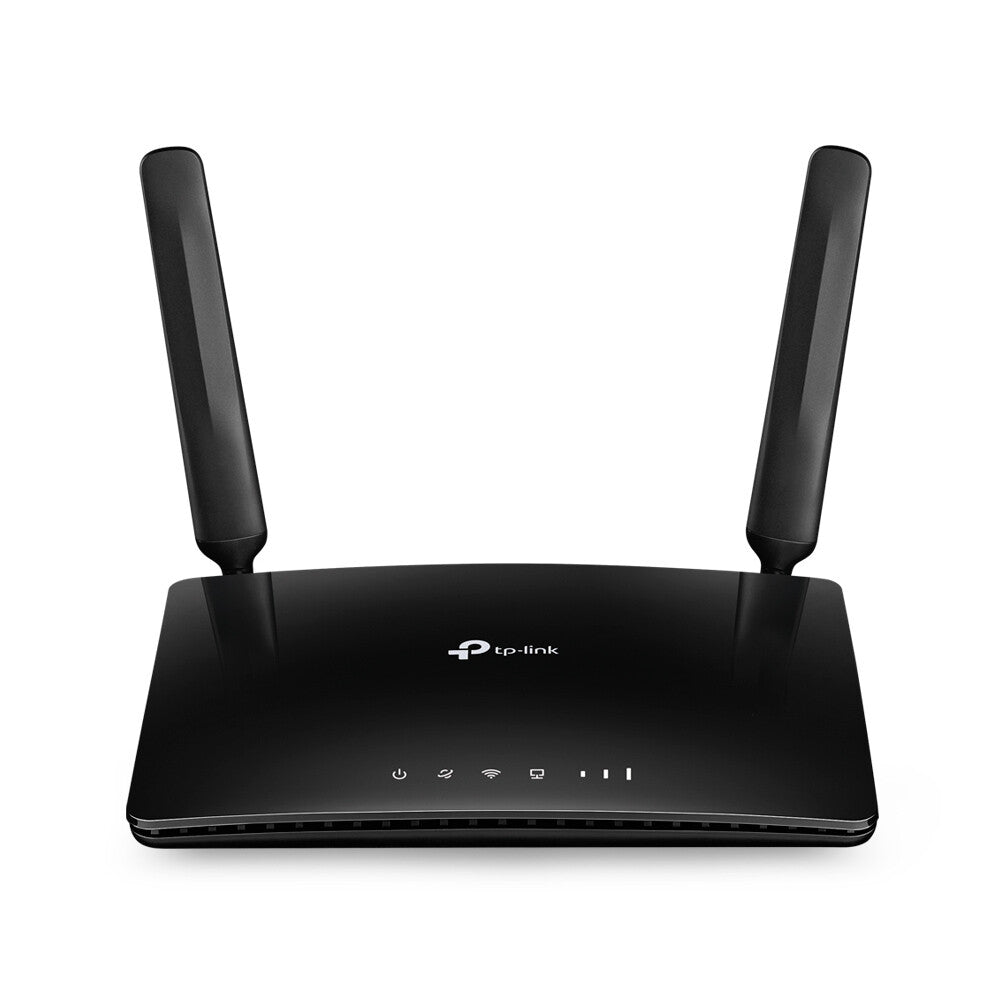

TP-Link Archer AC1200 Wireless Dual Band 4G LTE Router
Couldn't load pickup availability
- Cutting-edge 4G network – share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- AC1200 Wi-Fi – creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band
- Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
- Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
- Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
4G LTE with AC1200 Wi-Fi to Stream from Everywhere
AC1200 Wireless Dual Band 4G LTE Router
Archer MR400
Got SIM Card?
Then Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a micro SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Share Your 4G LTE Network
Take full of advantage of your cutting-edge 4G LTE network for download speeds of up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.
Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remote.
Internet Access for
up to 64 Devices Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.
Easy Setup and Management
Set up the Archer MR400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (first band) | 450 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| VPN server | PPTP VPN, IPSec VPN , OpenVPN |
| VPN tunnels quantity | 10 |
| VPN Passthrough | Yes |
| VPN support | PPTP, L2TP, IPSec |
| Receiver sensitivity | 5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -76dBm 11n HT20: -73dBm 11n HT40: -67dBm |
| Mobile network | |
|---|---|
| Mobile network generation | 4G |
| 4G | Yes |
| 3G | Yes |
| 2G standards | Edge, GPRS, GSM |
| 3G standards | DC-HSPA+, HSPA, HSPA+, UMTS |
| 4G standard | LTE |
| 3G bands supported | 900,2100 MHz |
| GSM bands supported | 850,900,1800,1900 MHz |
| SIM card type | MicroSIM |
| 4G bands supported | 800,900,1800,2100,2600 MHz |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB port | No |
| Memory card slot(s) | No |
| DC-in jack | Yes |
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security | |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Access Control List (ACL) | Yes |
| Guest access | Yes |
| Firewall security | DoS, SPI Firewall, IP and MAC Address Binding |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| DMZ support | Yes |
| Protocols | |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
| General | |
|---|---|
| Product family | Archer |
| Design | |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| Wall mountable | Yes |
| LED indicators | LAN, Power, Status, WLAN |
| On/off switch | Yes |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Certificates | |
|---|---|
| Certification | CE, RoHS |
| Antenna | |
|---|---|
| Antenna design | Internal & external |
| Antennas quantity | 2 |
| Detachable antenna(s) | Yes |
| Transmit power | CE: <20dBm(2.4GHz), <23dBm(5GHz) |
| Power | |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | macOS |
| Mac compatibility | Yes |
| Weight & dimensions | |
|---|---|
| Height | 33.5 mm |
| Depth | 124.5 mm |
| Width | 174 mm |
| Packaging data | |
|---|---|
| Package width | 307 mm |
| Package depth | 223 mm |
| Package height | 70 mm |
| Package weight | 670 g |
| Package type | Box |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
