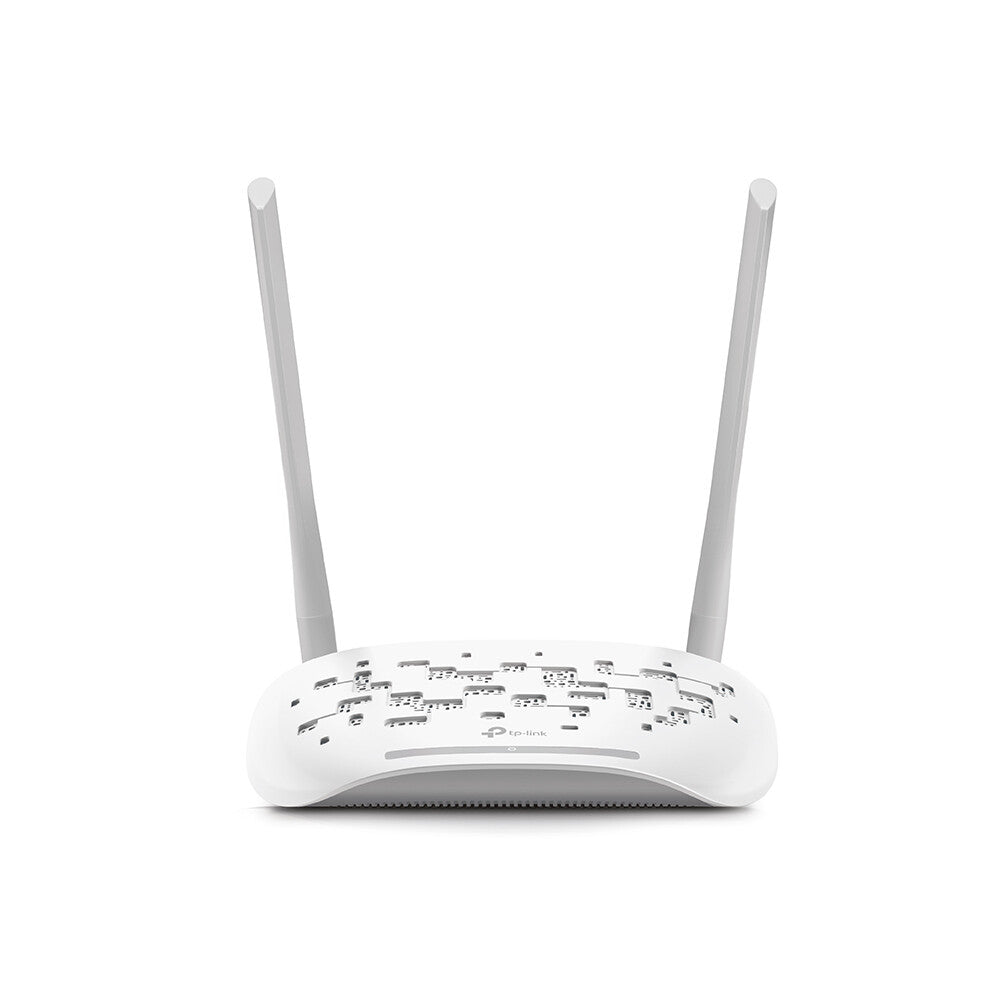

TP-Link 300Mbps Wireless N VDSL/ADSL Modem Router
Couldn't load pickup availability
- Versatile Connectivity – With DSL and LAN/WAN ports, TD-W9960 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access
- Boosted Speeds – Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi
- Maximized Range – Powerful external antennas provide far-reaching wireless coverage in every direction
- Effortless Management – Set up in minutes with the powerful Tether app or intuitive web interface and manage the network from anywhere
Simple yet Powerful
The Best VDSL for Every Home
300Mbps Wireless N VDSL/ADSL Modem Router
Superfast VDSL Modem Router
VDSL2 technology delivers VDSL broadband speeds of up to 100Mbps simultaneously in both the upstream and downstream directions. The integrated DSL port supports all standard DSL connections* for compatibility with most ISPs.
*The TD-W9960 is compatible with VDSL2, ADSL2+, ADSL2 and ADSL.
Wi-Fi Speed Up to 300Mbps
With 300Mbps wireless speeds on the 2.4GHz band and 4 megabit LAN ports, the TD-W9960 is perfect for streaming in HD, online gaming and other bandwidth-intensive applications.
Easy Setup and Management
Set up the TD-W9960 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Control your home network whenever and wherever you are.

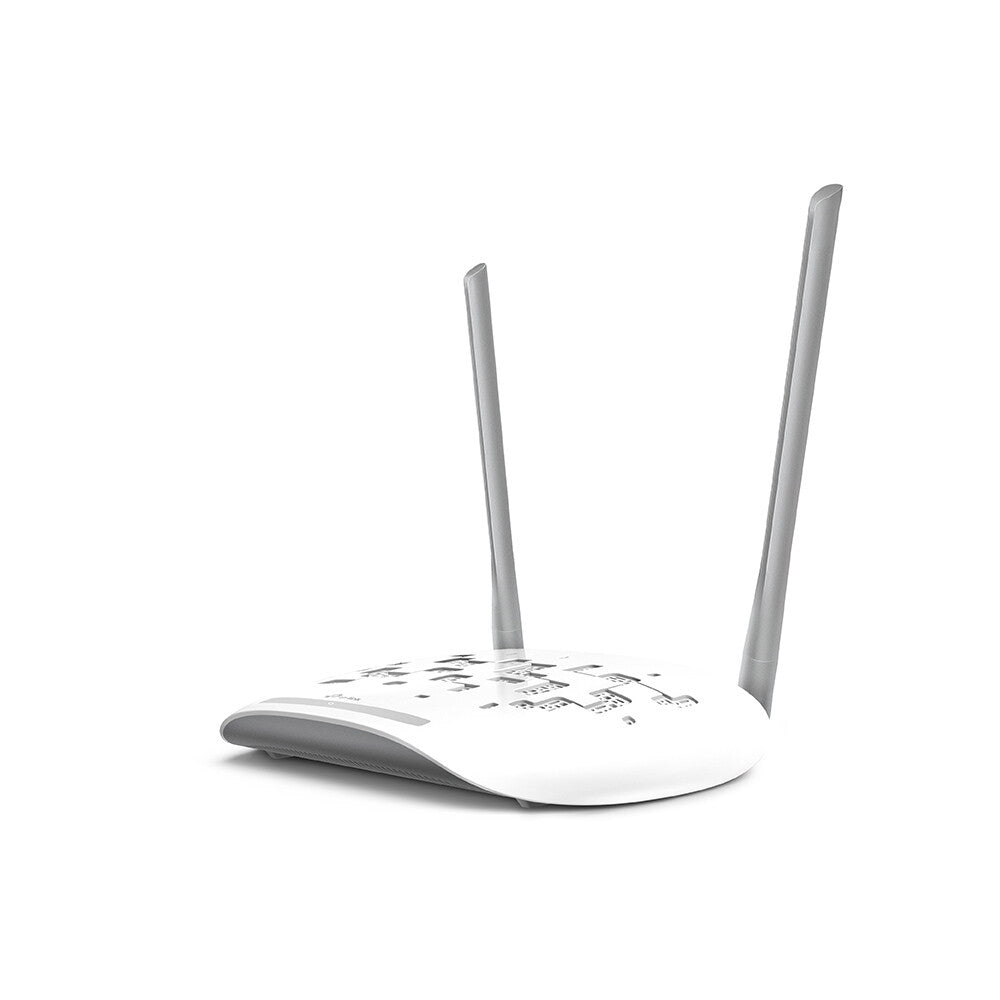

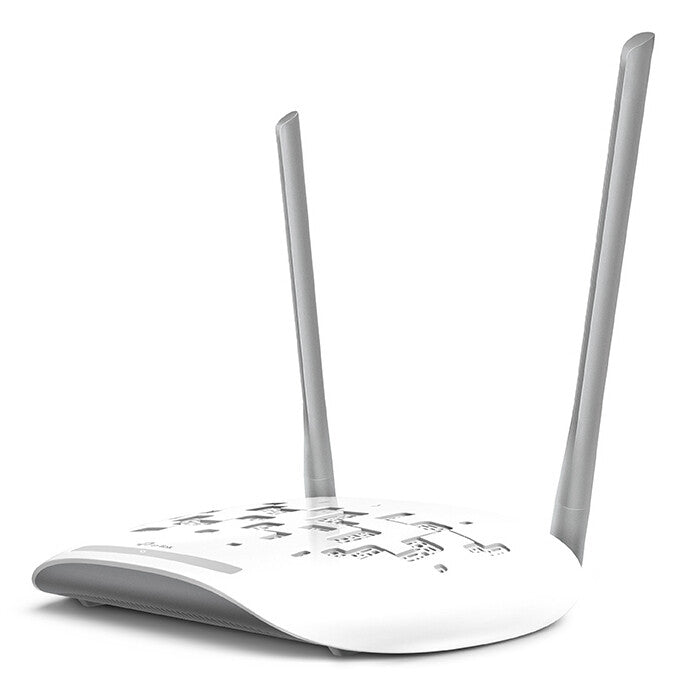

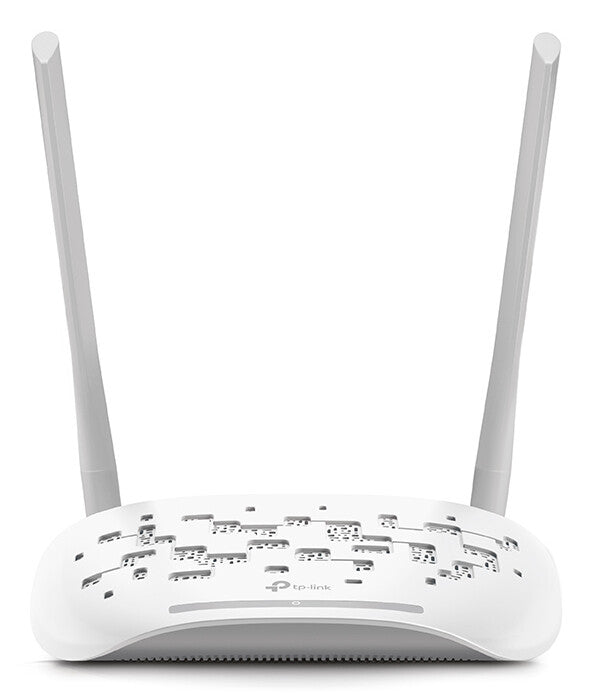

Powerful Antennas
Two external 5dBi high-gain antennas beam signal to every corner of your home, creating a strong, stable Wi-Fi network.
6kV Lightning Protection
Lightning protection shields TD-W9960 from electrical damage caused by thunderstorms, so even in bad weather, you can enjoy internet with peace of mind.
Secure Surfing
Parental Controls limit the online time and access of specified devices. Guest Network creates a separate Wi-Fi network for visitors, keeping your main network secure.
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| DSL WAN | Yes |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi band | Single-band (2.4 GHz) |
| Network | |
|---|---|
| VPN Passthrough | Yes |
| Dynamic DNS (DDNS) | Yes |
| Networking standards | IEEE 802.3u |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Mobile network | |
|---|---|
| 3G | No |
| 4G | No |
| DSL features | |
|---|---|
| VDSL2 | Yes |
| ADSL | Yes |

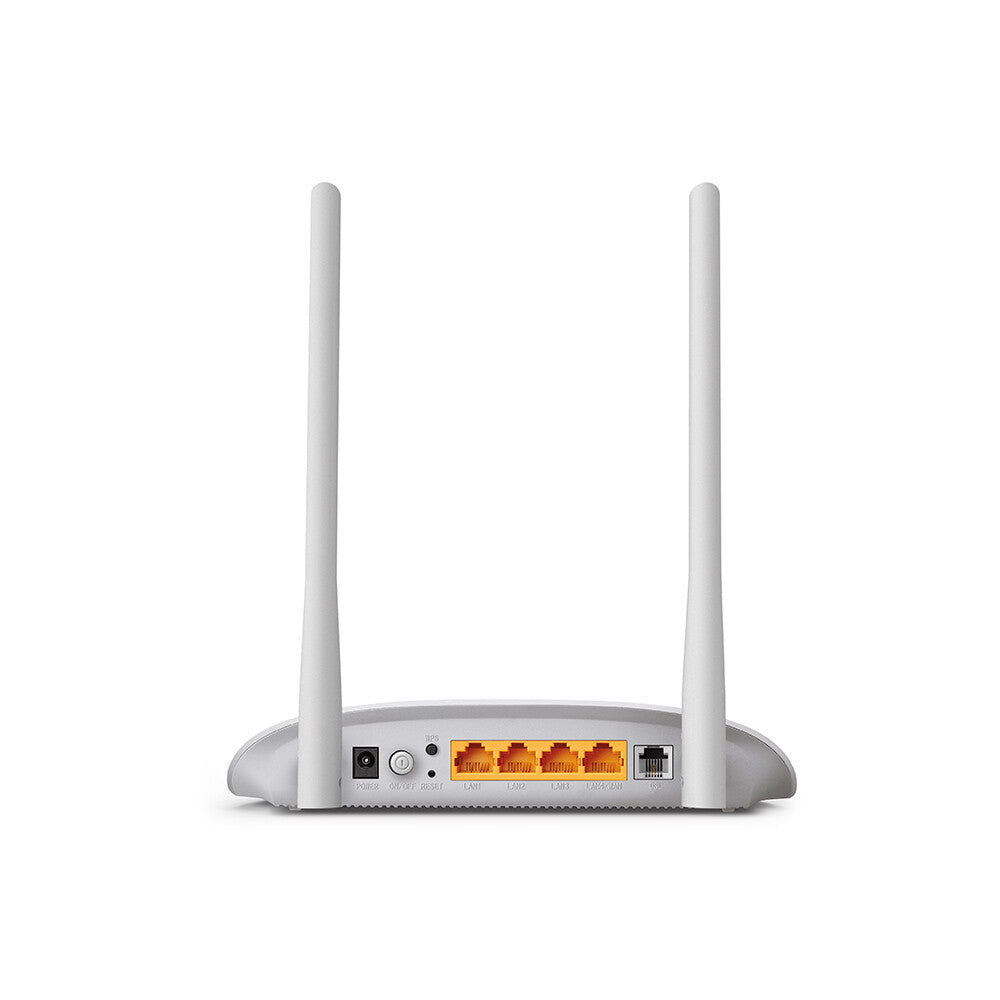

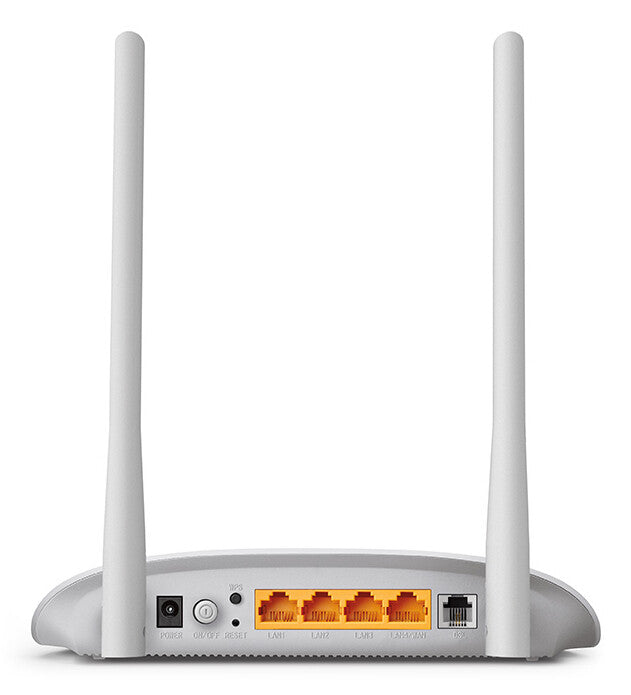

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Memory card slot(s) | No |
| RJ-11 ports quantity | 1 |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 4 |
| Management features | |
|---|---|
| WPS push button | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Security | |
|---|---|
| Network address translation (NAT) | Yes |
| DMZ support | Yes |
| MAC address filtering | Yes |
| Filtering | Yes |
| Firewall | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2 |
| Protocols | |
|---|---|
| Supported network protocols | IPv4, IPv6 |
| Universal Plug and Play (UPnP) | Yes |
| Design | |
|---|---|
| On/off switch | Yes |
| LED indicators | LAN, Status, WLAN |
| Wall mountable | Yes |
| Product colour | White |
| Product type | Tabletop router |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| Certificates | |
|---|---|
| Certification | CE, RoHS |
| Antenna | |
|---|---|
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
| Antenna design | External |
| Features | |
|---|---|
| Firmware upgradeable | Yes |
| Power | |
|---|---|
| Output current | 0.6 A |
| Output voltage | 9 V |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
|---|---|
| Mac compatibility | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP Home, Windows XP Professional |
| Weight & dimensions | |
|---|---|
| Width | 181.6 mm |
| Depth | 125.7 mm |
| Height | 36.2 mm |
| Packaging data | |
|---|---|
| Package weight | 490 g |
| Package height | 70 mm |
| Package depth | 232 mm |
| Package width | 285 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
