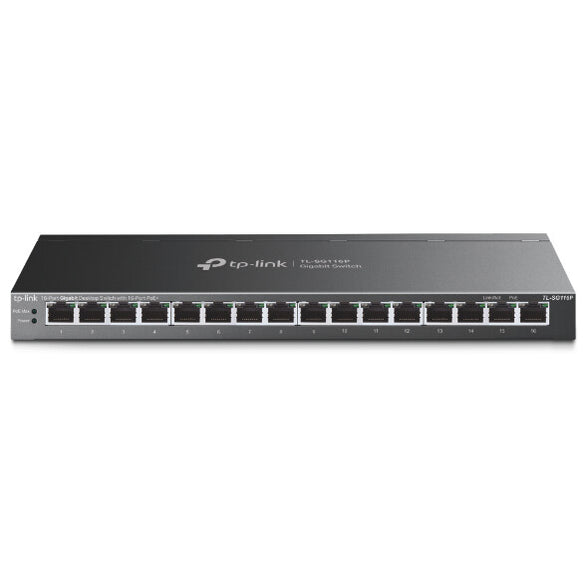

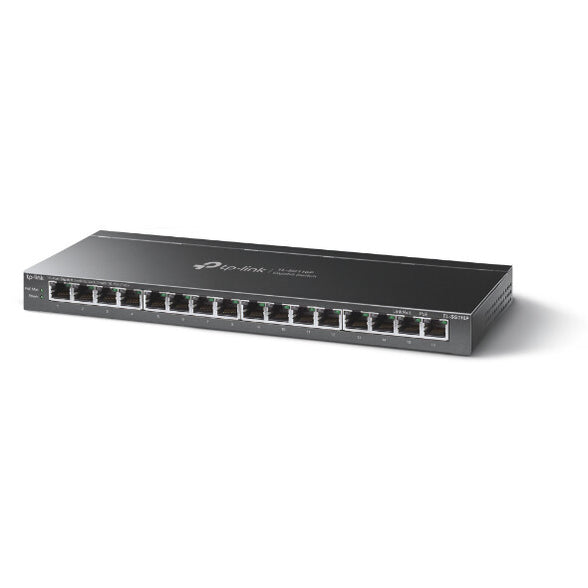

TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+
iFrame
£148.99
Couldn't load pickup availability
- With 16 PoE+ ports, transfers data and power on one single cable
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 120 W for all PoE ports*
- Up to 250 m data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Plug and play with no configuration required
16-Port Gigabit Desktop Switch with 16-Port PoE+
- 16x 10/100/1000 Mbps RJ45 ports
- With 16 PoE+ ports, transfers data and power on one single cable
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 120 W for all PoE ports*
- Up to 250 m data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Plug and play with no configuration required
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Gigabit Ethernet (copper) ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Network | |
|---|---|
| Number of VLANs | 32 |
| Virtual LAN features | Protocol-based VLAN, Tagged VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Rate limiting | Yes |
| Cable length detection | Yes |
| Broadcast storm control | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Data transmission | |
|---|---|
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of queues | 4 |
| Store-and-forward | Yes |
| Forwarding rate | 23.81 Mpps |
| Switching capacity | 32 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| IGMP snooping | Yes |
| Design | |
|---|---|
| Wall mountable | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Black |
| Stackable | Yes |
| Power | |
|---|---|
| Power consumption (max) | 144.28 W |
| Power consumption (typical) | 11.72 W |
| Input current | 0.6 A |
| DC input voltage | 9 V |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 490.55 BTU/h |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 25.4 mm |
| Depth | 111.7 mm |
| Width | 286 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Packaging data | |
|---|---|
| Package weight | 2 kg |
| Package height | 70 mm |
| Package depth | 434 mm |
| Package width | 227 mm |
