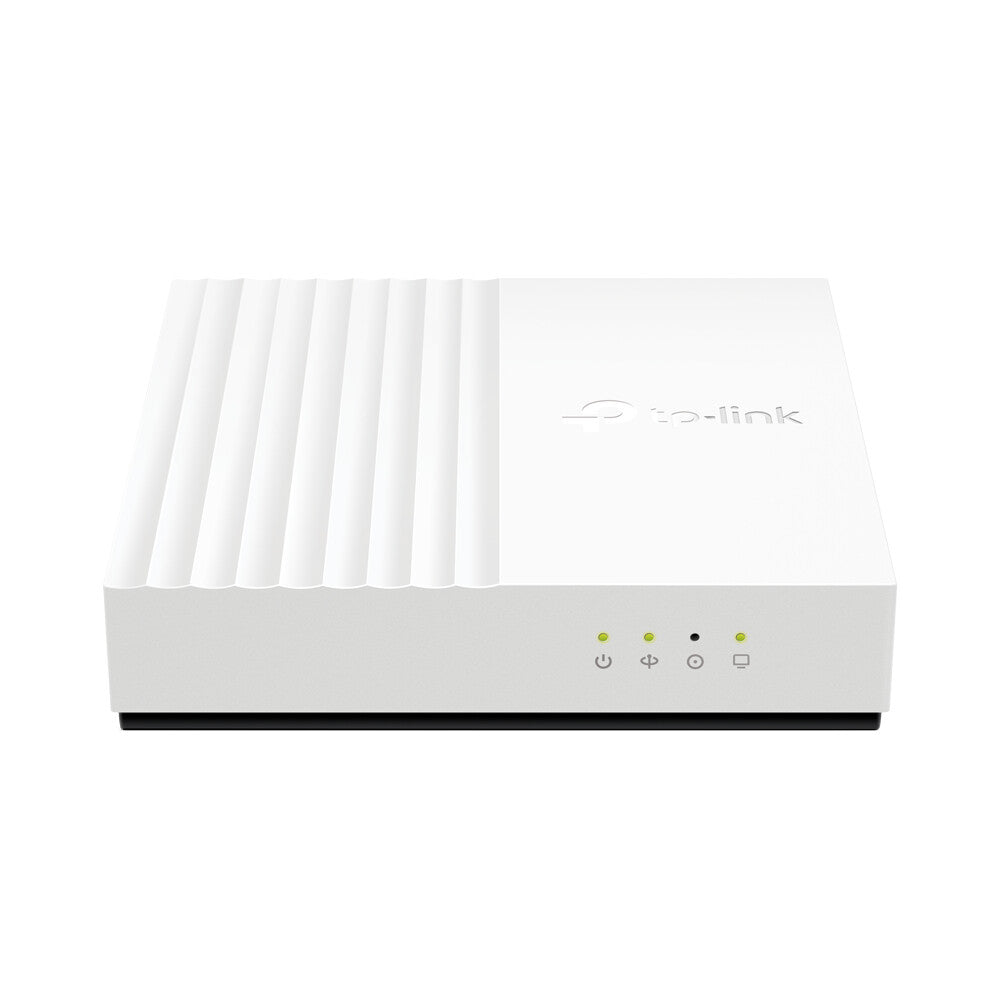

TP-Link 1-Port XGS-PON Terminal
£74.99
Couldn't load pickup availability
- Symmetrical 10G Connectivity: XGS-PON technology delivers 10 Gbps upstream and downstream transmissions simultaneously.*
- 10G Wired Connections: 1× 10GE LAN port enables ultra-fast network sharing and connections
- Ease of Use: Quick and hassle-free installation with intelligent power-saving
- Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management
1-Port XGS-PON Terminal
- Symmetrical 10G Connectivity: XGS-PON technology delivers 10 Gbps upstream and downstream transmissions simultaneously.*
- 10G Wired Connections: 1x 10GE LAN port enables ultra-fast network sharing and connections.
- Ease of Use: Quick and hassle-free installation with intelligent power-saving.
- Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management
*Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
| Design | |
|---|---|
| On/off switch | Yes |
| LED indicators | Yes |
| Product colour | White |
| Product type | Optical network terminal (ONT) |
| Network | |
|---|---|
| Tagged VLAN | Yes |
| QinQ VLAN support | Yes |
| VLAN support | Yes |
| Transmission distance (max) | 20 km |
| Downstream data rate | 10000 Mbit/s |
| Upstream data rate | 10000 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| ITU standards | G.988, G.9907.1 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Wireless LAN features | |
|---|---|
| Wi-Fi | No |
| Management features | |
|---|---|
| Reset button | Yes |
| Web-based management | Yes |
| Security | |
|---|---|
| Security algorithms | AES |

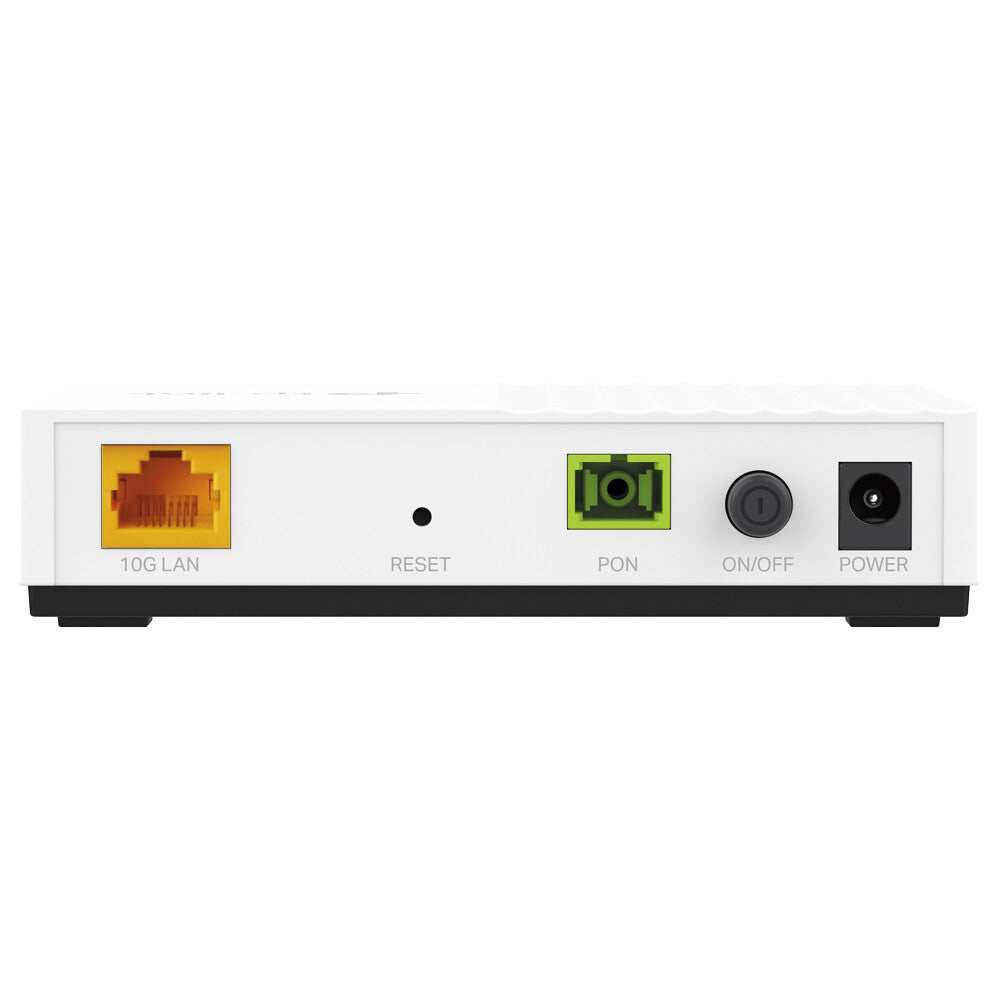

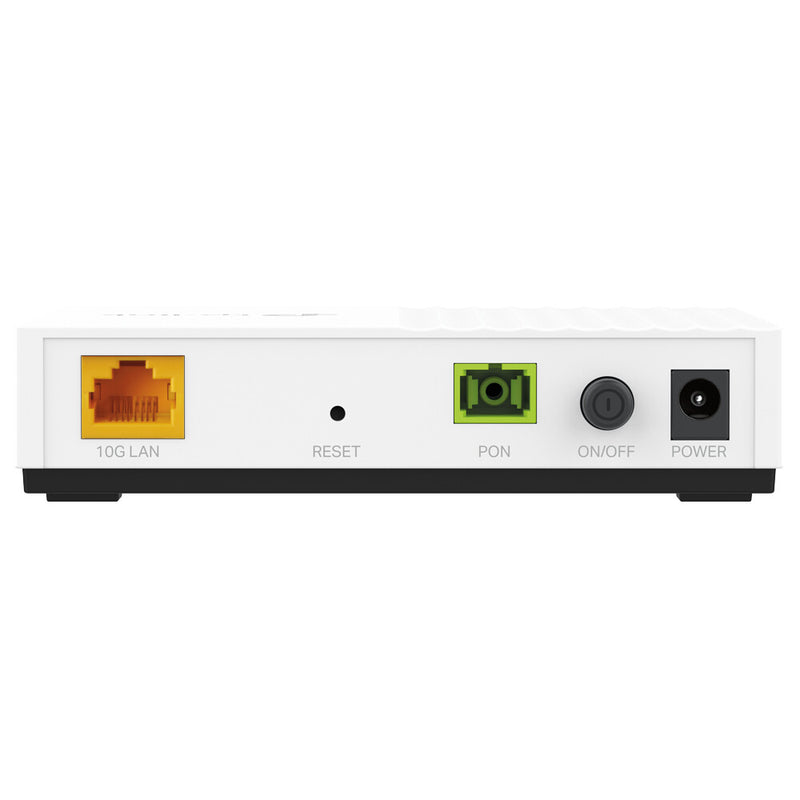

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC/APC |
| Fiber ports quantity | 1 |
| Power | |
|---|---|
| Output current | 0.85 A |
| Output voltage | 9 V |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 27.9 mm |
| Depth | 120 mm |
| Width | 120 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
