Teltonika TSW200 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
iFrame
£95.99
Couldn't load pickup availability
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 2000 entries Switching capacity: 20 Gbit/s
- DC Power over Ethernet (PoE)

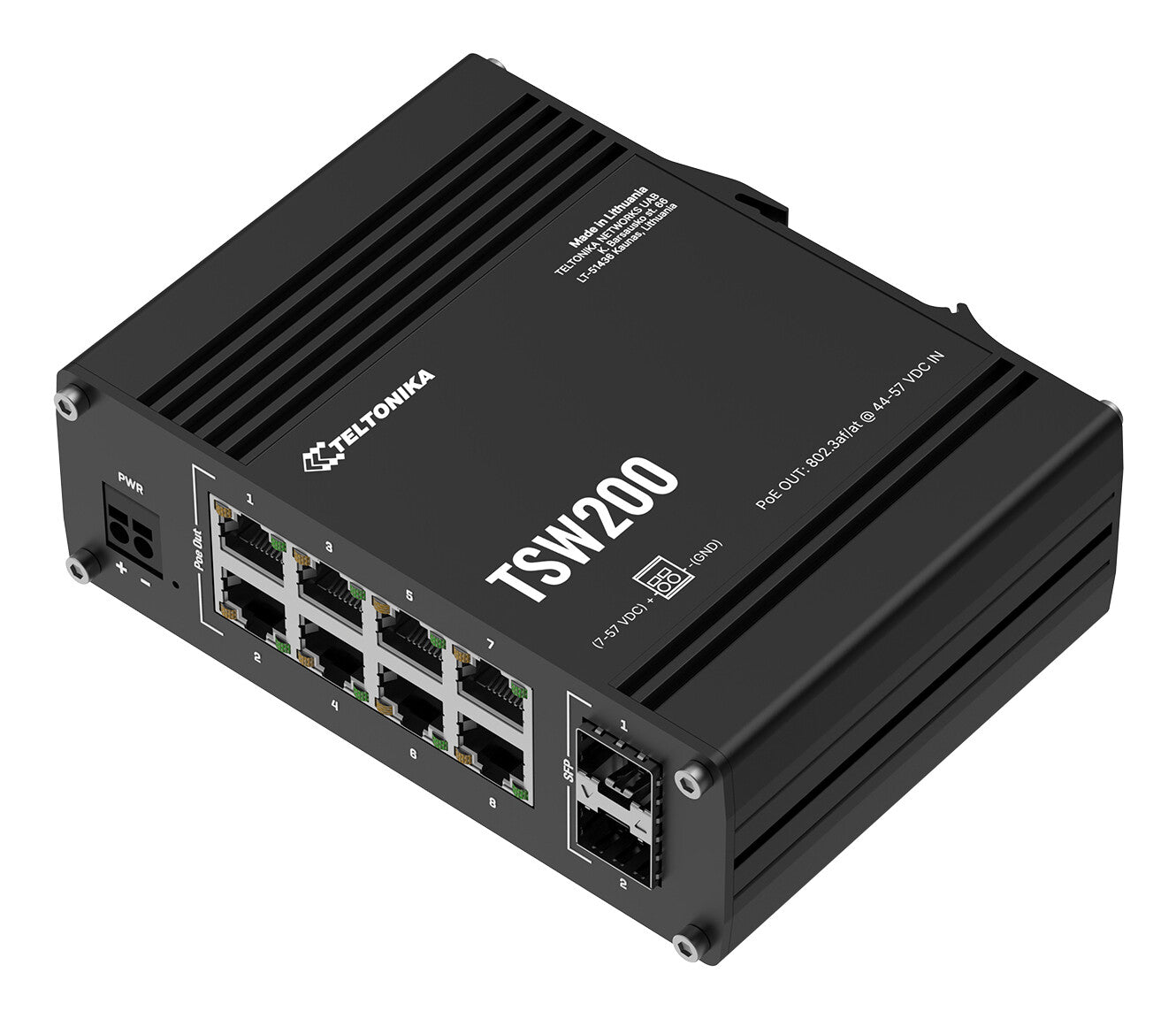

TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power connector | DC-in jack |
| Network | |
|---|---|
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.128 MB |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Yes |

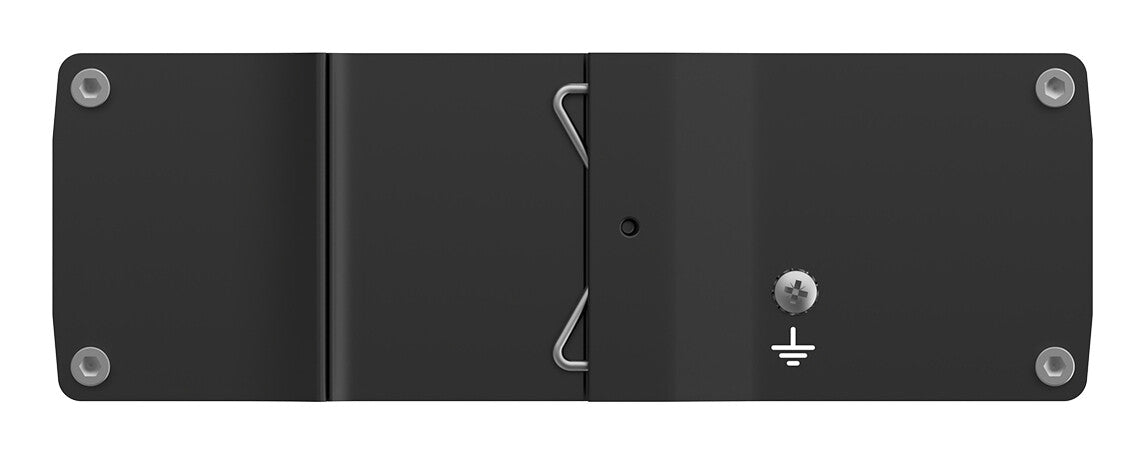

| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| Power | |
|---|---|
| Power source | DC |
| Power supply included | No |
| DC input voltage | 7 - 57 V |
| Power consumption (max) | 5.5 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE, PoE+ |
| Power over Ethernet (PoE) modes | Alternative A, Alternative B |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 132 mm |
| Depth | 95.1 mm |
| Height | 44.2 mm |
| Weight | 517 g |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Packaging data | |
|---|---|
| Package type | Box |
| Certificates | |
|---|---|
| Compliance certificates | CE, UKCA, Federal Communications Commission (FCC), Industry Canada (IC), CB |
