Teltonika TSF000 Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Desktop Black
iFrame
£47.99
Couldn't load pickup availability
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 5
- 10G support
- MAC address table: 2000 entries
- Desktop
- DC/PoE Power over Ethernet (PoE)

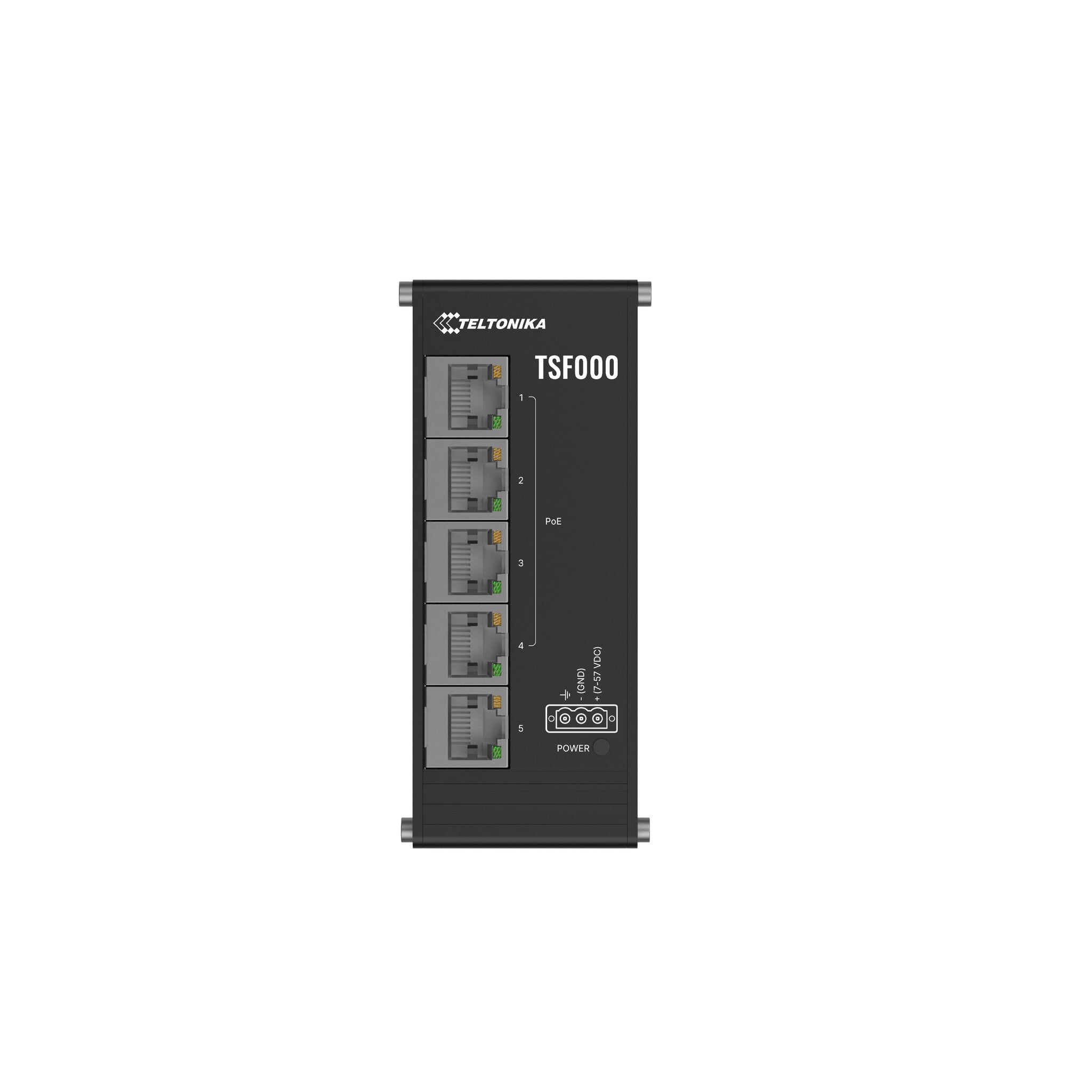

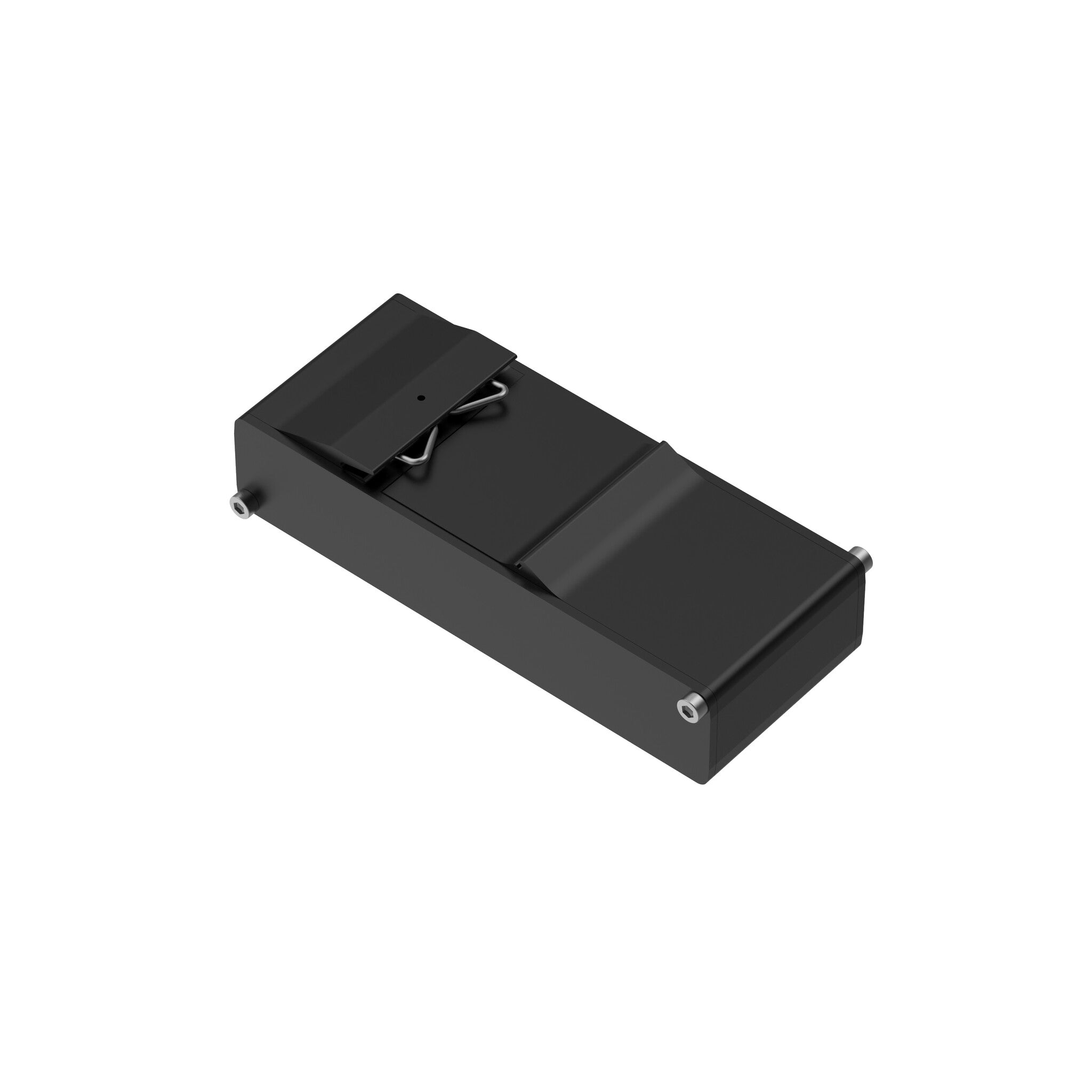

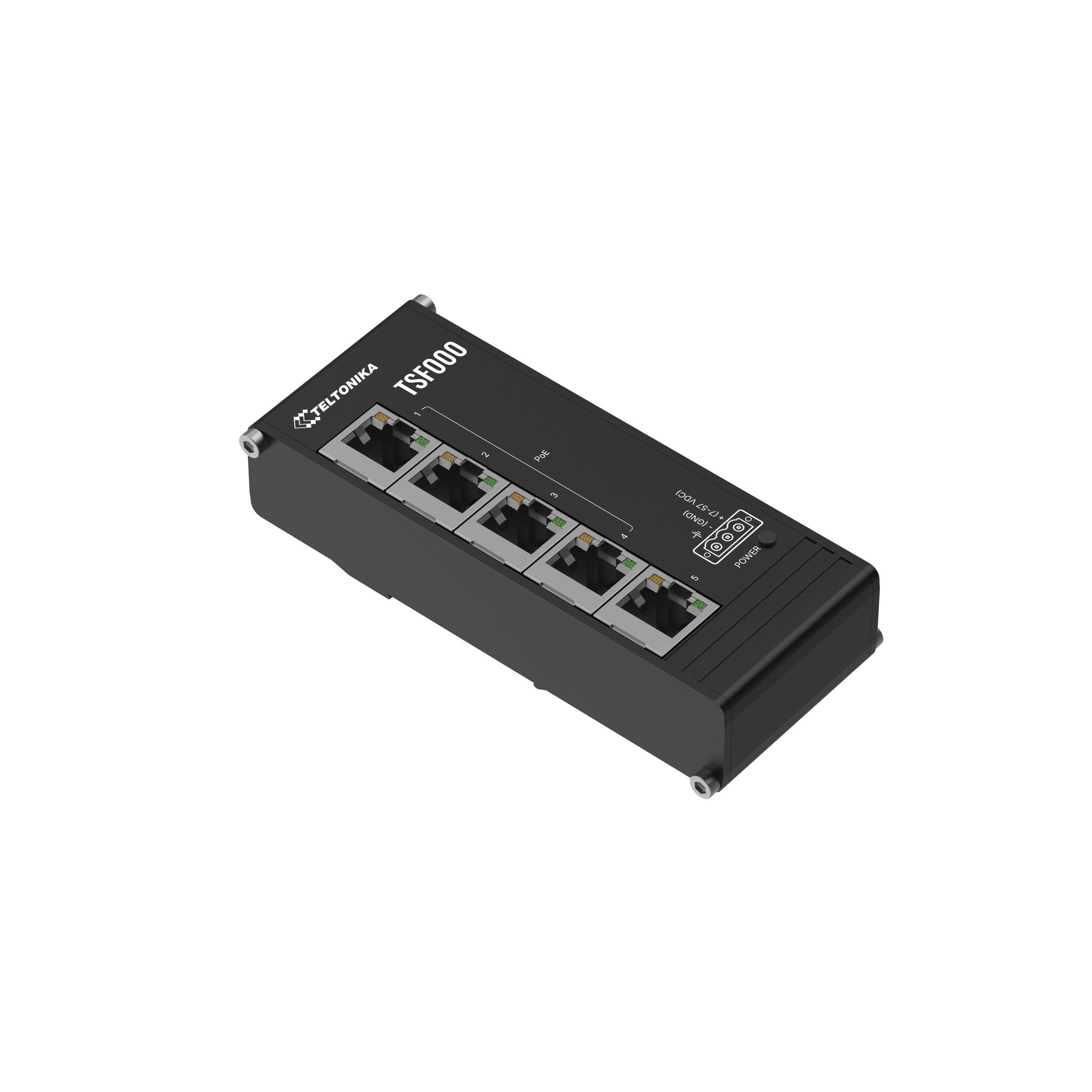

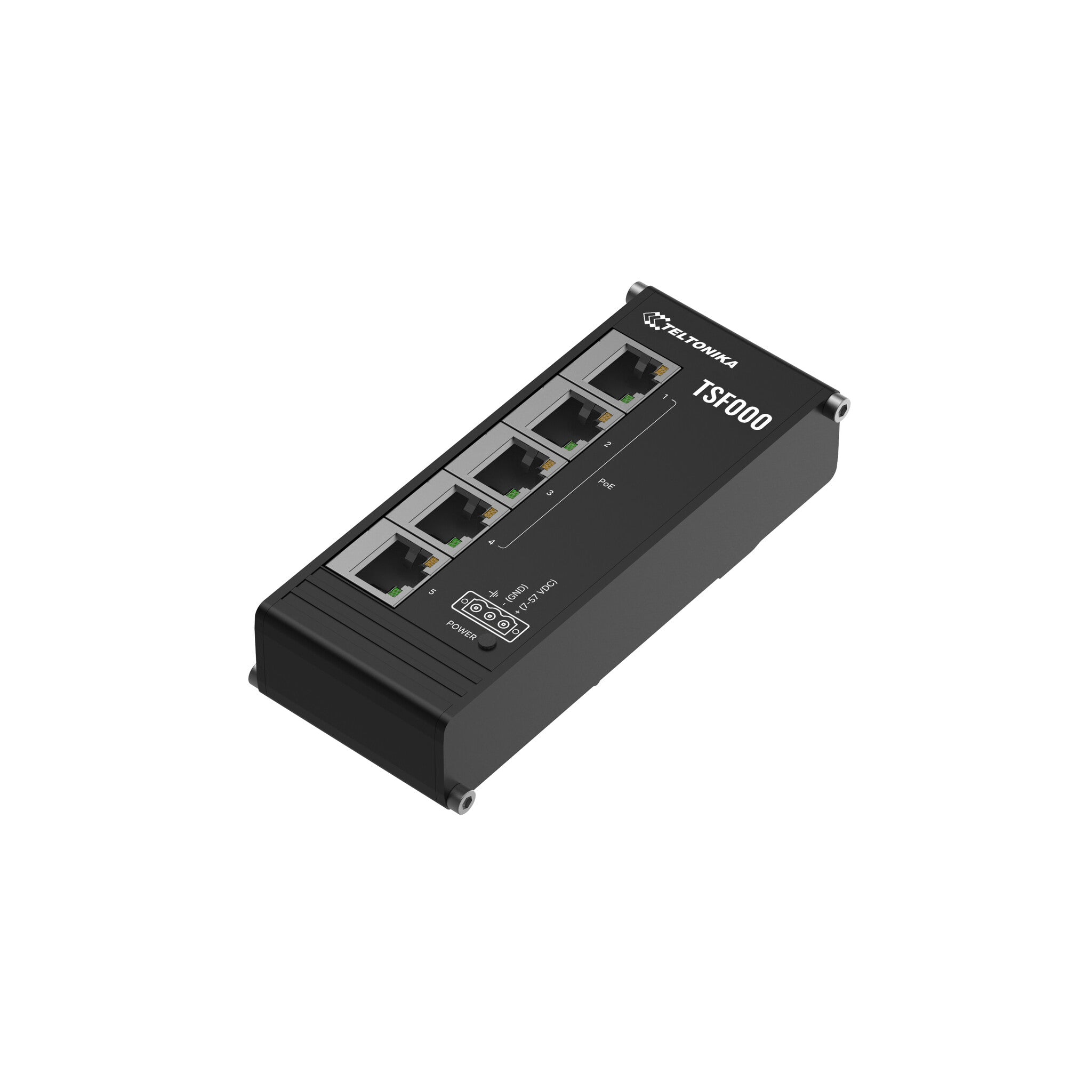

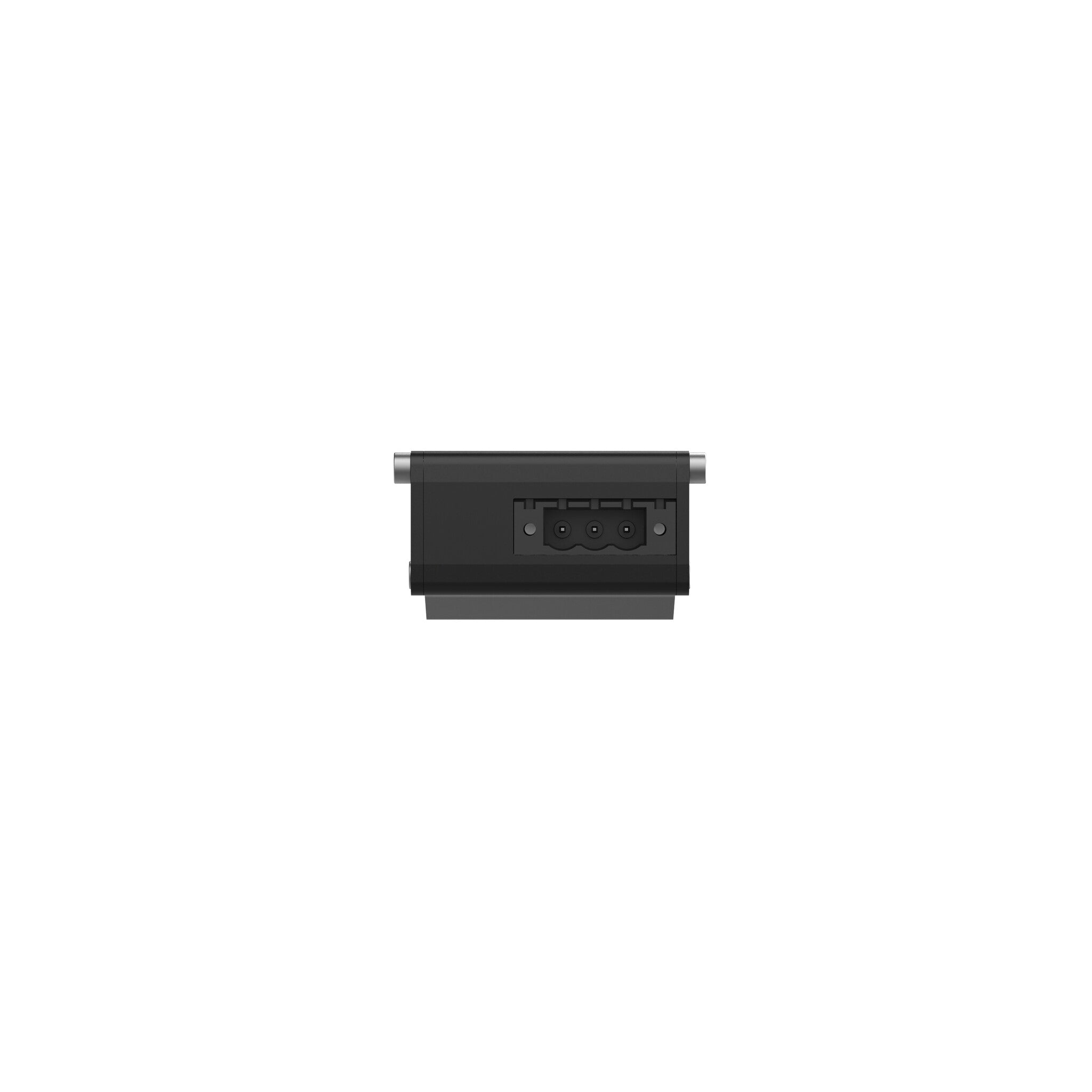

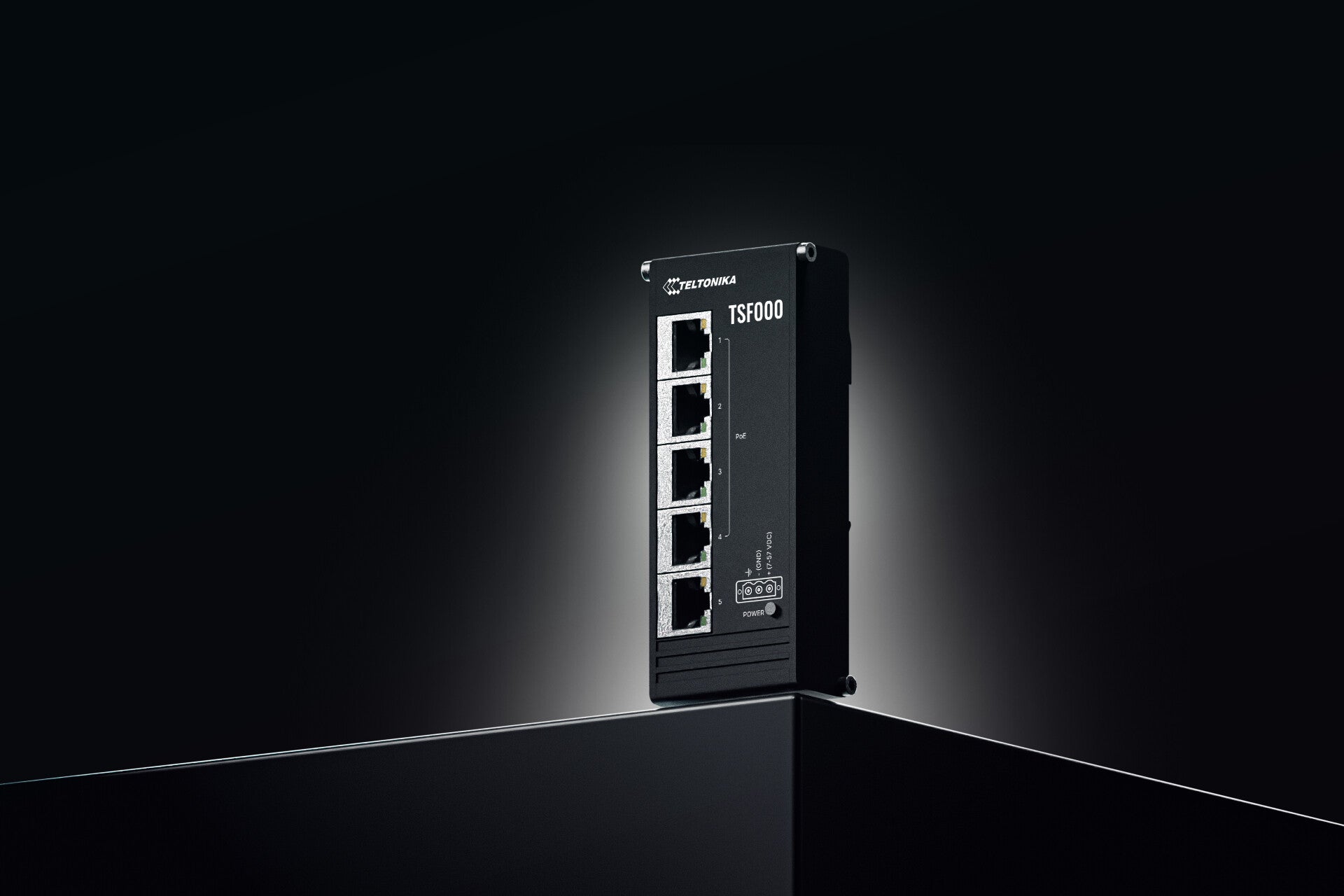

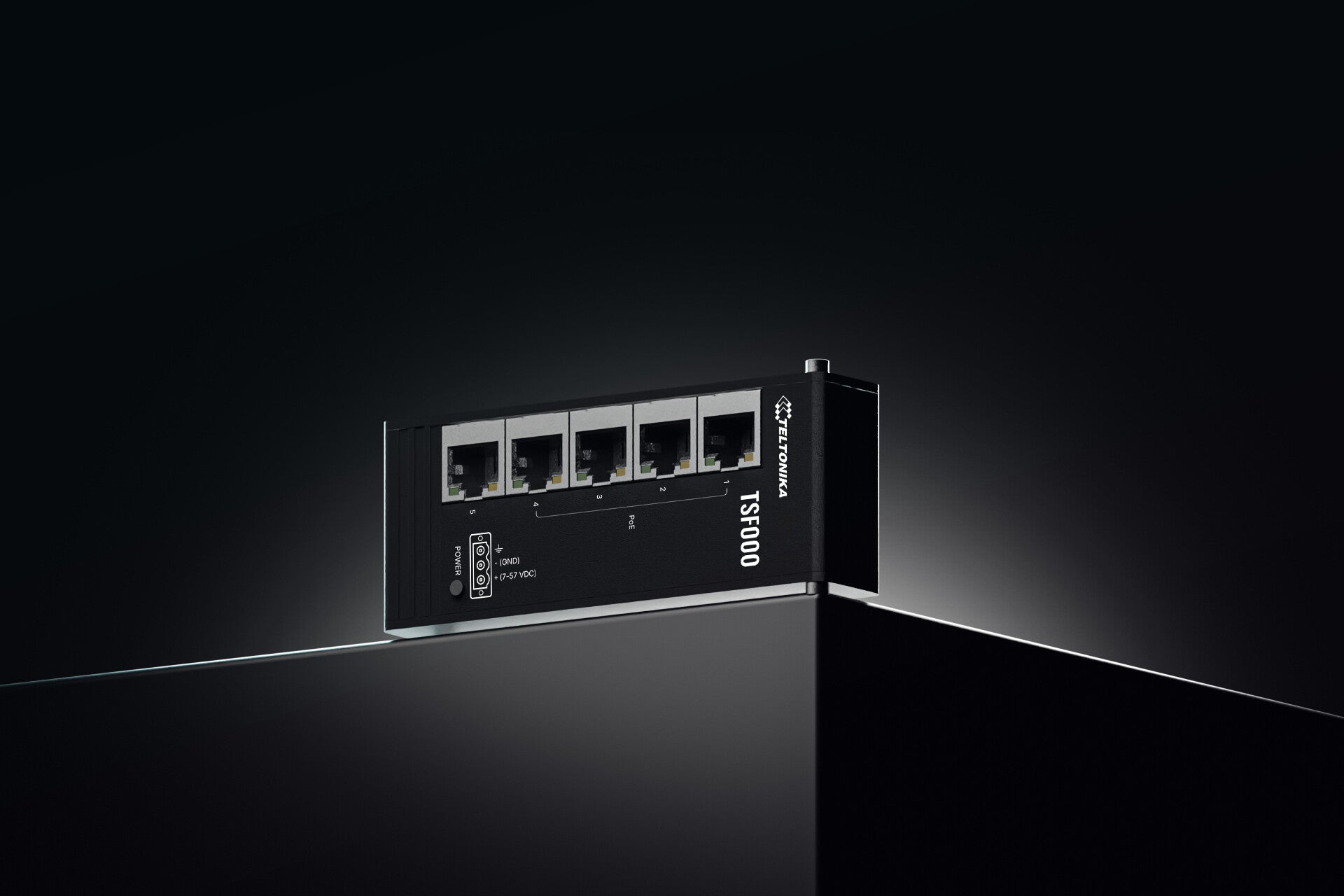

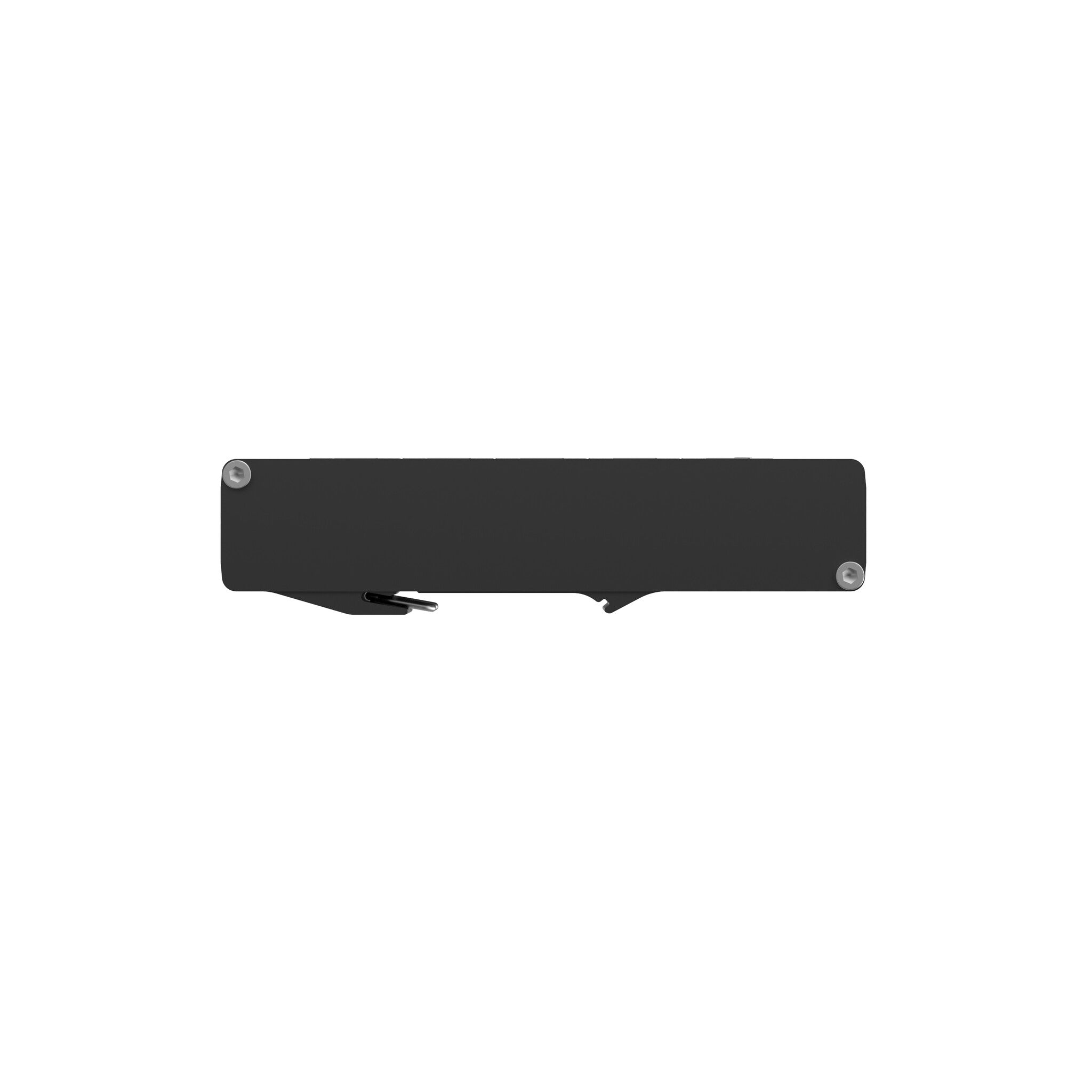

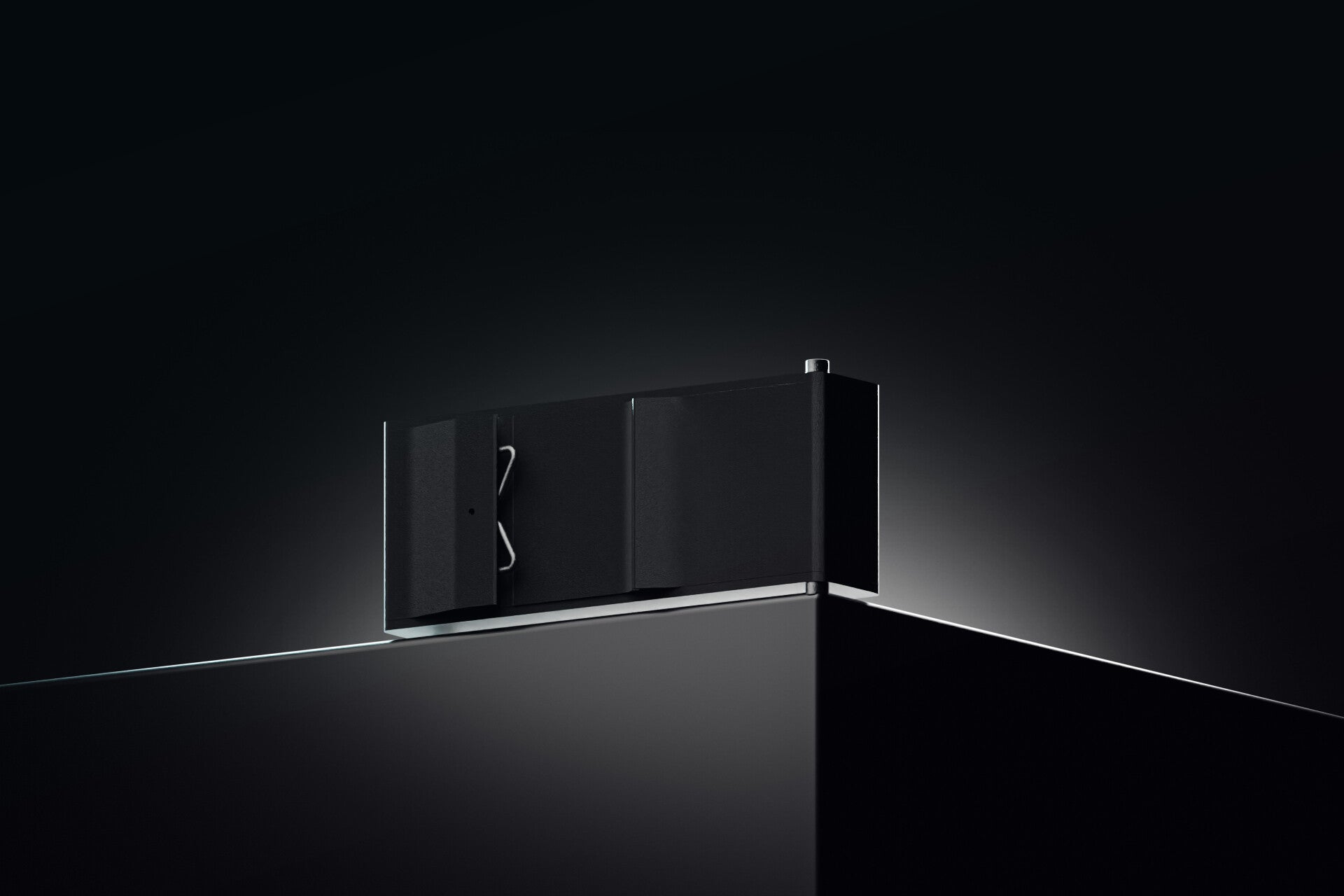

The TSF000 is a compact unmanaged Ethernet switch designed for tight industrial spaces. It features 4× PoE+ outputs with a 120 W power budget, a low-profile housing, DIN rail mount, and 5 x Ethernet ports for stable, reliable industrial connectivity. With a flexible 7 – 57 VDC power input, this switch simplifies powering and linking multiple devices in IoT automation, office spaces, and surveillance systems.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
|---|---|
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3p, IEEE 802.3q, IEEE 802.3af, IEEE 802.3at |
| 10G support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 2000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.128 MB |
| Design | |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Form factor | Desktop |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Power, Status |
| International Protection (IP) code | IP30 |
| Power | |
|---|---|
| Power source | DC/PoE |
| DC input voltage | 7 - 57 V |
| Power consumption (typical) | 1 W |
| Power consumption (max) | 1.5 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 113 mm |
| Depth | 50 mm |
| Height | 28 mm |
| Weight | 142 g |
| Certificates | |
|---|---|
| Certification | CE, UKCA, RCM, CB, FCC, IC, WEEE |
