Teltonika PR1KCO28 network antenna MIMO directional antenna SMA/RP-SMA 28 dBi
£51.99
Couldn't load pickup availability
- Frequency range 1575.42-1610 MHz
- Polarisation RHCP
- Impedance 50 Ω
- LNA reinforcement 28±2 dB
- LNA Noise Figure < 1.5 dB
- Supply voltage 3-5 V DC
- Power consumption < 15 mA
- LNA V.S.W.R. < 2.0
- Connector Male SMA

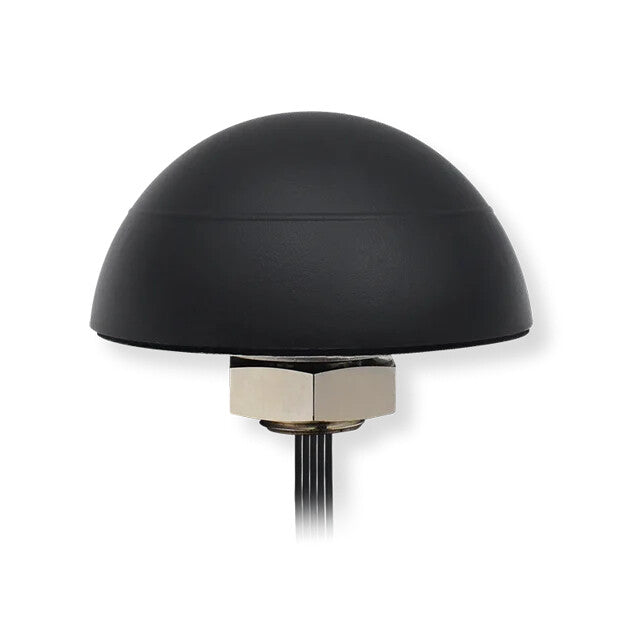

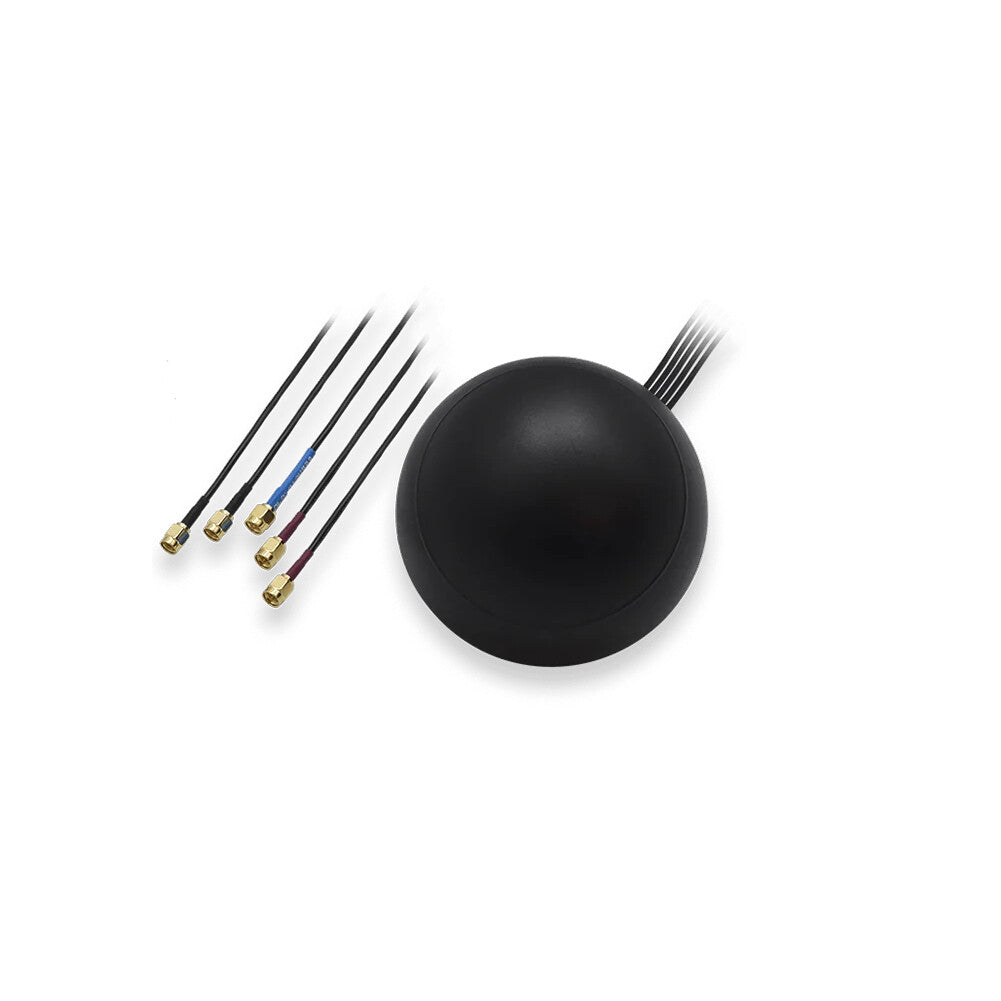

Teltonika Combo LTE/ GPS/ Wi-Fi antenna
The MIMO Combo antenna consists of 5 integrated antennas: 2 LTE antennas, 2 Wi-Fi antennas and a GPS antenna. It is designed to be mounted on vehicle roofs.
| Performance | |
|---|---|
| Antenna gain level (max) | 28 dBi |
| Frequency band | 1.57542-1.61; 0.698-0.96/1.71-2.69; 2.4-2.4835/4.9-5.825 GHz |
| Antenna gain (5 GHz) | 2 dBi |
| Antenna gain (2.4 GHz) | 2 dBi |
| Impedance | 50 Ω |
| Features | |
|---|---|
| Antenna type | MIMO directional antenna |
| Connector gender | Female/Female |
| Antenna connector type | SMA/RP-SMA |
| Polarization | Linear polarization |
| Voltage Standing Wave Ratio (VSWR) | 2/2.5/3 |
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP67 |
| Cable type | 5x RG174 |
| Cable length | 3 m |
| Power | |
|---|---|
| Power consumption | 15 mA |
| Input voltage | 3-5 V |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Height | 55 mm |
| Diameter | 11 cm |
| Weight | 550 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85177100 |
