Teltonika Industrial router RUT140 2x RJ45 100Mb/s, IP30
£63.99
Couldn't load pickup availability
- CONNECTIVITY
- 2 x 10/100 Mbps Ethernet ports, Wi-Fi 4
- POWER INPUT
- 1 x 3-pin power connector tailored for industrial use
- EASY INSTALLATION

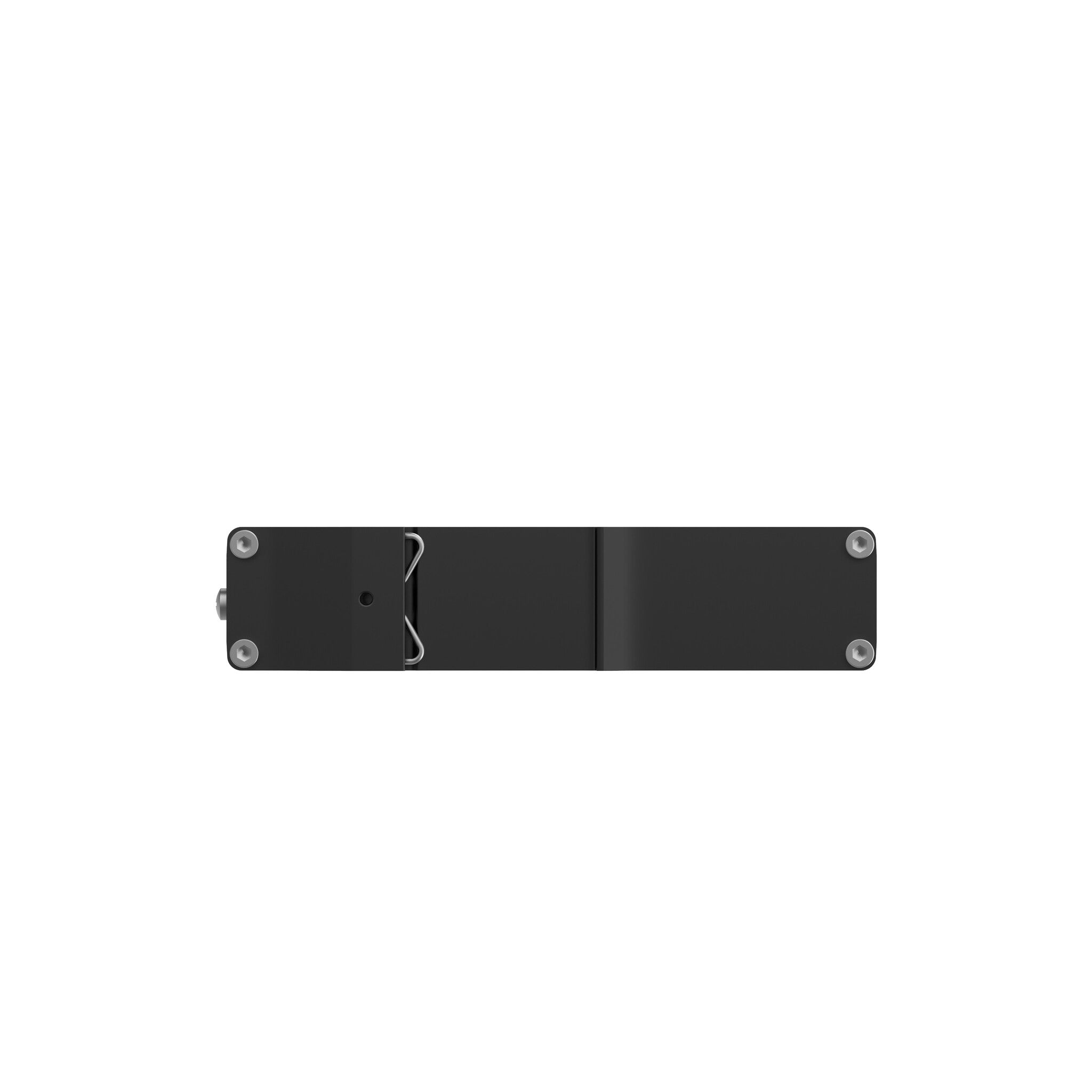

- Simple installation with an integrated DIN rail bracket
- RMS
- Remote management, access & VPN services

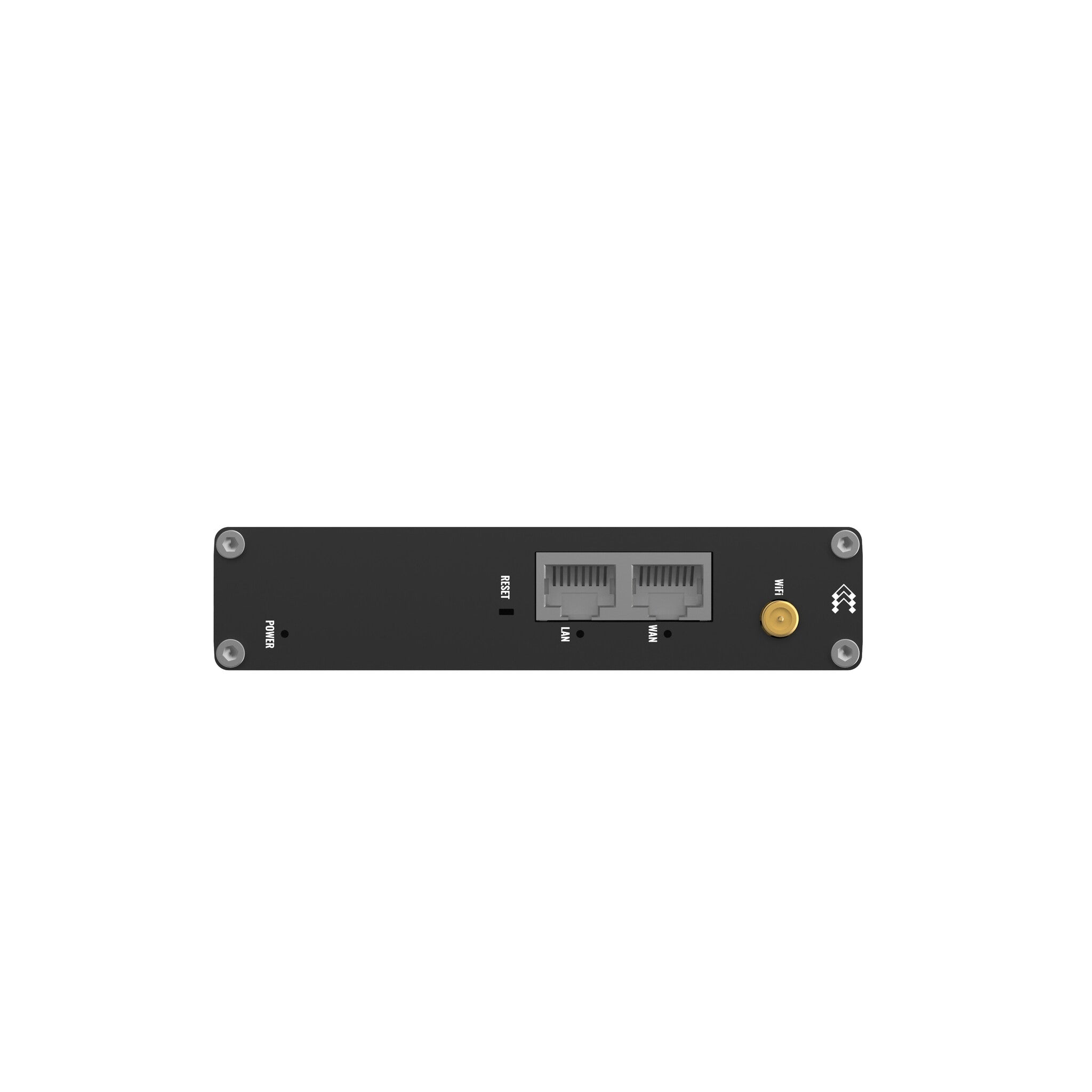

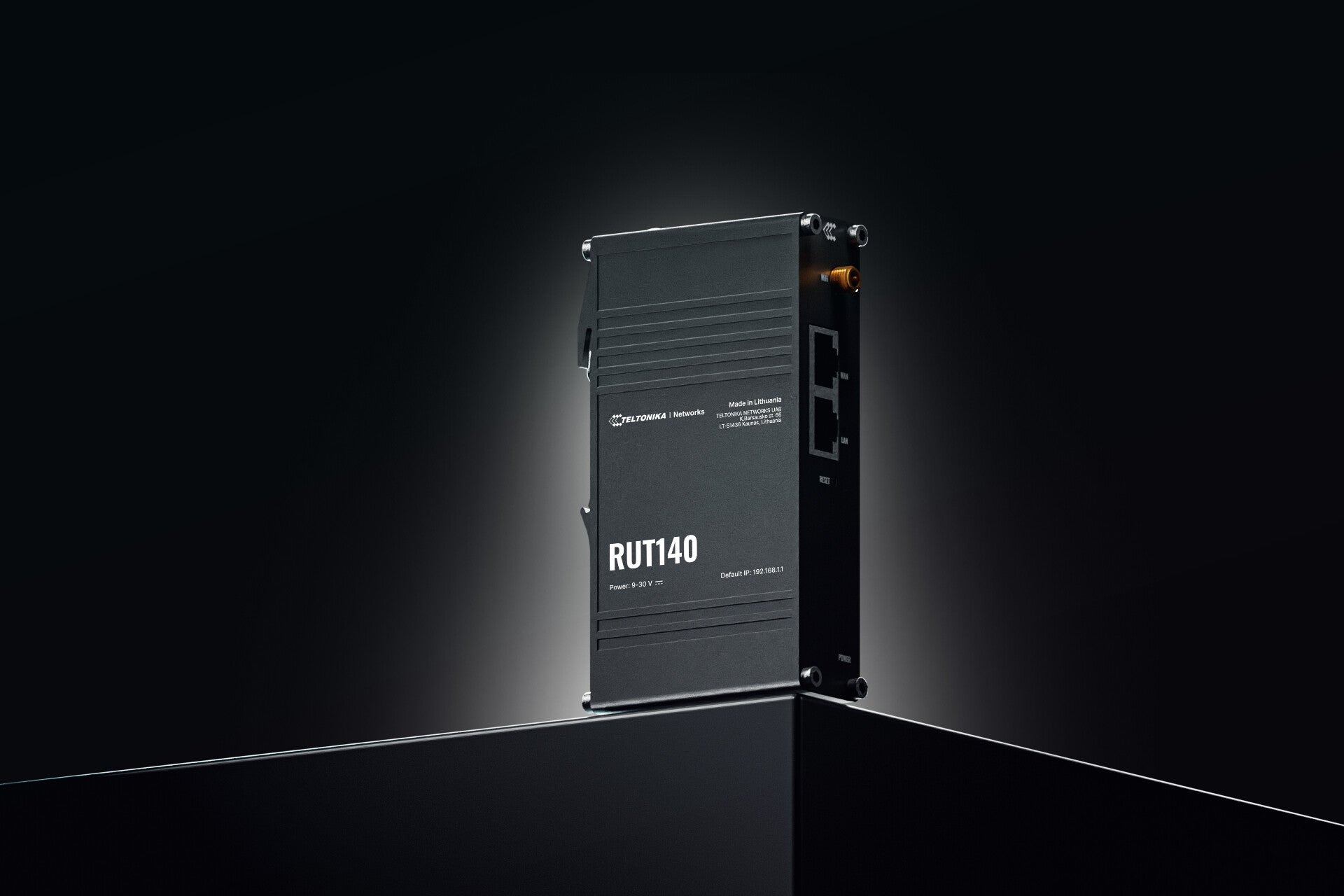

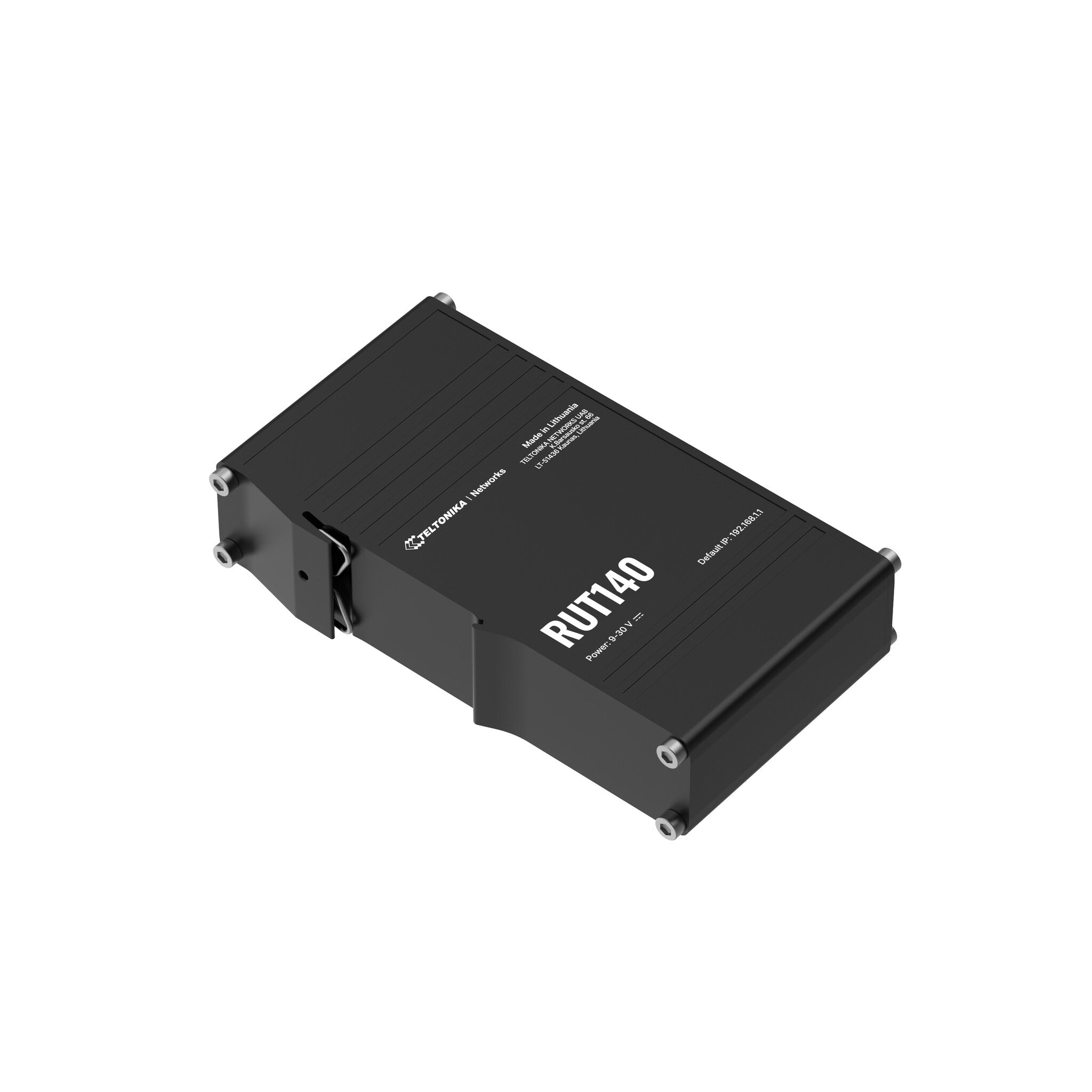

The RUT140 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Network | |
|---|---|
| Networking standards | IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s, IEEE 802.11v, IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Protocols | |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
| Security | |
|---|---|
| Security algorithms | AES-CCMP, EAP-TLS, OWE, TKIP, WPA-EAP, WPA-PSK, WPA2-Enterprise-PEAP, WPA2-PSK, WPA3-EAP, WPA3-SAE |
| Access Control List (ACL) | Yes |
| VPN support | OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 IPsec IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) GRE GRE tunnel, GRE tunnel over IPsec support PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code DMVPN Method of building scalable IPsec VPNs SSTP SSTP client instance support ZeroTier ZeroTier VPN client support WireGuard WireGuard VPN client and server support Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support. |
| Features | |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | MediaTek |
| Processor architecture | MIPS 24Kc |
| Processor frequency | 580 MHz |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Internal memory type | DDR2 |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Aluminium |
| Wall mountable | Yes |
| LED indicators | LAN, Power, WAN |
| Antenna | |
|---|---|
| Antenna connector type | RP-SMA |
| Power | |
|---|---|
| Power source type | DC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 113.1 mm |
| Depth | 68.6 mm |
| Height | 25 mm |
| Weight | 142.3 g |
| Other features | |
|---|---|
| Mounting | DIN-rail |
