£20.09

Stock Available: 128
  • Supports Intel’s SRT
  • Supports S.M.A.R.T
  • Supports TRIM
  • New Generation power saving technology that extends the battery life

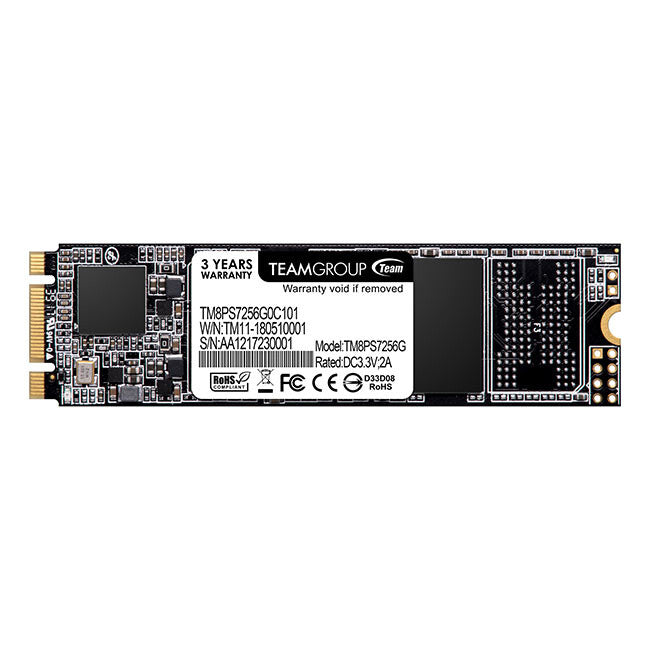

Next generation M.2 SATA solid state drive
Team group MS30 M.2 SATA solid state drive is the next generation M.2 (NGFF, Next Generation Form Factor) high speed solid state drive. It provides mobile computing devices an excellent storage performance with ultra-compact size and lightweight.

High speed transfer, high compatibility and high capacity
MS30 M.2 SATA solid state drive uses the latest SATA III 6Gb/s transfer interface and offers excellent transfer efficiency and compatibility. For different environment usage, MS30 comes in two sizes, 22x80mm and 22x42mm, and both of them are fully compliant with the M.2 specification. In addition, the capacity is increased to 1TB, which is capable of satisfying all kinds of specification requirements for motherboards, laptops, mobile devices and developing embedded devices.

Smart Response Technology
Intel Smart Response Technology is supported. MS30 M.2 SATA solid state drive allows user to set the solid state drive as the cache memory between the hard disk drive (HDD) and the computer, so the hard drive with high capacity can have a fast response time like the system of solid state drive and improves the overall working efficiency.

Comprehensive smart technology
MS30 M.2 SATA solid state drive supports advanced garbage collection, wear leveling, TRIM command and power saving function of the next generation. It provides excellent solution for performance, power efficiency and service life.

Features
Mean time between failures (MTBF) 1500000 h
S.M.A.R.T. support Yes
TRIM support Yes
Write speed 470 MB/s
Read speed 550 MB/s
Data transfer rate 6 Gbit/s
Component for PC/Laptop
NVMe No
Interface Serial ATA III
SSD form factor M.2
SSD capacity 256 GB
Power
Operating voltage 3.3 V
Weight & dimensions
Weight 10 g
Height 3.5 mm
Depth 80 mm
Width 22 mm
Operational conditions
Operating shock 500 G
Operating vibration 20 G
Operating relative humidity (H-H) 0 - 90%
Storage temperature (T-T) -40 - 80 °C
Operating temperature (T-T) 0 - 70 °C
Other features
Product colour Black
Logistics data
Harmonized System (HS) code 84717070
