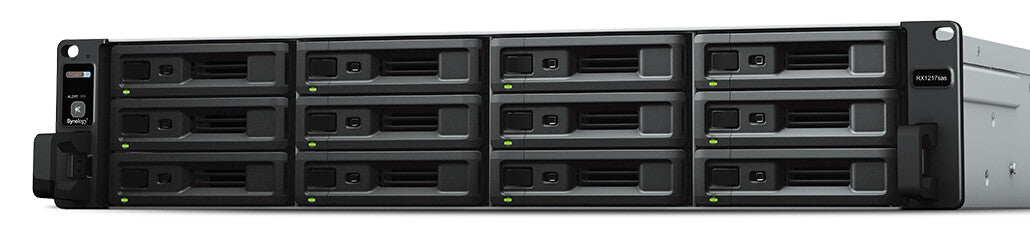

Synology RX1217sas disk array 192 TB Rack (2U) Black
£11,104.99
Couldn't load pickup availability
- Large Enterprise Business
- Rack (2U) Black
- HDD Storage drives installed 192 TB
- Hot-swap drive bays
- 500 W
Effortless capacity expansion for Synology FlashStation and RackStation solutions on-the-fly.
12-bay 3.5"/2.5" SAS/SATA expansion
Easily add 12 additional drive bays to Synology FlashStation or RackStation1. Supporting both 2.5" and 3.5" SAS/SATA drives, the RX1217sas is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
Maximum reliability design
Dual power supplies ensure continuous service uptime. Easily replace defective drives with the hot swappable drive trays. Experience fast and secure rack cabinet installation with the optional sliding rail kit RKS1317.
| Storage | |
|---|---|
| Hot-swap drive bays | Yes |
| Storage drive sizes supported | 2.5,3.5" |
| Supported storage drive interfaces | SAS, Serial ATA III |
| Storage drive capacity | 16 TB |
| Maximum supported storage capacity | 192 TB |
| Number of storage drives supported | 12 |
| Supported storage drive types | HDD & SSD |
| Total installed storage capacity | 192 TB |
| Number of storage drives installed | 12 |
| Installed storage drive type | HDD |
| Storage drives installed | Yes |
| Ports & interfaces | |
|---|---|
| SAS host port | Yes |
| Number of SAS host ports | 2 |
| USB connectivity | No |
| Design | |
|---|---|
| Certification | FCC, BSMI, EAC, RCM, KC |
| Compatible products | Synology FS6400, FS3600, FS3400, FS3017, FS2017, SA3600, SA3400, RS18017xs+ |
| Rack rails | Yes |
| Fan diameter | 6 cm |
| Noise level | 60.9 dB |
| Number of fans | 4 fan(s) |
| Cooling | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Chassis type | Rack (2U) |
| Device class | Large Enterprise Business |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 132.7 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power supply unit (PSU) capacity | 500 W |
| Weight & dimensions | |
|---|---|
| Weight | 18 kg |
| Height | 88 mm |
| Depth | 724 mm |
| Width | 482 mm |
| Packaging content | |
|---|---|
| Drive bay locking | Yes |
| Power cables quantity | 1 |
| Cables included | AC, MiniSAS |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 5000 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 5 - 35 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | UL ECOLOGO |
| Other features | |
|---|---|
| Compliance certificates | CE, RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717020 |
