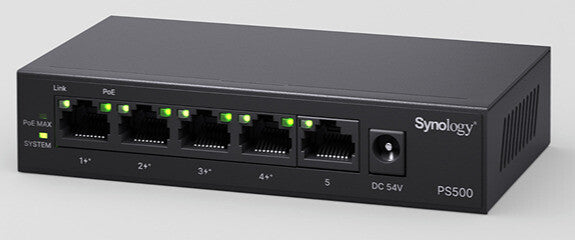

Synology PS500 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Black
£129.99
Couldn't load pickup availability
- Unmanaged L2
- Basic switching RJ-45 Ethernet ports quantity: 5
- MAC address table: 2000 entries Switching capacity: 10 Gbit/s
- Desktop
- AC Power supply included Power over Ethernet (PoE)
Built for effortless surveillance deployment.
Power your surveillance network with ease.
Right-sized for small-scale surveillance
Simplify PoE deployment with the Synology PS500, a 5-port unmanaged Gigabit PoE+ switch that powers Synology Cameras and PoE-enabled devices for a complete, plug-and-play surveillance setup.
Fast, hassle-free installation
The unmanaged design requires no configuration, simply connect your devices to instantly deliver power and network connectivity.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Data transmission | |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Design | |
|---|---|
| Rack mounting | No |
| Form factor | Desktop |
| Product colour | Black |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 1.1 W |
| Power consumption (max) | 65.5 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 60 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 121 mm |
| Depth | 75 mm |
| Height | 26 mm |
| Weight | 240 g |
