SY Electronics CX-0M-AV-SET AV extender AV transmitter & receiver Blue, White
£260.99
Couldn't load pickup availability
- AV transmitter & receiver 2048 x 1536 pixels Blue, White
- Maximum transfer distance: 150 m
- Wired

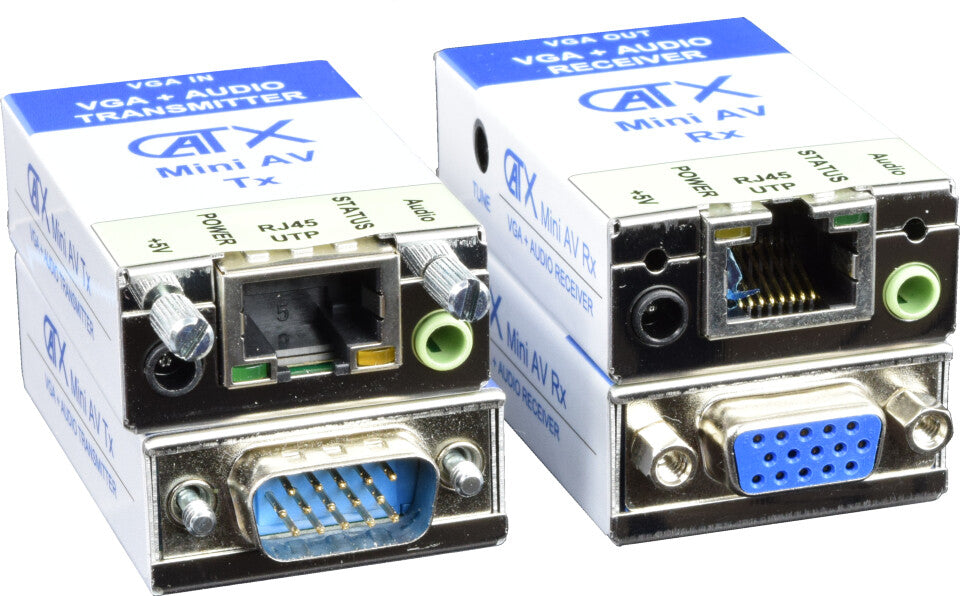

The CX-0M-AV-Set is a transmitter/receiver extender set offering VGA and Audio solutions up to 150m.
CatX Mini AV units provide a unique solution for transmitting a sharp high-quality VGA video and audio up to 150m using low-cost Cat5e cabling.
The CatX Mini AV Rx unit is the same size as the CatX Mini AV Tx, Continuous adjustability ensures perfect picture at any distance up to 150m.
All CatX AV units are compatible with all CatX Mini and CatX AVP transmitters/receivers. Considered as the smallest VGA Cat5e extender system in the market, the small size of the CatX Mini AV units ensures discrete connection to the VGA source and output display; perfect for installations with limited space.
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 2048 x 1536 pixels |
| Cable types supported | Cat5, Cat5e |
| Maximum transfer distance | 150 m |
| Extended display identification data (EDID) | Yes |
| LED indicators | Yes |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1368 x 768, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA) |
| Supported video modes | 720p, 768p, 1080p |
| Product colour | Blue, White |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| VGA (D-Sub) output ports | 1 |
| VGA (D-Sub) input ports | 1 |
| Power | |
|---|---|
| Operating voltage | 5 V |
