£32.99

Stock Available: 98
  • MULTI-MONITOR CONFIGURATION: USB Type-C to Dual HDMI MST Hub/Splitter drives up to two 4K 60Hz displays from a USB-C DP 1.4 host with DSC; USB Powered; Supports HDR and 2ch HDMI Audio; HDCP 2.2; TB3/TB4/USB4 Compatible; Not compatible with macOS
  • NO DRIVERS OR SOFTWARE: Increase productivity by adding two extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
  • HARDWARE COMPATIBILITY: Dual 4K 60Hz supported on Windows PC with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC; See resolution chart below for other configurations; Please verify number of displays supported by your GPU
  • EXTRA-LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces port/connector strain on 2-in-1 devices like Surface Pro 7 and up, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
  • OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Dual HDMI Adapter

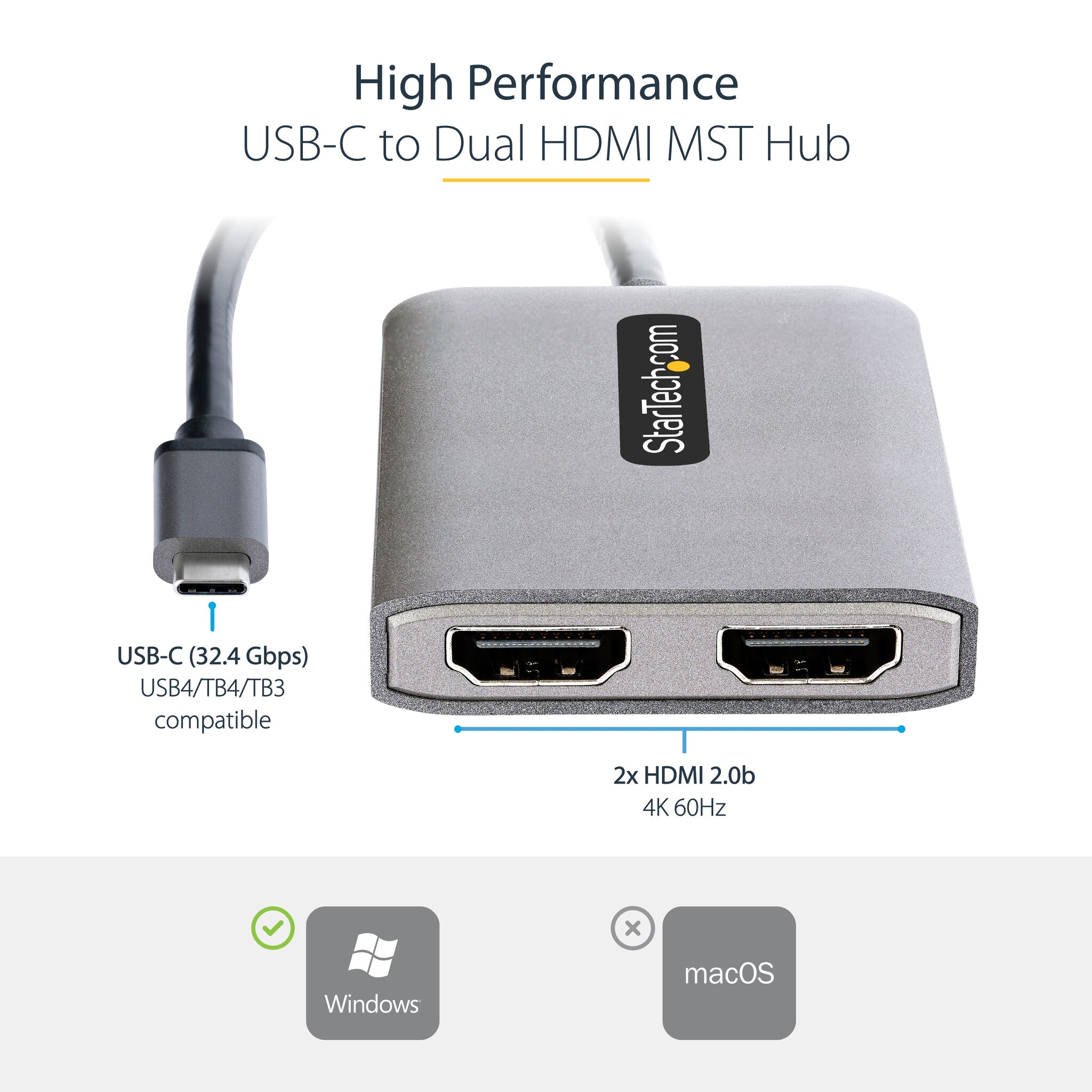

Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent HDMI® monitors

This USB-C to HDMI MST Hub allows you to connect two HDMI monitors, using a USB-C enabled host device.

Multi-tasking Made Easy

This USB-C to HDMI video splitter connects up to two additional displays in extended or mirror mode. Connecting two independent 4K 60Hz displays creates high-performance workstations, for users in your organization enabling easier multi-tasking resulting in increased productivity.

Multi-Stream Transport (MST) technology combines multiple video signals into a single signal/stream. This MST Hub separates the single stream into two independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

Hassle-Free Setup

Windows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 4, Thunderbolt 3, and USB4 enabled Windows devices. Plug-and-play installation with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, meaning no external power is required.

MST14CD122HD is backed by a StarTech.com 3-year warranty, and free lifetime multilingual, North American based technical support.

Performance
USB connector type USB Type-C
USB connector gender Male
USB connector form factor Straight
DVI output No
HDMI output Yes
DisplayPort output Yes
High Dynamic Range (HDR) supported Yes
Number of displays supported 2
HDMI ports quantity 2
Maximum resolution 3840 x 2160 pixels
Refresh rate at maximum resolution 60 Hz
Audio output channels 7.1 channels
Data transfer rate (max) 32.4 Gbit/s
Chipset Synaptics VMM5200
Design
Product colour Black, Grey
Housing material Plastic
Integrated USB cable Yes
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 x64, Windows 11, Windows 11 x64

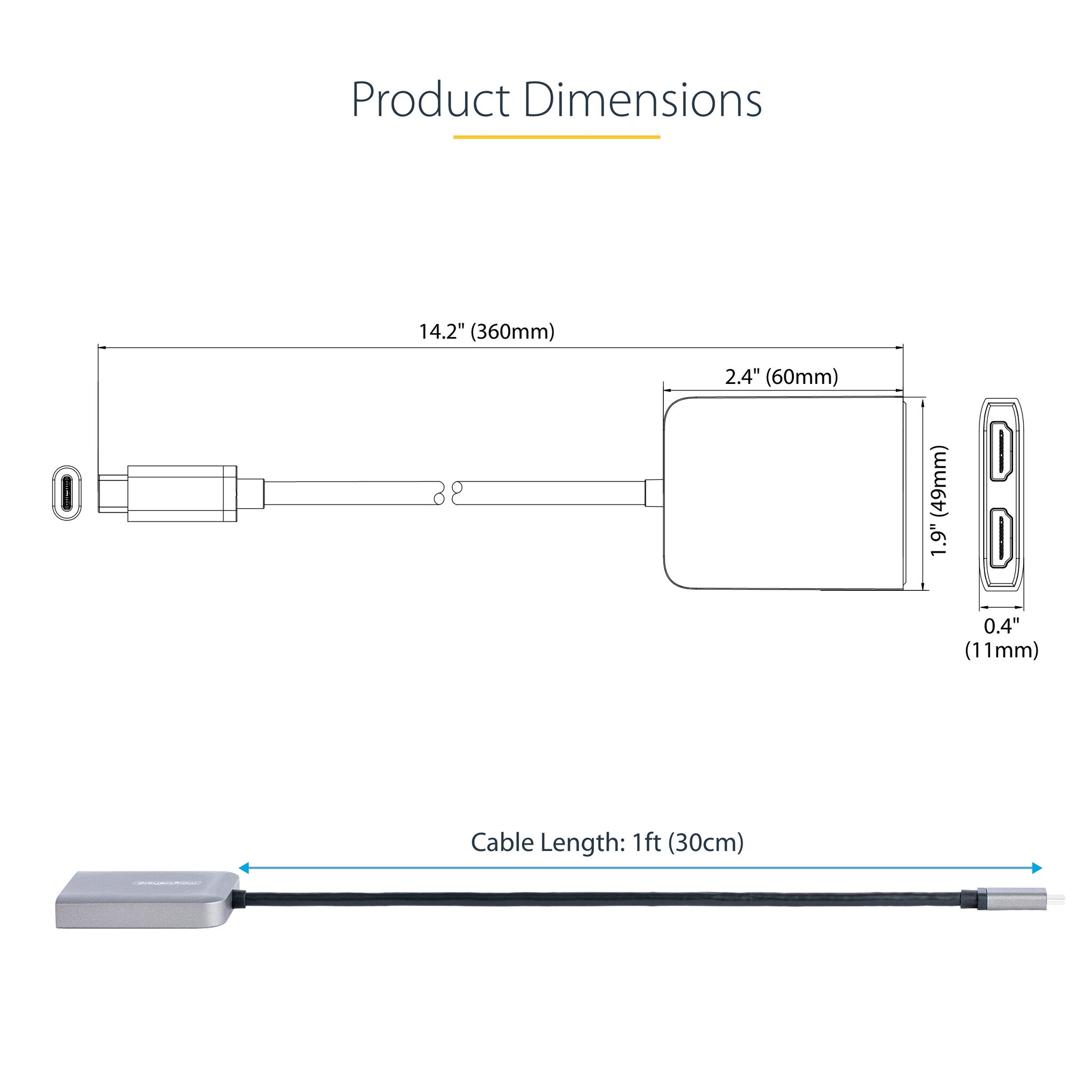

Weight & dimensions
Width 105 mm
Depth 43 mm
Height 14 mm
Weight 55 g
USB cable length 0.3 m
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -10 - 55 °C
Operating relative humidity (H-H) 5 - 90%
Packaging data
Package width 142 mm
Package depth 170 mm
Package height 30 mm
Package weight 108.8 g
Technical details
Compliance certificates CE, RoHS
Logistics data
Products per master (outer) case 70 pc(s)
Master (outer) case width 460 mm
Master (outer) case length 331 mm
Master (outer) case height 440 mm
Harmonized System (HS) code 84733020
