StarTech.com Thunderbolt 5 Universal Docking Station, Multi-Display Hub, 8K 60Hz or 4K 144Hz, 120Gbps Bandwidth Boost, 140W PD, 30W Phone Charging, USB 10Gbps, 2.5G LAN
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £76.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- Thunderbolt Certified, USB4 Compatible Dock: Provides driverless compatibility with Windows 11 and macOS 15 / 26 for seamless plug-and-play use; Works with Thunderbolt 5/4 and USB4 host devices, ensuring high-performance connectivity across modern systems

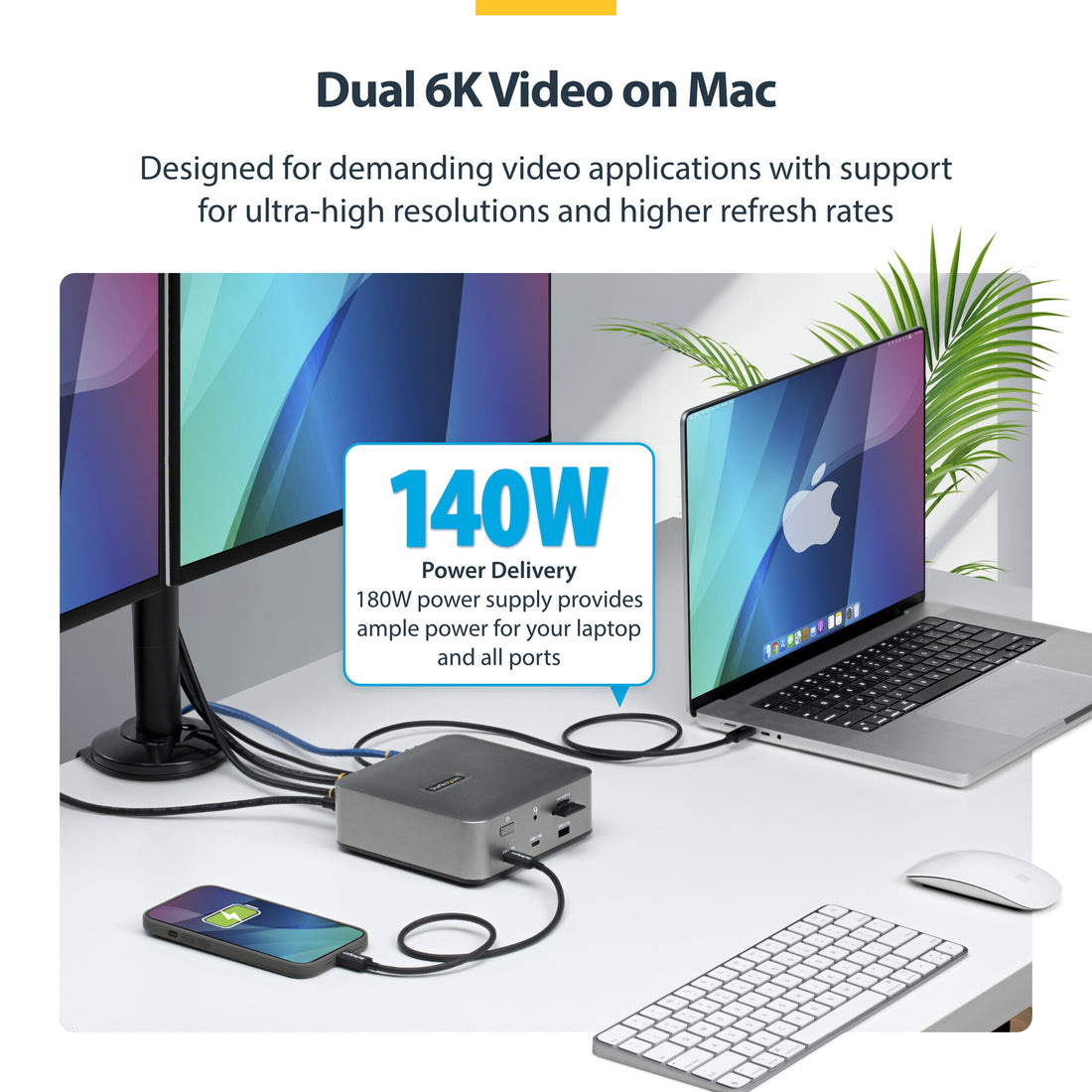

- Unlock Full Display Potential of Apple Silicon: This dock supports dual 6K 60Hz on MacBook Air and entry MacBook Pro, up to Triple 4K 144Hz on MacBook Pro with M5 Pro, or Quad 4K displays when daisy chaining 2 Thunderbolt monitors with M5 Max

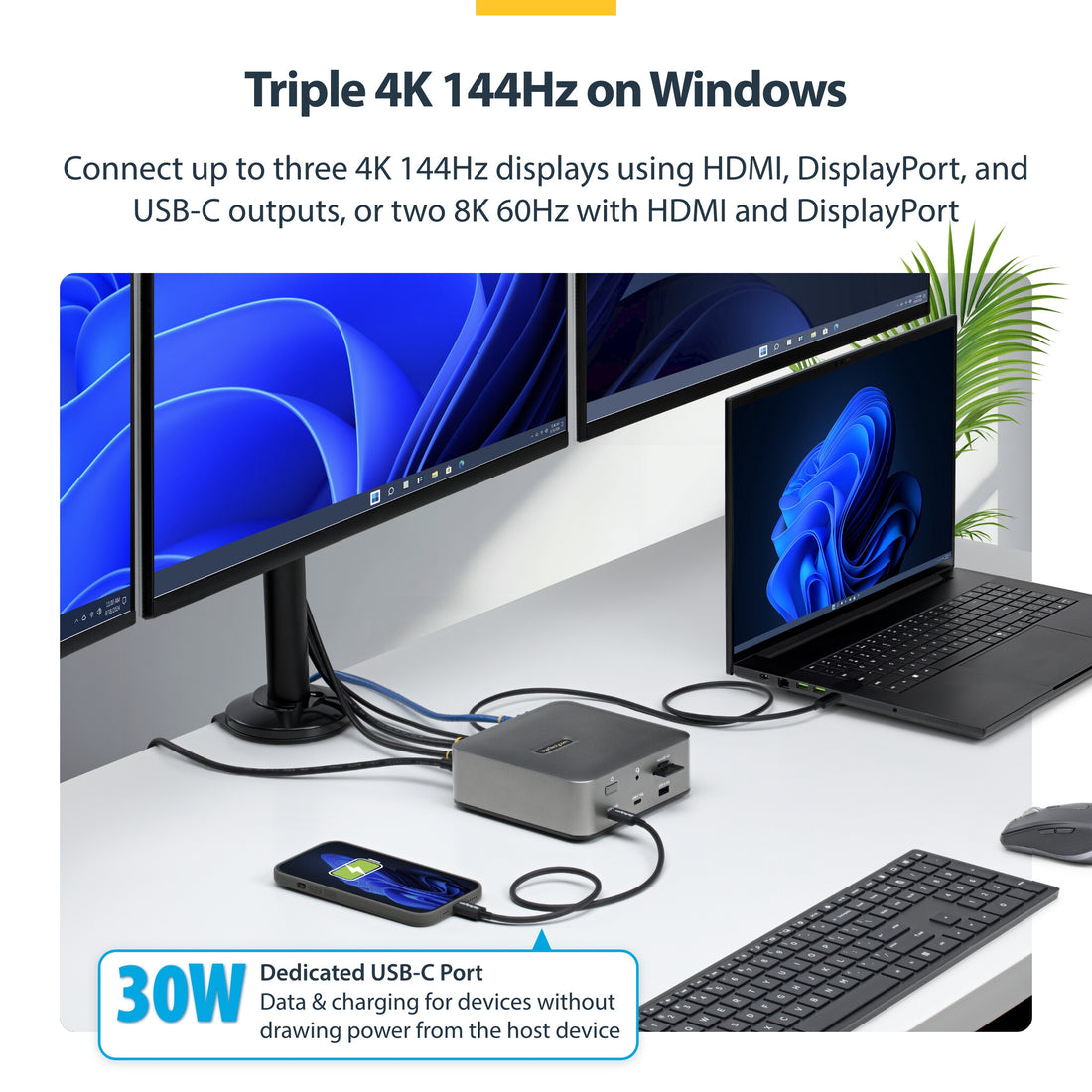

- Triple 4K Display Support on Windows: Connect up to three extended 4K 144Hz displays via HDMI, DisplayPort, and USB-C, delivering a high-performance multi-monitor workspace for productivity, creative workflows, and multitasking
- 140W Laptop Power Delivery: Includes a 180W power adapter to simultaneously charge high-powered laptops, such as the MacBook Pro (140W PD), and power all downstream ports; Features a 30W USB-C Port for charging mobile devices, tablets, or other devices

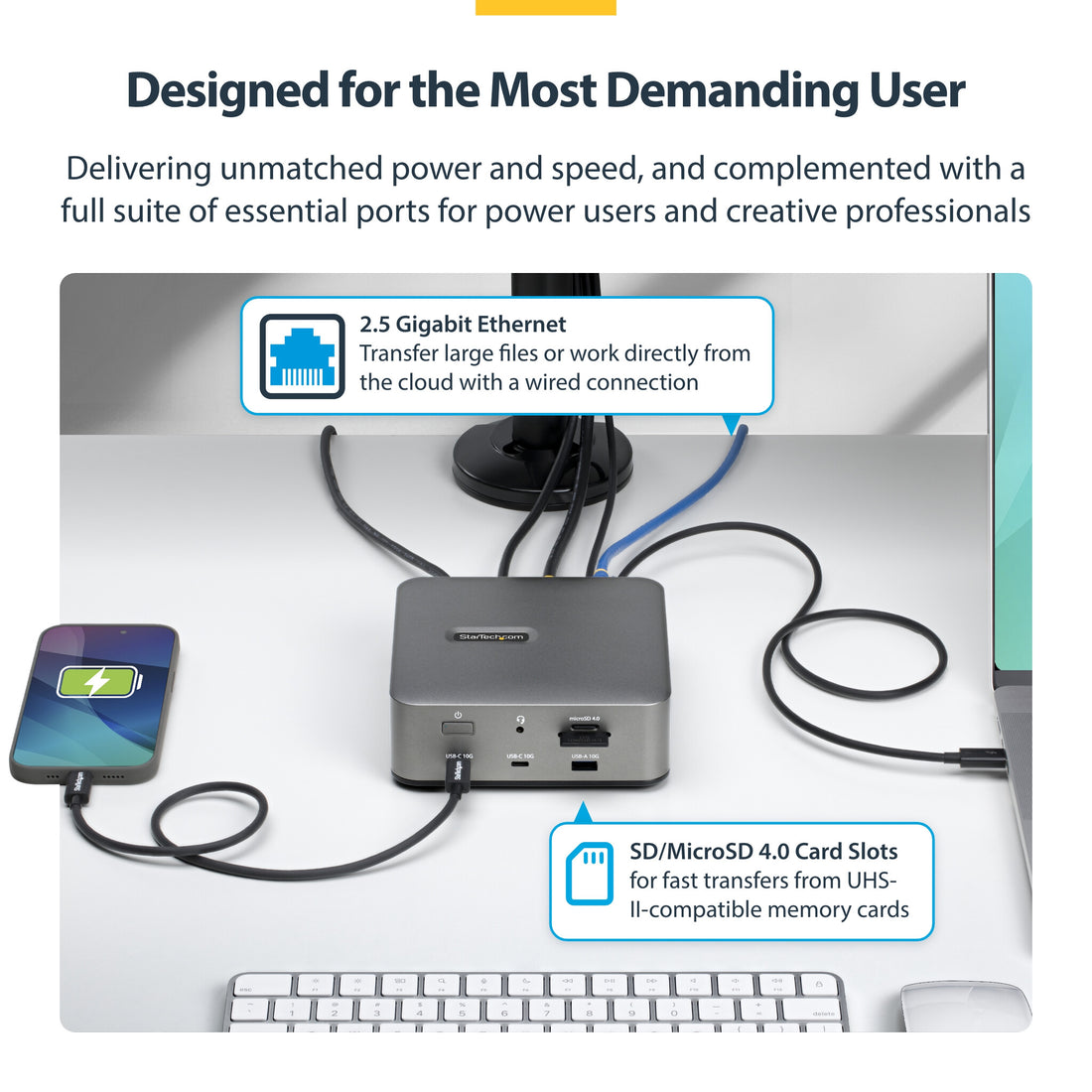

- 2.5Gbps Ethernet and SD 4.0: Transfer large files or work directly from the cloud with a wired 2.5GbE connection that supports 9k Jumbo Frames for lower CPU overhead; Built-in SD 4.0 and microSD 4.0 slots deliver fast transfers from UHS-II memory cards

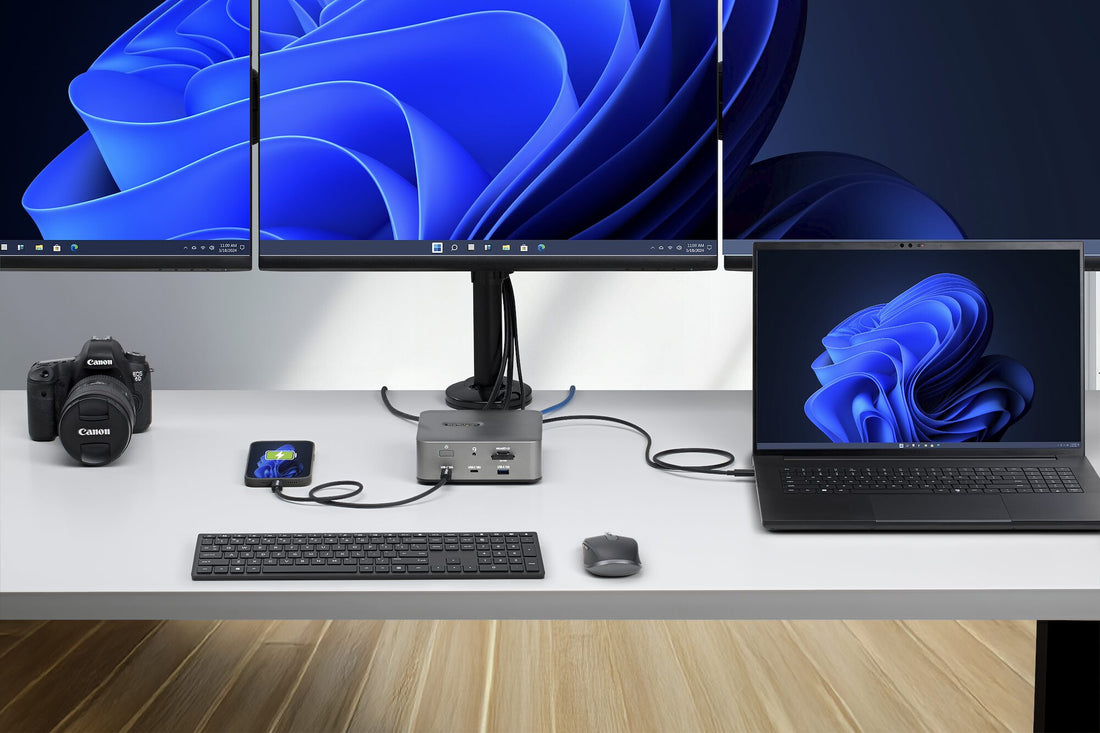

Transform your Thunderbolt 5 or USB4 laptop into a high-resolution, multi-monitor workstation
Simplify your workspace with a high-performance dock that supports Thunderbolt 5, Thunderbolt 4, and USB4 laptops. Supports multiple displays up to triple 4K displays, 140W laptop charging, and 2.5G Ethernet, all through a single connection.
Advanced Display and Charging Capabilities

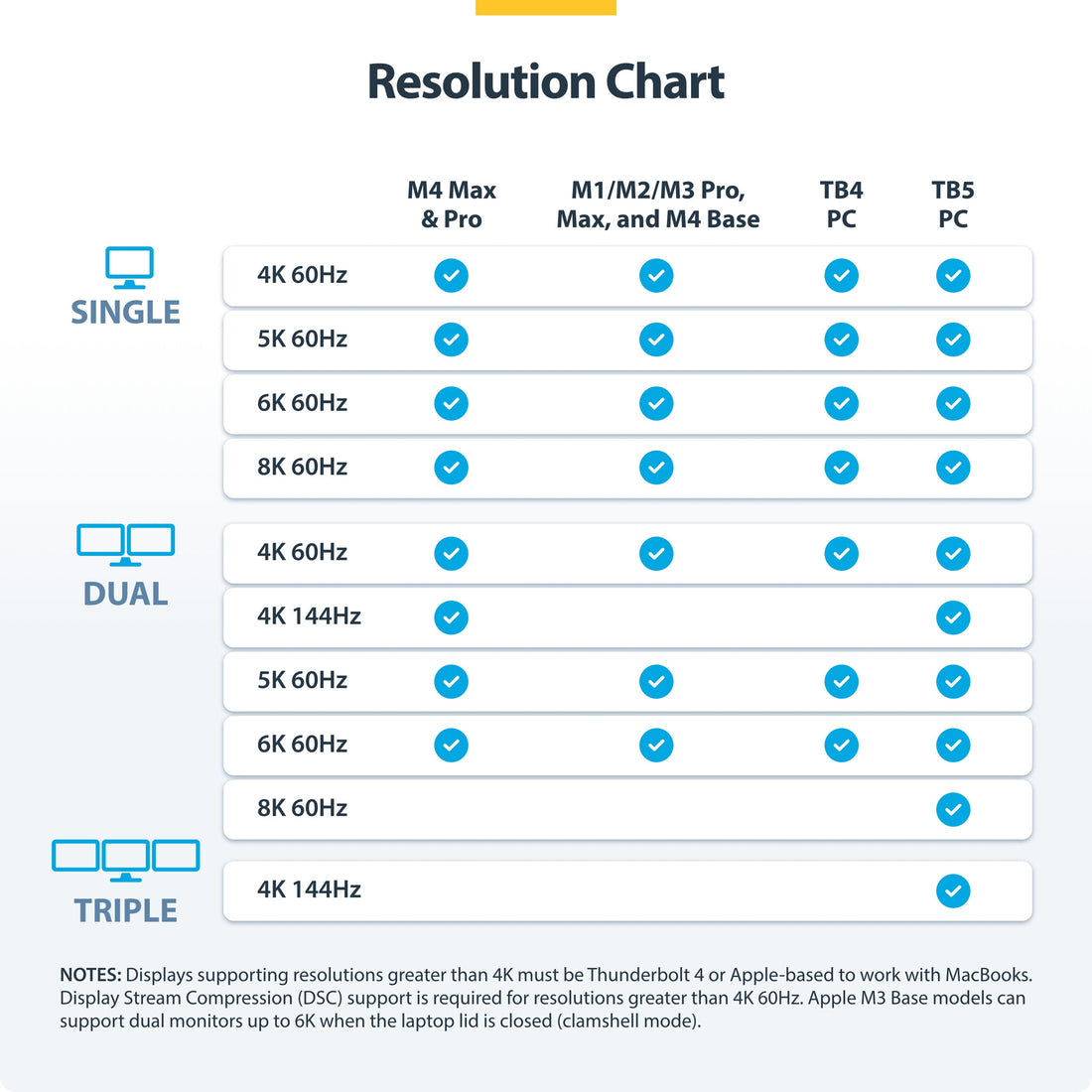

Connect up to three 4K 144Hz displays using a combination of HDMI, DisplayPort, and USB-C outputs or dual 8K 60Hz via HDMI and DisplayPort. The docking station includes an 180W power adapter that can supply up to 140W to charge high-performance laptops such as the MacBook Pro M4. A dedicated 30W USB-C port provides data connectivity and charging for phones or tablets without drawing power from the host computer.
Networking and Compatibility

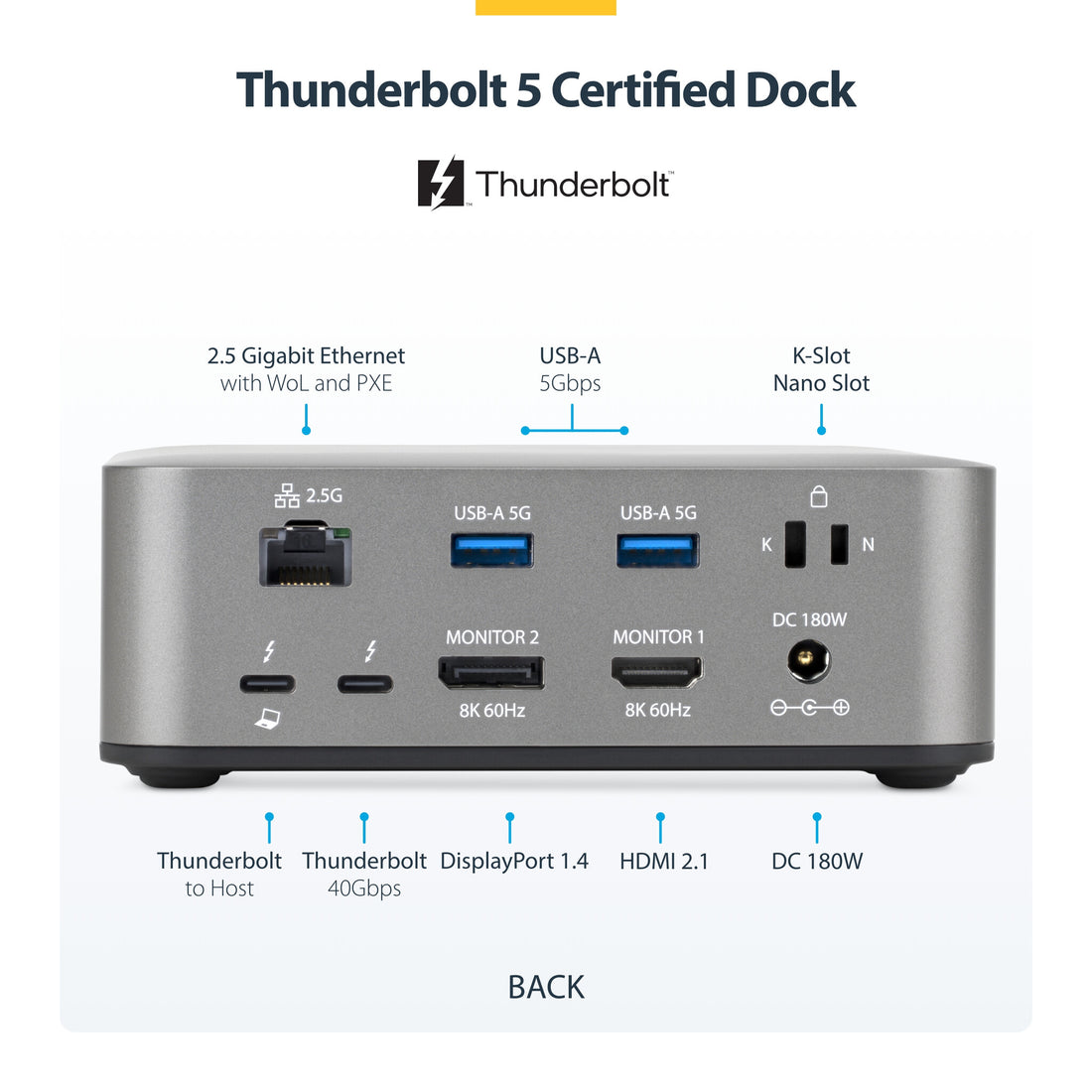

Enjoy faster cloud access, file transfers, and virtual collaboration with the wired 2.5G Ethernet RJ45 port. Driverless dock is compatible out of the box with Windows 11 and macOS 15 / 26 systems that feature Thunderbolt 5, 4, or USB4 connectivity, helping ensure IT-managed deployments stay efficient and consistent.
Secure and High-Functioning Workspace

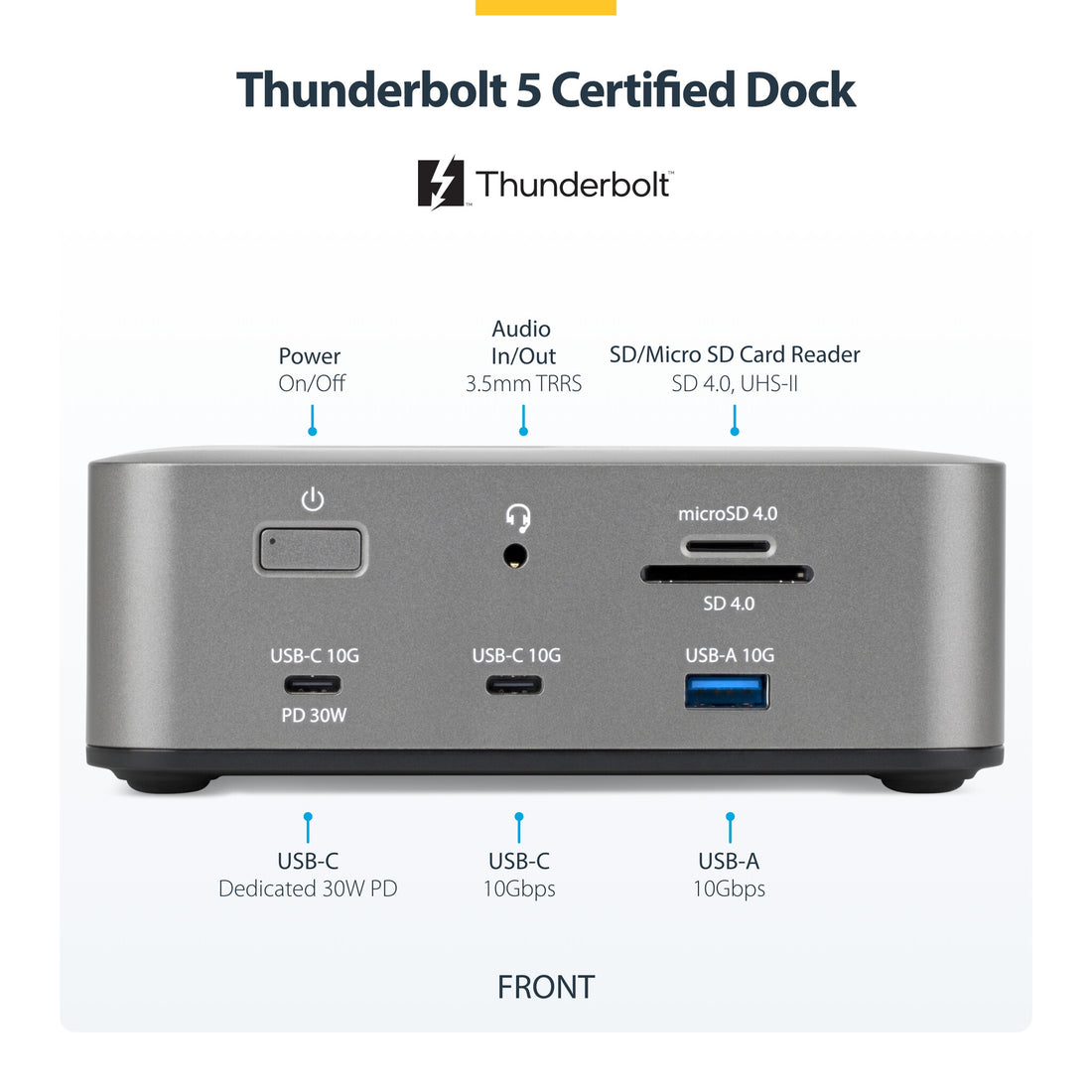

Dual security slots (K-Slot and Nano) let you physically secure the dock helping prevent theft in shared environments or high-traffic workspaces. This dock features built-in SD 4.0 and microSD 4.0 card slots for fast transfers from UHS-II-compatible memory cards. A 3.5mm audio jack supports headsets or speakers for seamless conferencing or media playback.
Enterprise Management Tools
StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features such as MAC address pass-through, Wi-Fi auto-switch, and USB device monitoring, the software helps IT teams streamline deployment and enhance security across diverse setups.
Download the StarTech.com Connectivity Tools to optimize your device setup .
Specifications

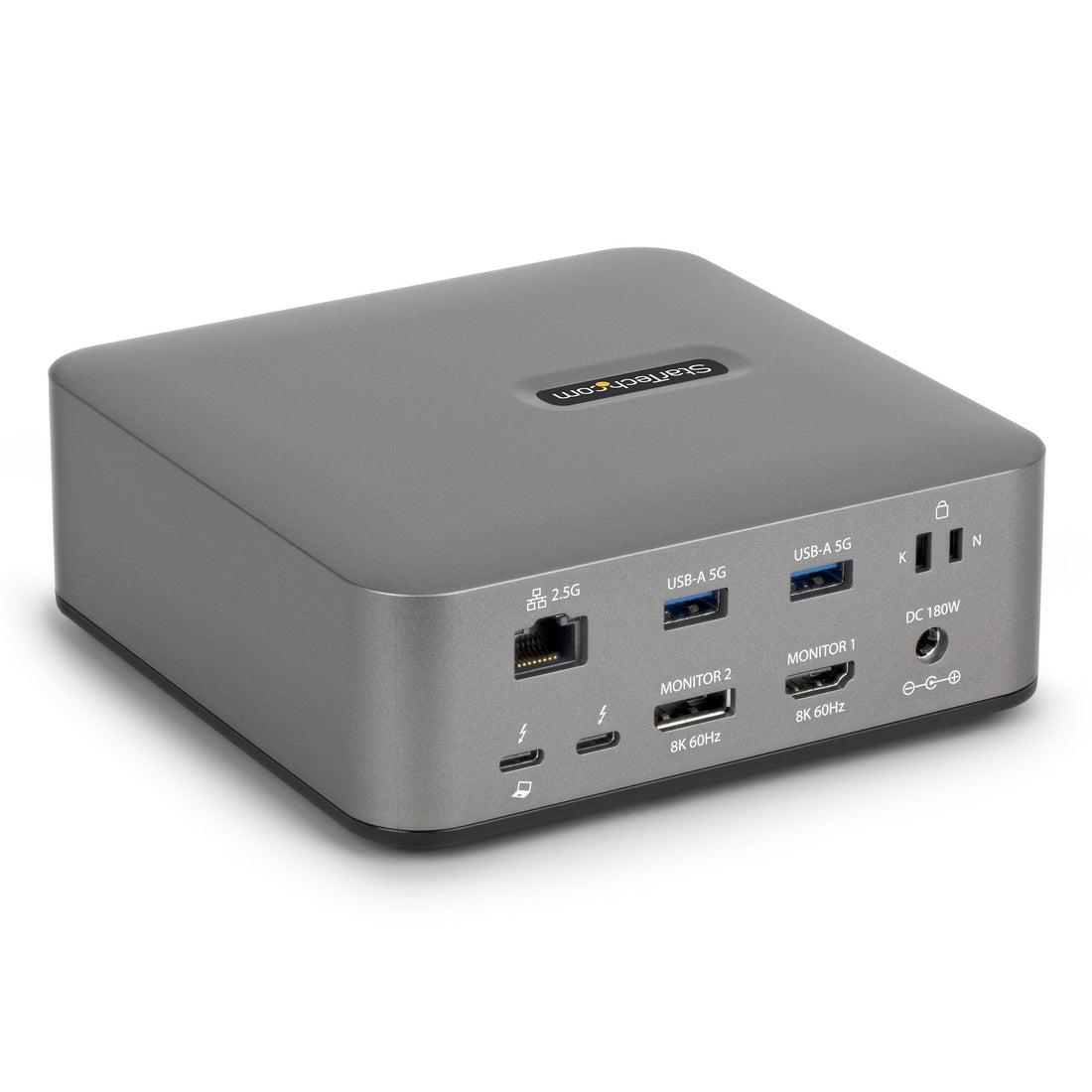

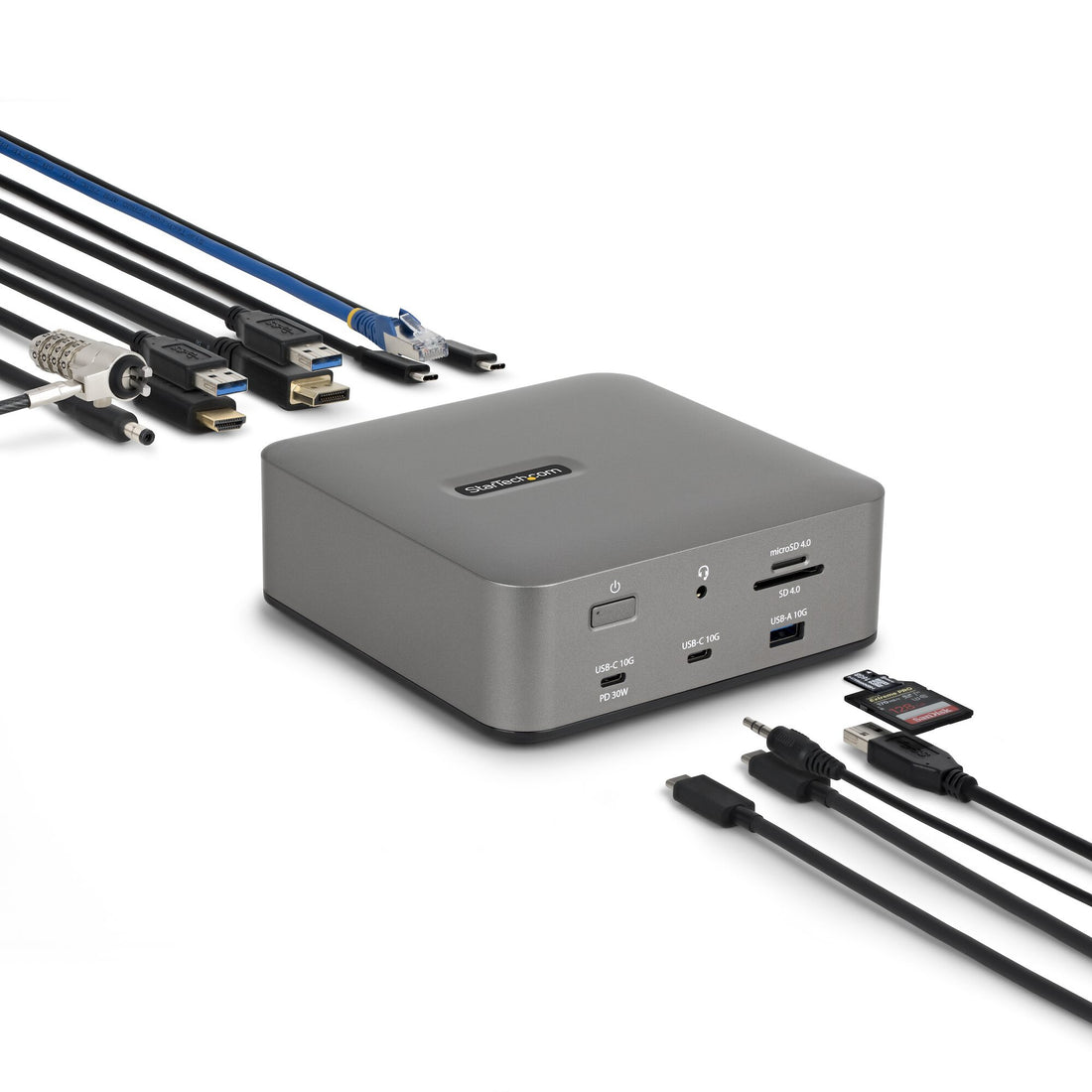

Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Host interface | Thunderbolt 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 140 W |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Thunderbolt 5 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Networking standards | IEEE 802.3bz |
| Full duplex | Yes |
Show all 50 specificationsShow fewer specifications
Performance
| Product colour | Grey |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Data transfer rate | 40 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 144 Hz |
| Number of displays supported | 3 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano |
| On/off switch | Yes |
| LED indicators | Yes |
| UASP support | Yes |
| Housing material | Plastic |
Power
| Output current | 9 A |
|---|---|
| Output voltage | 20 V |
Software
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
|---|---|
| Mac operating systems supported | Mac OS X 15.0 Sequoia |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Width | 150 mm |
|---|---|
| Depth | 140 mm |
| Height | 50 mm |
| Weight | 592 g |

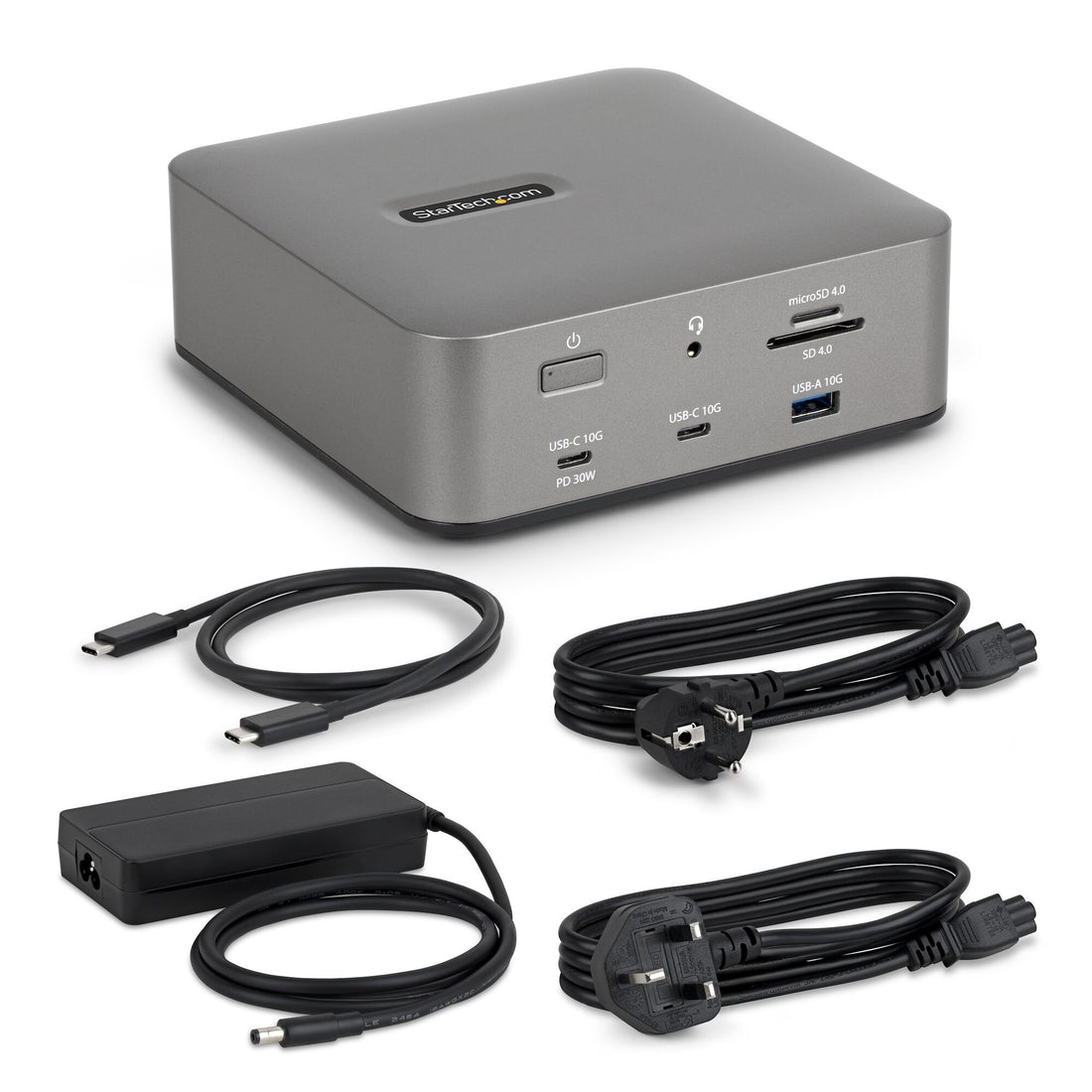

Packaging content
| User guide | Yes |
|---|---|
| AC adapter included | Yes |
| Cables included | Thunderbolt |
Technical details
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
|---|
Other features
| Chipset | Intel - JHL9480 (Barlow Ridge), Synaptics - VMM7100, VIA Labs - VL822, VIA Labs - VL817, Realtek - RTL8156B, Genesys Logic - GL3231S, Parade - FL5801, Realtek - ALC4030U |
|---|
