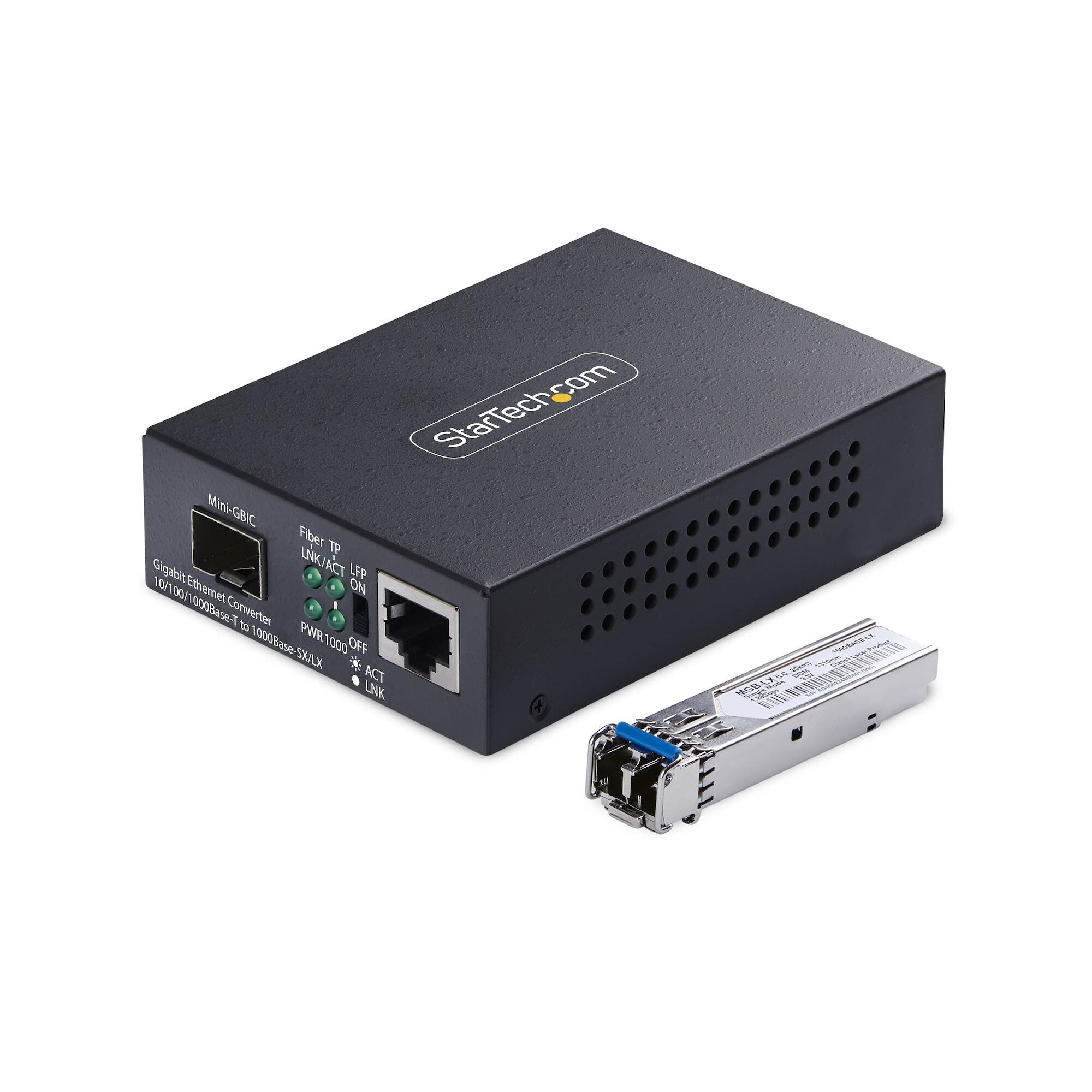

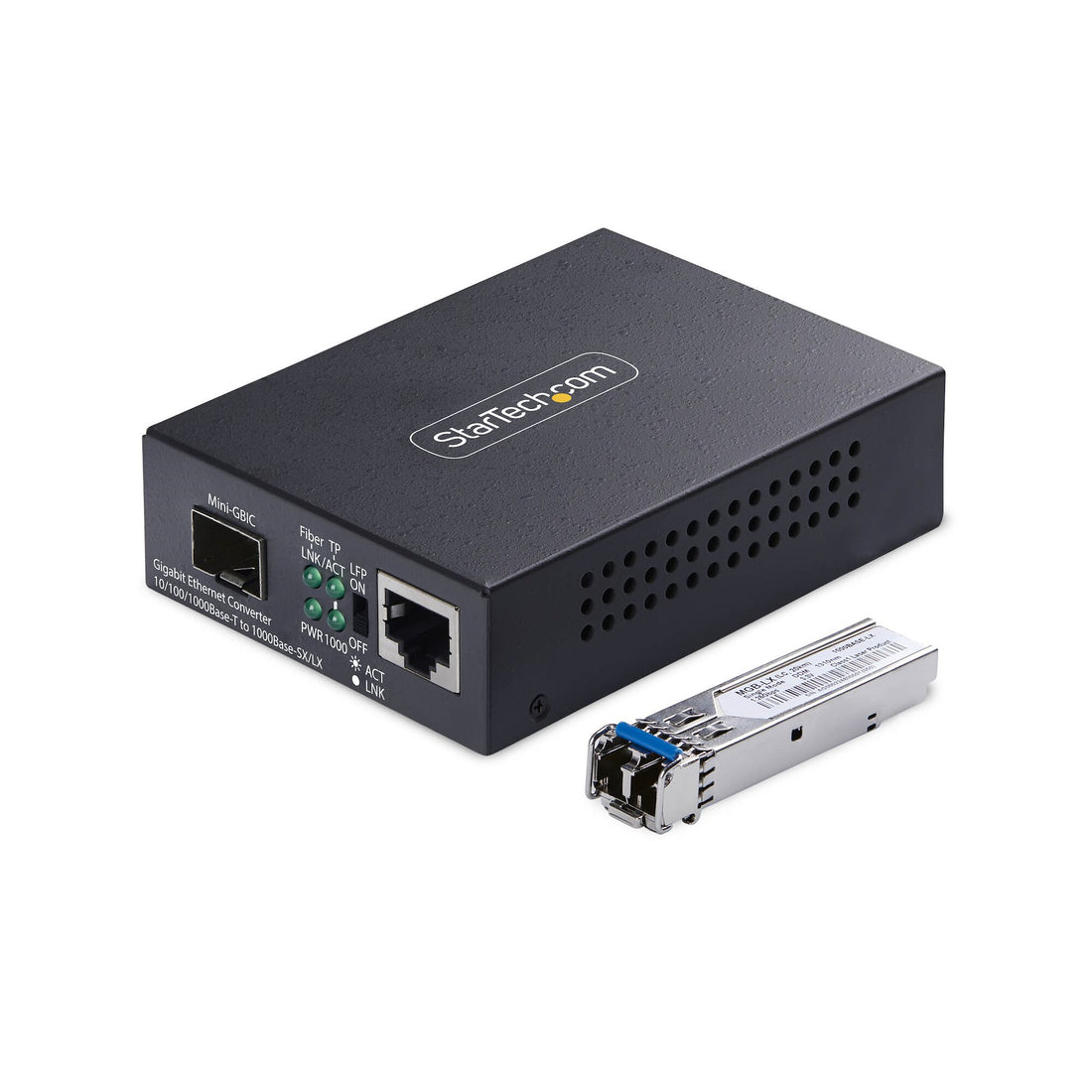

StarTech.com Single-Mode (SM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, 20km - TAA
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £42.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- Extend Ethernet Over Extraordinary Distances: Convert and extend a 10/100/1000 Mbps Ethernet signal to Gigabit single-mode LC fiber, up to 20km (12.4mi); For specialized edge, industrial / remote deployments requiring long-range, secure wired connectivity
- Reliable Performance & Diagnostics: Compatible with 1000BASE-T (IEEE 802.3ab) and 1000BASE-LX (IEEE 802.3z); Supports full/half duplex, 9K jumbo frames, auto-negotiation, and auto MDI/MDI-X; DIP switch enables Link Fault Passthrough (LFP) with LLCF/LLR

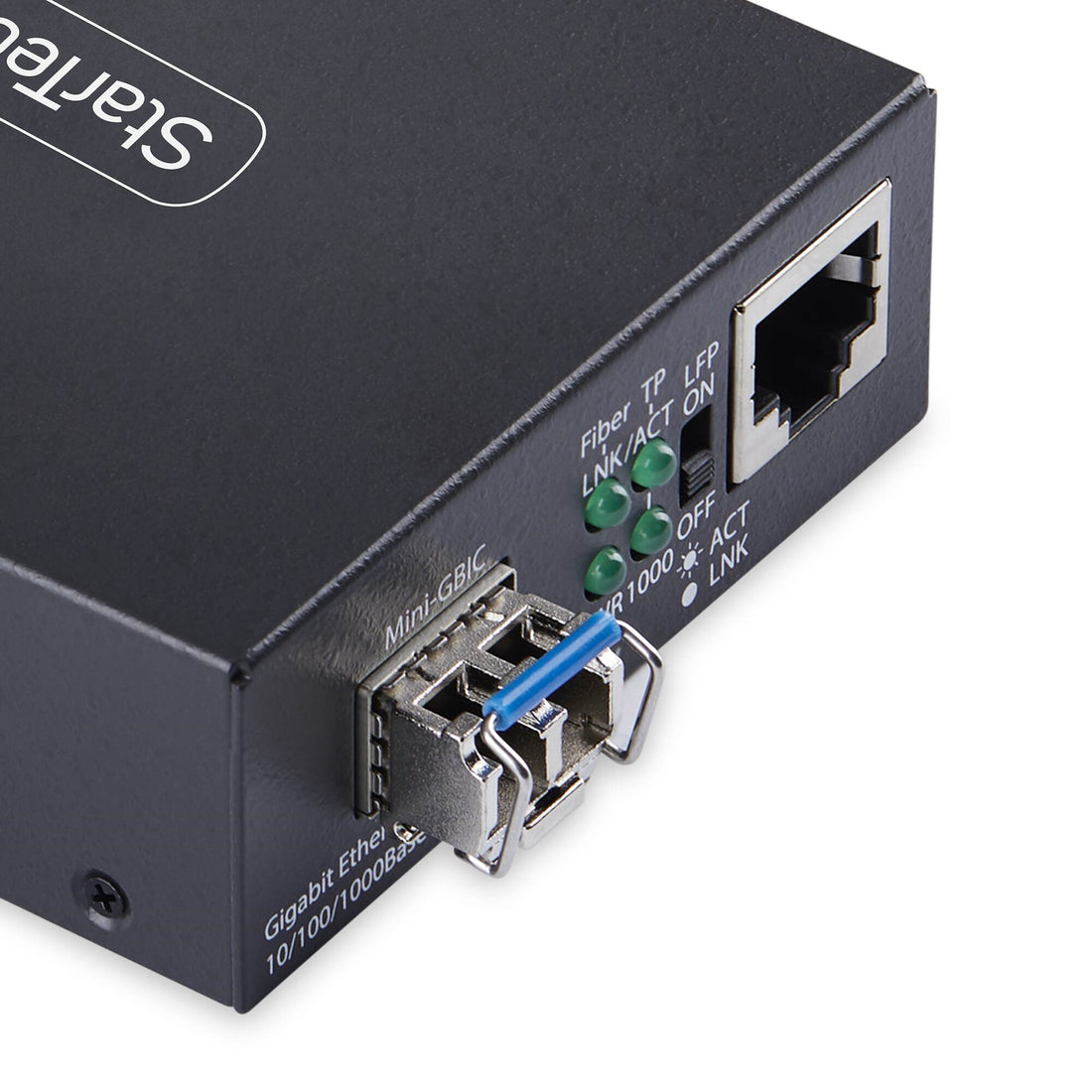

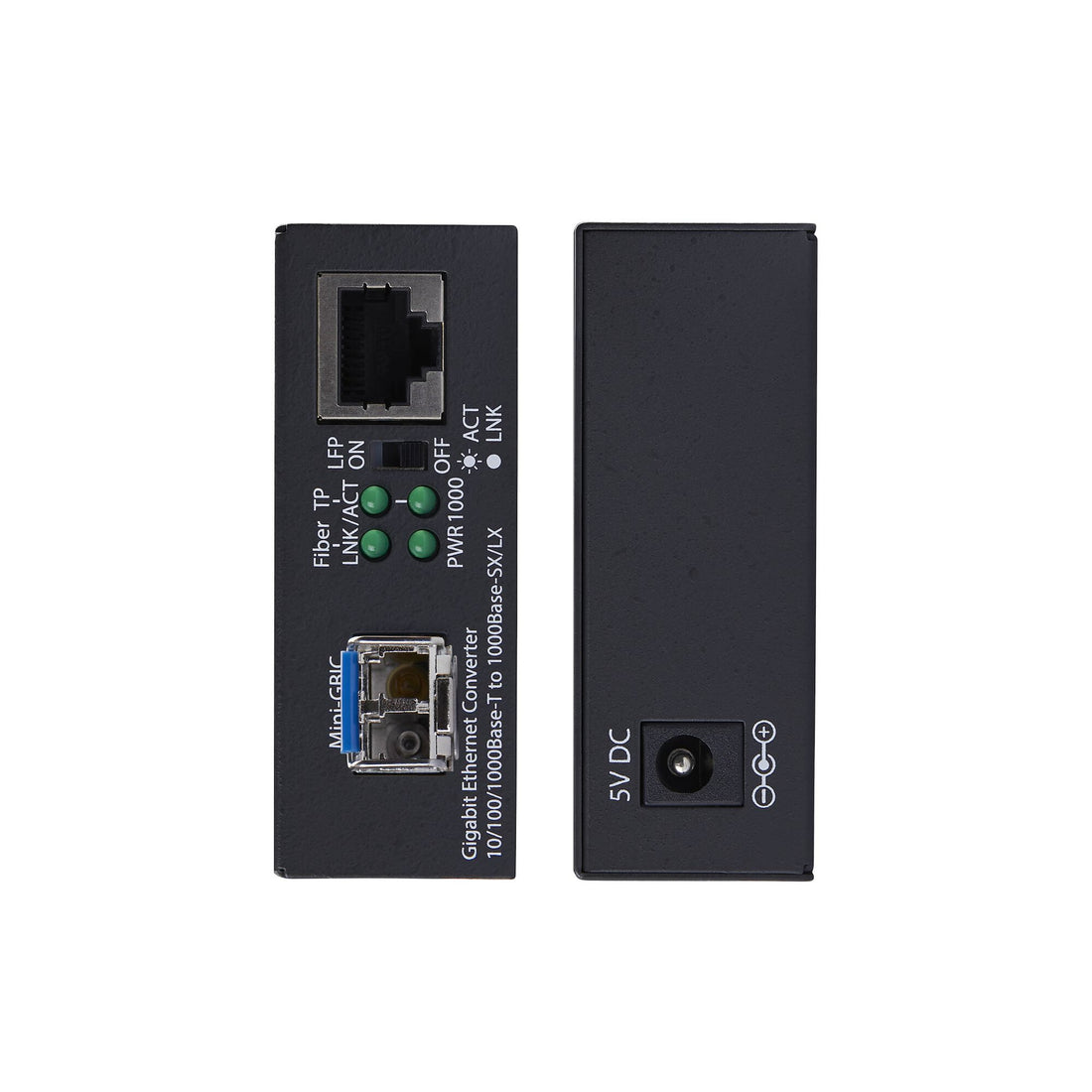

- Durable, Compact Design: All-metal chassis provides strong shielding and long-term durability, while the compact size fits easily into tight spaces; Built-in LED indicators make it easy to monitor link, power, and activity at a glance

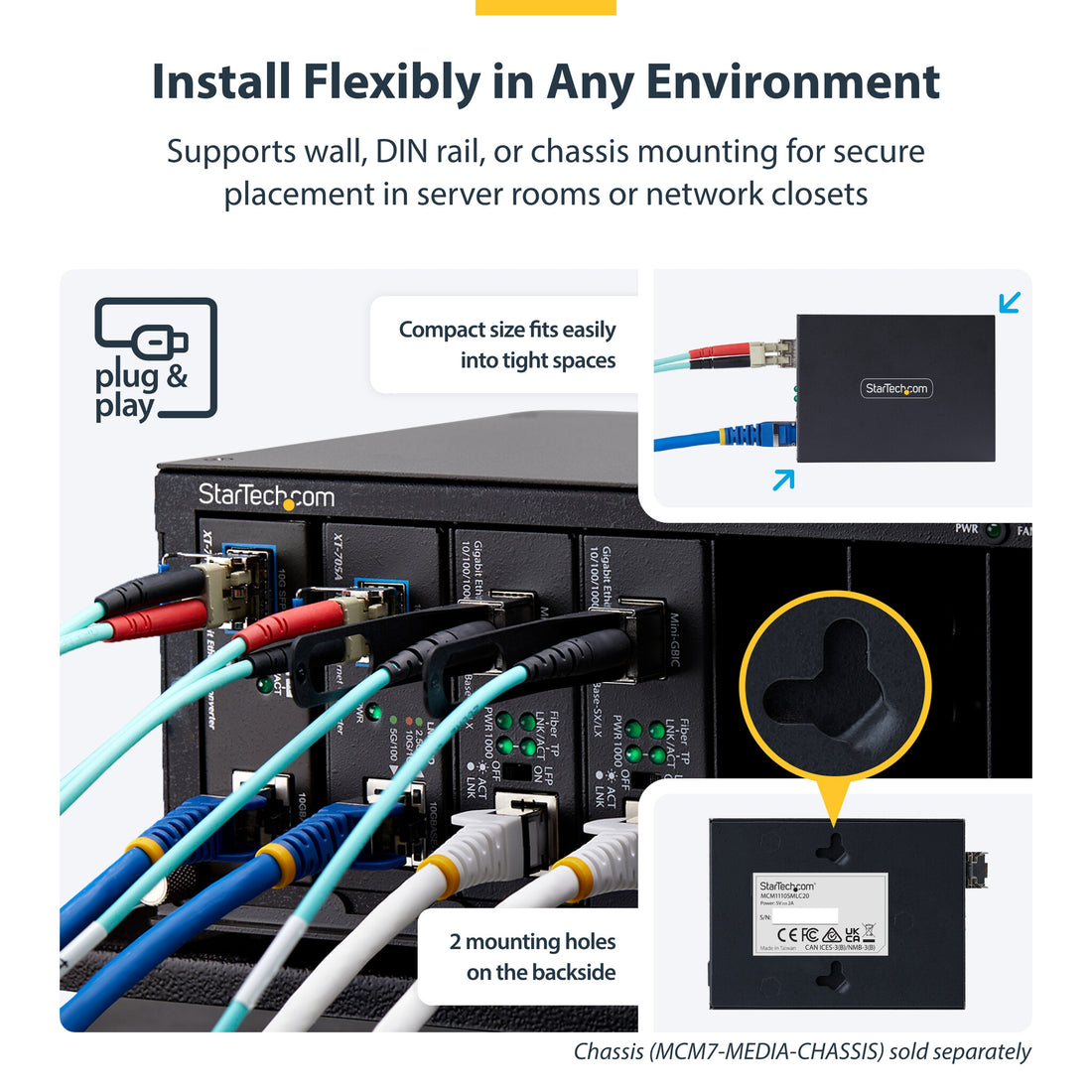

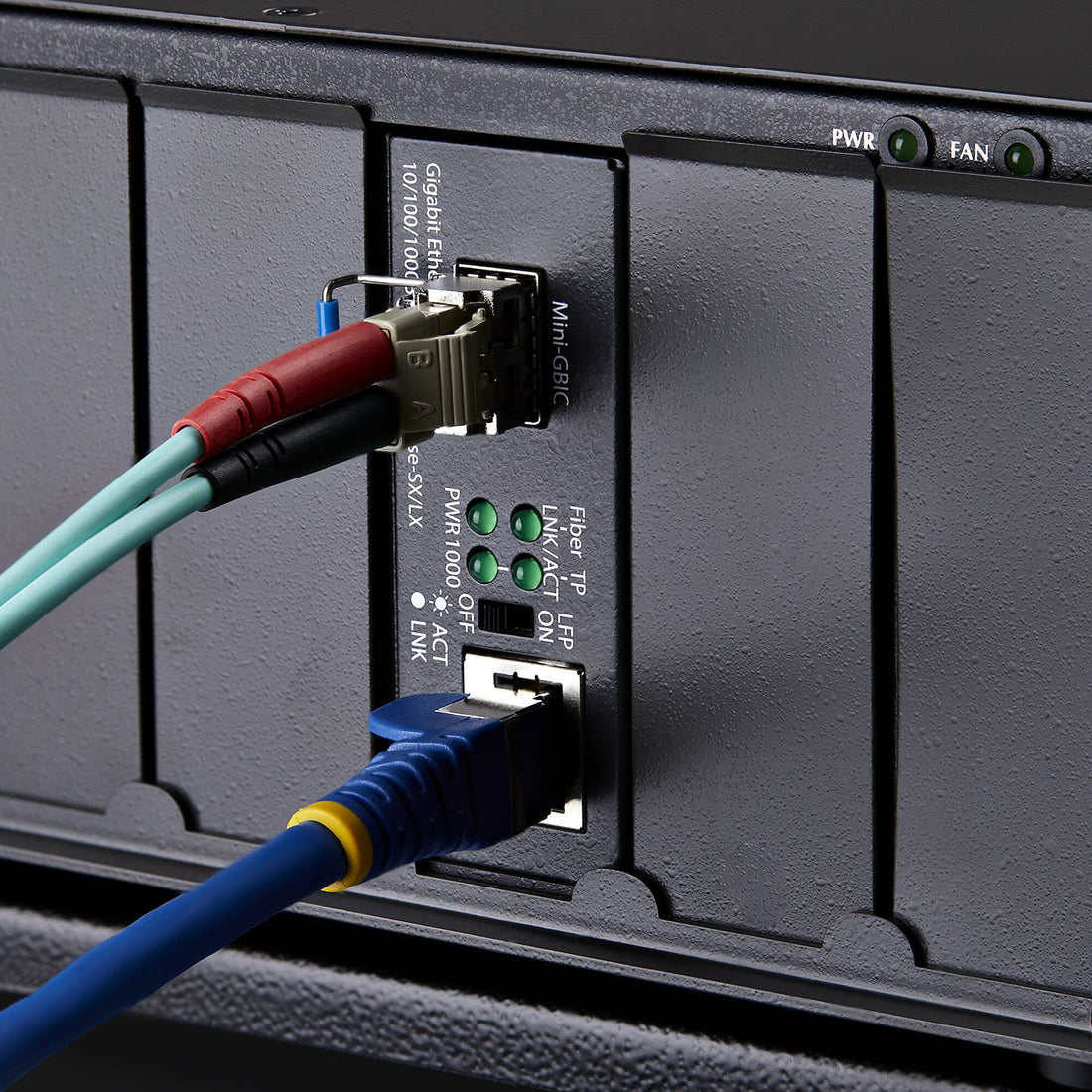

- Flexible Mounting: Use as a compact standalone unit or mount to a wall, rack, DIN rail (ADJDINKIT) or chassis (MCM7-MEDIA-CHASSIS, MCM15-MEDIA-CHASSIS) for clean, professional integration into structured wiring closets, data centers, or server rooms
- The IT Pro's Choice: Engineered for edge, on-prem, and aerospace/defense applications requiring compliant connectivity; TAA certified and lab-tested for mission-critical reliability and backed by free lifetime 24/5 multilingual technical support

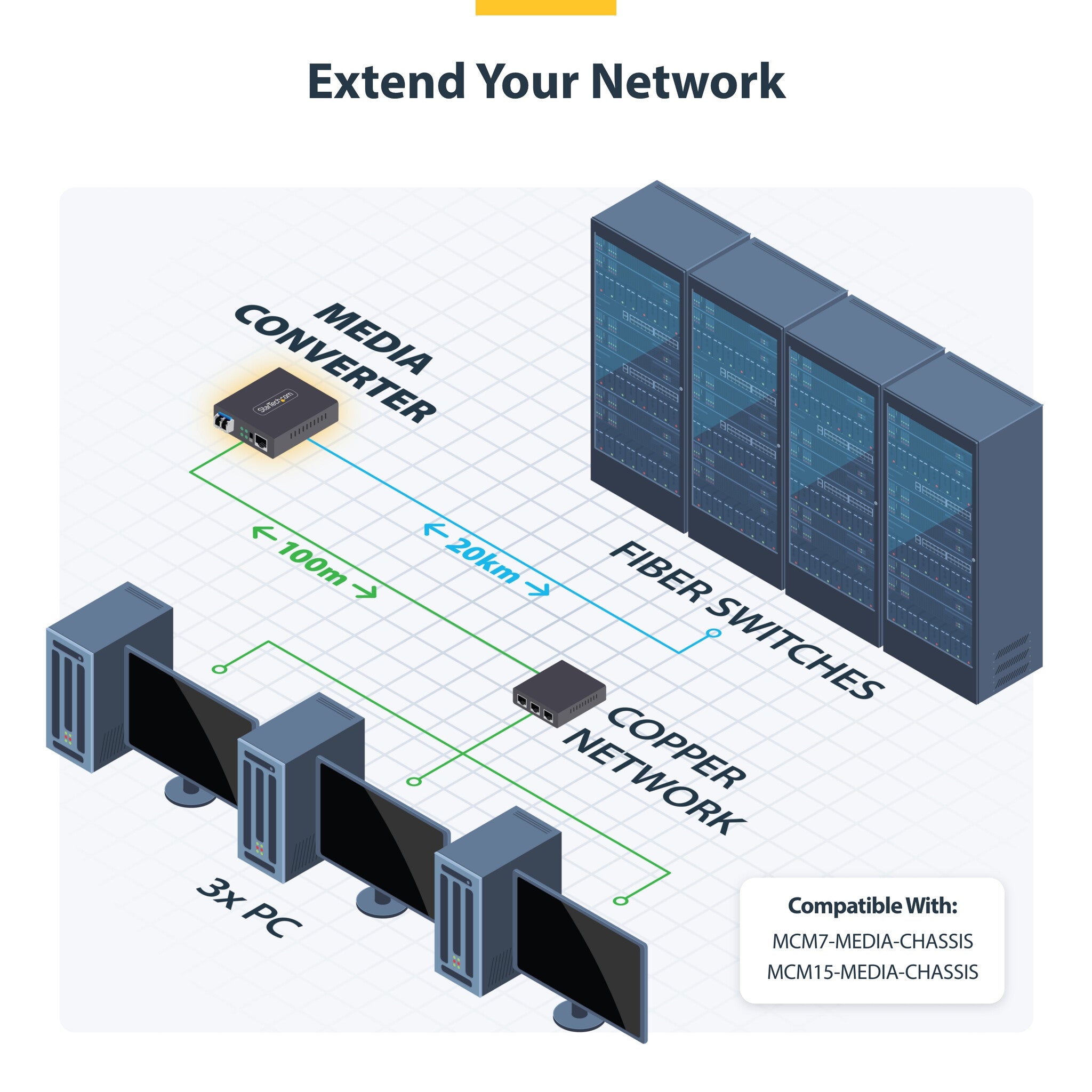

Convert and extend a Gigabit Ethernet connection up to 20km (12.4 miles) using single-mode LC fiber cable.
This Gigabit Ethernet to fiber media converter offers a reliable way to extend your network up to 20 km (12.4 mi) using single-mode LC fiber, providing increased range, enhanced security, and reduced interference compared to copper-based connections. It's TAA compliant and designed for government and commercial applications where long-distance and rack-mountable fiber access is needed.
Built for Versatility and Performance
Convert 10/100/1000 Mbps RJ-45 to Gigabit LC fiber using a media converter that complies with IEEE 802.3 standards. It supports full/half duplex, auto-negotiation, MDI/MDI-X, and 9K jumbo frames for high-performance networking in mixed copper-fiber environments.

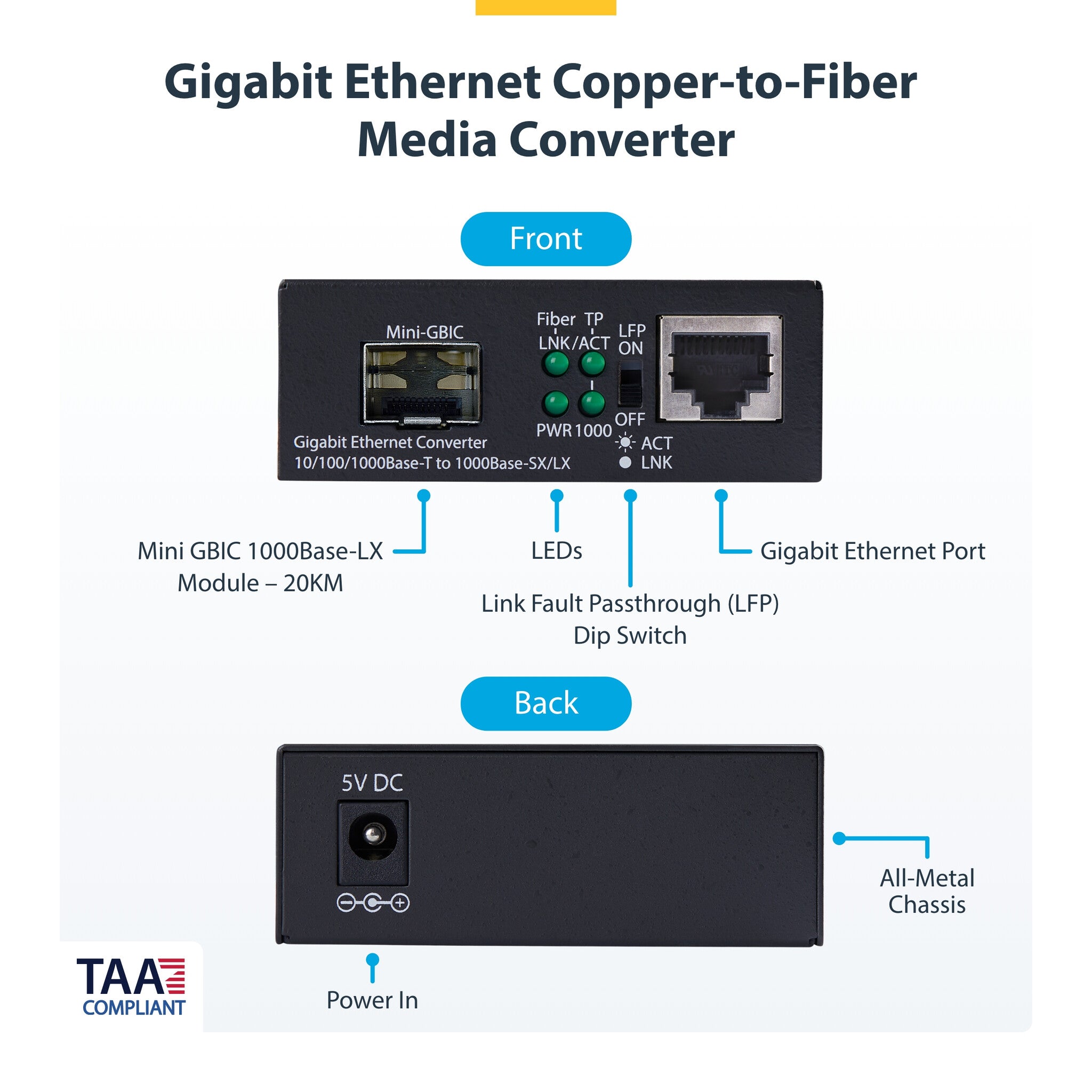

Smart Diagnostics and Rugged Design
Built with a compact full metal chassis, this converter includes LED indicators for power and link activity, plus a DIP switch to enable Link Fault Passthrough (LFP) with LLCF/LLR for easier network troubleshooting and reliability.

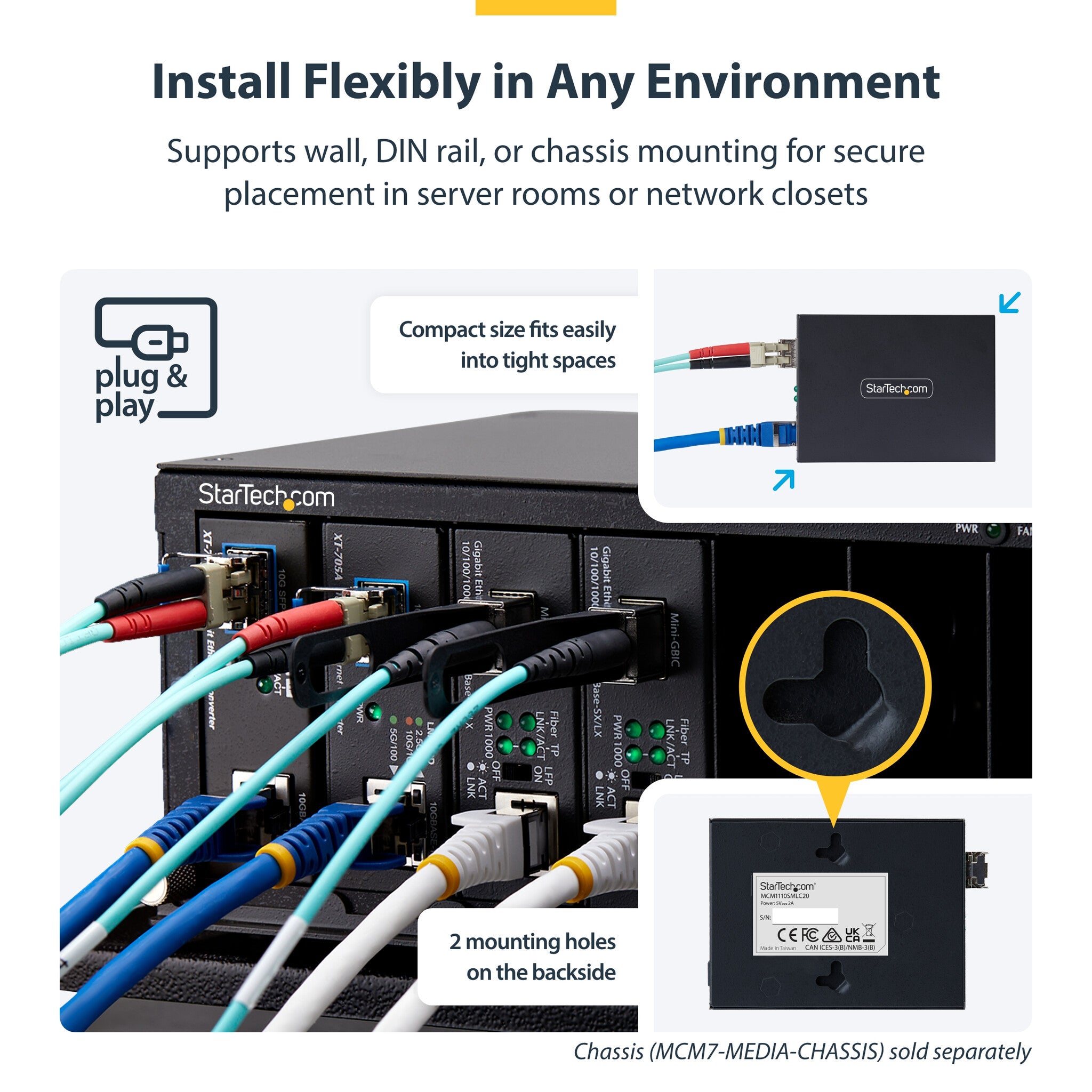

Flexible Installation for Any Network Setup
Deploy in minutes with plug-and-play setup and multiple mounting options including wall-mount, DIN-rail, or media chassis installation. It includes a 5V DC, 2A power adapter, making it ideal for server rooms or network closets.
Specifications
Network
| Maximum data transfer rate | 2000 Mbit/s |
|---|---|
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T |
| Converter output interface | 1000Base-LX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Flow control support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Link Fault Pass-through (LFP) | Yes |
Performance
| Maximum transfer distance | 20000 m |
|---|---|
| Wavelength | 1310 nm |
| Wavelength-division multiplexing (WDM) | No |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 50000 h |
Show all 43 specificationsShow fewer specifications
Features
| Internal | No |
|---|---|
| Housing material | Metal |
| Product colour | Black |
| LED indicators | Yes |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| DC-in jack | Yes |
Power
| Input voltage | 100 - 240 V |
|---|---|
| Input current | 0.4 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power consumption (typical) | 4.6 W |
| Power over Ethernet (PoE) | No |
| External power adapter | Yes |
Weight & dimensions
| Width | 94 mm |
|---|---|
| Depth | 70 mm |
| Height | 94 mm |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |

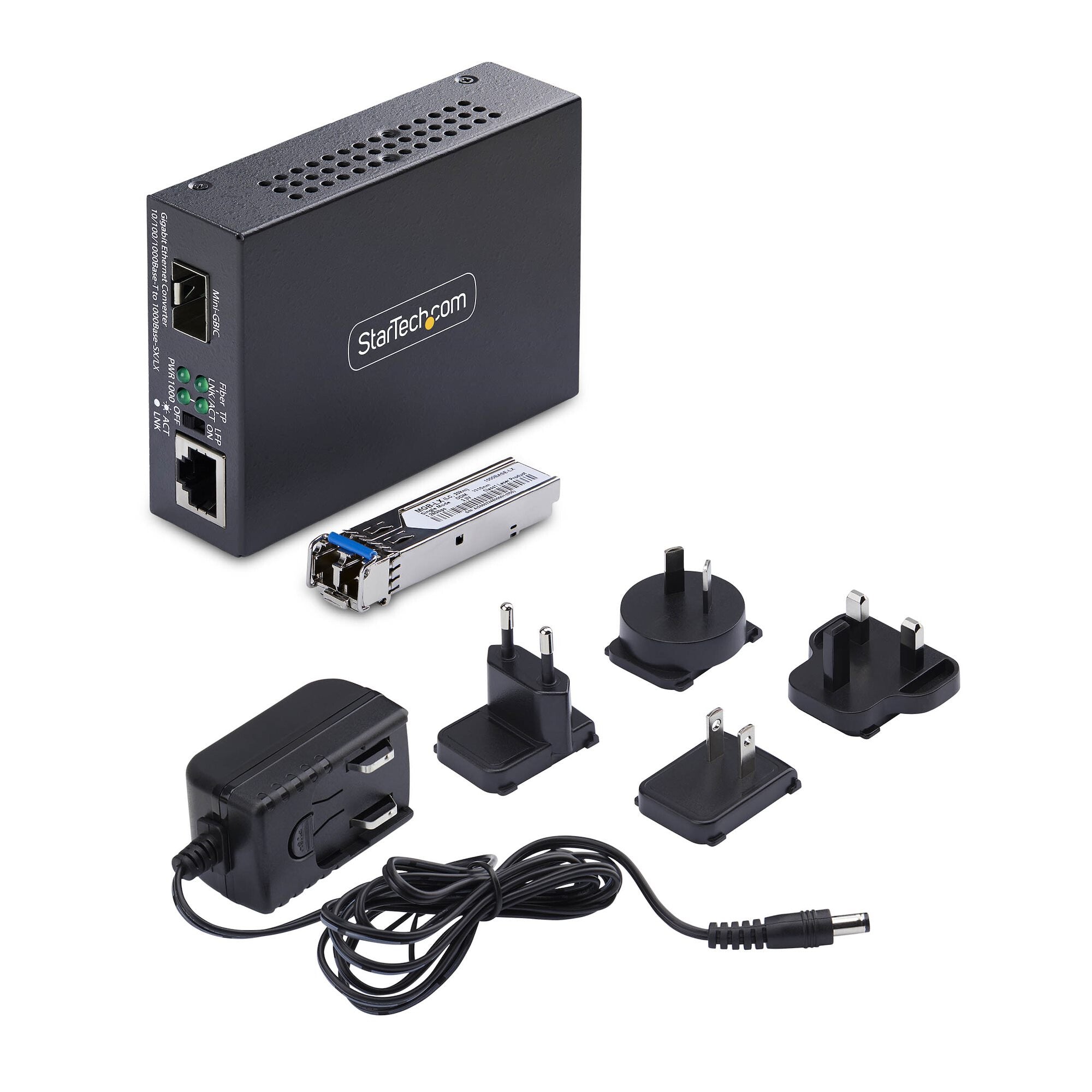

Packaging content
| AC adapter included | Yes |
|---|---|
| User guide | Yes |
Certificates
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
|---|
