• Reliable Fiber Testing: Create a loopback test connection with this MMC/APC Single Mode fiber loopback module; Male pinned MMC-16 connector for testing female MMC ports; Test high-density 16-fiber MMC installations for continuity
• Accurate Test Performance: Maintain precise loopback signaling with insertion loss below 0.35dB; Repeatability within 0.2dB ensures consistent results across multiple connections; Return loss above 60dB minimizes back-reflection for stable signaling
• Built for Durability: Optimized for multiple test cycles with a high-precision composite ferrule in a compact cable assembly; Built in compliance with IEC and RoHS standards for reliable testing in regulated environments
• Field-Ready Design: Compact form factor is ideal for technicians performing on-site diagnostics and fault isolation; Quickly troubleshoot and verify performance in single mode MMC-16 patch panels and transceivers; Includes protective dust caps
• The IT Pro's Choice: Our network tools and testers are rigorously tested in our Innovation Lab to ensure enterprise-grade reliability; Built for quick diagnostics across copper and fiber networks; Backed by lifetime 24/5 multi-lingual technical assistance

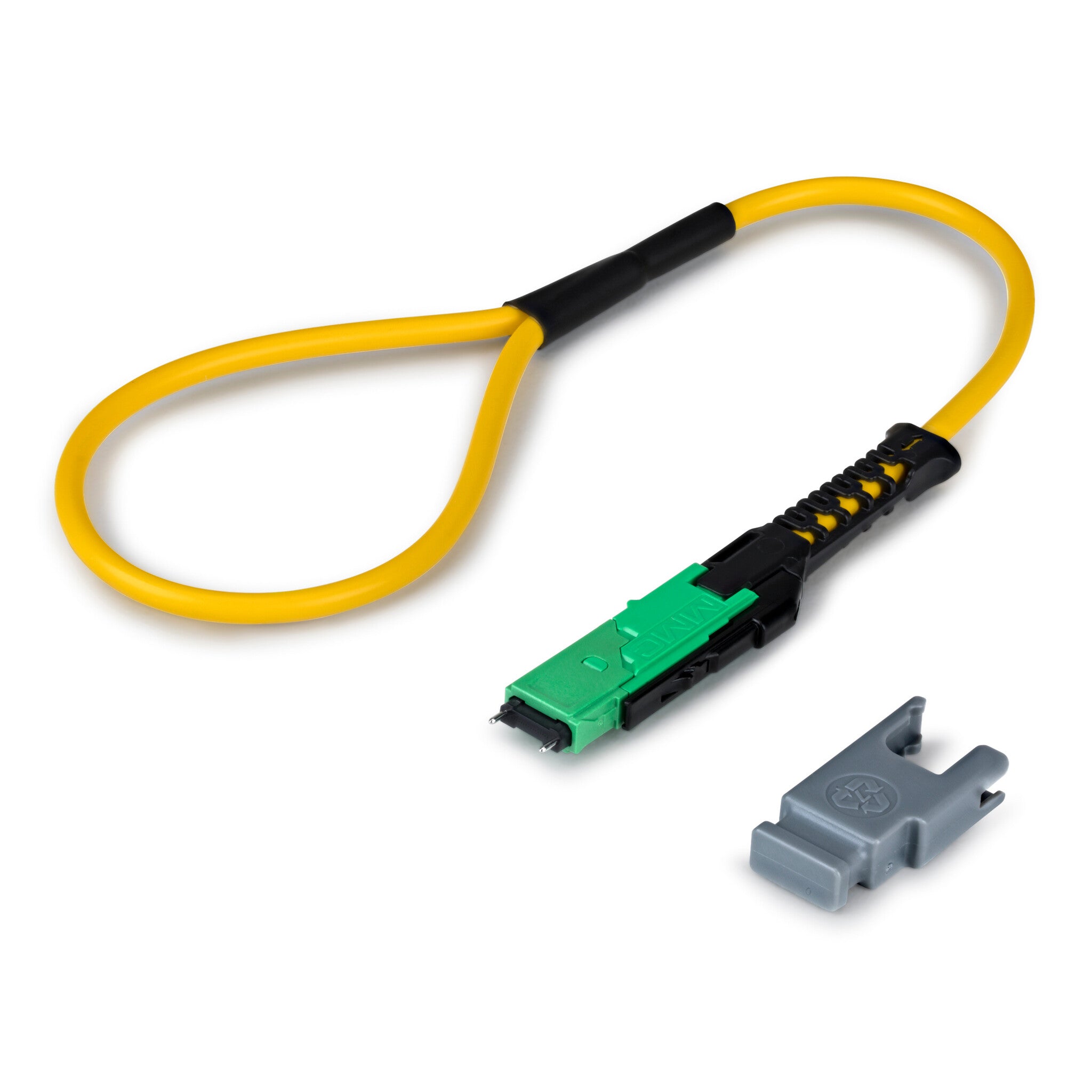

This Single Mode MMC Loopback Module is a practical tool for verifying signal continuity, insertion loss, and port function in fiber optic networks. Ideal for technicians and IT Pros, it enables fast, consistent testing across MMC-based fiber connections.

Test Single Mode Connections
The 9/125um MMC16 Loopback Adapter is compatible with OS1 and OS2 cabling in point-to-point and structured installations. IEC and RoHS compliance ensures readiness for standardized deployments and testing in regulated environments.

Accurate Signal Diagnostics

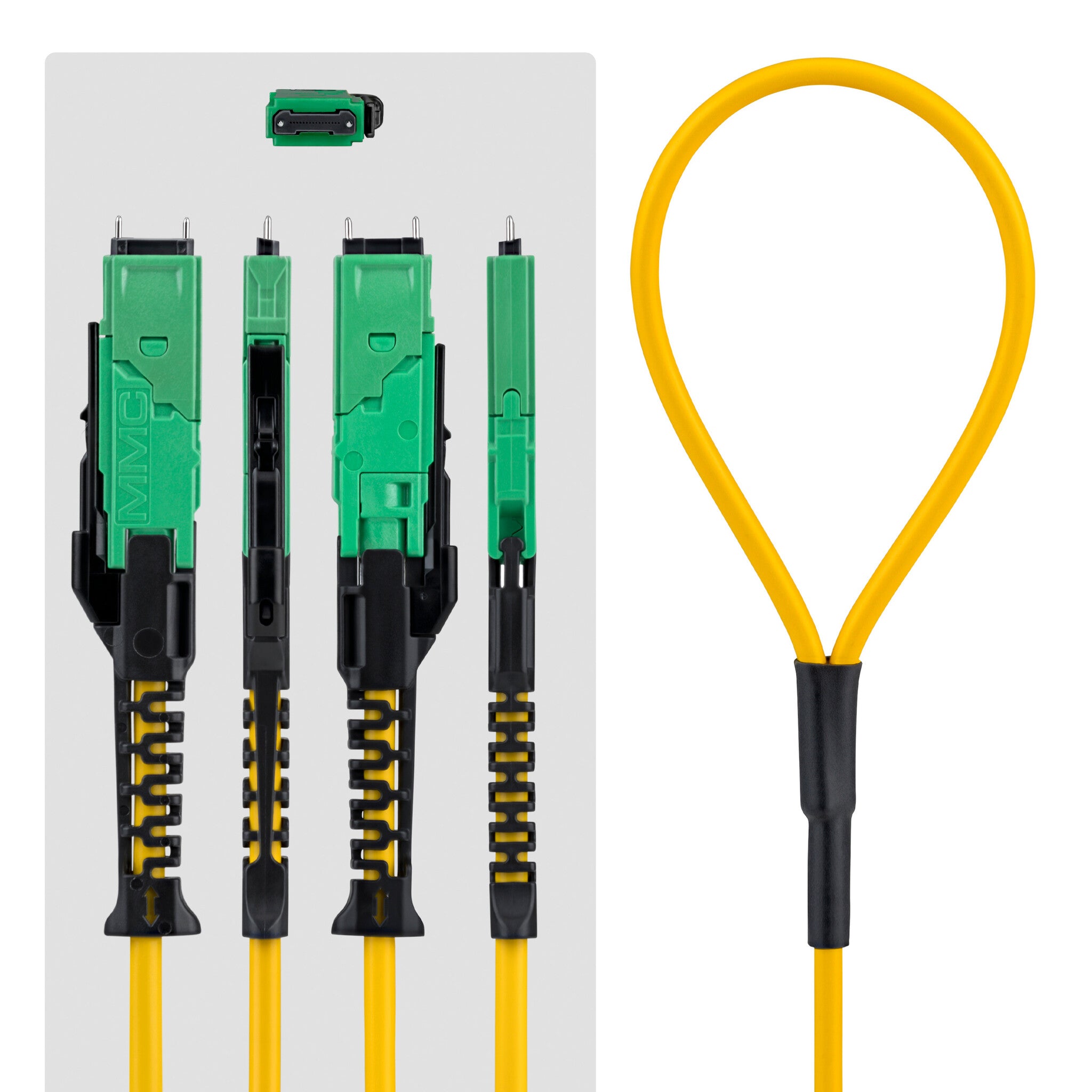

Validate MMC transceivers, isolate faults, and confirm port behavior across high-speed parallel optic links. The 16-fiber male MMC connector with precision-aligned ferrules deliver clean signaling for accurate, reliable diagnostics

For Enterprise Fiber Switches

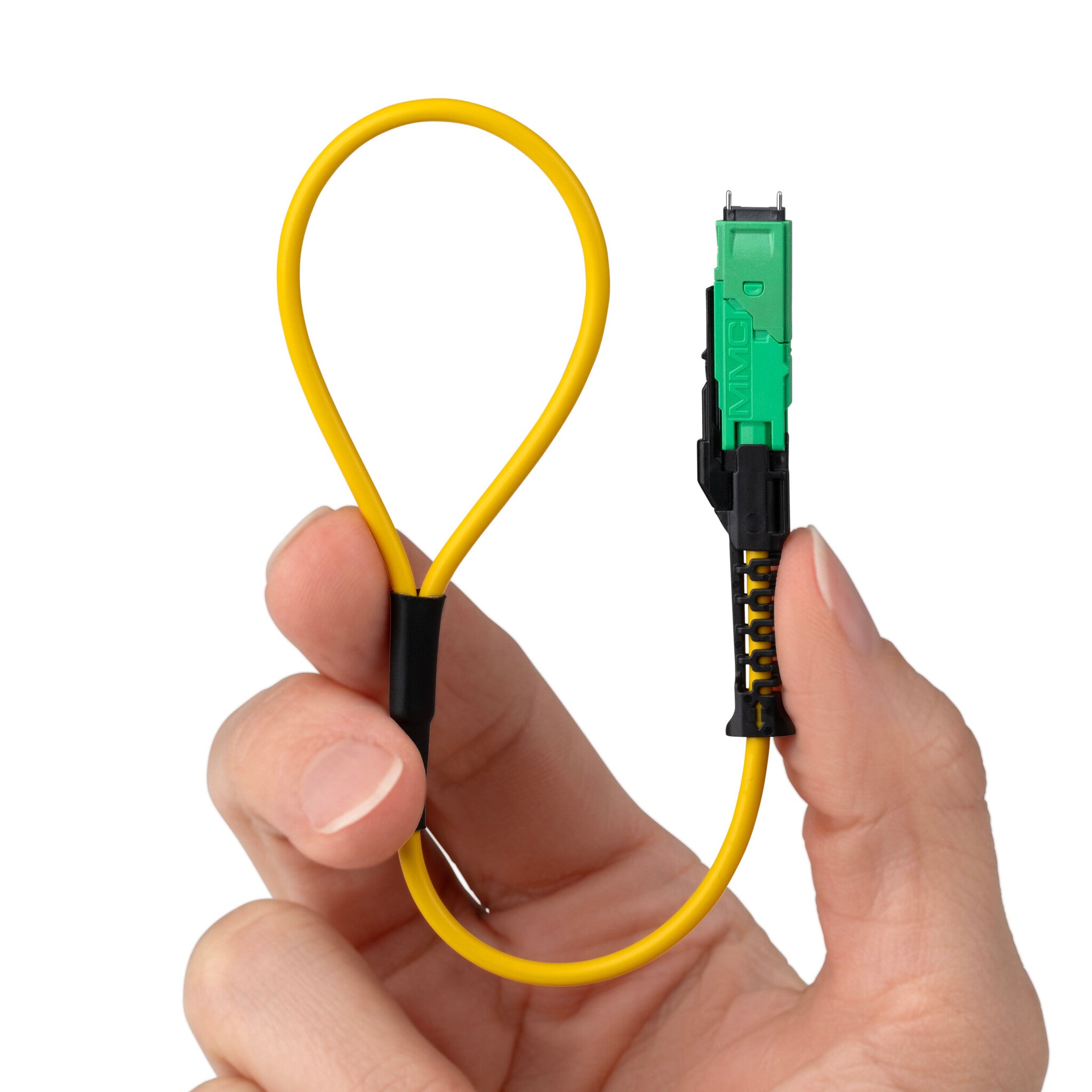

The compact MMC-16 male loopback tester attaches to female MMC interfaces for high-density testing without disrupting adjacent connections. A durable ABS housing withstands wear from repeated use and is suitable for frequent testing in data centers and edge or on-prem installations.
