- ACTIVE MINI DISPLAYPORT TO DVI ADAPTER: Mini DisplayPort 1.2 (HBR2) to DVI-D (digital only) single-link adapter connects a DVI display/projector supporting 1920x1200/1080p 60Hz video; EDID/DDC pass-through ensure compatibility between source & display
- HOST COMPATIBILITY: Active video converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to DVI adapter dongle / Compact design / 5.7"" (15cm) attached cable / Supports Apple Cinema Display HD
- SCREW LOCKING DVI: Mini DisplayPort to DVI display adapter supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection from DVI displays/projectors / Tested with DVI cables up to 25ft / mDP male to DVI female connector
- EASY TO USE: With no software or drivers required, the Mini DP to DVI converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort
Connect a DVI monitor to a single-mode DisplayPort output from your computer

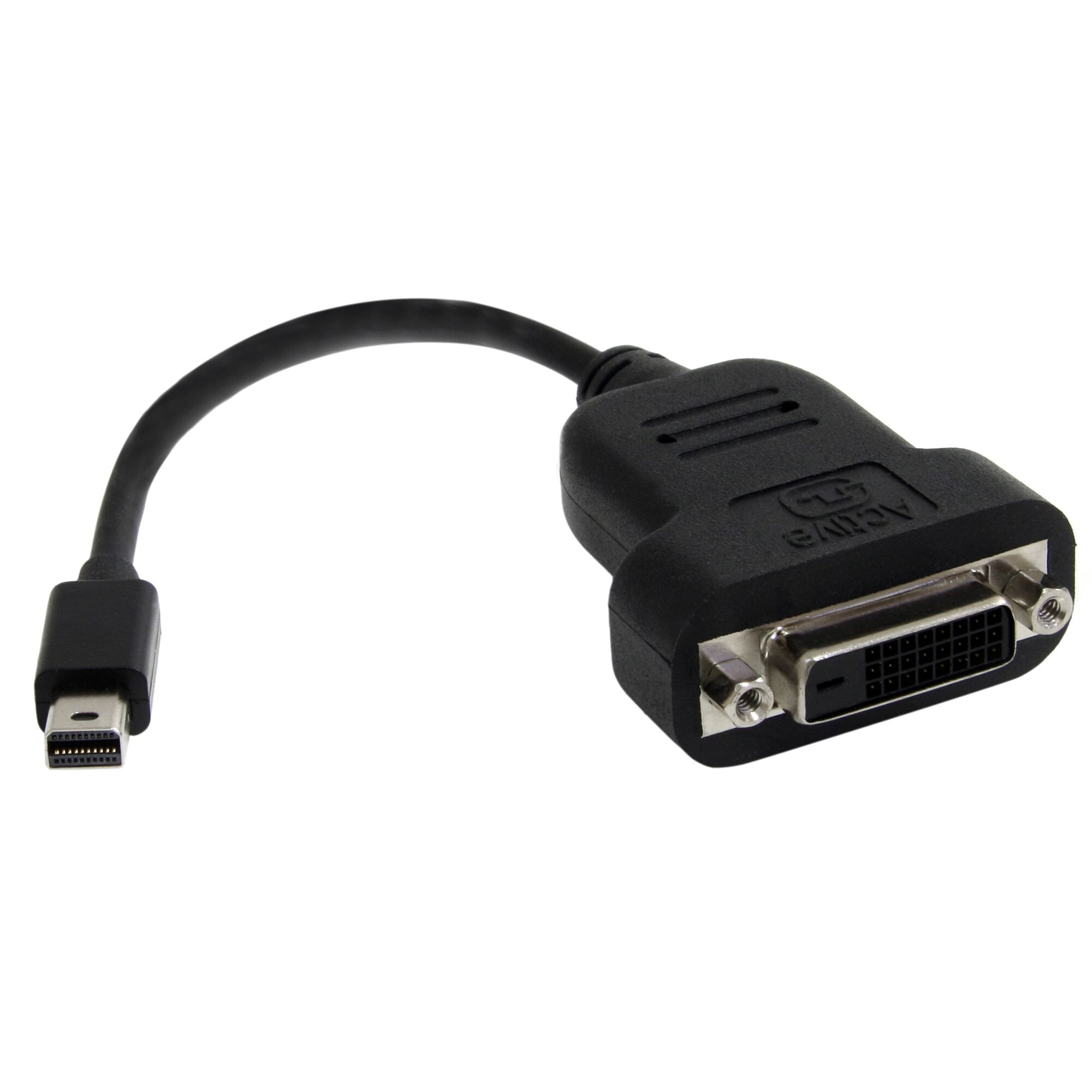

The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.
Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.
The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Features | |
|---|---|
| Converter type | Active video converter |
| Plug and Play | Yes |
| Jacket material | Low smoke zero halogen (LSZH) |
| Product colour | Black |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| Dual Link DVI | No |
| DisplayPort version | 1.2 |
| HDCP version | 1.3 |
| HDCP | Yes |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 | DVI-D |
| Connector 1 | Mini DisplayPort |
| Cable length | 0.12 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | 0 - 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Certificates | |
|---|---|
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Height | 20 mm |
| Depth | 200 mm |
| Width | 44 mm |
| Weight | 38 g |
| Packaging data | |
|---|---|
| Package weight | 47 g |
| Package height | 19 mm |
| Package depth | 220 mm |
| Package width | 200 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 90 pc(s) |
| Master (outer) case height | 220 mm |
| Master (outer) case length | 339 mm |
| Master (outer) case width | 495 mm |
| Harmonized System (HS) code | 84733080 |
