£14.99

Stock Available: 766
  • MINI DISPLAYPORT to DISPLAYPORT 1.2 ADAPTER: mDP to DP adapter supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz); 6" (15 cm) attached cable
  • RELIABLE DESIGN: Mini DisplayPort to DisplayPort adapter has durable ABS connectors w/ flexible PVC strain relief & jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides added EMI shielding & noise imunity
  • QUALITY CONSTRUCTION: 32AWG wire w/ gold-plated connectors for improved signal integrity/reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video/audio; Mini DP to DP converter backwards compatible w/DP1.1
  • APPLICATIONS: Video adapter is ideal for home/office/boardroom/classroom works w/laptop (with Mini-DP port)/professional workstations w/ AMD FirePro™ W9100/8100, NVIDIA NVS 810/510 graphic card; UHD/4K monitor/projector/display; Microsoft Surface Pro 1-6
  • SPECS: 6 inch (15 cm) / Black / DisplayPort v1.2 / Mini-DP Male to Standard DP Female adapter / 32 AWG / PVC cable jacket, ABS connector shell / Shield: Al-Mylar foil with Braid / Protocols: HBR 2, MST, GTC / Lifetime Warranty

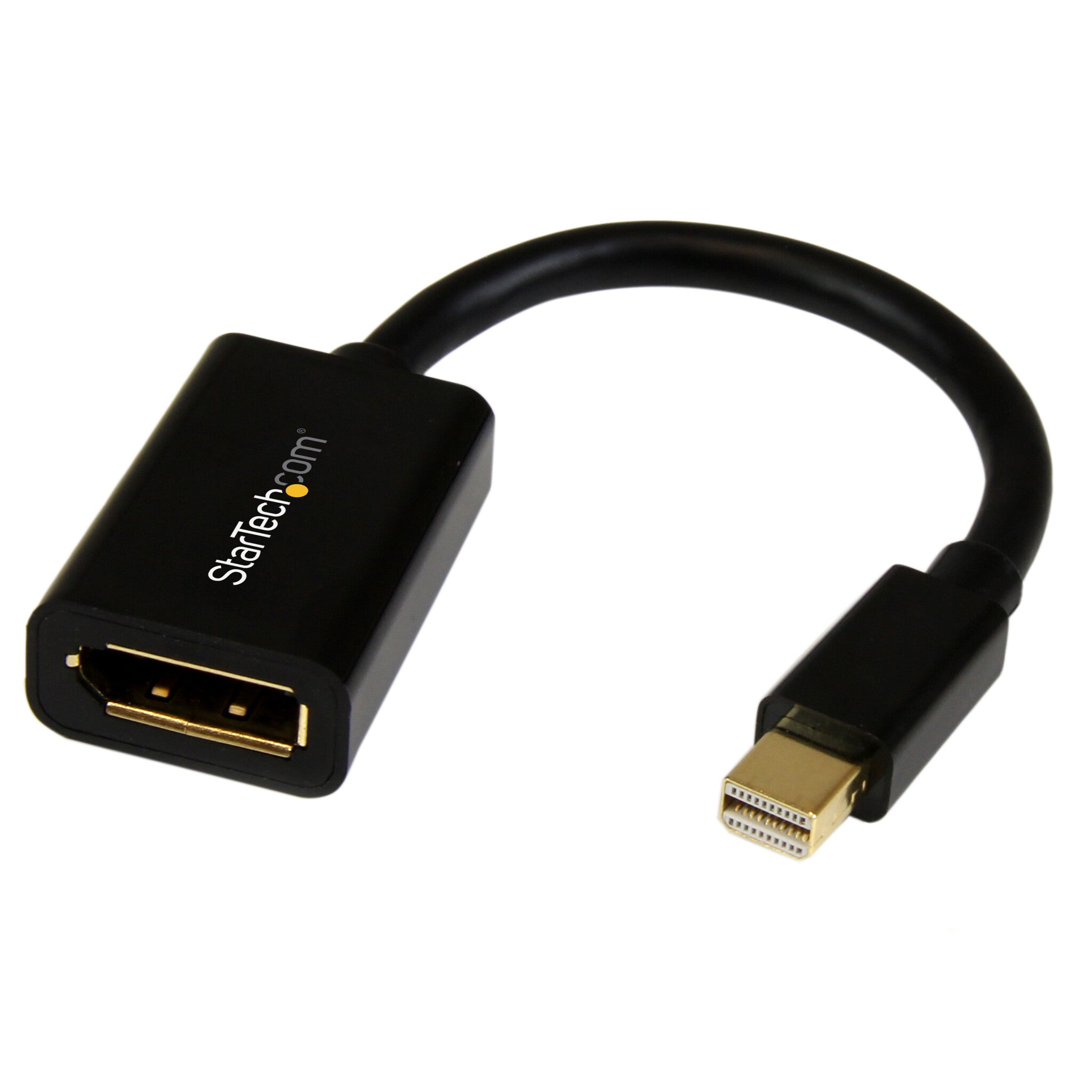

Connect your DisplayPort® monitor to a standard Mini DisplayPort source

The MDP2DPMF6IN Mini DisplayPort to DisplayPort video cable adapter allows you to add a standard DisplayPort connection port to your existing mini Displayport equipped laptop. Easy to use and install, this cost-effective solution makes it easy for you to go from Mini DP to DP, in order to get the most from your Mini DisplayPort device.

Please Note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.

Features
Cable length 0.1524 m
Connector 1 Mini DisplayPort
Connector 2 DisplayPort
Connector 1 gender Male
Connector 2 gender Female
Connector 1 form factor Straight
Connector 2 form factor Straight
Connector contacts plating Nickel
DisplayPort version 1.2
Maximum resolution 3840 x 2400 pixels
Supported graphics resolutions 2560 x 1600 (WQXGA), 3840 x 2400
Maximum refresh rate 120 Hz
Product colour Black
Cable rating CMG (CM)
Cable shielding Aluminum mylar foil
Jacket material Polyvinyl chloride (PVC)
AWG wire size 32
Bandwidth 21600 MB/s
Plug and Play Yes
Multi-Stream Transport (MST) Yes
Number of conductors 20
Certificates
Compliance certificates CE, RoHS
Weight & dimensions
Cable diameter 5 mm
Weight 19 g
Packaging data
Package width 126 mm
Package depth 113 mm
Package height 19 mm
Package weight 24 g
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Harmonized System (HS) code 84733080
Master (outer) case width 426 mm
Master (outer) case length 376 mm
Master (outer) case height 280 mm
Products per master (outer) case 300 pc(s)
