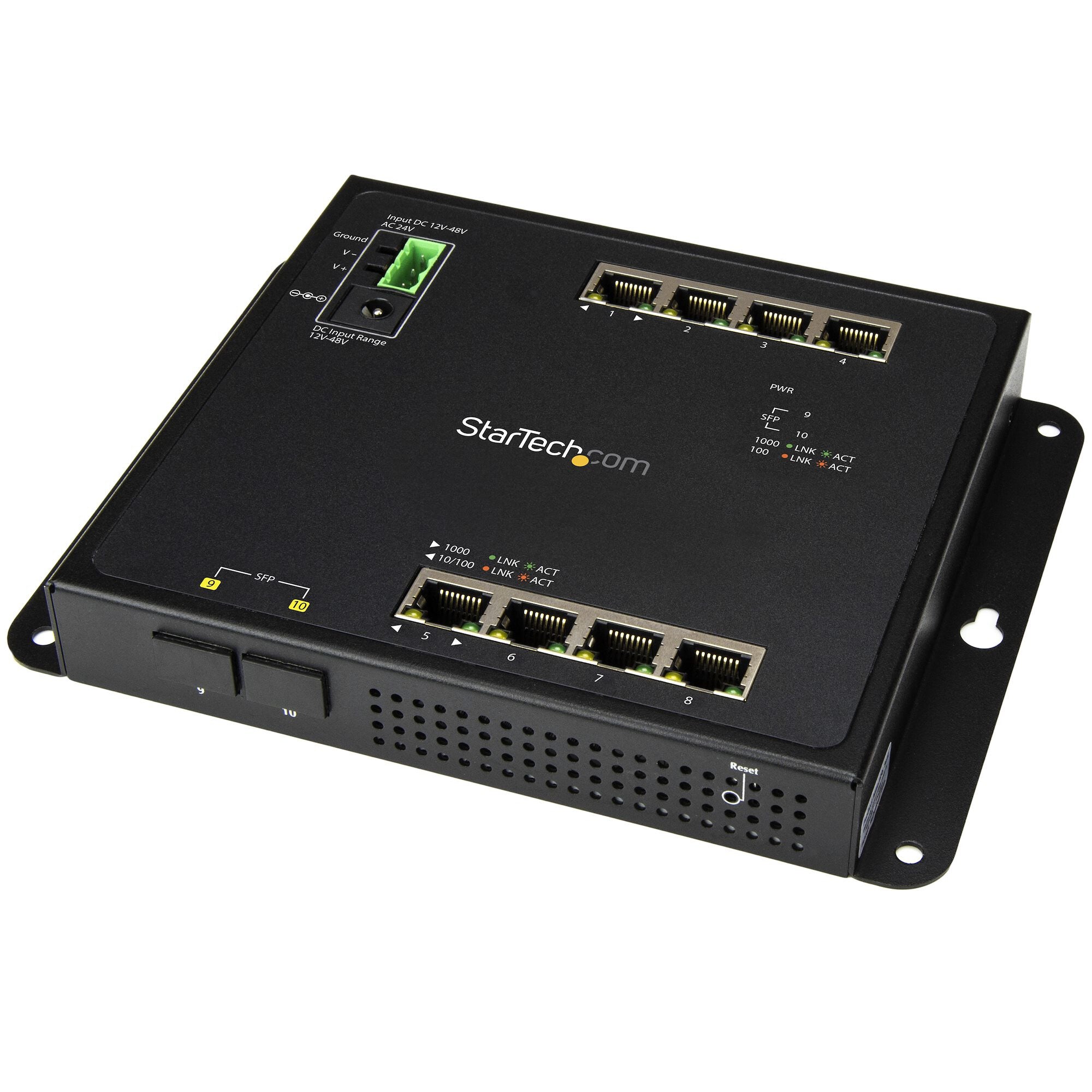

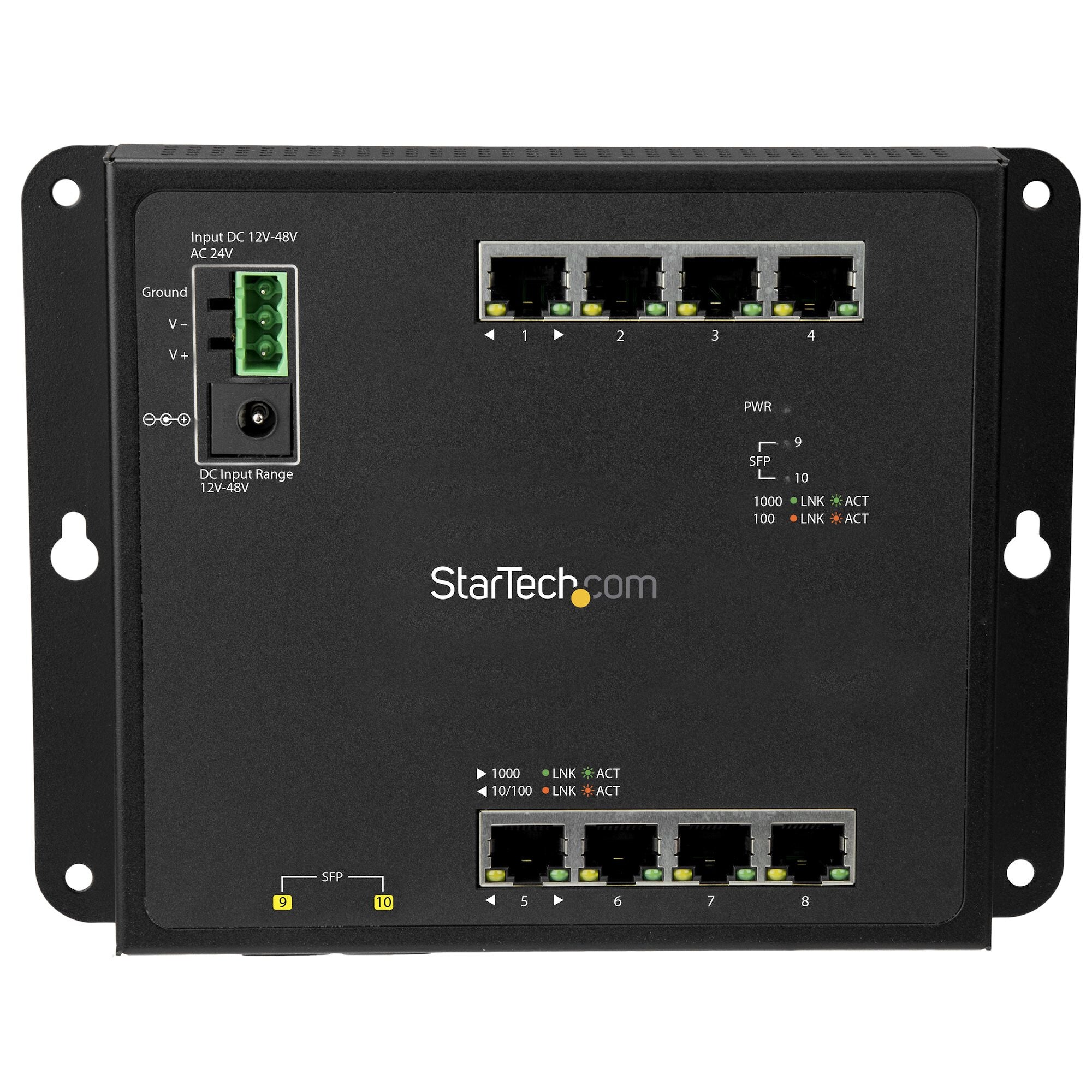

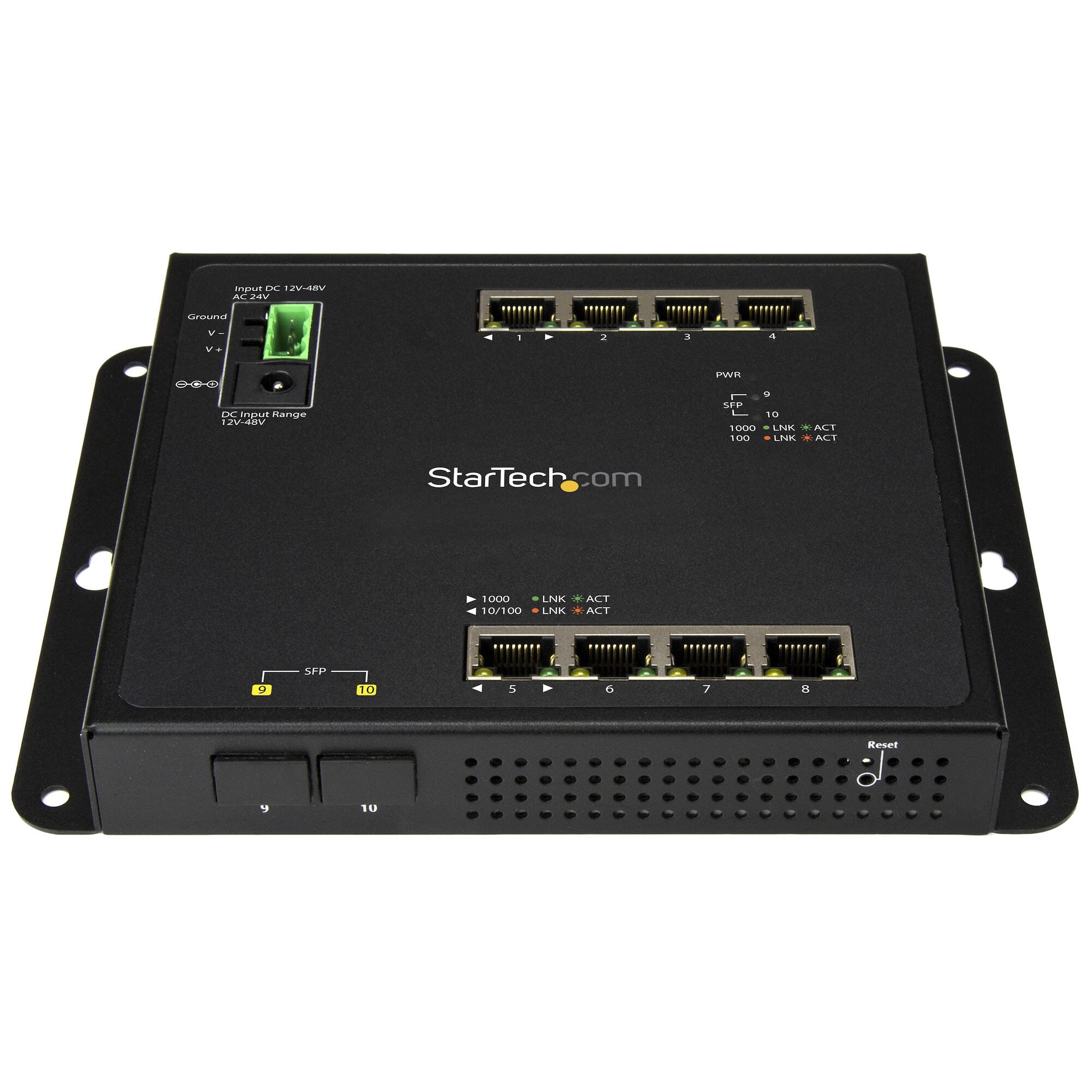

• FLAT DESIGN: Industrial 8 Port Gigabit Ethernet Switch with 2 MSA Open SFP Slots .Compact housing allows for front access, easy installation & troubleshooting; DIN rail or wall mountable
• FULL LAYER 2 MANAGEMENT CAPABILITIES: Through built in web-based GUI/Telnet/SSH; Switch can be managed to configure features like Ports/VLAN/Link Aggregation/SNMP/QoS/Spanning Tree among others
• TECH SPECS: 8 + 2 port Gigabit switch / 8 x RJ45 / 2 x Open SFP slot (MSA Compliant) / 12-48VDC power input / 10/100/1000 Mbps auto / Redundant power inputs w/terminal block kit or using incl AC adapter
• ROBUST DESIGN: Steel housing with IP-30/vibration/shock/free fall ratings and 6kV ESD; Operating temperature range of -40C to 75C w/ MTBF of 500,000+ hrs using MIL-HDBK-217F @ 25C; RJ45 dust caps incl
• STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This L2 Gigabit network switch is backed for 2-years by StarTech.com, including 24/5 North America based multi-lingual tech support

Wall Mount Ethernet Switch | 10/100/1000Mbps | 8 RJ45 Ports | L2 Managed

Add eight copper Gigabit Ethernet (GbE) connections and two open SFP slots to your network with this 8-Port Gigabit Ethernet Switch. The rugged switch makes it easy to deploy or scale your network.

Expand Your Network

This versatile GbE switch adapts to your network needs by adding two open SFP slots and eight RJ45 Ethernet ports, providing both fiber and copper connections in a single network switch. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch allows you to connect up to eight RJ45 devices, so different users can share files and devices, such as printers and scanners, over a LAN connection, and share two devices in the open SFP slots.

Intelligent Layer 2 Management

This Layer 2 switch delivers efficient and stable performance, with Layer 2 management capabilities. It controls packet traffic on a busy network, and customizes settings to achieve optimal network performance.

Reliable Network Performance

table, th, td {
border: none;
}

✔ 10/100/1000 Mbps transfer speeds

✔ Jumbo frames

✔ Redundant 12-58V DC terminal block

✔ Full/half-duplex auto-negotiation

✔ Auto MDI/MDIX operation

✔ IPv4 and IPv6 dual stack management

✔ Link aggregation

✔ VLAN tagging

✔ Spanning tree protocol

Compact, Mountable and Rugged Design

At only 5.5 x 7 in. and 1.375 lb., the industrial managed Ethernet switch is designed to be wall or DIN-rail mounted in tight spaces that are exposed to significant electromagnetic interference, while providing easy port access. The IP30-rated metal housing and extended operating temperature range of -40°C to 75°C makes it ideal for harsh environments.

StarTech.com offers a wide variety of network switches, making it easy to expand your network connections and provide power to devices in hard-to-power locations. This wall-mount Ethernet switch is backed by a 2-year warranty and free lifetime North American based Technical Support.​
