StarTech.com

iFrame
×
£568.99
Stock Available: 6

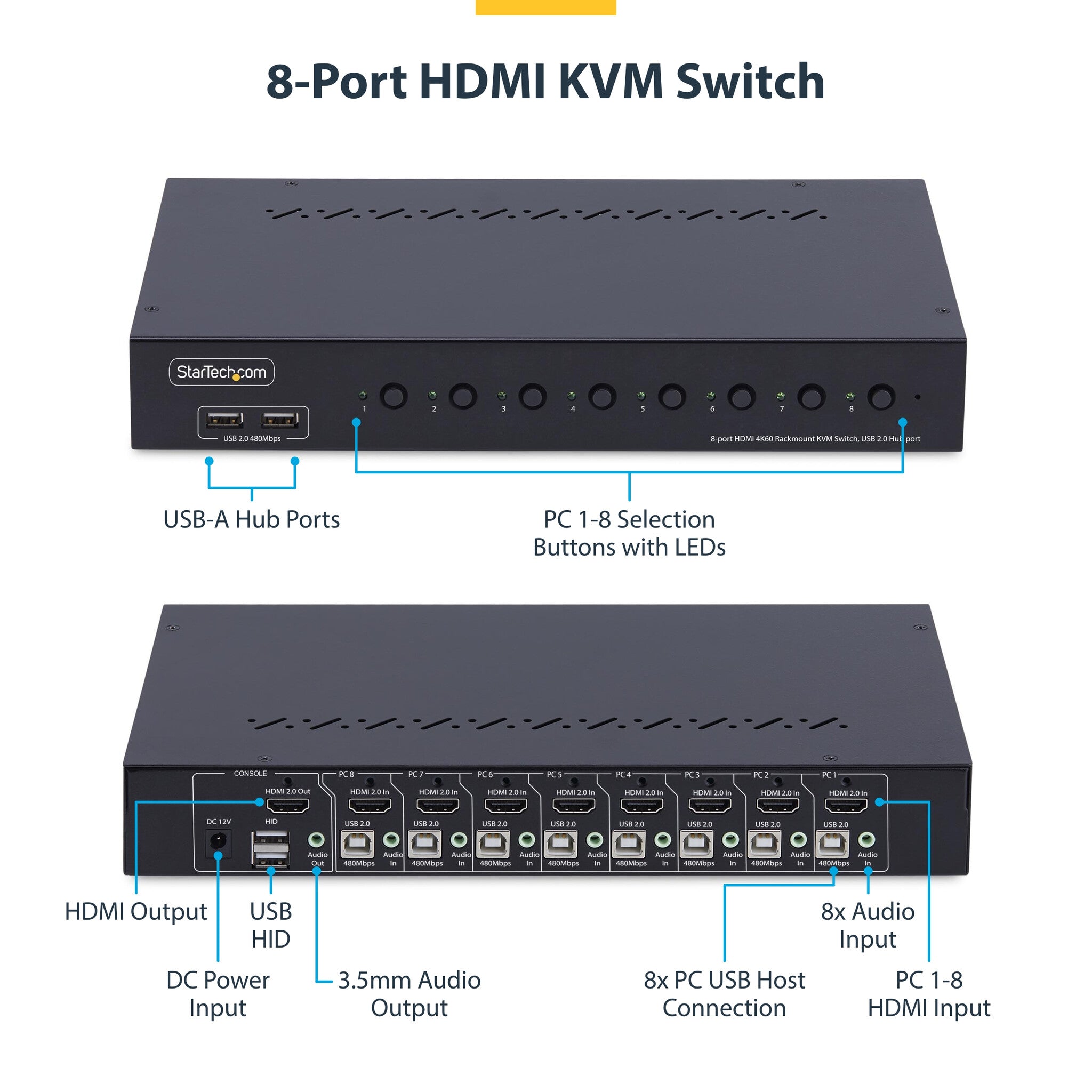

  • 4K 60HZ KVM SWITCH: Switch between eight HDMI-enabled computers to share a keyboard, mouse, 3.5mm audio, USB 2.0 hub (2x front/2x rear), and a 4K 60Hz HDMI 2.0 monitor for effortless multi-system management & improved workspace efficiency
  • NO DRIVERS OR SOFTWARE: TAA-Compliant 8-Port KVM Switch enables BIOS level control and works with any operating system including Windows, macOS, ChromeOS, & Linux; Compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, & Apple Silicon
  • MULTIPLE SWITCHING OPTIONS: Ensures efficient and user-friendly operation for multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status
  • RACK MOUNTABLE: KVM switch includes rackmount brackets in the box for installation in 1U of rack space on network racks and is compatible with ANSI/EIA RS-310-D standard 19-inch server racks that have a mounting depth of 6.5inches (165mm) or more
  • OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts

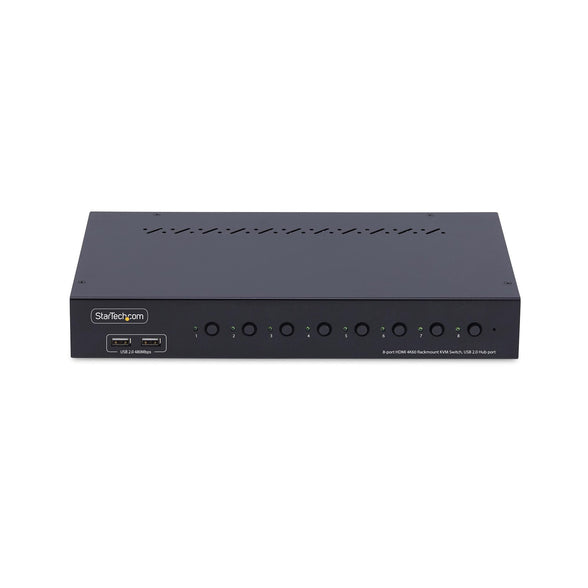

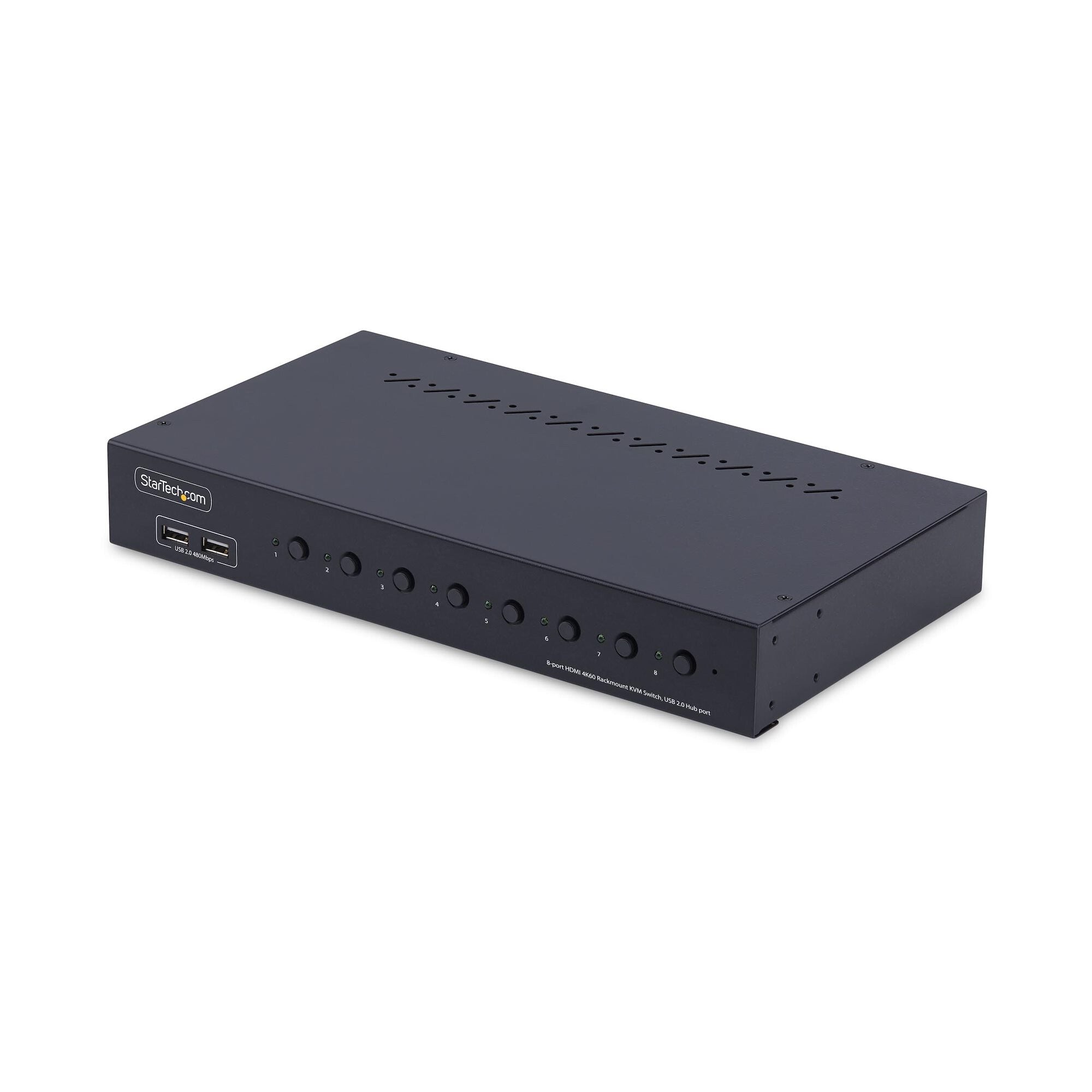

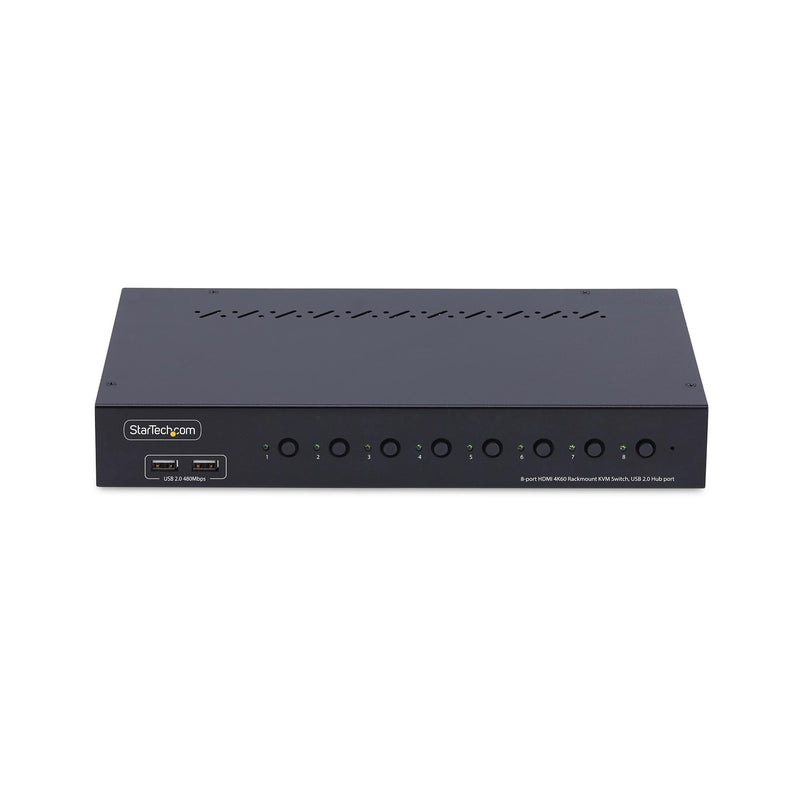

Control up to eight USB and HDMI-enabled computers from a single keyboard, mouse, and 4K 60Hz HDMI monitor

The 4K 60Hz rackmount KVM switch allows switching between eight HDMI-enabled computers, sharing a keyboard, mouse, audio, 4-port USB 2.0 hub, and a 4K 60Hz HDMI 2.0 monitor. This enables effortless multi-system management, improved workspace efficiency, and enhanced productivity.

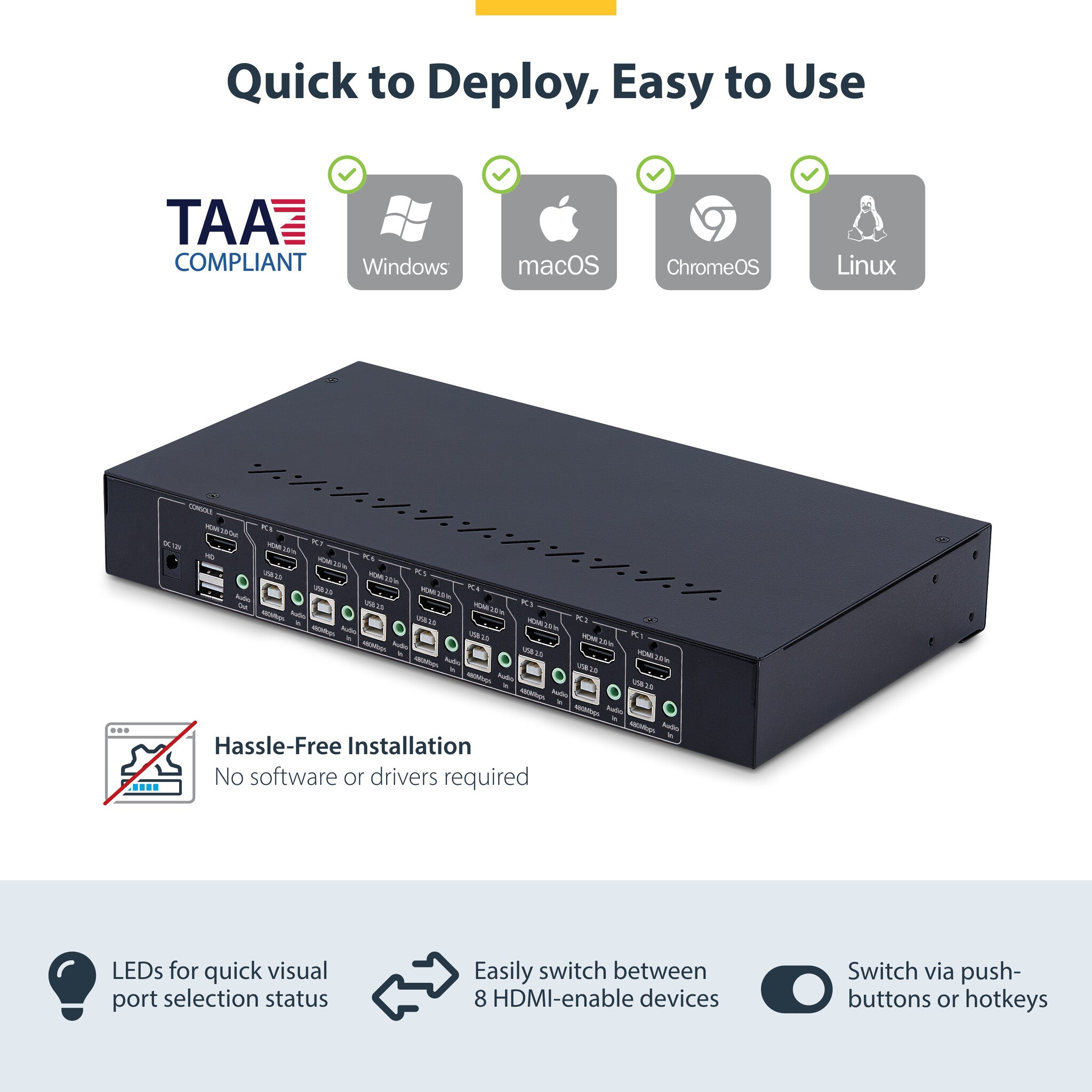

No Drivers or Software

The TAA-Compliant 8-Port KVM Switch is universally compatible, providing BIOS-level control and working with any operating system, including Windows, Windows ARM, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, and Apple Silicon.

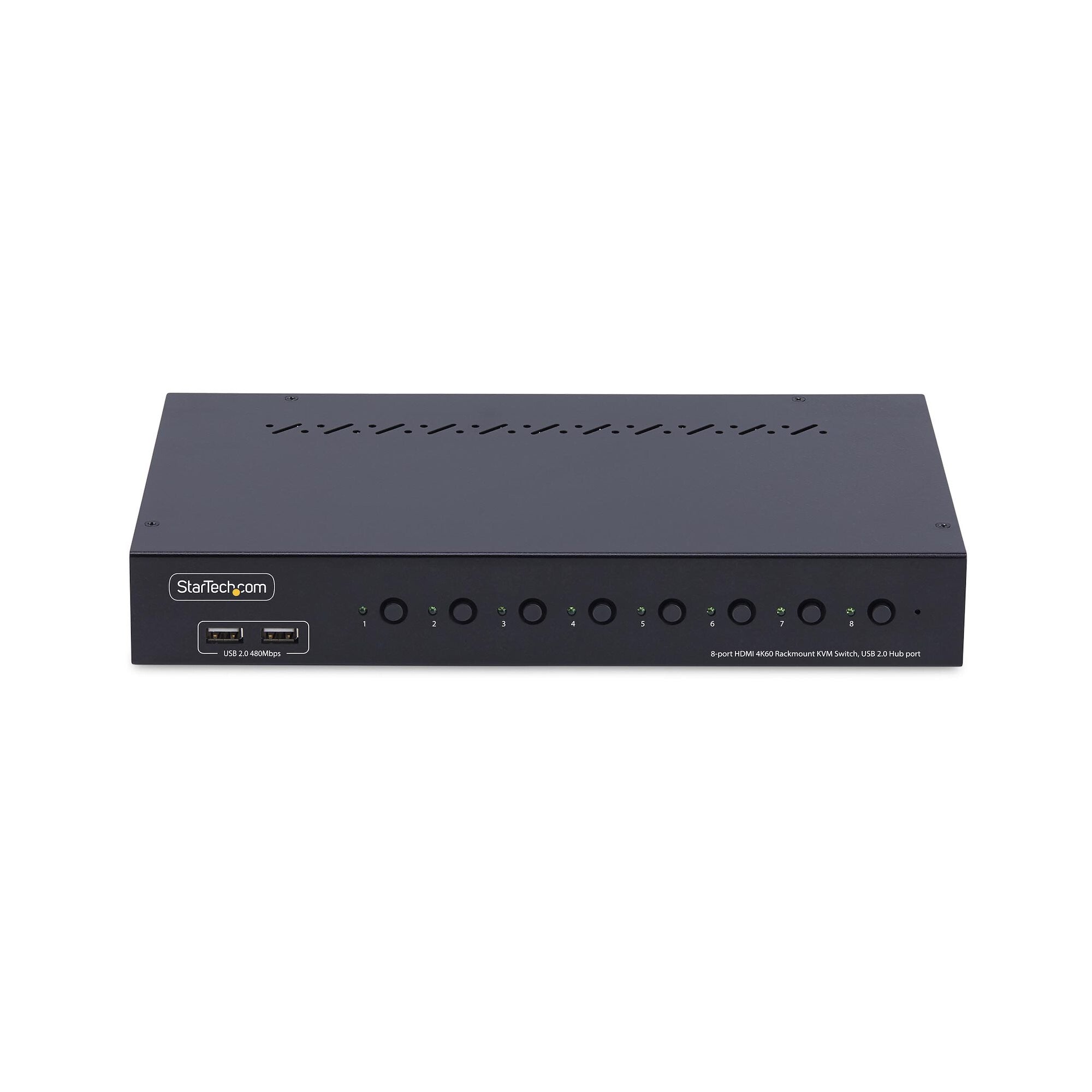

Multiple Switching Options

Ensures efficient and user-friendly operation for multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status.

Rack Mount Kit Included

The KVM switch offers a space-saving solution for managing multiple servers directly within a rack. It includes rack-mount brackets for installation in 1U of rack space on network racks and is compatible with 19-inch server racks that have a mounting depth of 6.5 inches (165mm) or more. It also complies with ANSI/EIA RS-310-D standards.

To ensure flexibility to choose the best cables for your specific installation, the KVM switch does not include cables. StarTech.com offers a wide variety of HDMI, USB, and 3.5mm audio cables in assorted lengths to suit different installation needs.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

The StarTech.com Advantage

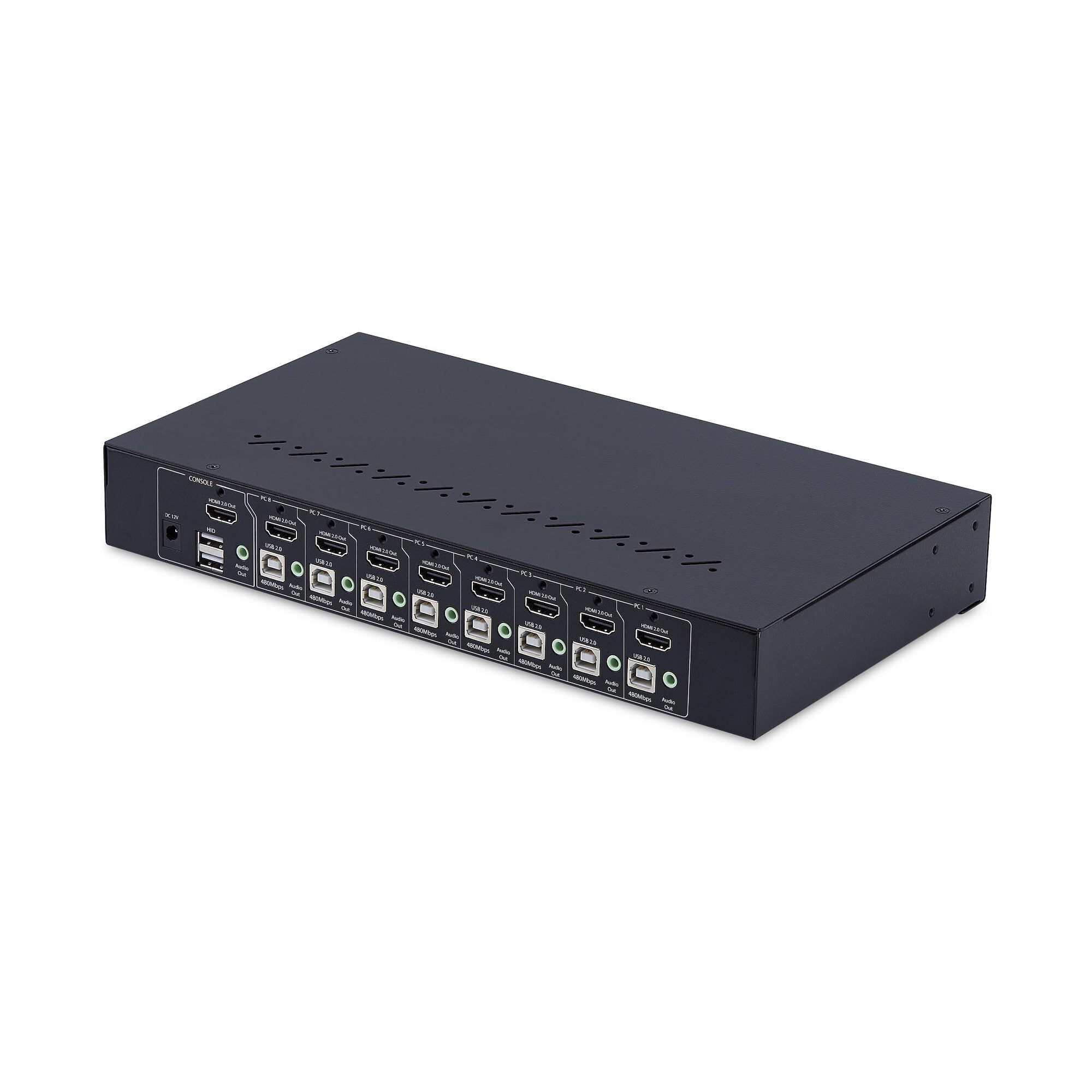

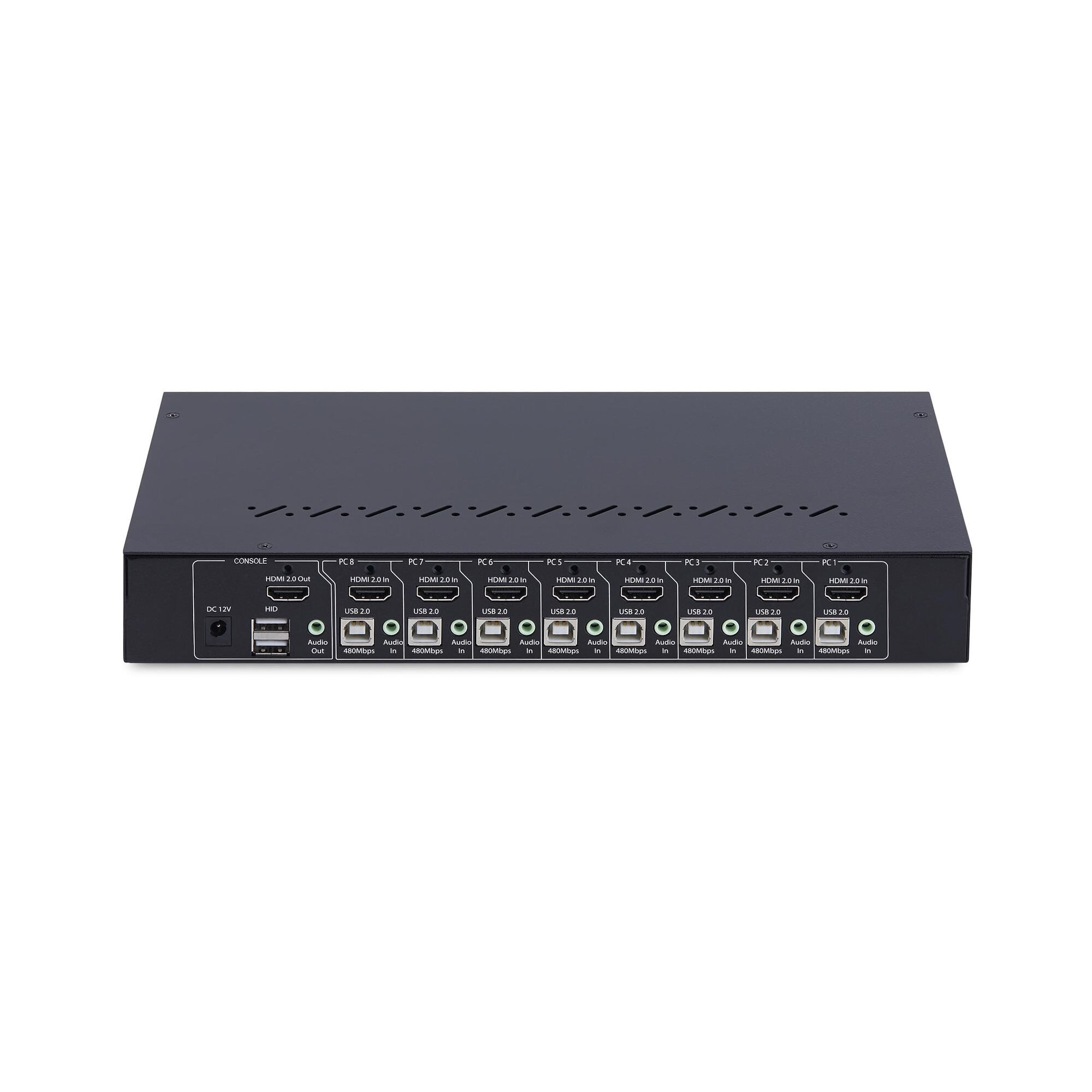

Ports & interfaces
DC-in jack Yes
Number of microphone inputs 8
Headphone outputs 1
Console ports 3.5mm headphone, HDMI, USB A
Console USB ports quantity 4
USB 2.0 Type-B ports quantity 8
HDMI ports quantity 8
HDMI version 2.0
Video port type HDMI
Mouse port type USB
Keyboard port type USB
Number of computers controlled 8
Performance
Audio channels 2.0
Daisy chain No
Scan interval 10,20,30,40,50,60,70,80,90,100 s
Data transfer rate (max) 0.48 Gbit/s
Maximum resolution 3840 x 2160 pixels
HD type 4K Ultra HD
Design
Mean time between failures (MTBF) 73905 h
Hot keys Yes
Push button Yes
LED indicators Yes
Housing material Zinc
Product colour Black
Rack mounting Yes
Rack capacity 1U
Display
On Screen Display (OSD) No
Built-in display No
Power
Power consumption (typical) 36 W
Power plug type Type M
Compatible power plug types AU, EU, UK, US
Output current 3 A
Output voltage 12 V
Input current 1 A
Input voltage 100 - 240 V
Power source DC
Sustainability
Compliance certificates Federal Communications Commission (FCC), Trade Agreements Act (TAA)
Operational conditions
Operating relative humidity (H-H) 0 - 90%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 1.5 kg
Height 44 mm
Depth 300 mm
Width 164 mm
Packaging data
Package weight 2.3 kg
Package height 70 mm
Package depth 288 mm
Package width 435 mm
Packaging content
Quick installation guide Yes
Rack mount kit Yes
Other features
IP control No
Logistics data
Products per master (outer) case 5 pc(s)
Master (outer) case height 270 mm
Master (outer) case length 545 mm
Master (outer) case width 585 mm
