StarTech.com
£164.99
Stock Available: 0
  • IMPROVE EFFICIENCY: 4 Port Dual Monitor DVI KVM Switch with hotkey and manual switching, to access 4 workstations or servers with USB and DVI video from a single keyboard, monitor, and mouse
  • WORK SMARTER: Combines dual DVI displays and a high-speed 2-Port USB 3.0 hub to share USB devices between connected computers seamlessly; OS independent and works with video cards from NVIDIA and AMD
  • TECH SPECS: 4 Port KVM
  • Dual Screen
  • DVI Single Link
  • 2048x1536 Analog

USB 3.0 KVM Switch | TAA Compliant | 1920 x 1200 Digital Resolution | Stereo Audio & Mic

The TAA compliant Dual-Monitor DVI KVM Switch controls four multimedia computer systems from one dual-DVI monitor workstation.

Increase Productivity

The KVM switch supports four separate multimedia computer systems and the use of a dual DVI-D single-link monitor workstation, increasing productivity by enabling you to access more information at once.

Integrated USB 3.0 Hub

The 2-port hub that’s built into the USB 3.0 KVM switch shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected while supporting high-performance peripherals such as flash drives and video capture devices.

Full Multimedia Support

With support for separate stereo audio and microphones, the KVM switch box connects everything you need directly to your systems, saving you money and desk space.

Easy to Operate

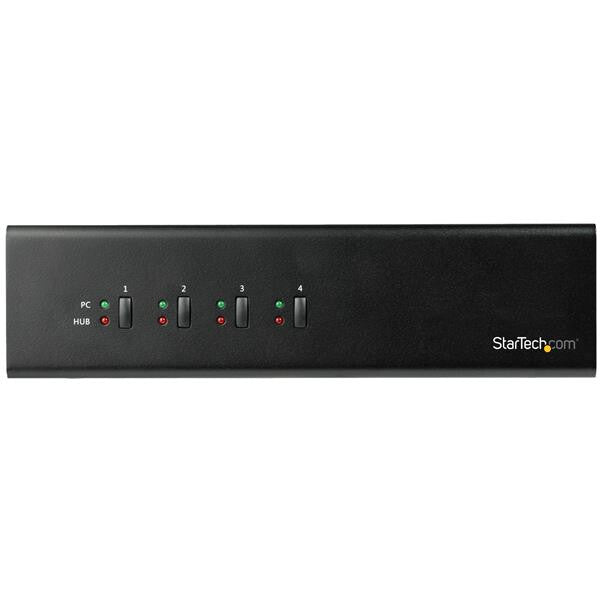

The front-panel push-buttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while an optional buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 4-port DVI USB KVM switch is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

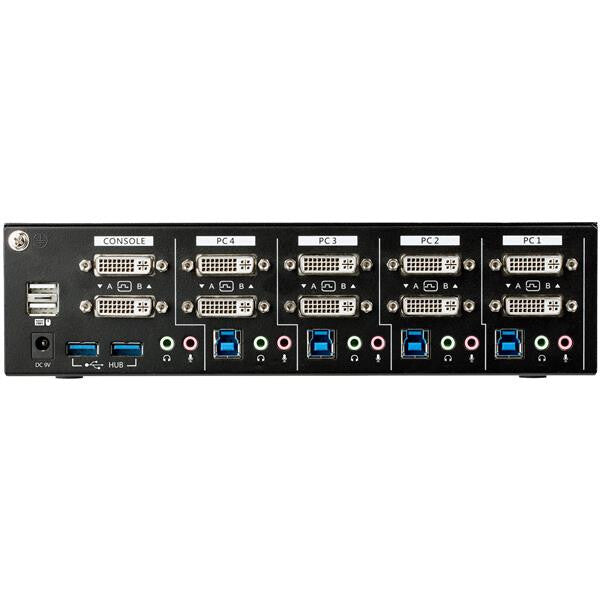

Ports & interfaces
DC-in jack Yes
Number of microphone inputs 5
Headphone outputs 5
Audio connections Yes
USB connector type USB Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity 2
USB hub Yes
Console ports 3.5mm headphone, 3.5mm mic, DVI-I, USB A
Console USB ports quantity 4
DVI-I ports quantity 10
Video port type DVI-I
Mouse port type USB
Keyboard port type USB
Number of computers controlled 4
Performance
Daisy chain Yes
Scan interval 10,20,30,40,50,60 s
Data transfer rate (max) 5 Gbit/s
Maximum digital resolution 1920 x 1200 pixels
Maximum analog resolution 2048 x 1536 pixels
Maximum resolution 2048 x 1536 pixels
Design
Certification CE, FCC
Hot keys Yes
LED indicators Yes
Housing material Steel
Product colour Black
Display
On Screen Display (OSD) No
Built-in display No
Power
Power consumption (typical) 18 W
External power adapter Yes
Compatible power plug types AU, EU, JP, UK, US
Output current 2 A
Output voltage 9 V
Input current 0.8 A
Input voltage 100 - 240 V
Power source AC
Sustainability
Compliance certificates RoHS
Operational conditions
Operating relative humidity (H-H) 0 - 90%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 1.3 kg
Height 66 mm
Depth 100 mm
Width 253 mm
Packaging data
Package weight 300 g
Package height 191.5 mm
Package depth 268 mm
Package width 160 mm
Packaging content
Quick installation guide Yes
AC adapter included Yes
Other features
IP control No
Logistics data
Products per master (outer) case 6 pc(s)
Master (outer) case height 213 mm
Master (outer) case length 554 mm
Master (outer) case width 495 mm
Harmonized System (HS) code 85176200
