StarTech.com 24in Internal 5 pin USB IDC Motherboard Header Cable F/F
Couldn't load pickup availability
- 2x 5pin USB header connectors
- Uses standard USB 2.0 pin out and colors assignments
- Offers 24” in cable length
Connect a front panel USB hub or card reader directly to a motherboard header connector

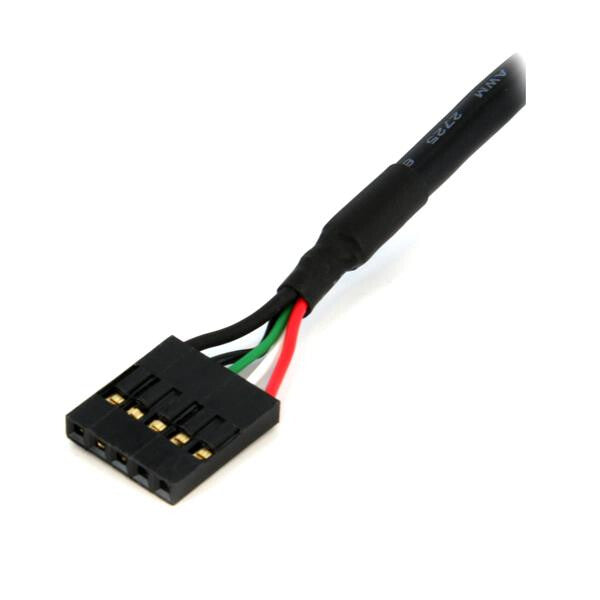

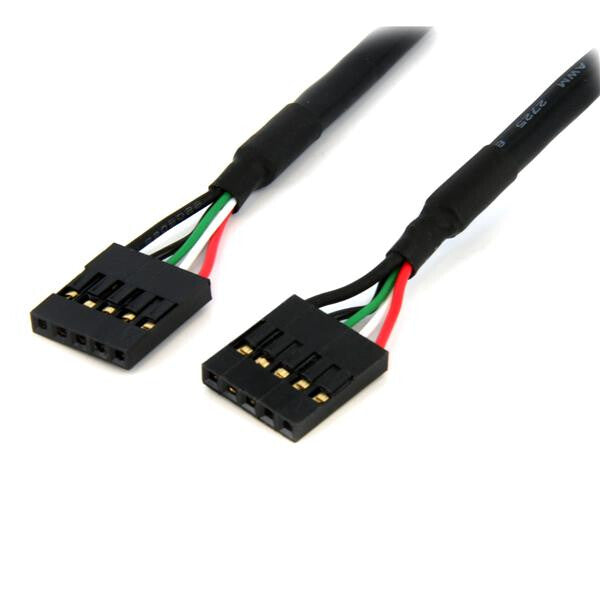

The USBINT5PIN24 Internal USB Cable features two 5-pin USB motherboard header connectors, enabling you to connect a front panel USB hub or card reader directly to the motherboard header ports.
This 24in/2ft cable provides a convenient solution for connecting multi-function front panels, or any device that relies on internal USB ports, directly to a motherboard or expansion card USB IDC (Header) connection, without having to install additional cards or run cables externally to the rear ports.
Constructed of high quality materials and expertly constructed for durable performance, the 5-pin USB Header Cable is backed by StarTech.com's Lifetime Warranty.
| Features | |
|---|---|
| Cable length | 0.609 m |
| Connector 1 | IDC |
| Connector 2 | IDC |
| Connector 2 gender | Female |
| Connector 1 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, REACH |
| Weight & dimensions | |
|---|---|
| Width | 130 mm |
| Depth | 609.6 mm |
| Height | 50 mm |
| Weight | 23 g |
| Packaging data | |
|---|---|
| Package width | 128 mm |
| Package depth | 169 mm |
| Package height | 13 mm |
| Package weight | 23 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 372 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 276 mm |
| Products per master (outer) case | 600 pc(s) |
