StarTech.com 20in Slimline SATA to SATA with LP4 Power Cable Adapter
Couldn't load pickup availability

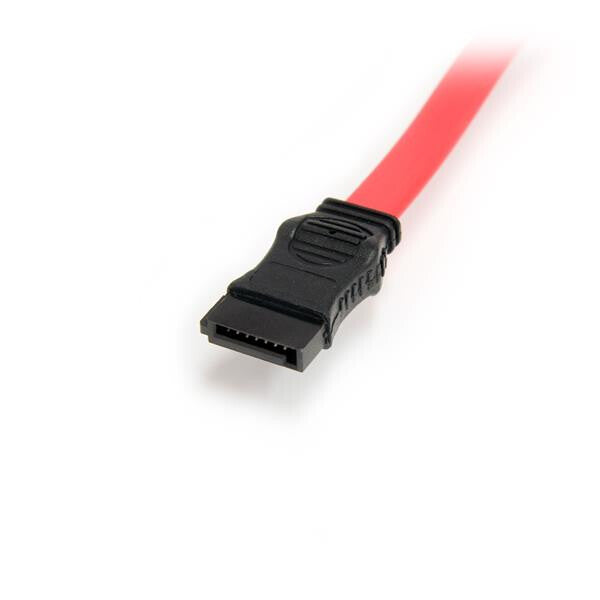

- 1x SATA connector

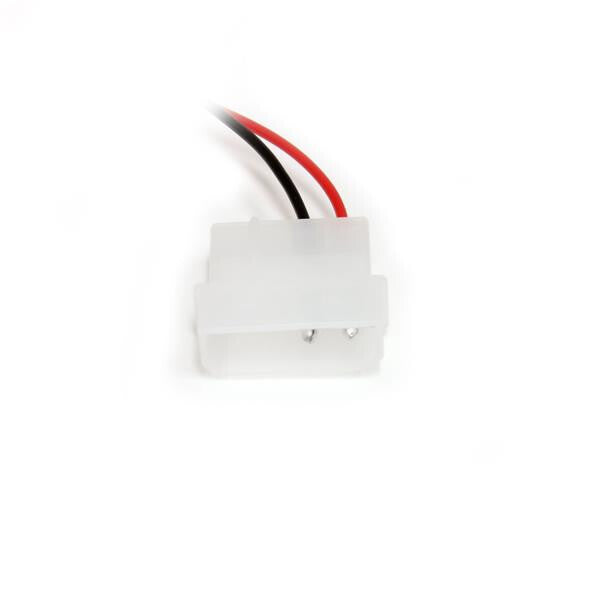

- 1x LP4 power connector

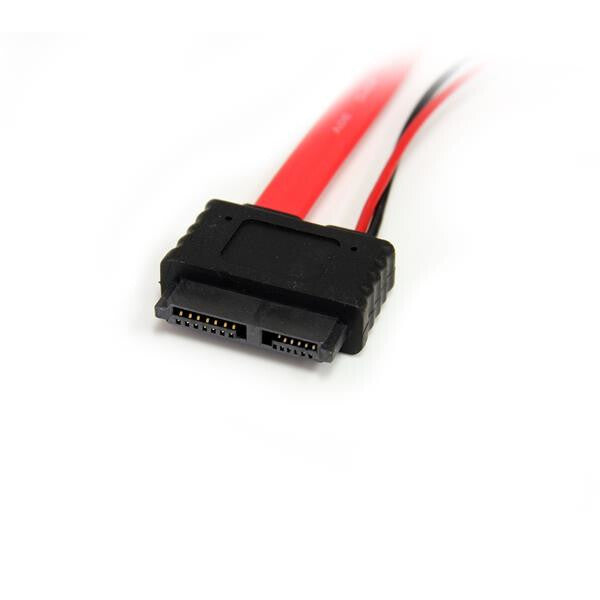

- 1x Slimline SATA connector
- Supports full SATA 3.0 6Gbps bandwidth
- Compatible with Slimline SATA optical drives
- Provides 20" in cable length
Connect a slimline SATA drive to a standard SATA motherboard connector.

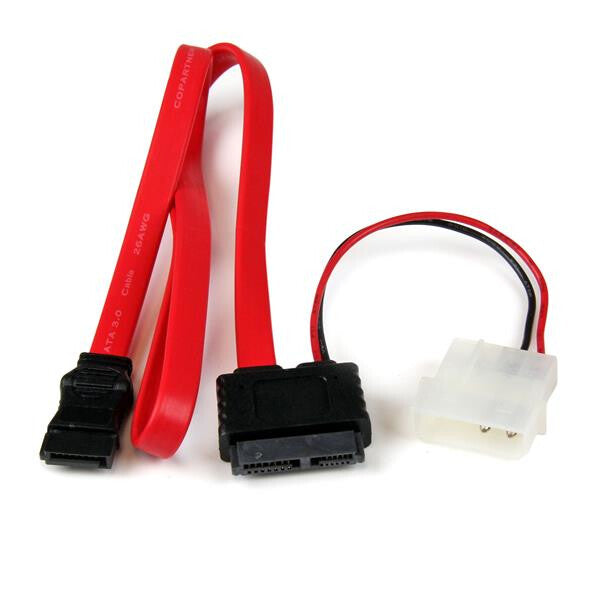

The SLSATAF20 Slimline SATA to SATA with LP4 Power Cable (20-inch) features a SATA data receptacle and a LP4 power connection on one end, and a Slimline Serial ATA receptacle on the other - allowing you to connect a slim SATA drive to a computer motherboard that does not have a Slimline connection available.
Supporting full SATA 3.0 bandwidth of up to 6Gbps when used with SATA 3.0 compliant drives, this innovative adapter cable provides you with the connections needed to simplify the migration to Slimline SATA-equipped drives.
Constructed of only top quality materials and designed for optimum performance and reliability the SLSATAF20 is backed by our lifetime warranty.
| Features | |
|---|---|
| Cable length | 0.508 m |
| Cable type | SATA III |
| Connector 1 | SATA 13-pin |
| Connector 2 | SATA 7-pin + Molex (4-pin) |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector gender | Female/Female |
| Product colour | Red |
| Maximum data transfer rate | 6 Gbit/s |
| Weight | 22 g |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, REACH |
| Packaging data | |
|---|---|
| Package width | 126 mm |
| Package depth | 134 mm |
| Package height | 19 mm |
| Package weight | 22 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 338 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 222 mm |
| Products per master (outer) case | 200 pc(s) |
