StarTech.com 1M25-U3-M2-ADAPTER interface cards/adapter Internal M.2
Couldn't load pickup availability
- Internal
- Host interface: U.3
- Output interface: M.2
- S.M.A.R.T. support
- Purpose: PC
- Red

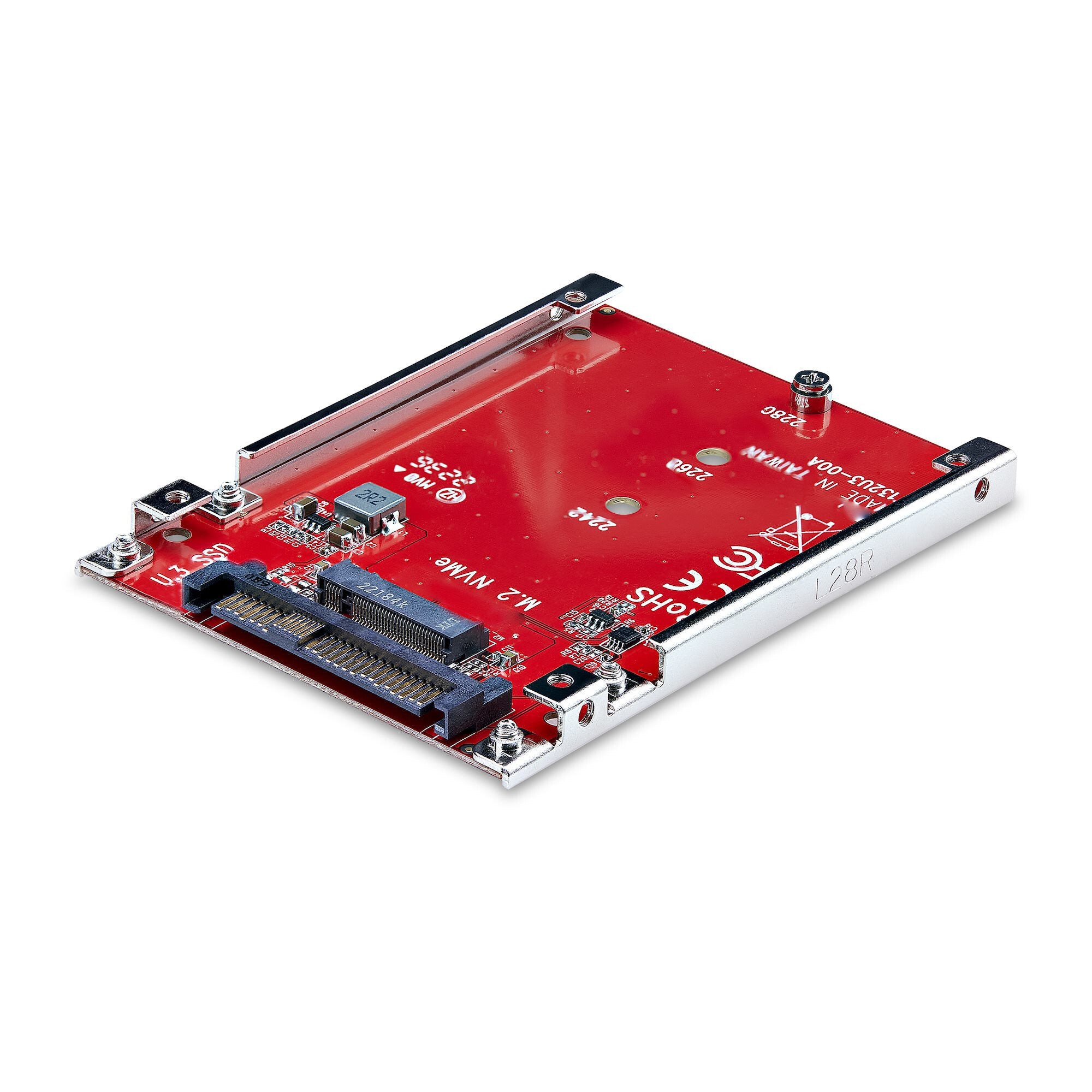

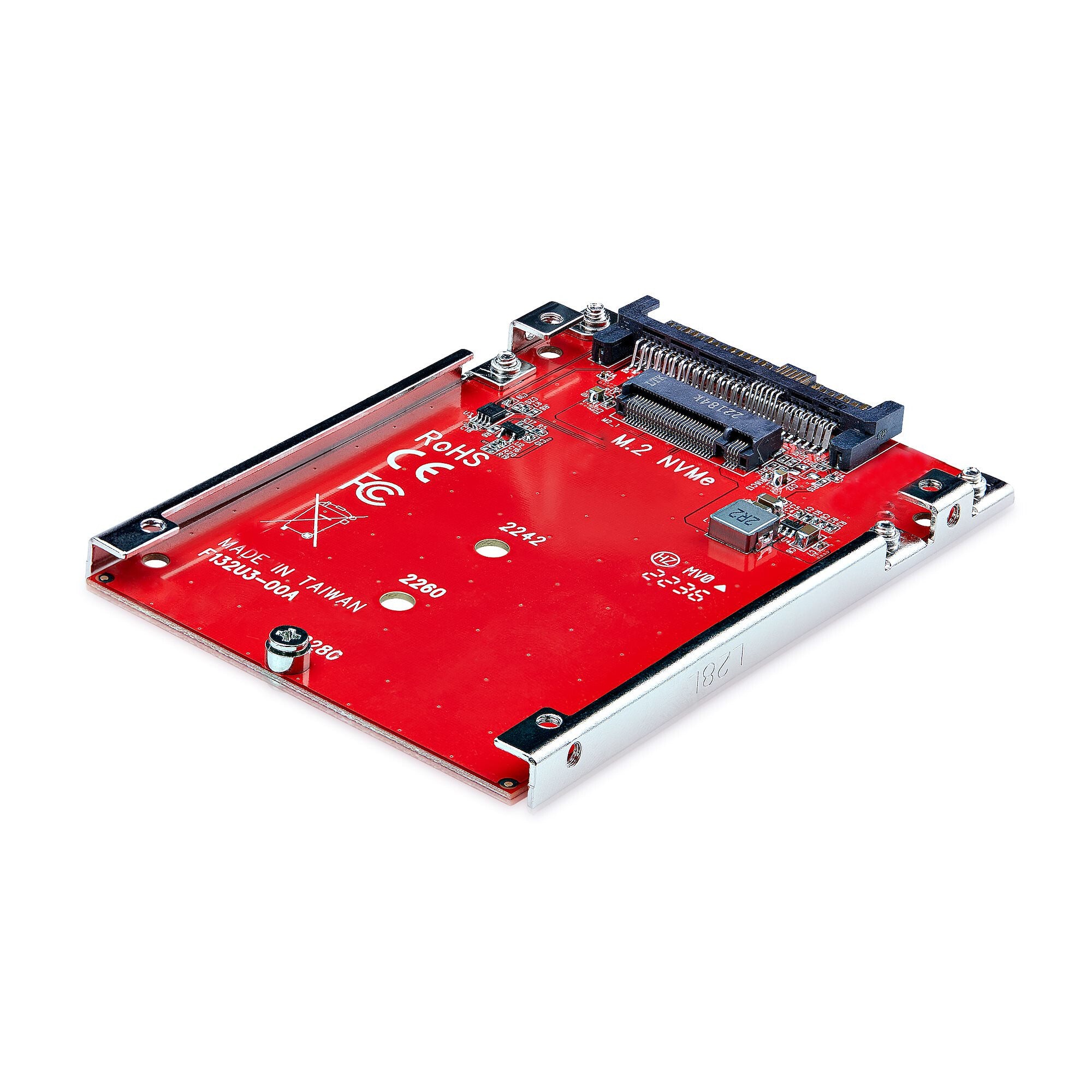

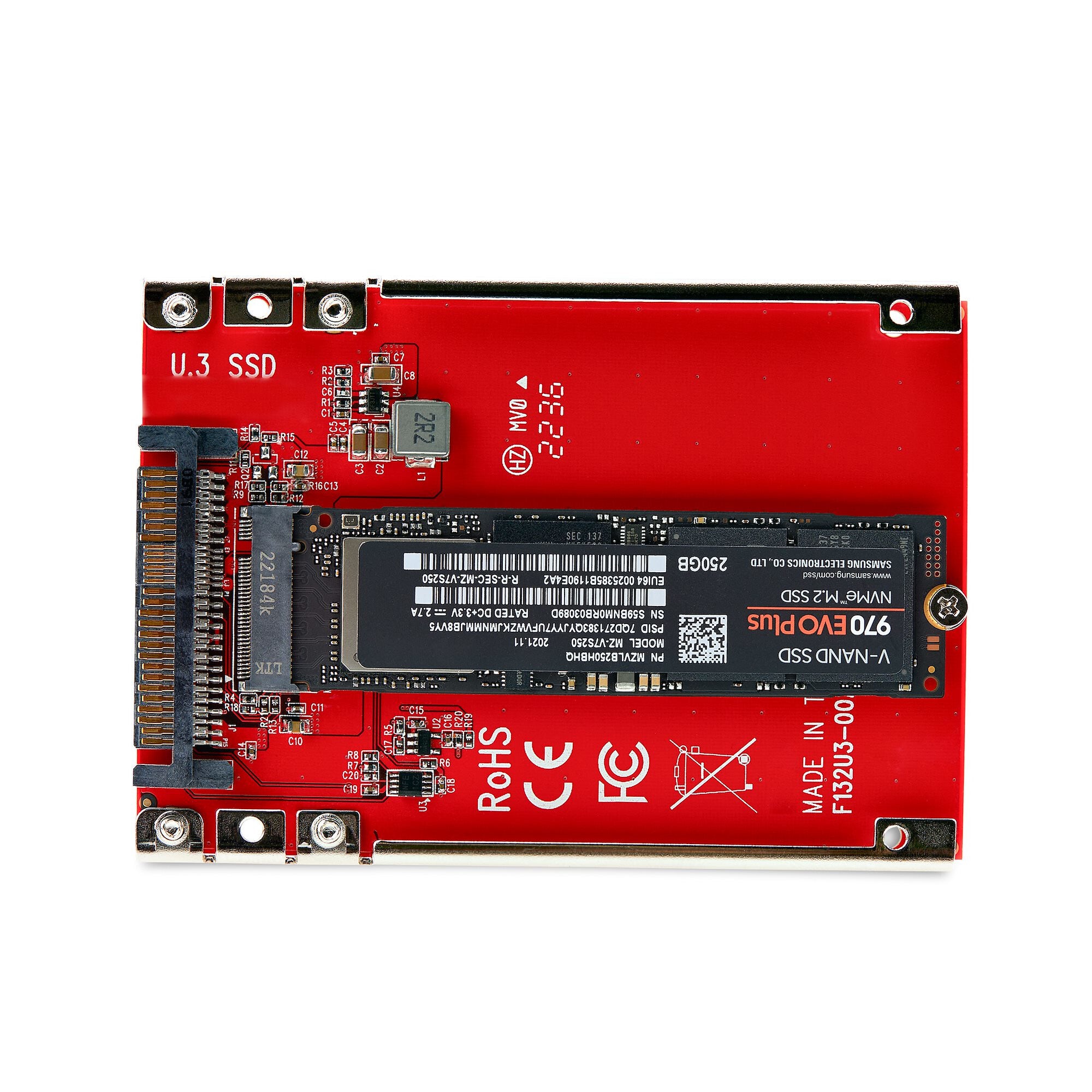

Connect an M.2 NVMe drive to a 2.5-inch U.3 (SFF-TA-1001) drive bay

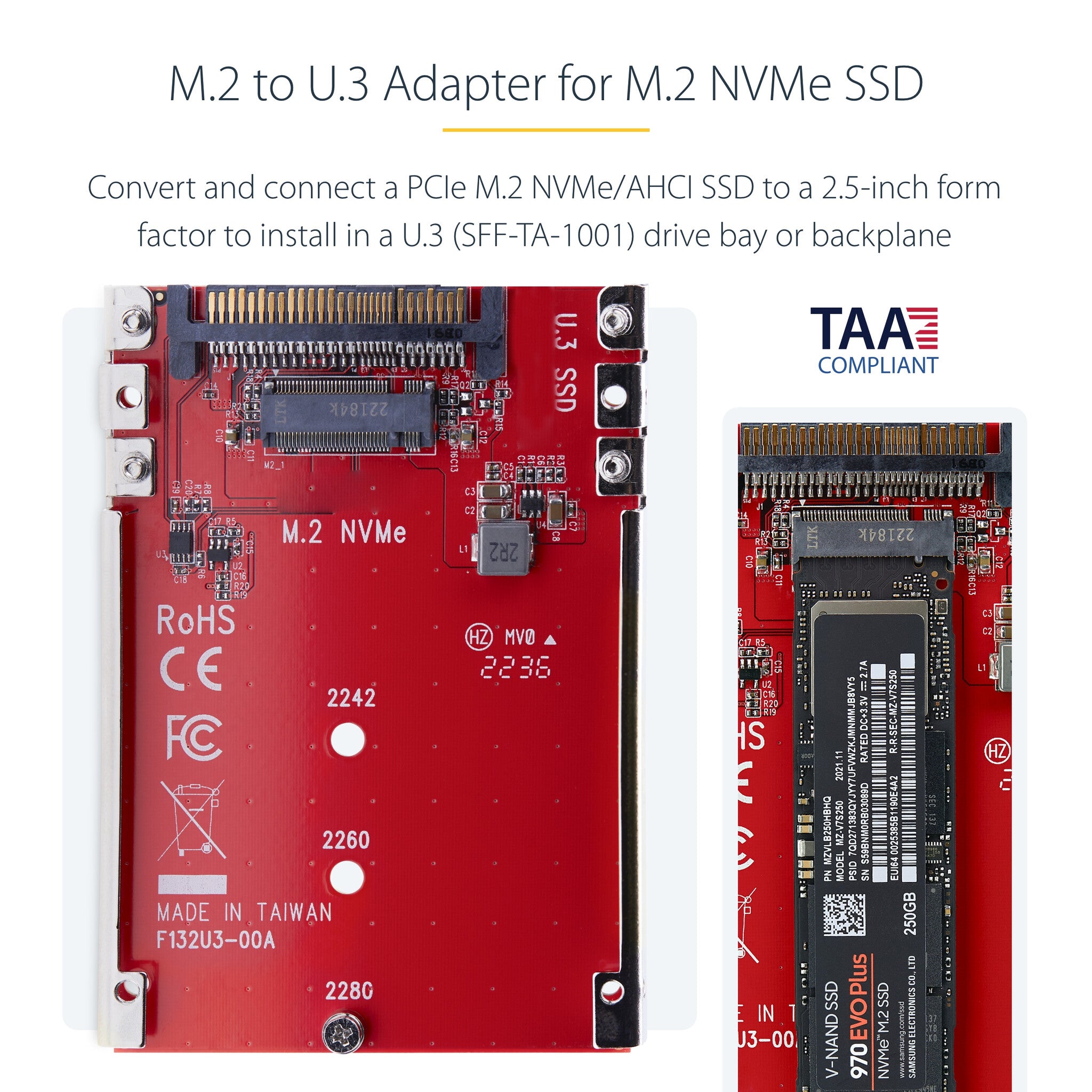

Convert and connect a PCIe M.2 NVMe/AHCI SSD to a 2.5inch form factor to install in a U.3 drive bay or backplane.
Adapt While Retaining Performance

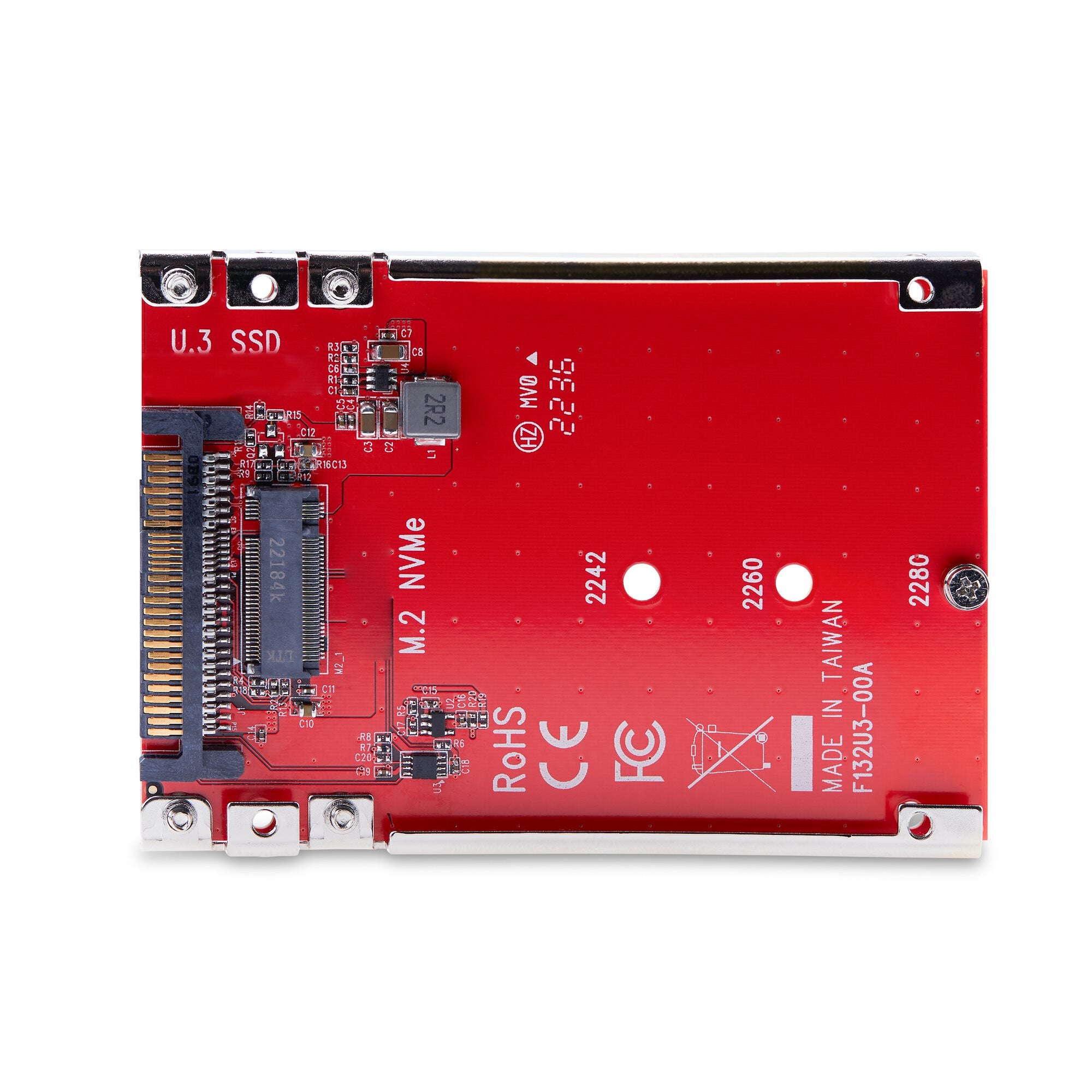

Change the form factor of a 2242, 2260, or 2280 M.2 NVMe drive while maintaining PCIe Gen 4 read and write speeds. This adapter has been designed with no chipset to maintain performance when adapting an M.2 drive to a 2.5-inch form factor.
Hassle-Free Setup

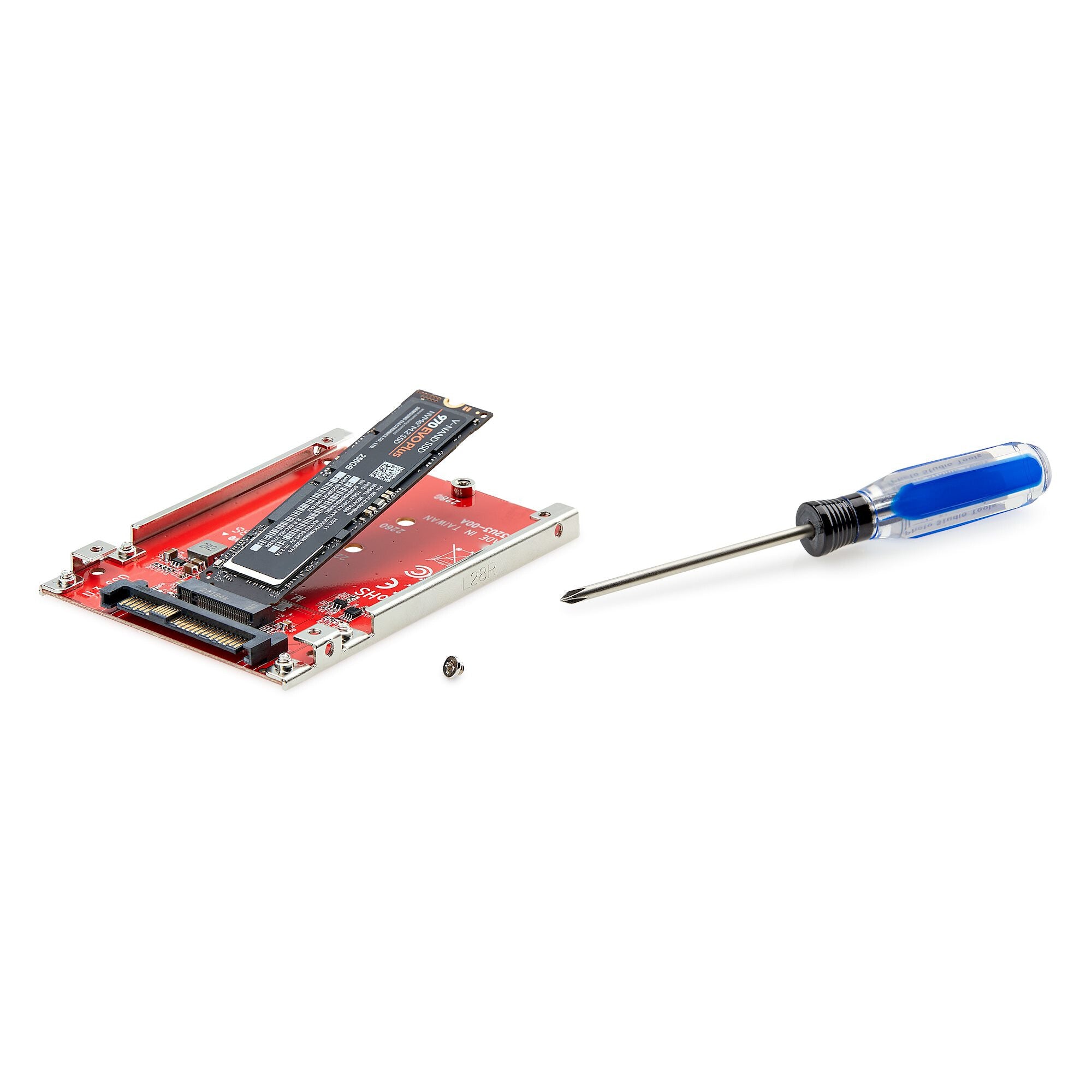

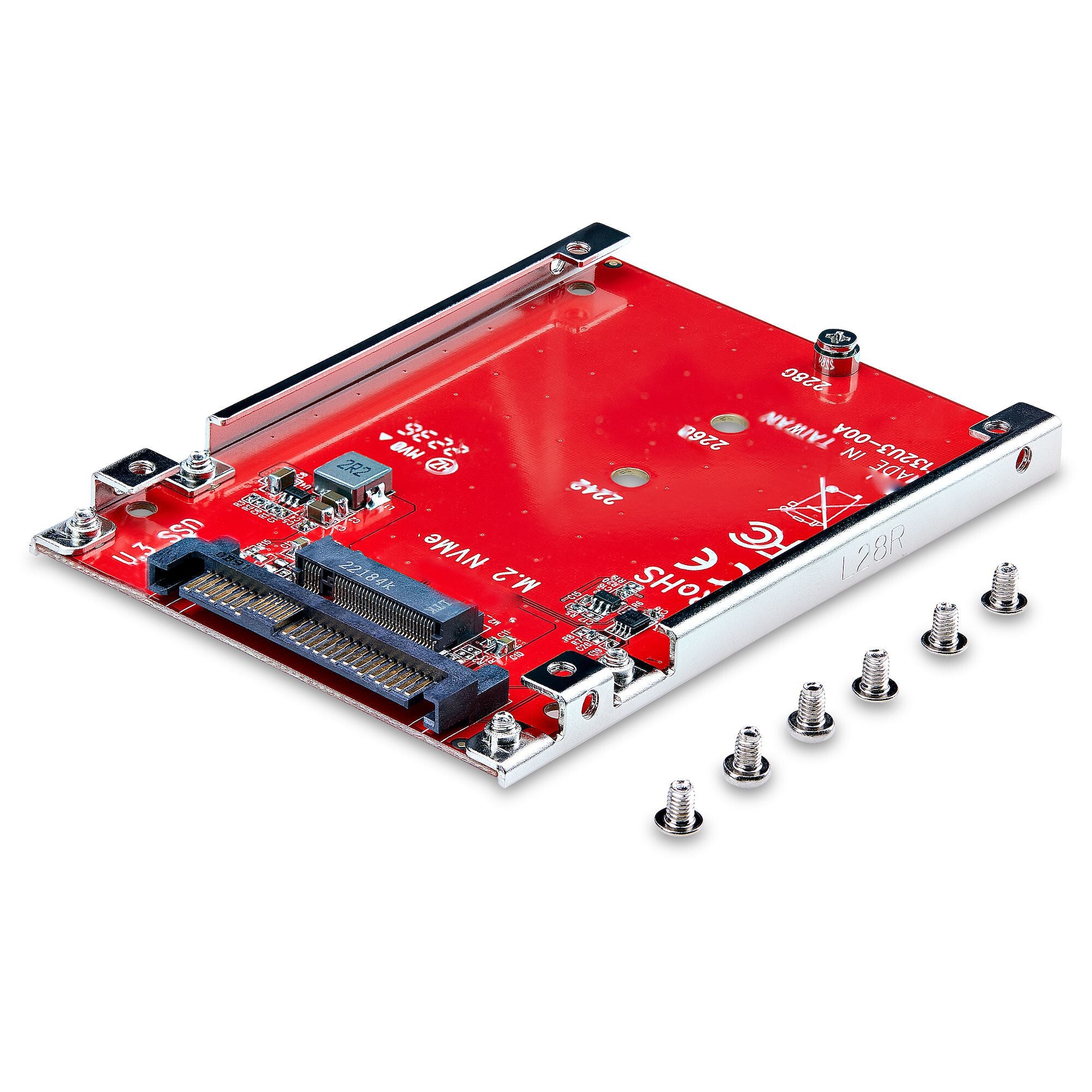

The M.2 to U.3 Host Adapter is compatible with all operating systems, including Windows, macOS, and Linux. No additional drivers or software for installation and operation. The adapter includes M.2 drive and U.3 adapter mounting hardware.
Compatibility

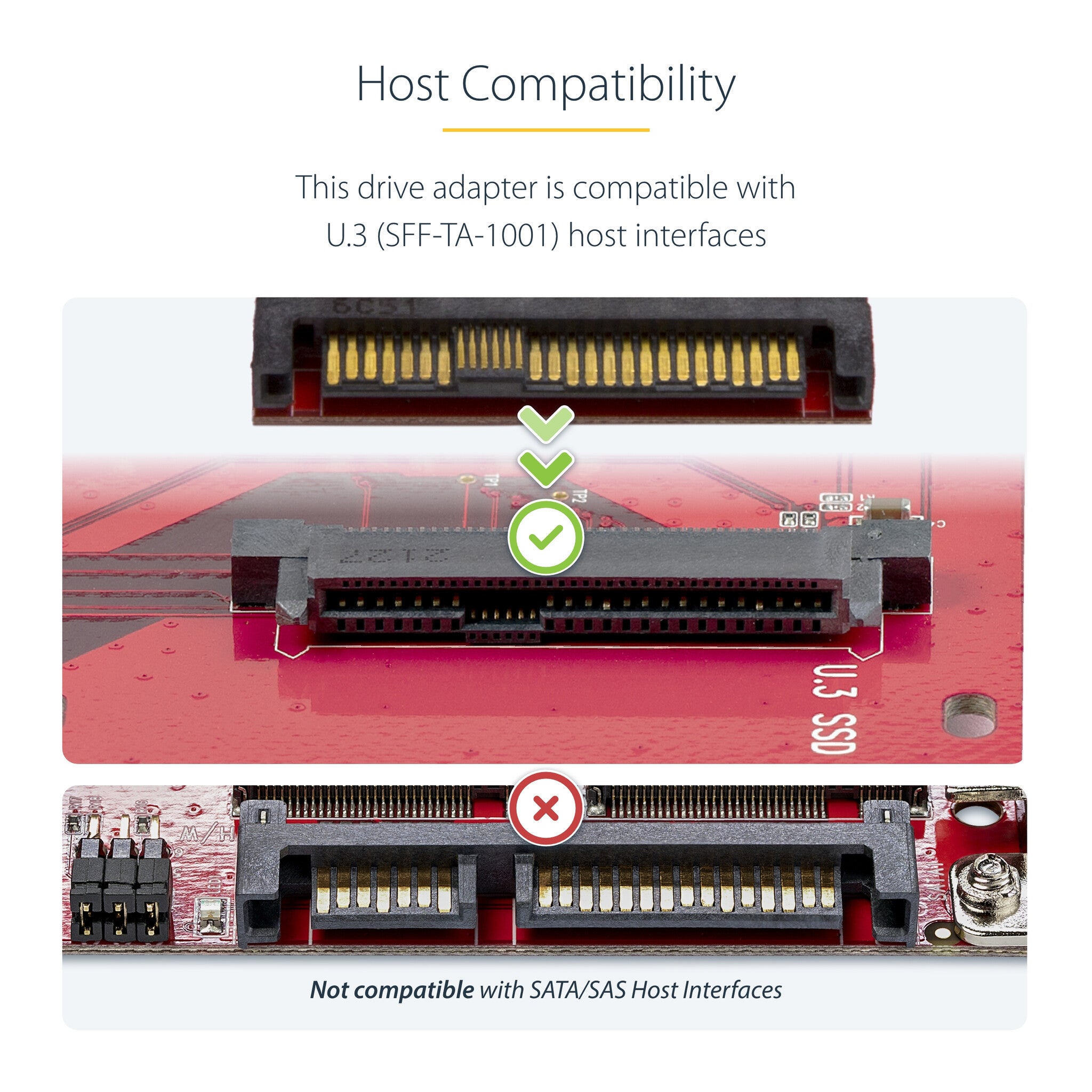

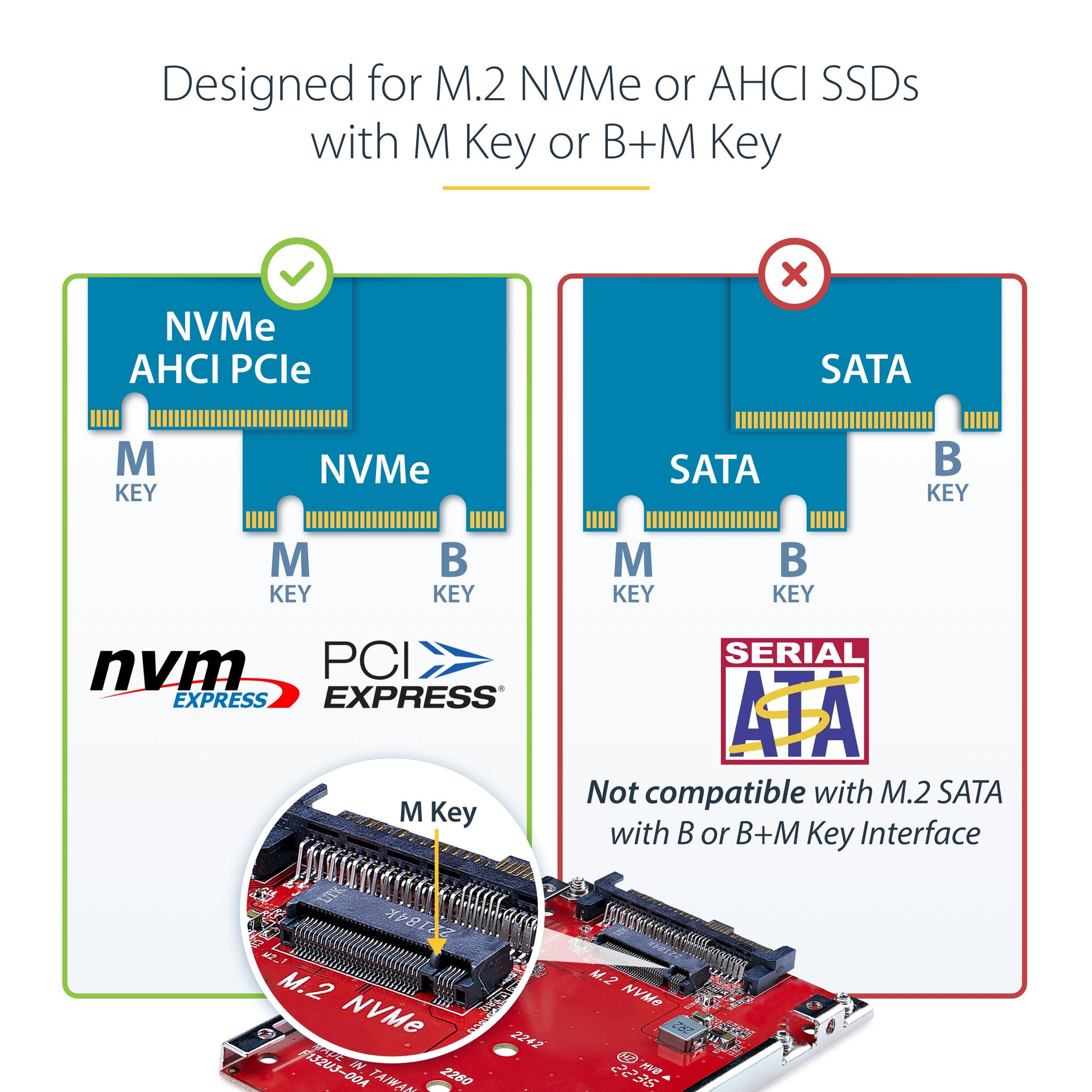

The M.2 to U.3 Host Adapter is backward compatible with earlier versions of M.2 PCIe NVMe drives. It is not compatible with SATA or SAS host controllers, M.2 SATA SSDs, or U.2 host interfaces.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Output interface | M.2 |
| Host interface | U.3 |
| Design | |
|---|---|
| Mean time between failures (MTBF) | 12368734 h |
| Purpose | PC |
| Product colour | Red |
| Internal | Yes |
| Features | |
|---|---|
| Plug and Play | Yes |
| S.M.A.R.T. support | Yes |
| Power | |
|---|---|
| Output current | 5 A |
| Output voltage | 3.3 V |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 15 - 90% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 37 g |
| Height | 7 mm |
| Depth | 100 mm |
| Width | 70 mm |
| Packaging data | |
|---|---|
| Package weight | 100 g |
| Package height | 30 mm |
| Package depth | 175 mm |
| Package width | 142 mm |
| Quick installation guide | Yes |
| Logistics data | |
|---|---|
| Master (outer) case height | 312 mm |
| Master (outer) case length | 381 mm |
| Master (outer) case width | 490 mm |
| Products per master (outer) case | 60 pc(s) |
